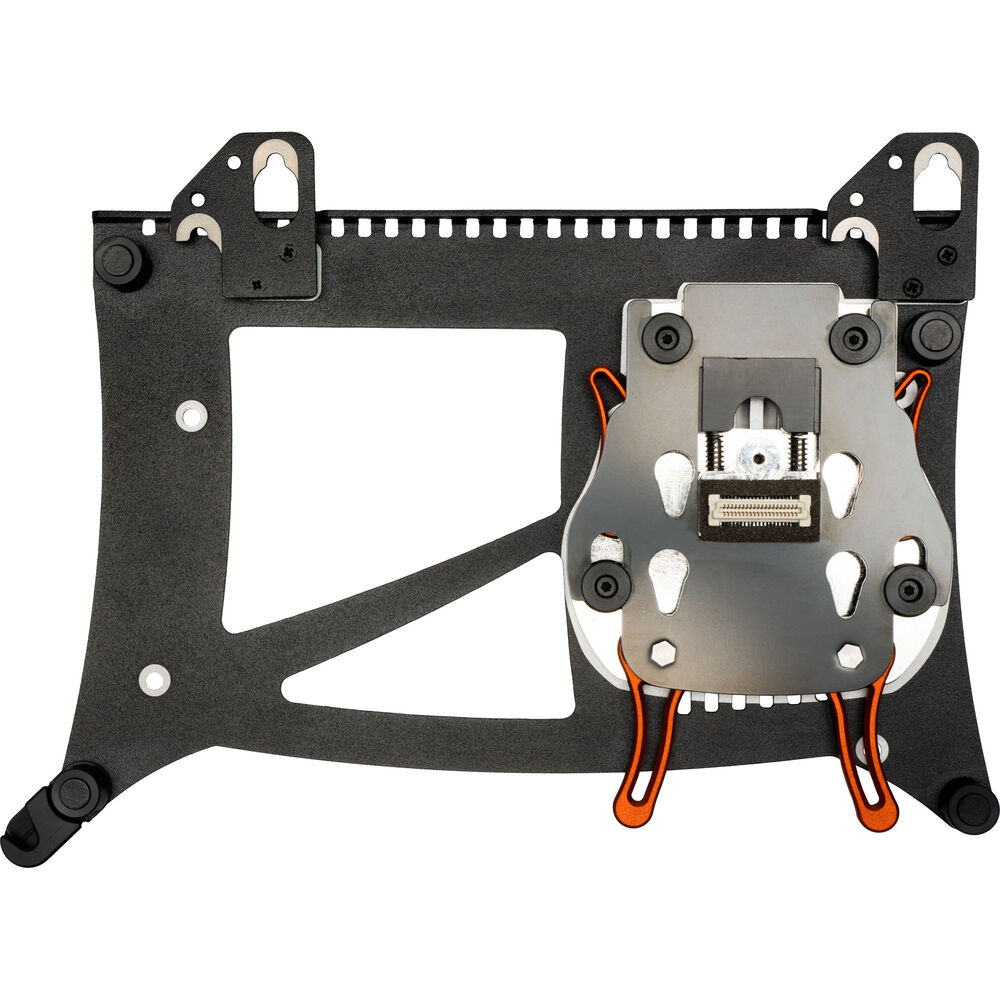

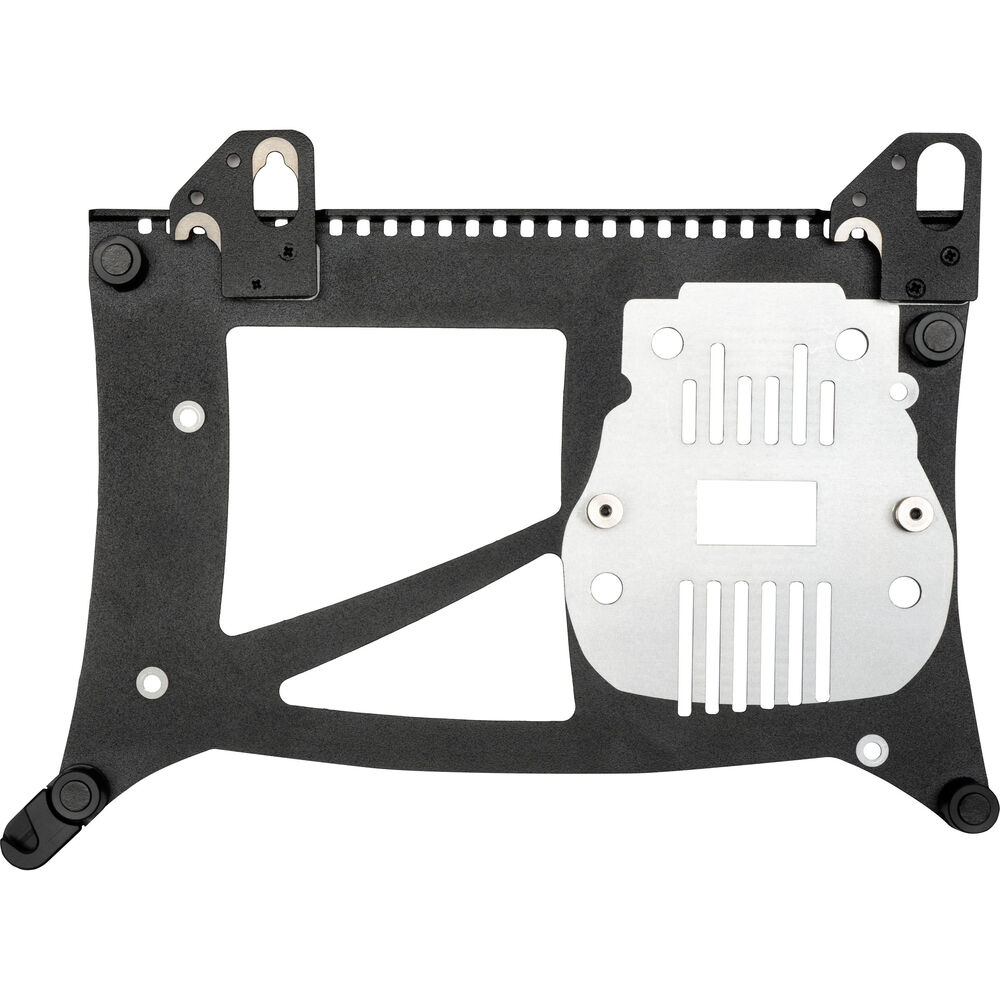

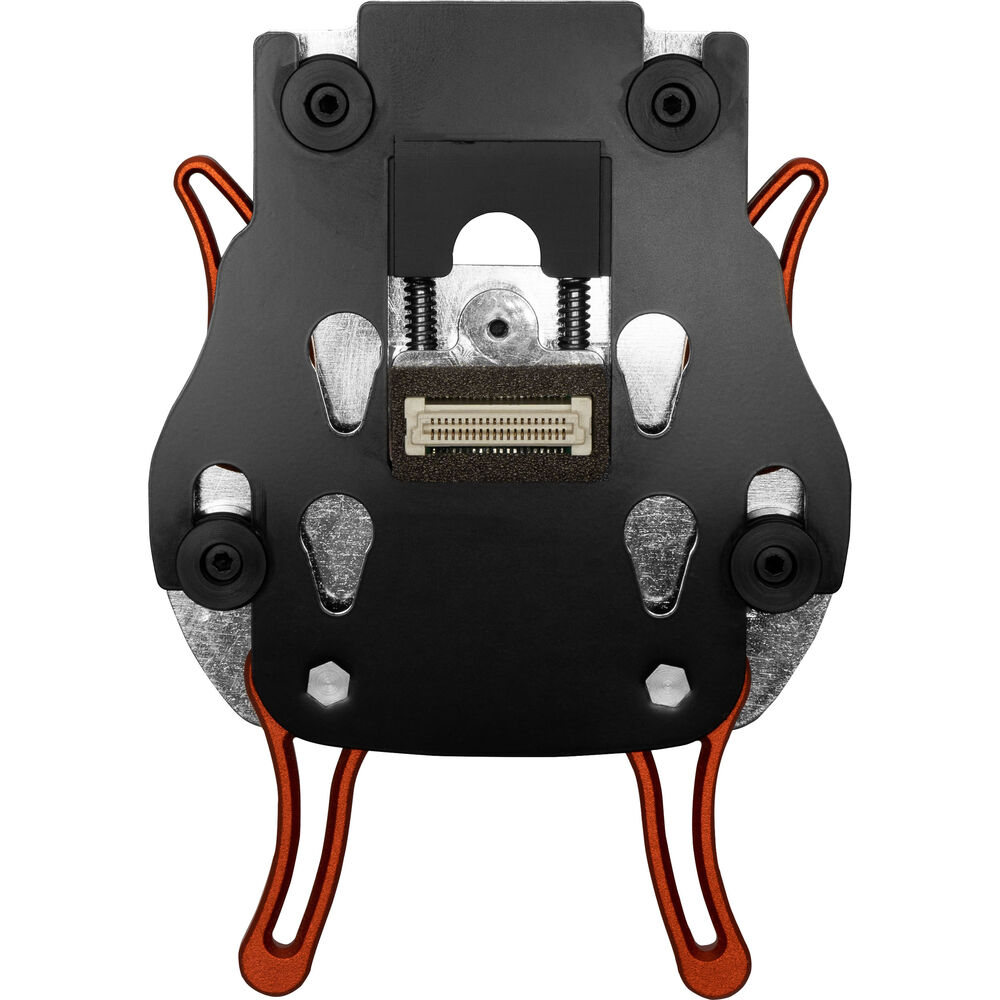

Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders
Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders

Sound Devices A20-QuickDock for A20-Nexus and 8-Series Mixer-Recorders

Brand: SOUND DEVICES

MFR: 11558

2,783.00 ﾹ

  • Dock A20-Nexus Receiver to Field Mixer
  • For 833, 888 & Scorpio Mixer/Recorders
  • Cable-Free Power, Audio and Timecode
  • Connects/Disconnects in Seconds
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

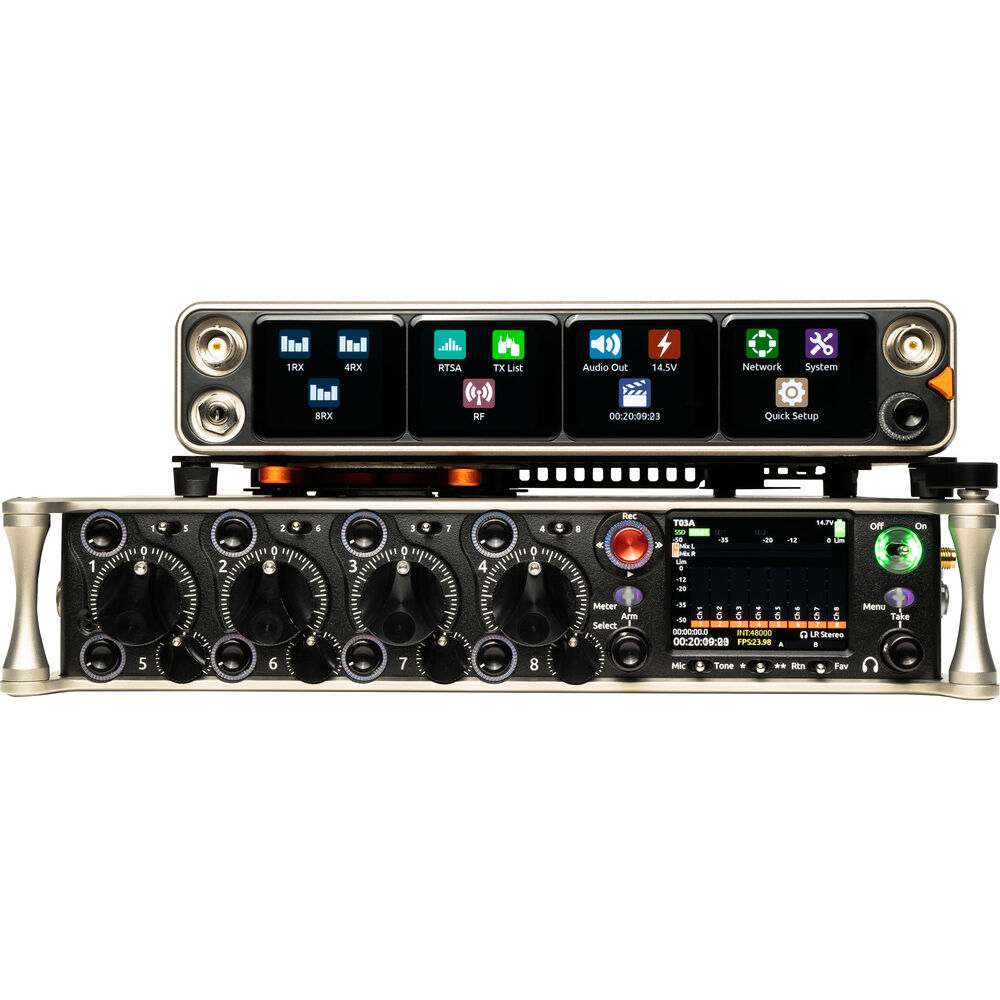

Dock your A20-Nexus to a Sound Devices 833, 888, or Scorpio mixer-recorder using the A20-QuickDockaccessory, which provides convenient cable-free power, audio, and timecode connections. The dock's quick-release mechanism allows the A20-Nexus to connect and disconnect from the 833, 888, or Scorpio with no tools, for easy remote mounting in seconds.

Go Cableless

When the A20-Nexus is Docked to an 8-Series:

  • Power must be provided by the 8-Series—A20-Nexus power inputs (TA4 and PoE+) are disabled.
  • The A20-Nexus and its NexLinked transmitters are controlled from the A20-Nexus front panel or its web app. The 8-Series user interface is not used for control.
  • Most A20-Nexus rear panel connectors are disabled apart from the antenna connectors, the USB-A port, and the Ethernet ports.
  • When docked to an 8-Series, the A20-Nexus Ethernet ports can only be used for control, not Dante.

Dock the A20-Nexus to an 8-Series and Use USB to:

  • Pair A20-Mini transmitters to the A20-Nexus by connecting a USB-C cable from the transmitter to the USB-A port.
  • Attach a USB keyboard for entering text directly (e.g. receiver channel names) into the A20-Nexus.
  • Mount a USB thumb drive for updating A20-Nexus firmware.
  • Sync 8-Series timecode to an A20-Mini via the A20-Nexus.

Sound Devices A20-QUICKDOCK Specs

General

CompatibilitySound Devices A20-Nexus
Sound Devices 833
Sound Devices 888
Sound Devices Scorpio
