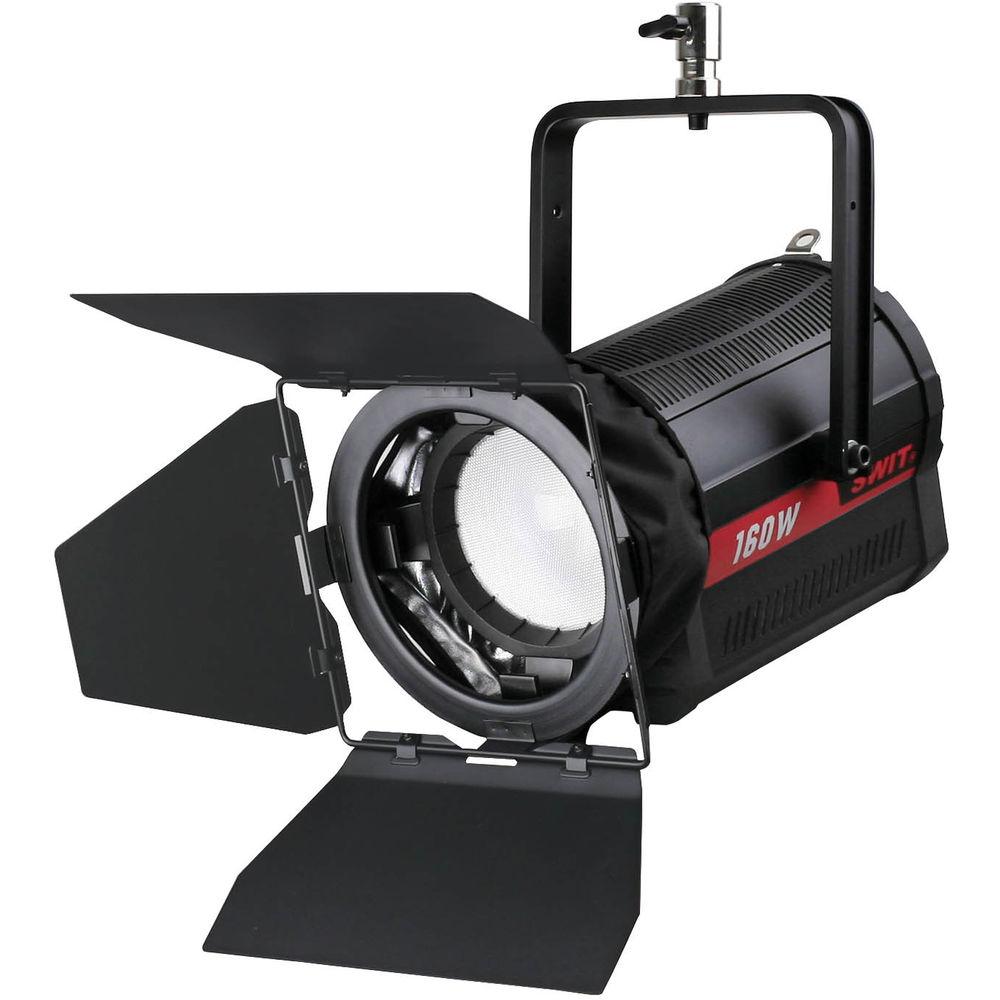

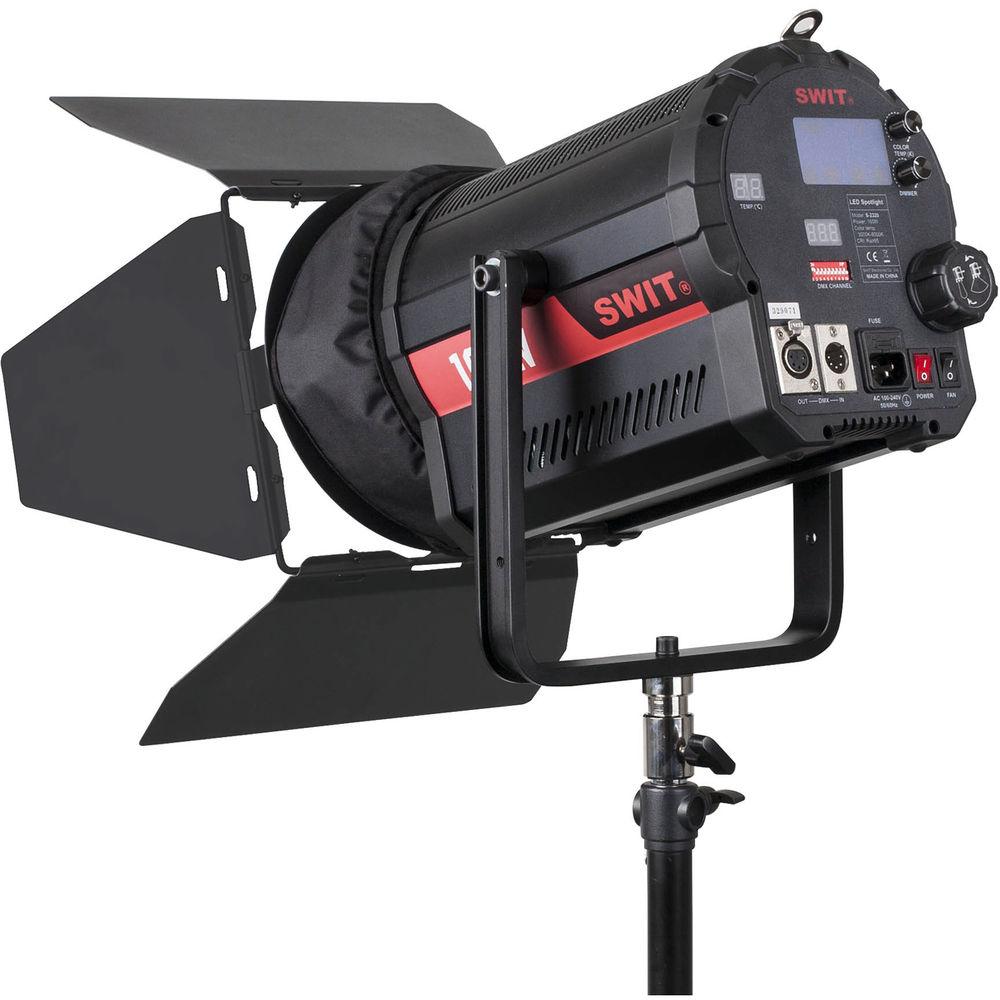

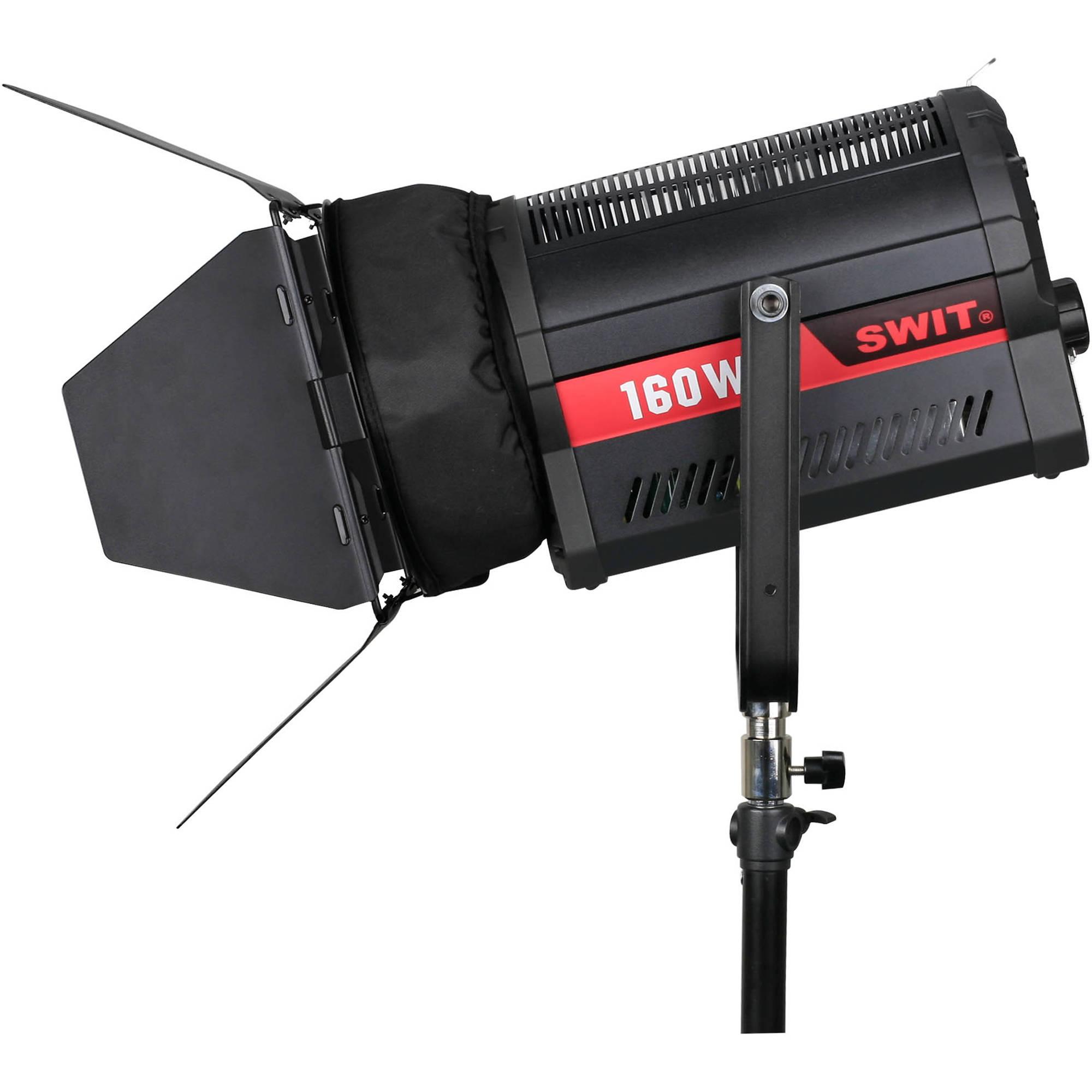

SWIT S-2320 160W Bi-Color Studio LED Spotlight
SWIT S-2320 160W Bi-Color Studio LED Spotlight
SWIT S-2320 160W Bi-Color Studio LED Spotlight
SWIT S-2320 160W Bi-Color Studio LED Spotlight
SWIT S-2320 160W Bi-Color Studio LED Spotlight
SWIT S-2320 160W Bi-Color Studio LED Spotlight
SWIT S-2320 160W Bi-Color Studio LED Spotlight
SWIT S-2320 160W Bi-Color Studio LED Spotlight

SWIT S-2320 160W Bi-Color Studio LED Spotlight

Brand: SWIT

MFR: S2320

SKU: SF-2443-XMQX

Price Available Upon Request
  • 160W Bright COB LED Light
  • 20-70° Adjustable Spot/Flood
  • 3000-8000K Continuously Adjustable
  • 0-100% Flick-Free Dimming
  • CRI: ≥ 95, TLCI: ≥ 95
  • DMX512 Controlled Color and Dimmer
  • LCD Display for Color and Dimmer Value
  • Silent Mode by Switching Fans Off
  • 4-Leaf Metal Barndoors
  • U-Shape Support & Lighting Tripod Mount

Items Included

  • SWIT S-2320 160W Bi-Color Studio LED Spotlight
  • U-shape bracket
  • Barndoors
  • Black-Out Cloth
  • AC Power Cable - 4m
(In Stock)
Request Now

Categories: LED Lights

Light your next production with the S-2320 160W Bi-Color Studio LED Spotlight from SWIT. The light features a 20-70° adjustable spot/flood, continuously adjustable 3000-8000K, 0-100% flick-free dimming, and a 95 CRI and TLCI. Color and dimming is DMX512 controlled, and LCD displayed. You will appreciate the silent mode, LED overheat protection, 4-leaf barndoors, and strong all-metal housing. Mounting is with a U-shape support.

Features
  • LED overheat detection and protection

  • S-2320 is a studio LED spot light, with Chip-on-board LEDs of 50,000 hours lifetime, and generates 160W light output, which is a useful light source for broadcast studio and field video productions.
DMX512 Control
S-2320 adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller. The dimmer and color temperature occupy 1 DMX address respectively. The DMX address is set by 10x binary DIP switchers, and displayed by LED.

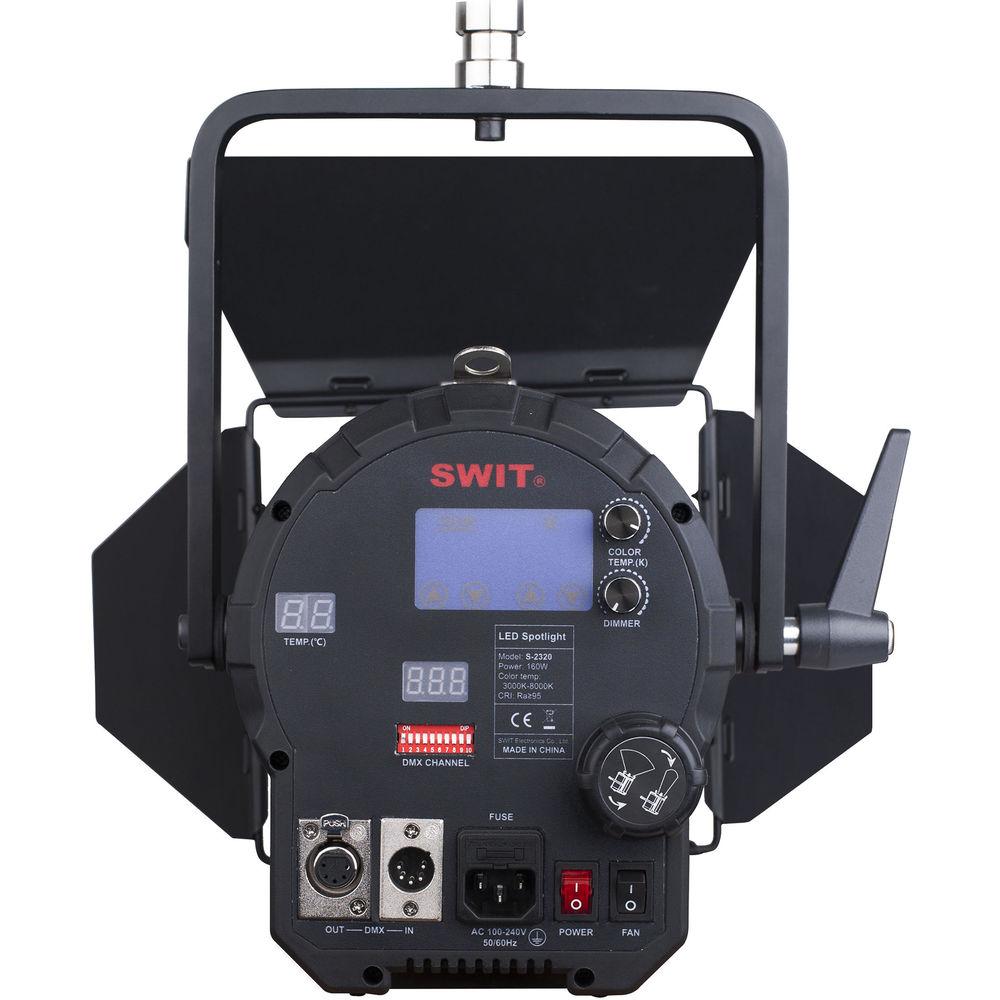

LCD Screen Display
The rear LCD screen can display the current dimmer percentage, color temperature value, and supports touch control to adjust.
Silent Mode
S-2320 adopts silent fans to radiate heat, which will not affect normal shooting environment to record audio. While in strictly silent required broadcast environment, S-2320 can be switched to "Silent Mode" to turn off the fans. And meanwhile, the max brightness will be reduced to 50%
Sleep Mode
S-2320 supports Sleep Mode: you can switch off the light by pressing the DIMMER knob, to enter Sleep Mode. And press the DIMMER knob again; the S-2320 can be quickly light up to the previous dimmer value.
4-leaf Metal Barn Door
S-2320 is equipped with 4-leaf metal barndoors, removable and rotatable. Meanwhile, the light provides a special black-out cloth to prevent the light leakage.

Light Fixture
Item Type
1x LED Spot Light
Included Light Modifier
1x Barndoors
Included Storage Case
No
Photometrics
20° at :
1504 fc / 16,200 Lux at 3.3' / 1 m*
167 fc / 1800 Lux at 9.8' / 3 m
61 fc / 666 Lux at 16.4' / 5 m
70° at :
456 fc / 4914 Lux at 3.3' / 1 m*
50 fc / 546 Lux at 9.8' / 3 m
18 fc / 196 Lux at 16.4' / 5 m

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
3000 to 8000K
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 95 at 5600K
Dimming
Built-In Dimmer (Continuous)
 • 0 to 100%
Cooling System
Fan
Beam Angle
20 to 70°
Built-In Flash
No
Preprogrammed Effects
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Mobile App Compatible
No
Power & I/O
Power Source
AC Power (Cable Included)
Inputs/Outputs
1x IEC Power Input
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
Input Power
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x USA Type-A/B to IEC Cable (13.1' / 4 m)
Inline Switch
No
Power Pass-Thru
No
Power Consumption
160 W
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
General
Display
LCD
Environmental Resistance
No
Materials
Metal (Housing)
Dimensions
15.4 x 14.6 x 12.6" / 39 x 37 x 32 cm (Fixture)
Weight
11 lb / 5 kg (Fixture)
Packaging Info
Package Weight
18.26 lb
Box Dimensions (LxWxH)
22.8 x 15.2 x 14"
