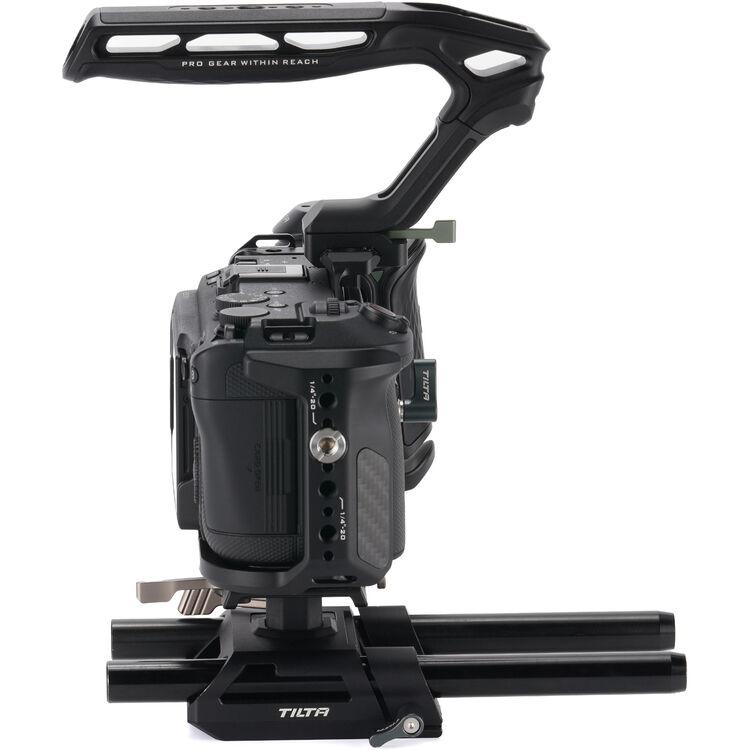

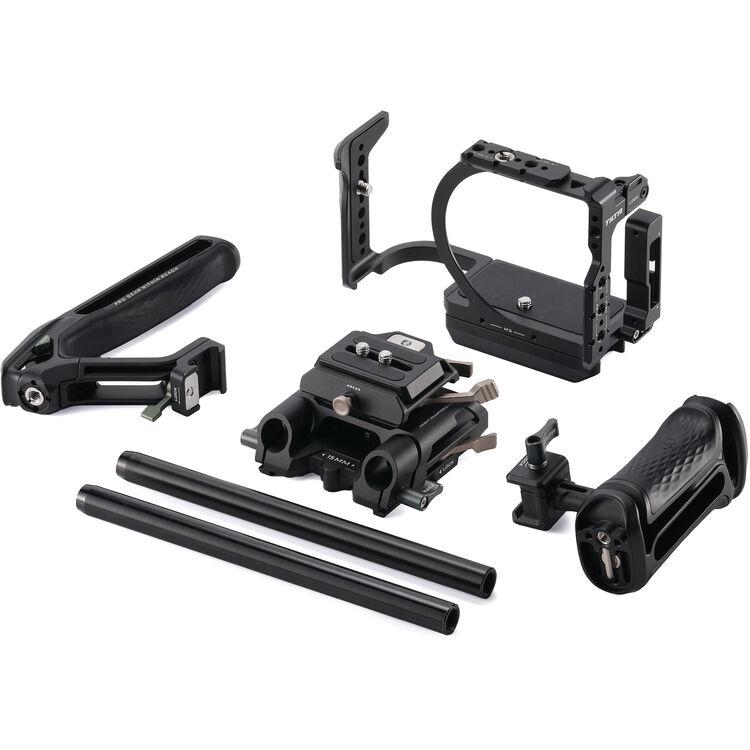

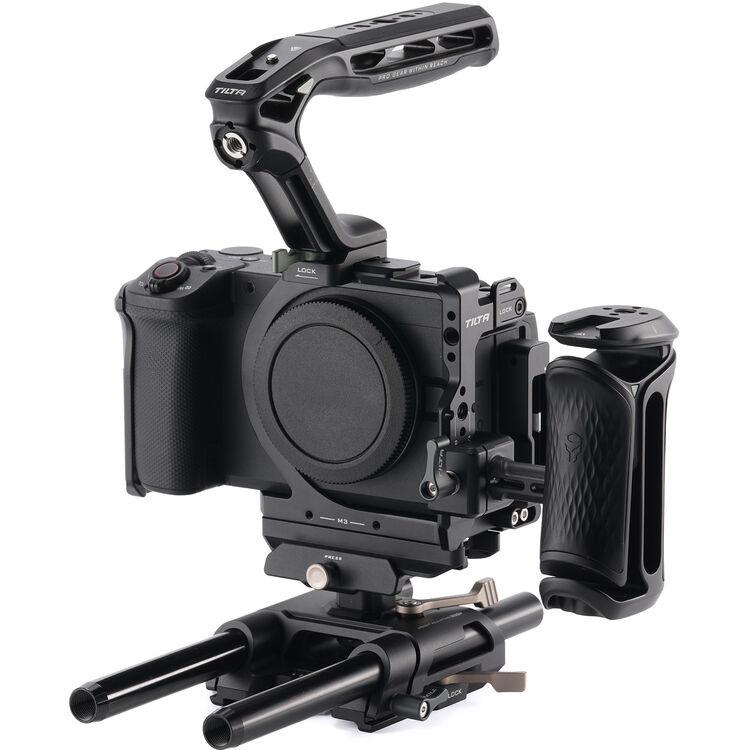

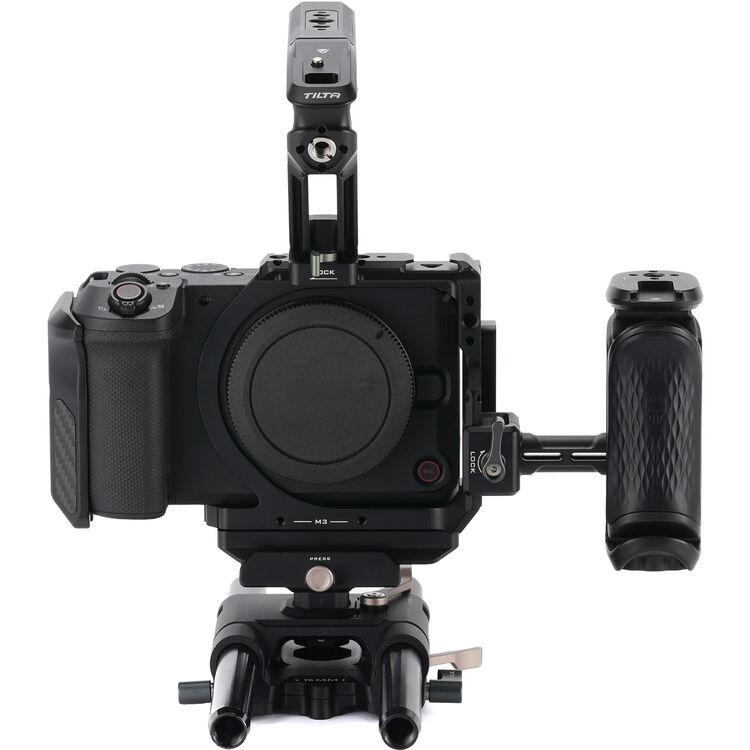

The Tilta Camera Cage Pro Kit for Canon EOS R6 V equips you with a full camera cage and additional accessories to create a rod-based camera rig. The full camera cage offers multiple 1/4"-20 and 3/8"-16 threads, a cold shoe mount, and NATO rail. The height-adjustable Arca-type 15mm LWS baseplate and 15mm rods can help you create a customized rod-based rig for your handheld shooting needs. The included top and side handles offer additional handholds for more stable handheld video capture.
This Full Camera Cage from Tilta is specifically designed for the Canon EOS R6 V to provide additional mounting points without obstructing access to the camera's ports and controls. The full camera cage features multiple 1/4"-20 and 3/8"-16 threads for integrating articulating arms, handles, and other accessories. A cold shoe mount and a NATO rail offer compatibility with other accessory types, such as wireless microphones.
An included bidirectional Arca-type plate allows you to quickly mount your camera onto gimbals and tripods for stabilized shooting. An HDMI cable clamp offers additional security for your HDMI port connection. An information label at the bottom of the cage allows you to write identifying information onto the camera body.
Integrate this black Tilta Xeno Top Handle into your camera cage configuration for improved low-angle shooting. The top handle secures to your cage via a NATO clamp. Multiple 1/4"-20 and 3/8"-16 threads throughout the handle allow you to attach articulating arms, cable clamps, or other accessories. A single cold shoe slot accommodates a shotgun microphone or wireless transmitter. The handle's silicone grip makes for an ergonomic and anti-slip handgrip.
This Height-Adjustable Arca-Type 15mm LWS Baseplate from Tilta features a 15mm LWS rod clamp baseplate to accommodate standard 15mm rods, and a quick release top plate is included for integration with Arca-type tripod systems. The system is height adjustable within a 0.78" range to accommodate a follow focus system or matte box, and it features a range of 0.71 to 1.5" from the rod center to the Arca receiver.
A dovetail clamp on the base is compatible with Tilta dovetail plates, and there are also 1/4"-20 threads on the bottom for mounting onto a tripod, plate, or rig. The Arca-type quick release plate features a 1/4"-20 screw to secure your camera. The baseplate can support a camera rig load weighing up to 10 lb.
Tilta's 8" Threaded 15mm Rod is a 8" rod with female threading on both ends. This allows you to use optional threaded rod adapters to extend the length. As a standard practice, Tilta chamfers one end of their rods and leaves the other end with a straight cut. The chamfering makes it easier to slide accessories onto the rod, while the end with the straight cut makes for a smoother rod join.
The rod is made from machined aluminum for a balance between weight and strength, and then anodized black for wear and corrosion resistance. Please note that there is no industry-wide standard for support rod threading, so when sourcing optional rod extenders, it is best to stay within one brand.
This black Xeno Side Handle with NATO Mount from Tilta mounts securely on the right or left side of your camera cage, offering improved handheld stability thanks to its NATO rail clamp with a lever lock. It has a comfortable, nonslip silicone grip and can be adjusted vertically up to 1.6" for optimal placement. The handle has one shoe mount and three anti-twist 1/4"-20 threads for mounting accessories and comes with a magnetic 3mm Allen key.
| Battery Plate Type | |
| Accessory Mounting | |
| Tripod Mounting | |
| Shoe Mounting | |
| Rosettes | |
| Rail Mounting | |
| Cable Clamp |
| Support Type | |
| Grip Type | |
| Camera Compatibility | |
| Materials | |
| Dimensions | |
| Weight |
