Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure
Ulanzi QT03 Docking Station with SSD Enclosure

Ulanzi QT03 Docking Station with SSD Enclosure

Brand: Ulanzi

MFR: QT03

SKU: A050

920.00 ﾹ

  • Up to 40 Gb/s USB4 Host Connection
  • Compartment for an Optional M.2 NVMe SSD
  • Supports SSD Drives up to 8TB
  • 1 x HDMI 4K60
  • 1 x USB-C PD 10 Gb/s & 80W Power
  • 1 x USB-C 10 Gb/s
  • 1 x USB-A 10 Gb/s & 1 x USB-A 5 Gb/s
  • 1 x 3.5mm Audio
  • 1 x SD & 1 x microSD 4.0 Card Slots
  • Ventilated Mesh Design with Built-In Fan

Items Included

  • Ulanzi QT03 Docking Station with SSD Enclosure
  • 2 x USB-C 40 Gb/s Cable
  • Wrench
  • 2 x SSD Mounting Screw
  • 2 x Thermal Pad
  • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: COMPUTER & EDITING , Notebook Accessories , Docking Stations

Combining external data storage with advanced port expansion, you can declutter your work space by using the QT03 Docking Station with SSD Enclosure from Ulanzi. The sleek aluminum station features a blazing fast USB4 host connection with up to 40 Gb/s of data transfer. Once connected to your laptop or desktop computer you'll get access to a variety of ports and the optional M.2 SSD stored inside. The M.2 SSD cavity can hold drives up to 8TB and the ports include two USB-C, two USB-A, HDMI 4K60, and 3.5mm audio ports, as well as an SD and microSD card slot. Everything is kept cool via the adjustable fan, aluminum bottom plate, and ventilated mesh design that optimizes airflow and heat dissipation.

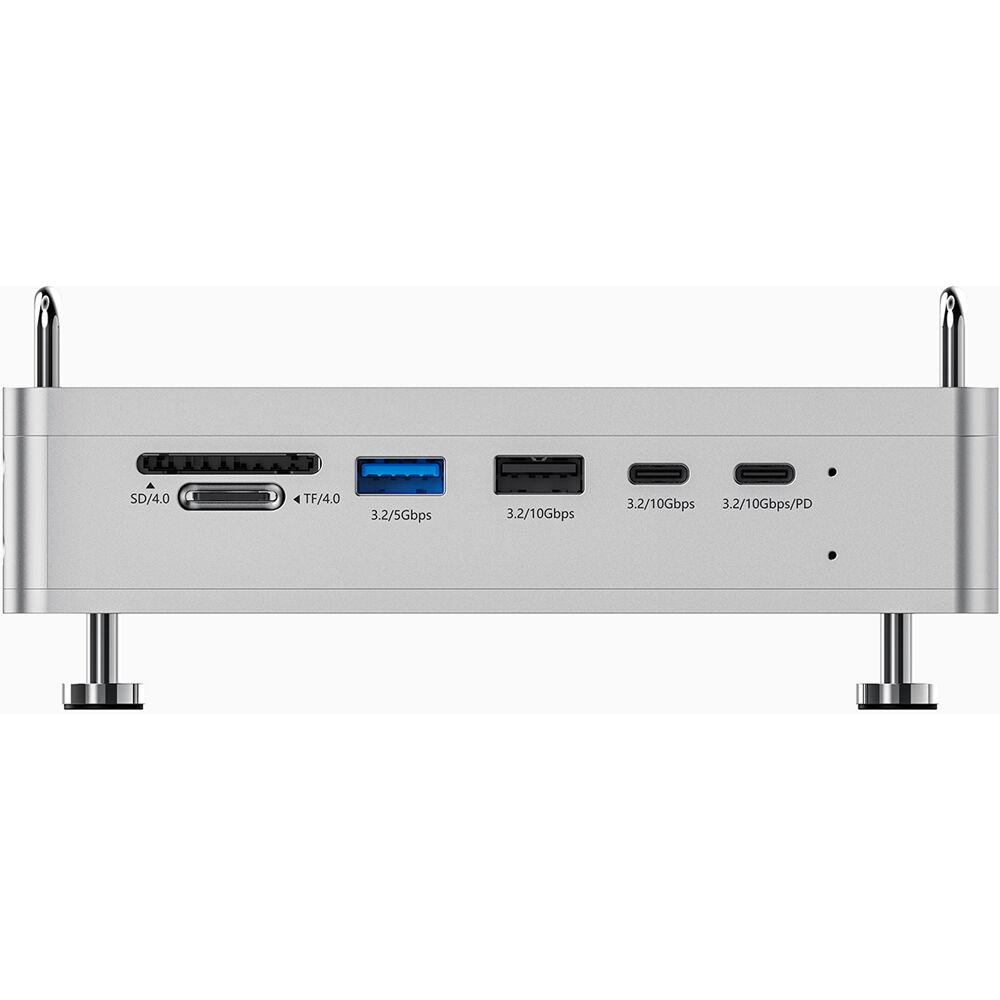

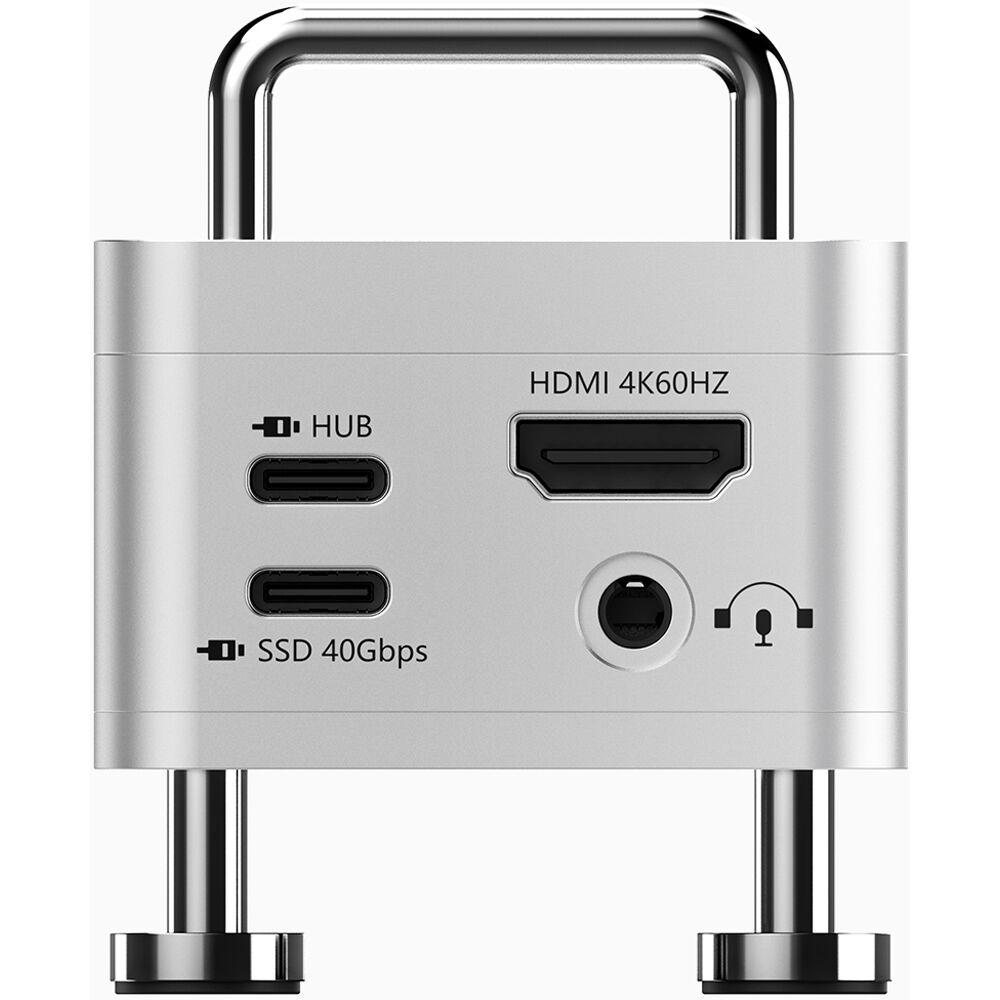

Connectivity Options
  • 1 x USB4 USB-C (up to 40 Gb/s, for host connection to PC)
  • 1 x USB-C (up to 40 Gb/s, for access to optional M.2 SSD)
  • 1 x USB-C PD 3.2 (up to 10 Gb/s and 85W power output)
  • 1 x USB-C 3.2 (up to 10 Gb/s)
  • 1 x USB-A 3.2 (up to 10 Gb/s)
  • 1 x USB-A 3.2 (up to 5 Gb/s)
  • 1 x HDMI 4K60
  • 1 x 3.5mm Audio Port
  • 1 x SD 4.0 Card Slot (up to 312 MB/s, for cards up to 2TB in size
  • 1 x microSD 4.0 Card Slot (up to 312 MB/s, for cards up to 2TB in size
Built-In Data Storage
Under the docking station is a compartment for an optional M.2 SSD drive, giving you access to up to 8TB of storage space without needing to accommodate an extra drive. The docking station supports M.2 NVMe SSD drives in 2230, 2242, 2260, and 2280 sizes with either an M or M+B keys. It does not support B-key M.2 drives.
Cooling Design
To keep your docking station and optional M.2 SSD cool, Ulanzi incorporates a bottom-mounted adjustable fan that pulls in air and runs it through the docking station, thanks to its ventilated mesh design. As it passes through, the bottom aluminum plate provides additional cooling via rapid heat dissipation.
Additional Details
  • Plug-and-Play compatible with MacOS, Windows, Linux, Android, and HarmonyOS
  • Powered by ASM2464PD and VL822-07T chips for stable high-speed transfers
  • Short circuit and over-current protection
  • Designed to perfectly fit as a base to the optional Ulanzi Mac Mini aluminum case

Video I/O
1x HDMI (Female)
Max Resolution
1 Display Supported:
3840 x 2160 at 60 Hz (Single)
Audio I/O
1x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
Network I/O
No
Media Card Reader
1x SDXC
1x microSDXC
Host Connection
USB-C (USB4) via Detachable Cable
Power Source
Bus Powered
Wireless Charging
No
Storage
1x M.2 Slot (Supporting Capacities up to 8 TB)
OS Compatibility
Computer: macOS / Windows / Linux
Mobile: Android Only
Enclosure Material
Aluminum
Lock Slot
No
Dimensions
5.6 x 2.4 x 2" / 143 x 61 x 50 mm
Weight
1.6 lb / 721 g

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Ulanzi QT03 Docking Station with SSD Enclosure
  • 2 x USB-C 40 Gb/s Cable
  • Wrench
  • 2 x SSD Mounting Screw
  • 2 x Thermal Pad
  • Limited 1-Year Manufacturer Warranty
