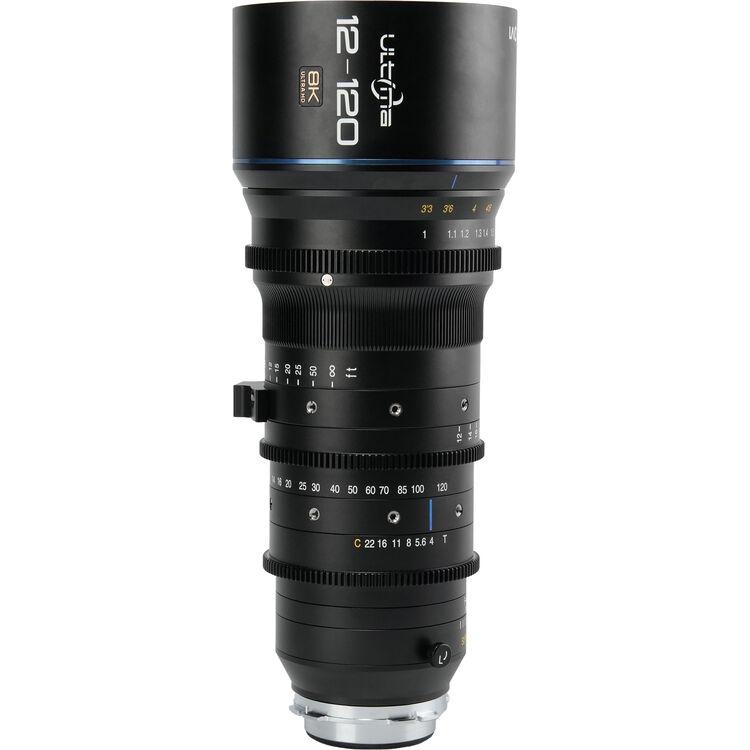

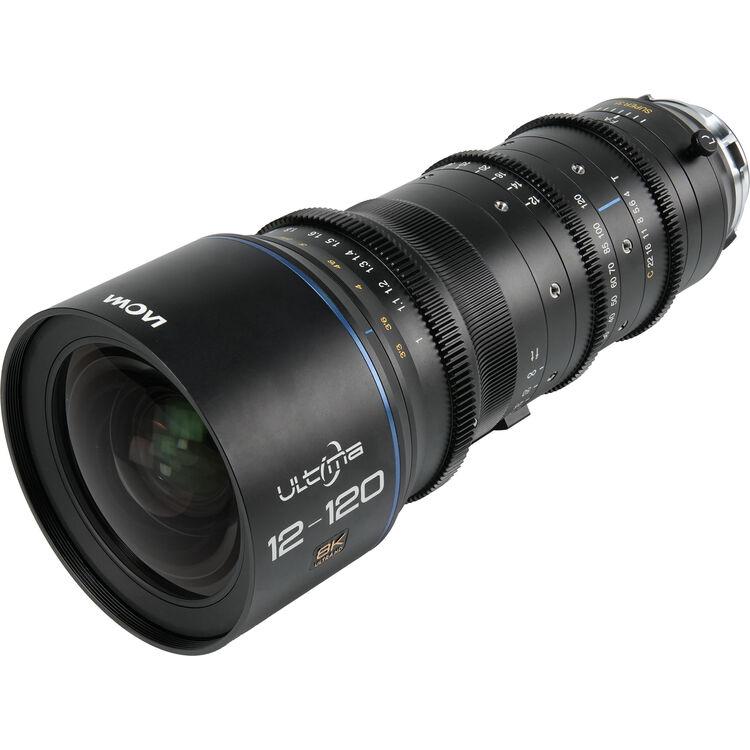

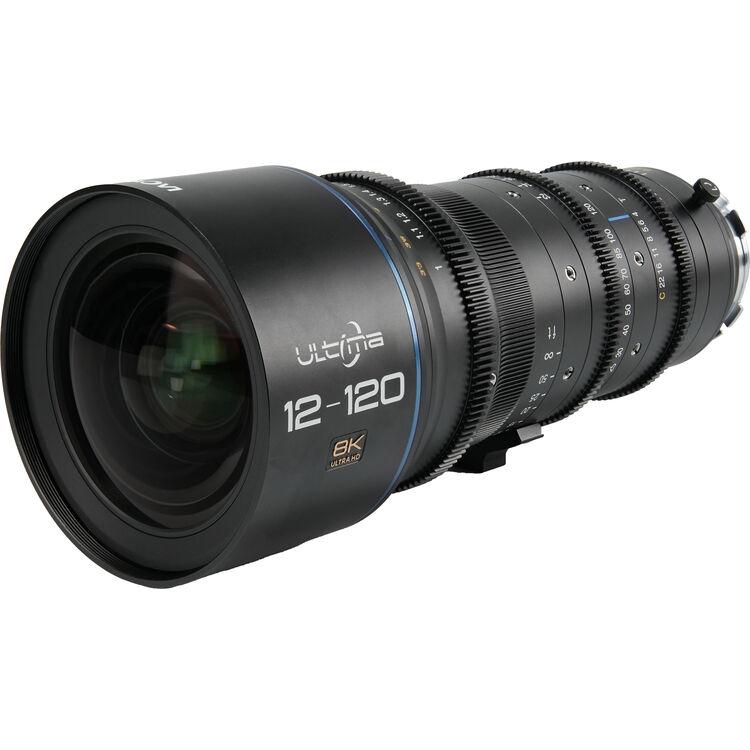

Venus Optics Laowa Ultima S35 12-120mm T4 Zoom Lens (ARRI PL)

Venus Optics Laowa Ultima S35 12-120mm T4 Zoom Lens (ARRI PL)

Name: Venus Optics Laowa Ultima S35 12-120mm T4 Zoom Lens (ARRI PL)
Brand: LAOWA
SKU: SF-2443-1DDN
Price: 55125 AED
Availability: InStock

Brand: LAOWA

MFR: VE1212040PL

SKU: SF-2443-1DDN

55,125.00 ﾹ

Covers Super 35 | T4-T22 Aperture Range
Wide Zoom Lens, Supports 8K Capture
0.8 MOD Gearing/180° Focus Rotation
114mm Front Outside Diameter
Servo Drive Available Separately
Covers up to 29.5mm Image Circle
Suitable for ENG and Fast-Paced Capture
Imperial and Metric Focus Marks
110mm Filter Thread
Includes Support Foot

Items Included

Venus Optics Laowa Ultima S35 12-120mm T4 Zoom Lens (ARRI PL)
Front Cap
Rear Cap
Support Foot

New Item - Coming Soon

Quantity

Categories: Lenses & Lens Accessories

S35 8K 10x Broadcast Zoom Lens

The Venus Optics Laowa Ultima S35 12-120mm T4 Zoom Lens supports up to 8K resolution video capture and offers a wide focal length range for Super 35 sensor cameras. It features a 10x zoom range, offering the flexibility needed for ENG, reality TV, documentaries, and other fast-paced productions. This ARRI PL-mount lens has a nine-blade iris that produces natural-looking bokeh and cine-standard gearing that is compatible with lens control accessories like follow focus units and lens control motors.

Super 35 Sensor Coverage

The Ultima 12-120mm covers a 29.5mm image circle throughout its zoom range, enabling you to use it to capture higher-resolution images on cameras with Super 35 sensors.

Separately Available Servo

Use this 12-120mm zoom with the separately available Movcam servo drive for ENG-style capture.

Cine-Style Design

Cine-standard focus, iris, and zoom lens rings enable you to use industry-standard lens control systems, such as follow focus units and lens control systems. The dual focus mark scale provides distances in both feet and meters.

Focal Length	12 to 120mm
Maximum Aperture	T4
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Super35/APS-C
Angle of View	Horizontal: 100.5 to 13.7°
Focus Scales	Metric, Imperial
Optical Design	28 Elements in 20 Groups
Filter Thread	110 mm
Zoom Ratio	10x
Minimum Focus Distance	From Camera Sensor: 39.4" / 1 m
Magnification	6:1 Macro Reproduction Ratio 0.16x Magnification
Aperture/Iris Blades	9
Image Stabilization	No
Lens Mounting	1x 3/8"-16
Gear Standard	Focus, Iris, Zoom: 0.8 MOD
Gear Rotation	Focus: 180° Iris: 35.5° Zoom: 125°
Electronic Communication	No
Diameter	Front: 4.5" / 114 mm
Length	11.1" / 282 mm
Weight	7.1 lb / 3.2 kg
