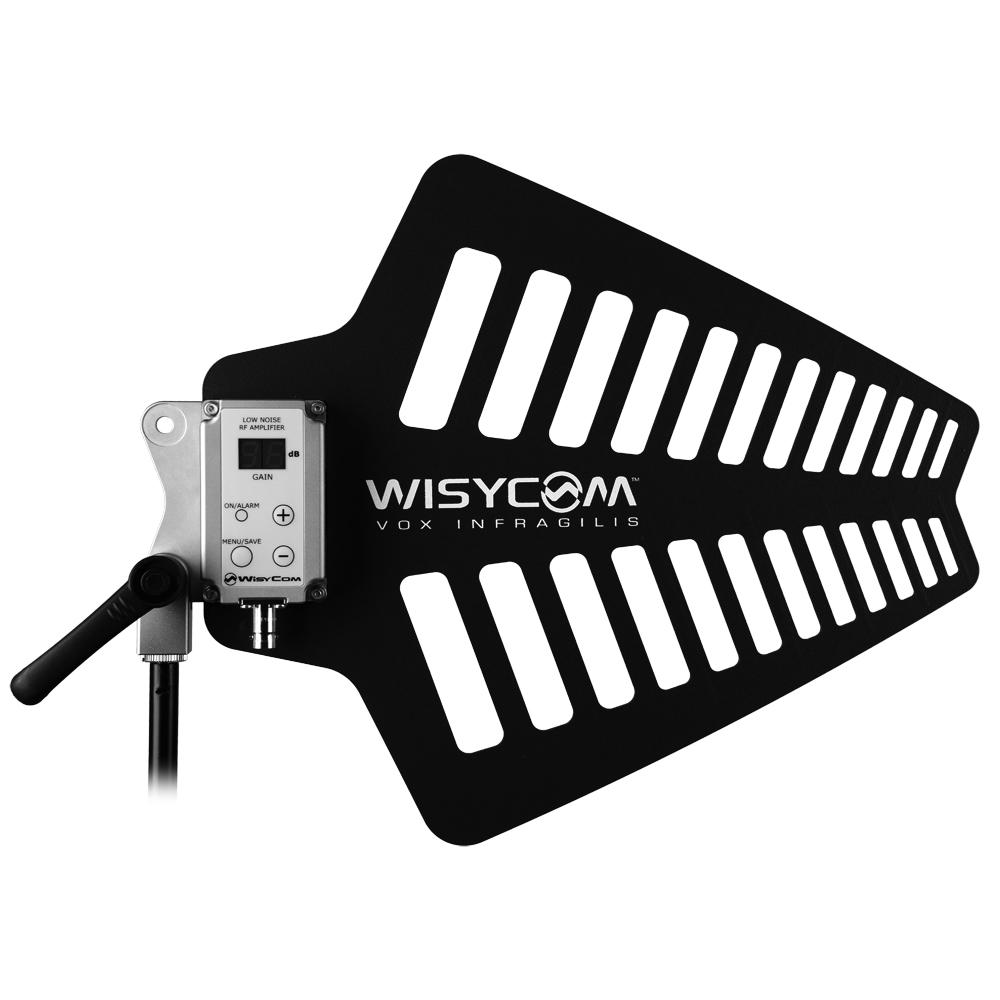

LBNA2/LNNA2 is a wideband UHF antenna LPDA (log periodic dipole Array).
It enhances reception providing approx. 6dB gain with a typical beam-width of 90 degrees.
Categories: Wireless Microphone Systems , Audio Cases & Accessories , Accessories
FEATURES
| Frequency ranges | 470 ÷ 870 MHz (420 ÷ 1300 MHz bypassed) |
| SWR | < 1:1.5; typ. = 1:1.4 |
| Polarization | Vertical |
| Radiation | Directional |
| Connector | N type (BNC adapter available) |
| Impedance | 50 Ω |
| Booster Gain: | 0 ÷ 15 dB (typical), selectable in step of 1 dB (+/- button) |
| Booster Gain flatness | ± 1 dB, in the whole working window |
| OIP3 | +43 dBm (Output 3° order Intercept Point) typical |
| Power supply | +12 V, 100mA |
| Material | epoxy fiberglass (copper – clad) |
| Finishing | black matte |
| Mounting | 5/8” with worth or 3/8” with adapter |
| Dimensions | 276 x 336 x 61 mm (HxWxD) |
| Weight | 560 g |
