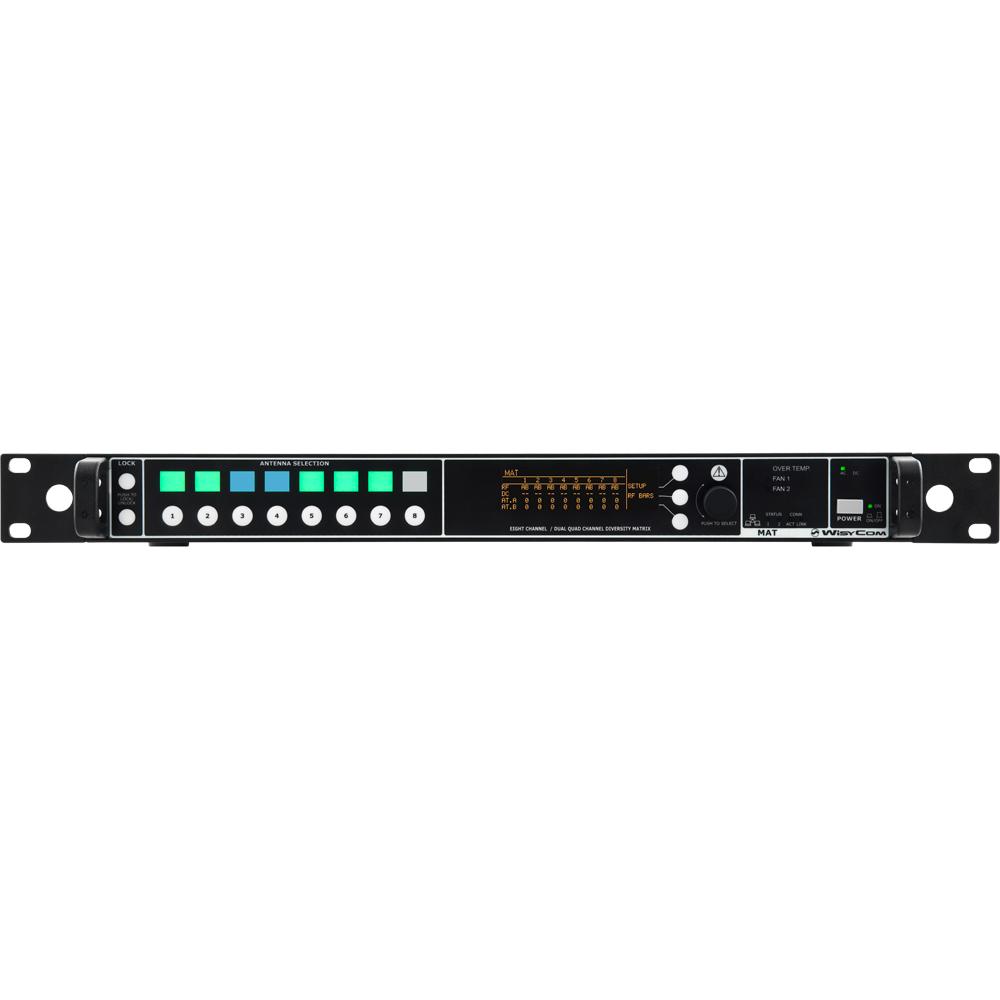

MAT244 is very flexible combiner especially designed to manage RF in a multi-site production environment.
It can:
– route RF in several possible configurations
– control antenna remotely,
– manage attenuation/boost for the different areas,
– monitor RF and interferences thru and integrated RF meter.
All of this can be done remotely thanks to an Ethernet interface and a very intuitive PC software.
MAT244 can be configure locally of by SW as a diversity combiner 4:2 with 6dB gain or in a non-diversity combiner 8:4 / 8:1
Categories: Wireless Microphone Systems
FEATURES
| Frequency ranges | 150 ÷ 840 MHz (MAT244) 150 ÷ 960 MHz (MAT244X) 150 ÷ 1160 MHz (MAT244X1) |
| Input/output gain | 7 dB (Combiner 8:1) 0 dB (Combiner 8:4) 7 dB (Combiner 4:2) |
| OIP3 | 30 dBm typ. (Combiner 8:1) 24 dBm typ. (Combiner 8:4) 30 dBm typ. (Combiner 4:2) |
| Amplifier linearity | ± 1 dB (typical) |
| Noise figure | 5.5 dB (each channel) |
| Antenna booster powering | +12Vcc / 800mA MAX for ports 1A, 1B [2x4:2 conf] or for port 1,5 [other configuration] +12Vcc / 230mA MAX (other ports) |
| Connector | input: 8 BNC-F output: 4 BNC-F |
| Impedance | 50 Ω |
| Managing interface | 10/100 Base TX Ethernet port |
| Display | 64 x 256 OLED (yellow) |
| Power supply | AC connector 90÷264Vac /47÷63Hz, (fuse protected) T2A-50W max |
| Temperature range | -25 ÷ +55 °C |
| Material | aluminum |
| Finishing | black varnish |
| Dimensions | 44 x 483 x 398 mm (HxWxD) |
| Weight | 3,7 Kg |
