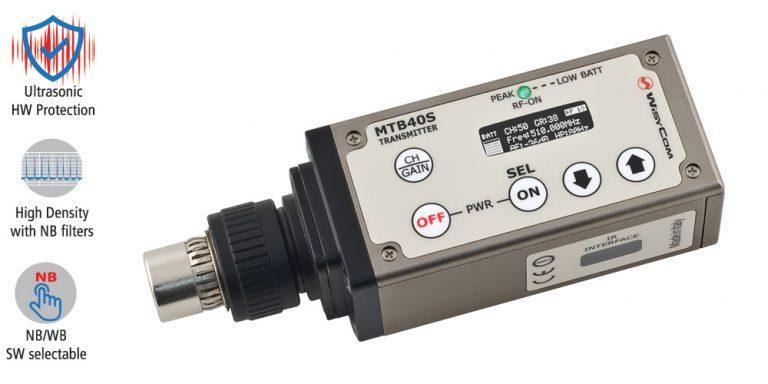

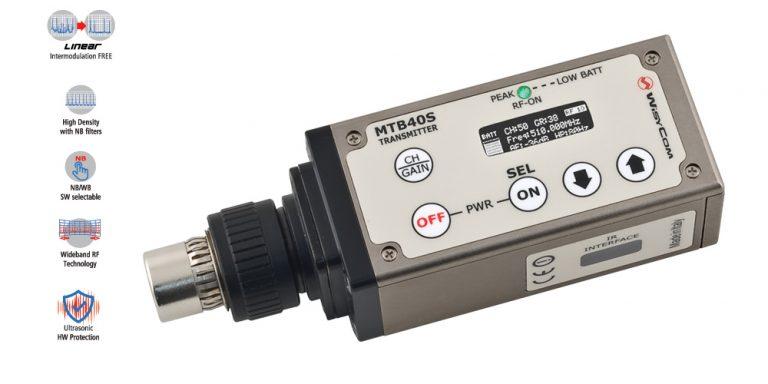

WISYCOM MTB40S-UHF Plug-on Transmitter MTB40S-EU_B7
WISYCOM MTB40S-UHF Plug-on Transmitter MTB40S-EU_B7
WISYCOM MTB40S-UHF Plug-on Transmitter MTB40S-EU_B7
WISYCOM MTB40S-UHF Plug-on Transmitter MTB40S-EU_B7
WISYCOM MTB40S-UHF Plug-on Transmitter MTB40S-EU_B7
WISYCOM MTB40S-UHF Plug-on Transmitter MTB40S-EU_B7

WISYCOM MTB40S-UHF Plug-on Transmitter MTB40S-EU_B7

Brand: Wisycom

MFR: MTB40S-EU B7-UN-PV-LI-NB

SKU: SF-2443-8U6Q

4,895.00 ﾹ

MTB40S-UN “Ultrasonic Narrowband” option is an extremely small and light pocket transmitter specially designed for professional wireless microphone applications.

The continuous shrinking spectrum has given us the opportunity to find new solutions and face the upcoming problems related to noise, interferences, and reduced working bandwidth.

Our new UN “Ultrasonic Narrowband” technology, allows:

  • Absolute protection from Ultrasonic interference (e.g. next-gen camera range trackers) thanks to a dedicated 70 dB filter
  • Narrowband operations, to operate using half of the bandwidth and have an extra 50% range.
  • Commute by SW to a wideband mode for compatibility with legacy Wisycom system
(In Stock)
Quantity

Categories: Wireless Microphone Systems , Audio Cases & Accessories , Cables & Adapters , Audio Connectors , Accessories

MAIN FEATURES:

  • It provides the widest switching bandwidth available, up 232 MHz range to find the best frequency, anywhere in the World.
  • It mount the best selective audio filter to avoid any ultrasonic interference
  • Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate several transmitters within closeproximity to each other.
  • The combination of Narrowband and Linear transmitters allow you to tune every 200kHz and the reduced RX bandwidth gives 3dB uplift in sensitivity.
  • Switching by SW in “wideband” mode”, MTB40S-UN mantains full compatibility with all previous Wisycom legacy receivers
  • The transmitter is designed for maximum performance with minimal power consumption which generates less heat – it is always comfortable to wear or operate.
  • ENC and ENR algorithms for perfect audio in any application almost delay free with create and shape presets for the desired sound

  • model number: MTB40S-EU_B7-UN-PV-LI-NB
  • frequency range: B7 option (470 to 663 MHz)
  • switchable channels: 2400 managed in 40 groups of 60 frequencies completely user customizable
  • switching-window: up to 232 MHz, depending on band
  • frequencies: Quartz PLL frequency synthesizer circuit (25 kHz step)
  • frequency error: ± 2.5 ppm, in the rated temperature range
  • RF power: switchable typ. 20 mW / L20 mW / 50 mW
  • modulation: wideband FM, with pre-emphasis
  • nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
  • peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
  • spurious emissions: < 2 nW
  • telemetry feature: TX transmits also a digitally modulated sub-carrier, suitable for tone-squelch operating, remote battery monitoring, optional PTT (push to talk) operation
  • noise reduction system: ENR (Wisycom Extended-NR), with independent Attackand Recovery-time, noise optimized
  • noise reduction system: ENC (Wisycom Extended-NC), with independent Attackand Recovery-time, voice optimized & with reduced pre-emphasys
  • AF bandwidth in NarrowBand mode (NB): 45 Hz to 17 KHz (3dB)
  • distortion: < 0.3% (0.15% typ.)
  • SND/D ratio (Analogue) typ. 115 dB (A)rms with 40 kHz deviation, typ. 121 dB (A)rms with 56 kHz deviation Wideband
  • SND/D ratio (Analogue) typ. 115 dB (A)rms with 25 kHz deviation, typ. 121 dB (A)rms with 35 kHz deviation Narrowband
  • audio input connector: XLR-3F (transformer isolated) with locking collar and 48V phantom power
  • audio input level: from -54 dBu (775 uV) to 26 dBu (15.5 V) at peak deviation (1 kHz), adjustable in 1 dB steps
  • max input level: +26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
  • managing interface: IrDA
  • RGB led indication wireless transmission status: GREEN on / RED off
  • RGB led indication battery lifetime status: GREEN steady (> 25%), slowly blinking (< 25%), quickly blinking (<12%)
  • RGB led indication modulation peek (if activated & the limiter is disabled): RED
  • RGB led indication limiter into action: BLUE
  • battery lifetime indication: 8 steps: 7 bars (100%-87%-75%-63-50%-38%-25%) and "empty bar" quickly blinking (12% remaining)
  • display: high contrast OLED white display (128 x 32 pixels)
  • power supply: 2x AA size cell (Alkaline, rechargeable NiMH or Lithium)
  • phantom power to mic: max 4mA
  • temperature range: -10 to +55 °C
  • weight: approx. 210g without batteries (250g with batteries)

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Related products

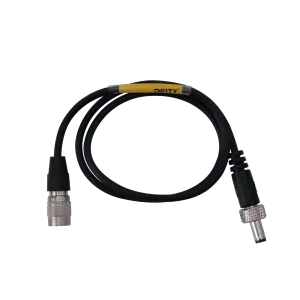

Deity Microphones SPD-HRDC 4-Pin Hirose to 5.5mm Locking DC Barrel Jack Cable
Deity Microphones SPD-HRDC 4-Pin Hirose to 5.5mm Locking DC Barrel Jack Cable
(0)

100.00 ﾹ

In Stock
Deity Microphones SPD-HRISO 4-Pin Hirose Inline Power Isolator Cable
Deity Microphones SPD-HRISO 4-Pin Hirose Inline Power Isolator Cable
(0)

285.00 ﾹ

In Stock
Deity Microphones SPD-T4DT TA4F to D-Tap DC Power Cable
Deity Microphones SPD-T4DT TA4F to D-Tap DC Power Cable
(0)

100.00 ﾹ

In Stock
Deity Microphones SPD-HRT4 Hirose 4-Pin to TA4F Connector Cable
Deity Microphones SPD-HRT4 Hirose 4-Pin to TA4F Connector Cable
(0)

100.00 ﾹ

In Stock

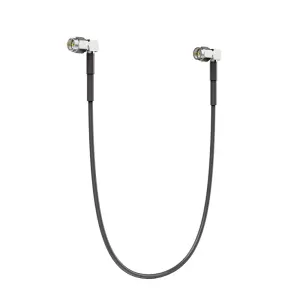

Deity Microphones Right-Angle SMA to Right-Angle SMA RF Cable (45cm)
