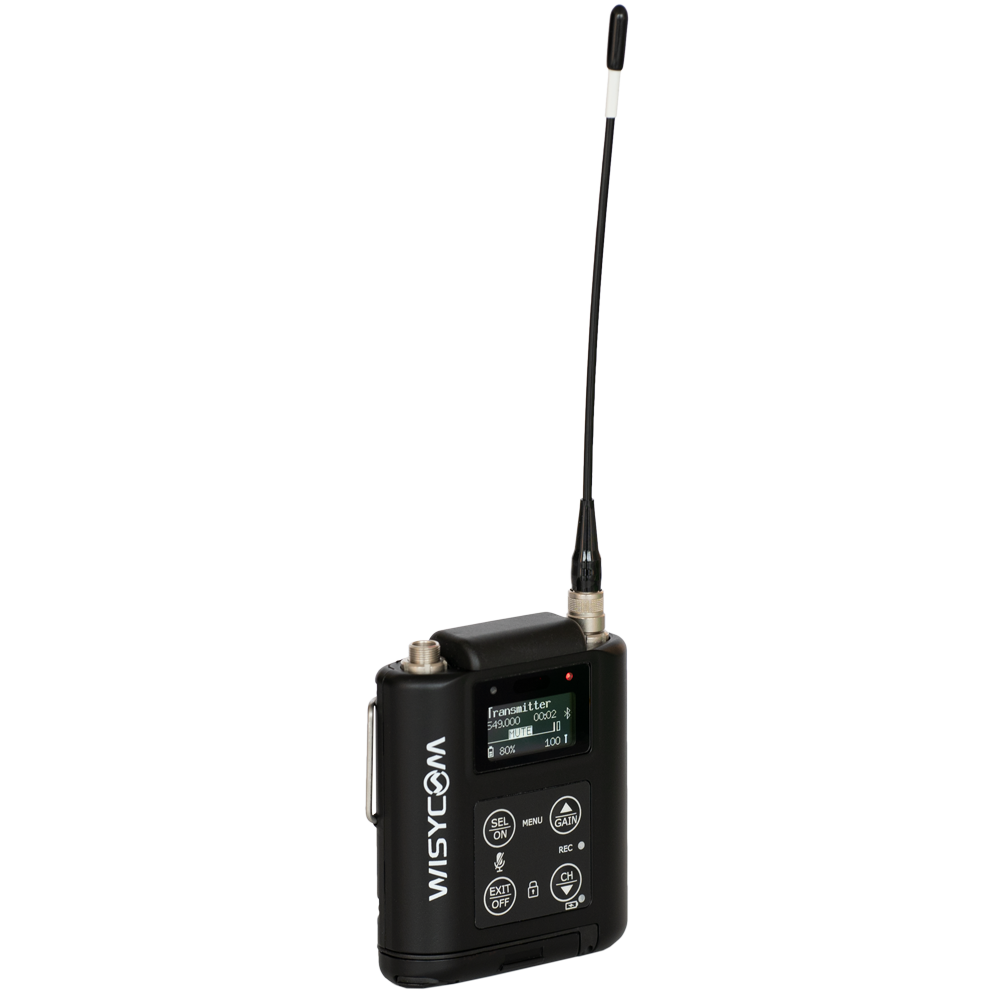

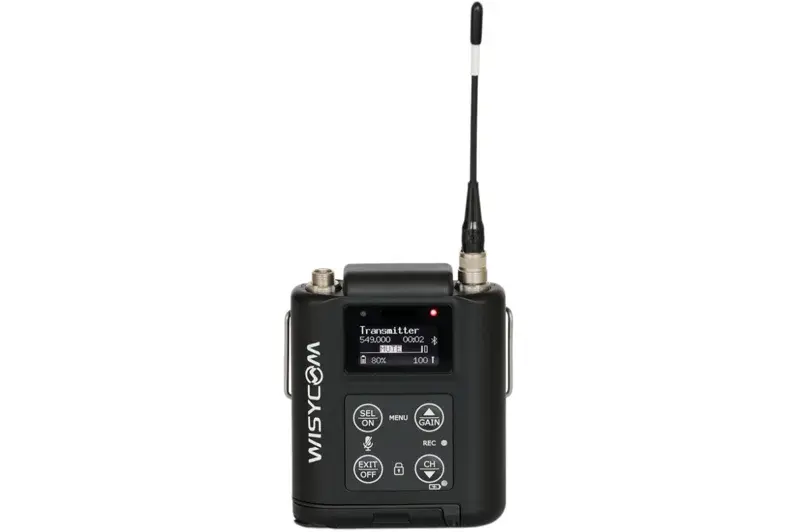

MTP60 is a pocket transmitter specially designed for professional wireless microphone applications.
Country Profile : EUX
Categories: Wireless Microphone Systems
FEATURES
European Power Profile
470-832 MHz, Max power 100mW
MTP60-EUX_BT1
| Frequency ranges | from 470 to 1260 Mhz, depends on the country (see Configurations) |
| Switchable channels | 2400 managed in 40 groups ofr 60 frequencies completely user customizable |
| Switching-window | Up to 362 MHz, depending on band (see Configurations) |
| Frequencies | Quartz PLL frequency synthesizer circuit (5 kHz step) |
| Frequency error | ±2.5 ppm, in the rated temperature range |
| RF Power | switchable typ. 10mW/L10 W/ 20 mW/ L20 mW / 50 mW /100 mW note: in some countries high power can be disabled, for local norm! |
| Antenna connector | LEMO-F 1 pin |
| Modulation | wideband/narrowband FM, with digital audio conditioning (FPGA) |
| Nominal deviation | ±40 kHz Wideband / ±25 kHz Narrowband |
| Peak deviation | ±56 kHz Wideband / ±35 kHz Narrowband |
| Spurious emissions | < 2 nW |
| Telemetry feature | TX transmits also a digitally modulated sub-carrier, suitable for: tone-squelch operating remote battery monitoring optional PTT (push to talk) operation |
| Noise Reduction system | ENS - Wisycom Extended-Sound Optimized |
| AF bandwidth | 45 Hz ÷ 17 KHz (3dB) in NarrowBand mode (NB) 45 Hz ÷ 20 KHz (3dB) in WideBand mode (WB) |
| Distortion | < 0.3 % (0.15 % typ.) |
| SND/D ratio (Analogue) | typ. 115 dB (A)rms with 40 kHz deviation; typ. 121 dB (A)rms with 56 kHz deviation Wideband typ. 115 dB (A)rms with 25 kHz deviation; typ. 121 dB (A)rms with 35 kHz deviation Narrowband |
| Audio input connector | LEMO 3pin |
| Audio input level | from -36 dBu (12mV RMS) to 26 dBu (15.5 V RMS) adjustable in 1 dB steps |
| Max input level | +26 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level |
| Storage media | micro SD memory card (.wav files - BWF) |
| Time code | Linear time code decoding |
| Bit rate | 24 bit / 32 bit |
| Sampling rate | 48 kHz |
| Managing interface | Bluetooth 5 long range, USB-C, IrDA |
| LED | 2 RGB LEDs (red, green and blue) for audio, RF and battery status. 1 LED for recording, 1 LED for battery charger |
| Battery lifetime indication | percentage or minute/second |
| PTT function | Pin 3 of the AF connector can be setup to an external push button |
| Display | High contrast OLED white display (128 x 64 pixels) |

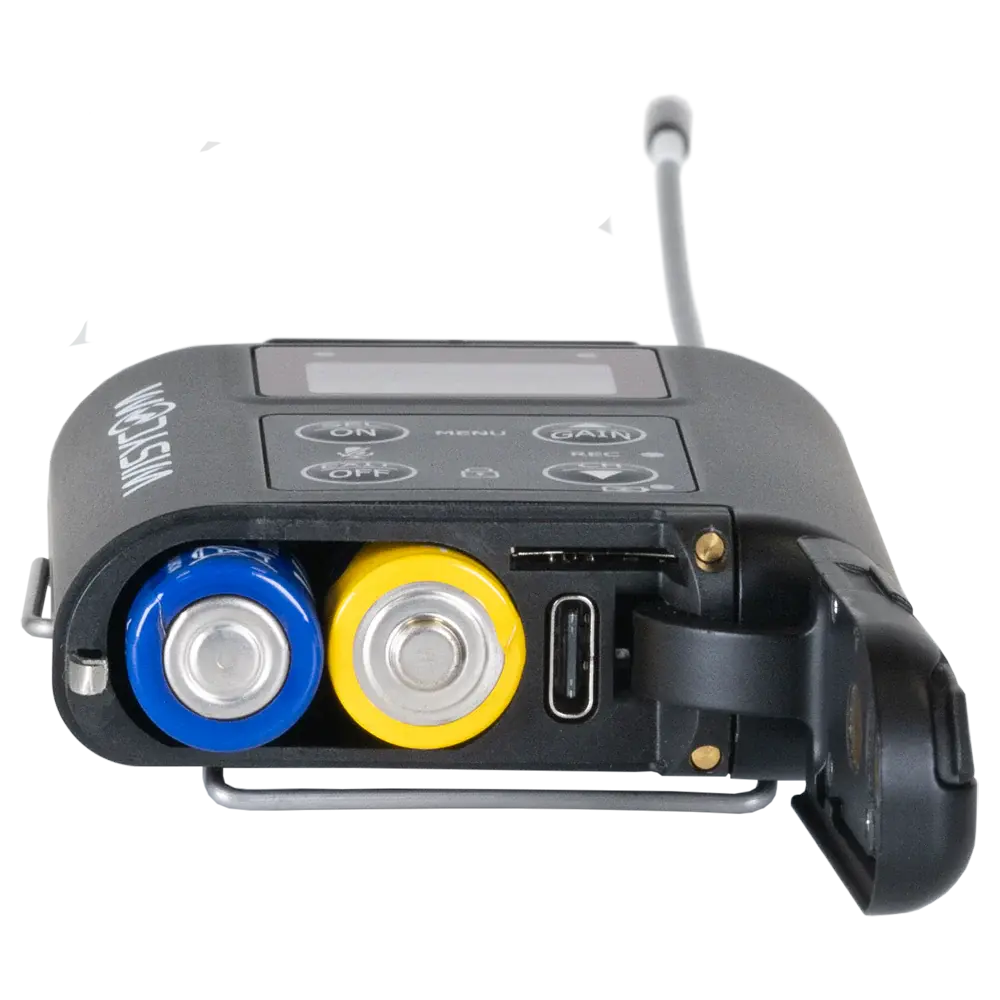

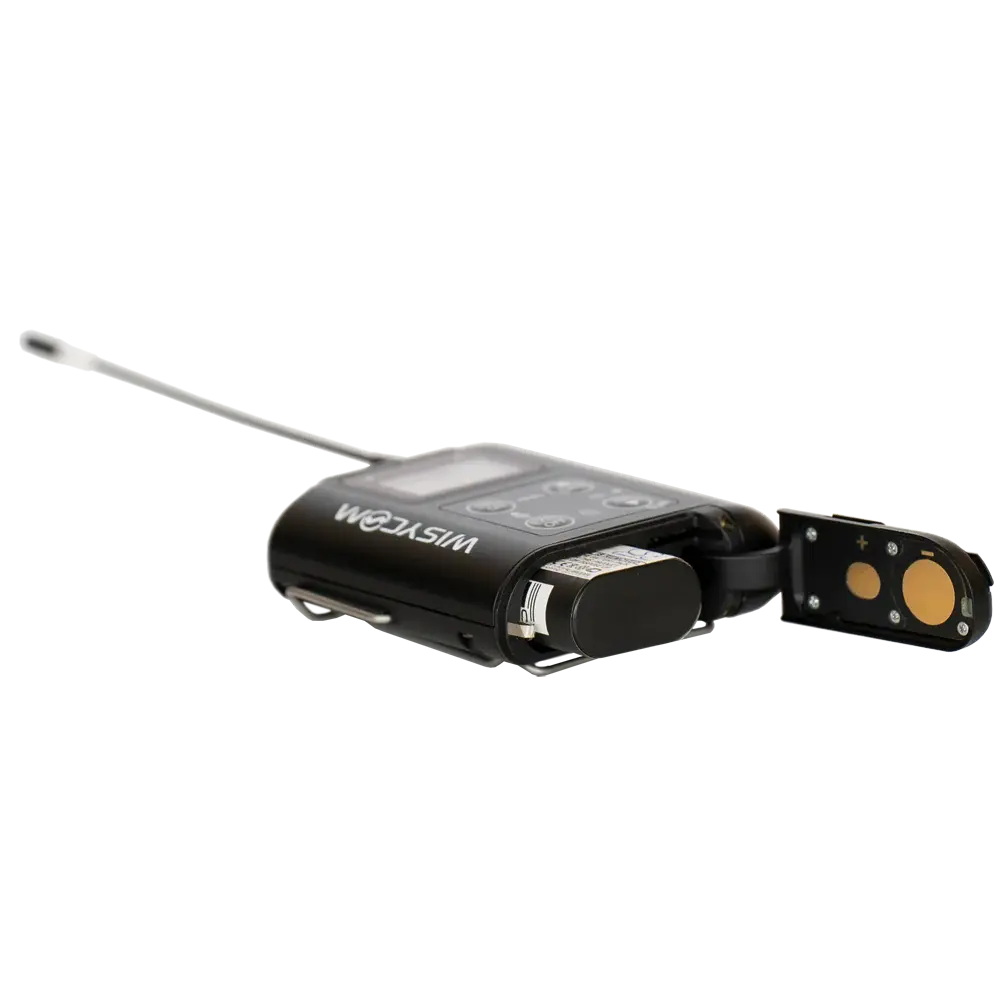

| Power supply | 2 x AA battery (Alkaline, NiMh or Lithium), MPRLBP lithium (5.55 Wh) |
| Power consumption | 250mA@ 2.6V average (display off, 100mW power) |
| Battery life | approx. 10 hours @ 10mW with Alkaline batteries |
| Temperature range | -10 ÷ +55 °C |
