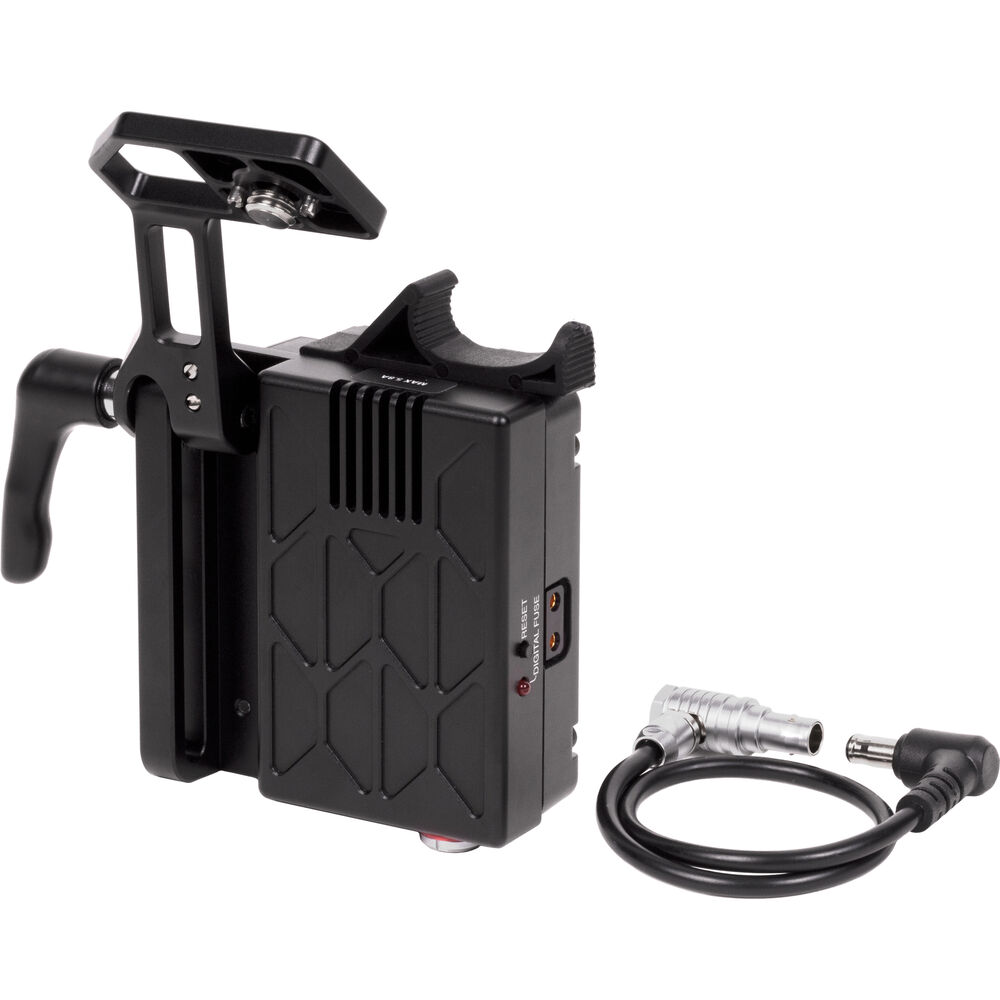

Wooden Camera Micro Battery Slide for Panasonic BGH1 (V-Mount)
Wooden Camera Micro Battery Slide for Panasonic BGH1 (V-Mount)
Wooden Camera Micro Battery Slide for Panasonic BGH1 (V-Mount)
Wooden Camera Micro Battery Slide for Panasonic BGH1 (V-Mount)

Wooden Camera Micro Battery Slide for Panasonic BGH1 (V-Mount)

Brand: WOODEN CAMERA

MFR: A10008

1,460.00 ﾹ

  • Supports V-Mount Battery
  • Mounts Using 3/8"-16 Screw
  • Power Camera with 3-Pin LEMO-Type Cable
  • Can Hot Swap with Camera Battery
  • Provides 12V Power to Camera
  • 2 x 5.8A D-Tap Accessory Outputs
  • Protective Digital Accessory Fuse
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates

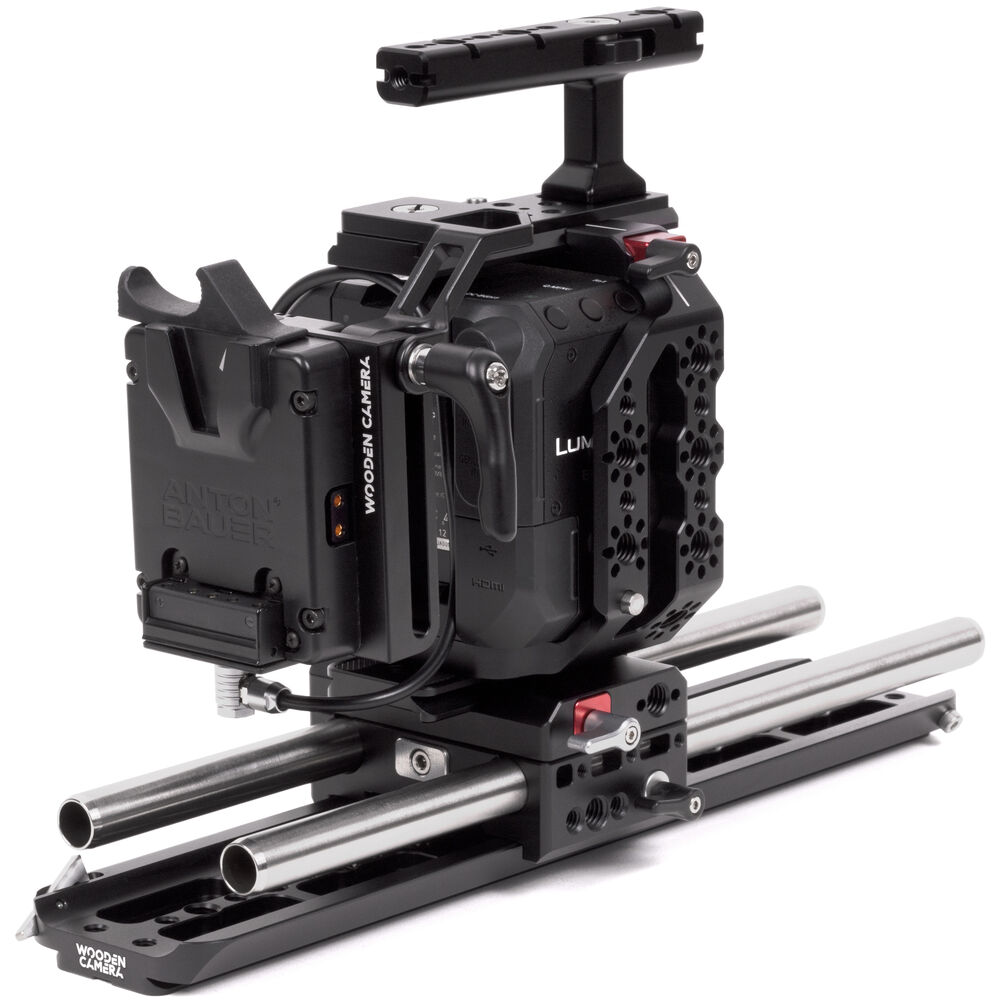

Add a high-capacity battery plate to power your Panasonic BGH1 rig with this compact Micro Battery Slide from Wooden Camera. It supports one V-mount battery while leaving access to the camera's standard battery compartment, and it powers the camera using the included 3-pin LEMO-type connector cable. With the camera's AG-VBR59 battery in place, hot swapping is supported.

The compact battery slide mounts onto a rig using its integrated 3/8"-16 mounting screw. It also features two 5.8V D-Tap outputs for powering accessories. The D-Tap accessory outputs feature a digital fuse that monitors each D-Tap port and disables it if it exceeds the set current for accessories, leaving the camera running without interruption. Once the load has been reduced by removing accessories, a reset button can be pressed to enable accessory power again.

Compatibility

Panasonic BGH1 camera
V-mount battery


Wooden Camera A10008 Specs

Power

Power OutputD-Tap: VDC at 5.8 A

General

Camera Power MethodConnector
Inputs/Outputs1 x LEMO 3-Pin
2 x D-Tap
Plate Front / Battery MountV-Mount
Plate Rear Mount3/8”-16 Female
Number of Battery Bays1
Hot-Swap SupportYes
Cable Length10" / 25.4 cm
Dimensions5.7 x 4.5 x 1.6" / 14.5 x 11.5 x 4 cm
Weight10.6 oz / 300 g

Packaging Info

Package Weight0.945 lb
Box Dimensions (LxWxH)6.9 x 4.4 x 4.35"
