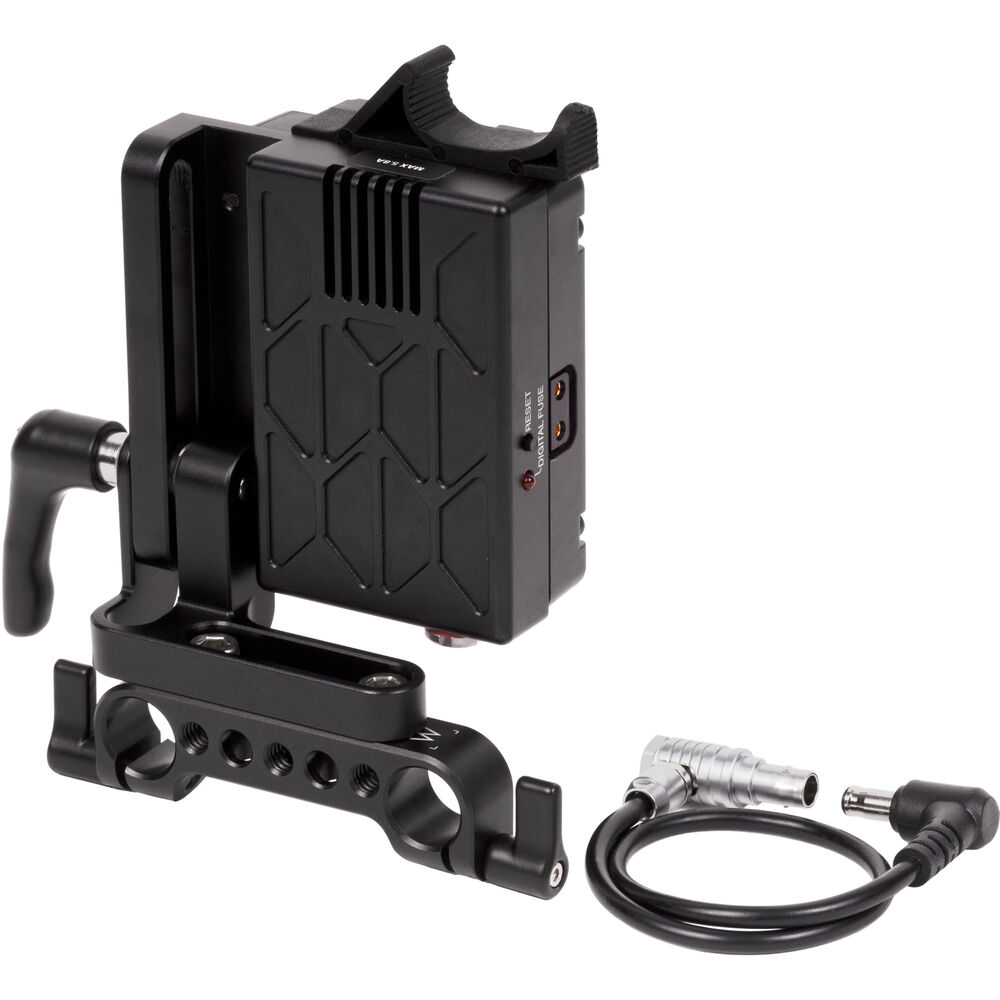

Wooden Camera Micro Battery Slide Pro for Panasonic BGH1 (V-Mount)
Wooden Camera Micro Battery Slide Pro for Panasonic BGH1 (V-Mount)

Wooden Camera Micro Battery Slide Pro for Panasonic BGH1 (V-Mount)

Brand: WOODEN CAMERA

MFR: A10013

1,460.00 ﾹ

  • Supports V-Mount Battery
  • Mounts onto Optional 15mm LWS Rods
  • Power Camera with 3-Pin LEMO-Type Cable
  • Can Hot Swap with Camera Battery
  • Provides 12V Power to Camera
  • 2 x 5.8A D-Tap Accessory Outputs
  • Protective Digital Accessory Fuse
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates , Battery Mounting Plates

Add a professional, high-capacity battery plate to power your Panasonic BGH1 rig with this compact Micro Battery Slide Pro from Wooden Camera. The plate supports one V-mount battery while leaving access to the camera's standard battery compartment, and it powers the camera using the included 3-pin LEMO-type connector cable. With the camera's AG-VBR59 battery in place, hot swapping is supported.

The battery slide mounts onto optional 15mm rods using its integrated 15mm LWS rod clamp. It also features two 5.8V D-Tap outputs for powering accessories. The D-Tap accessory outputs feature a digital fuse that monitors each D-Tap port and disables it if it exceeds the set current for accessories, leaving the camera running without interruption. Once the load has been reduced by removing accessories, a reset button can be pressed to enable accessory power again.

Compatibility

  • Panasonic BGH1 camera
  • Sony FS5, Sony FS7, and Panasonic EVA1 cameras
  • V-mount battery

Wooden Camera A10013 Specs

Power

Power OutputD-Tap: VDC at 5.8 A

General

Camera Power MethodConnector
Inputs/Outputs1 x LEMO 3-Pin
2 x D-Tap
Plate Front / Battery MountV-Mount
Plate Rear Mount15 mm Rod Clamp
Number of Battery Bays1
Hot-Swap SupportYes
Cable Length10" / 25.4 cm
Dimensions5.7 x 4.5 x 1.6" / 14.5 x 11.5 x 4 cm
Weight10.6 oz / 300 g

Packaging Info

Package Weight1.08 lb
Box Dimensions (LxWxH)6.8 x 4.4 x 4.35"
