AJA BRIDGE LIVE 12G-4 Turnkey System with 1 RU Appliance + 4 Bidirectional 12G-SDI I/O
AJA BRIDGE LIVE 12G-4 Turnkey System with 1 RU Appliance + 4 Bidirectional 12G-SDI I/O
AJA BRIDGE LIVE 12G-4 Turnkey System with 1 RU Appliance + 4 Bidirectional 12G-SDI I/O
AJA BRIDGE LIVE 12G-4 Turnkey System with 1 RU Appliance + 4 Bidirectional 12G-SDI I/O

AJA BRIDGE LIVE 12G-4 Turnkey System with 1 RU Appliance + 4 Bidirectional 12G-SDI I/O

Brand: AJA

MFR: BLVE-12G-4

SKU: SF-2443-WUWV

66,102.00 ﾹ

  • For Content Distribution Networks
  • Transcode SDI Video for IP Transport
  • Four Bidirectional 12G-SDI Ports
  • Simultaneous Multi-Frame Rate Capability
  • Bidirectional NDI-to-SDI Conversion
  • HLS I/O, Video Preview
  • Simultaneous Bidirectional Encode/Decode
  • Easy Remote Web UI or Local GUI
  • Dual Power Supplies for Redundancy
  • Turnkey 1 RU Form Factor

Items Included

  • AJA BRIDGE LIVE 12G-4 Turnkey System with 1 RU Appliance + 4 Bidirectional 12G-SDI I/O
  • Rack Ear Set (Preinstalled)
  • Rack Rail Set
  • 2 x Power Cable
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Signal Processing & Distribution

Turnkey UHD 4K 12G-SDI I/O Solution
Add the BRIDGE LIVE 12G-4 Turnkey System with 1 RU Appliance + 4 Bidirectional 12G-SDI I/O from AJA to your streaming content network for high-density, low-latency video streaming up to UHD 4K60. This turnkey, 1 RU solution features BRIDGE LIVE UHD software to encode/decode SDI video content to IP streams and IP to SDI in real time.
BRIDGE LIVE Product Family

The BRIDGE LIVE 12G-4 supports the most widely used IP video compression schemes and transport protocols to solve your workflow needs. The BRIDGE LIVE family supports conversion to/from SDI to numerous IP video solutions as well as pure IP conversion and distribution workflows.



For example, with a pair of BRIDGE LIVE systems, a broadcast facility can receive three incoming encoded camera sources from a remote location and decode them back into SDI for editing and production while simultaneously providing program return to the remote location. BRIDGE LIVE 12G-4 supports up to four UHD 4K60 channels.

NDI Support

BRIDGE LIVE 12G-4 includes support for NDI (Network Device Interface), the high-quality, real-time, low-latency IP video standard developed by NewTek. BRIDGE LIVE can support up to four simultaneous UHD 4K60 NDI encodes/decodes to/from SDI. BRIDGE LIVE's NDI functionality offers:



  • SDI to NDI (encode)
  • NDI to SDI (decode)
  • IP video streams to NDI (transcode)
  • NDI to IP video streams (transcode)
  • Multiple discovery servers
Synchronous Multichannel Transport

BRIDGE LIVE and BRIDGE LIVE 12G-4 support independent SDI source inputs and maintain their synchronous relationship while transporting the content to end-point destinations.



This functionality can take place between a pair of BRIDGE LIVE units for a synchronous end-to-end SDI workflow, often referred to as SDI backhaul, or site-to-site SDI workflows.

SRT Ready
BRIDGE LIVE 12G-4 supports SRT v1.5.3, enabling redundant stream support over an ISP to ensure hitless delivery of the originating source. SRT is an open-source video transport protocol and technology stack that optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best-quality live video over questionable networks.
Metadata, HDR, Timecode, and Closed Captioning Support

BRIDGE LIVE 12G-4 fully supports closed captioning as well as additional metadata, including:



  • UHD 4K single link, SMPTE ST 2082, 10-bit
  • MPEG-2 ancillary packet support (SMPTE ST 2038)
  • SDR/HDR Transfer Characteristics, Colorimetry, Luminance via SDI
  • SCTE-35/SCTE-104 Ad insertion markers
  • CEA-608/CEA-708 closed captioning
  • Line 21 Captions
  • Timecode embedded within H.264 SEI messages
  • Embedding closed captioning/subtitles into H.264 SEI messages
  • Metadata passthrough
  • Electronic Program Guide (EPG) on input
Containers and Protocol Support
BRIDGE LIVE 12G-4 can be configured using multiple protocols to meet your workflow requirements, whether it's low-latency or high-quality signal delivery. Supported protocols include HLS (input and output), MPEG-TS, MPTS (input), RTMP, RTMPS (output), RTP, UDP, SRT (including encryption), VSF TR-01, and VSF TR-07.
Encoding/Decoding

BRIDGE LIVE 12G-4 supports numerous configurations for encoding and decoding between SDI and streaming formats as standard. Multiple streams, formats, and destinations can be derived from a single SDI input. It supports various configurations using NDI, H.265 (HEVC), H.264 (AVC), and H.262 (MPEG-2).



Optional JPEG XS (TR 07) and JPEG 2000 (TR-01) encode/decode licenses can be purchased separately.

Video Preview
A video preview feature provides a visual check, so that operators can ensure they have the correct SDI input/content for encoding. It promotes basic confidence while providing customers who cannot "go live" to check their content with added peace of mind.

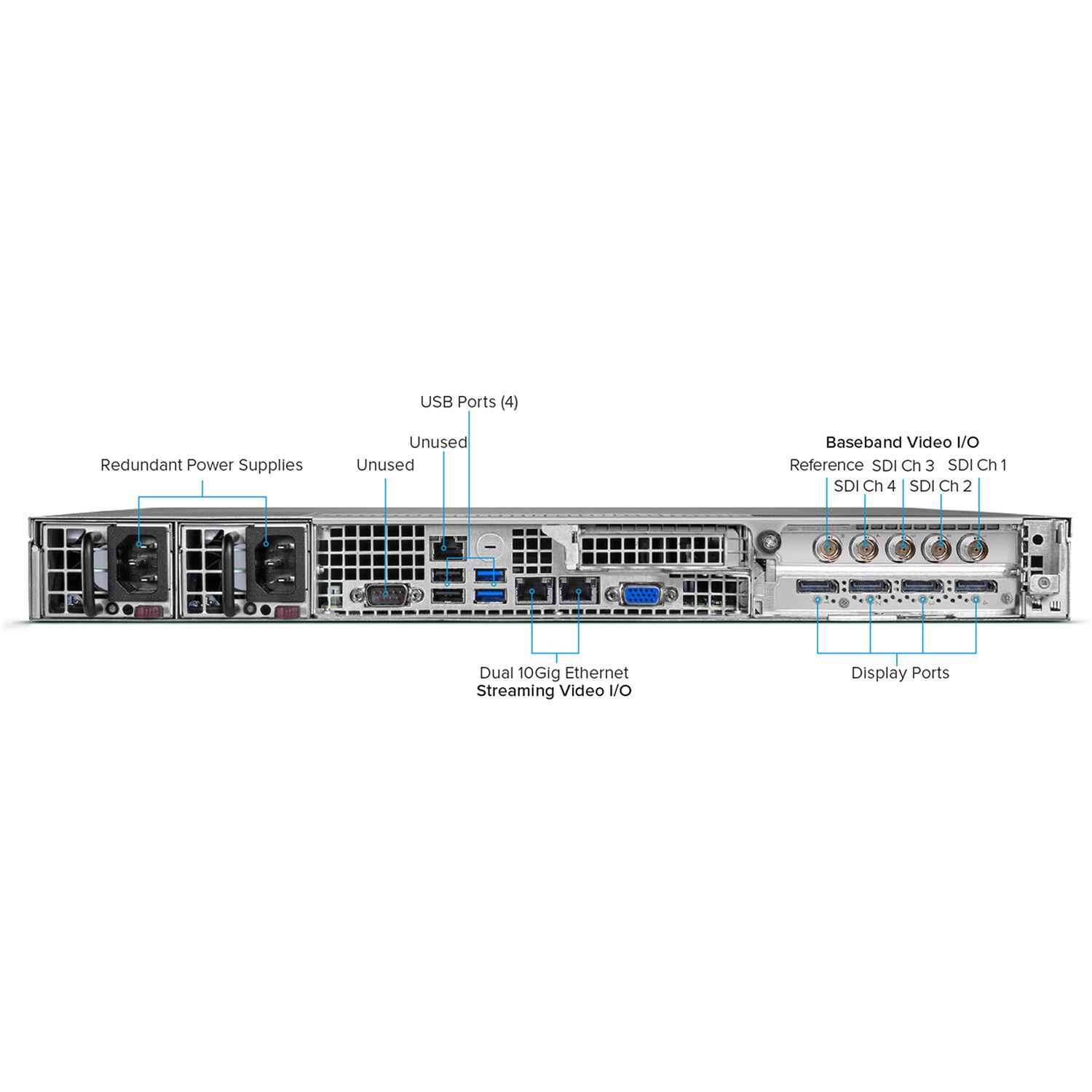

Hardware
The BRIDGE LIVE 12G-4 supports up to four 12G-SDI ports simultaneously for multichannel HD in a 1 RU chassis. Dual 10 GigE ports provide network connectivity, and it has dual power supplies for redundancy.

Inputs/Outputs
Video I/O
Input
4x BNC (12G-SDI)
Output
4x DisplayPort
4x USB-A
Other I/O
Input/Output
1x BNC (Reference)
2x RJ45 (10 GbE)
Format Support
Embedded Audio
LAN (RJ45)/SDI/BNC Input: 16-Channel
LAN (RJ45)/SDI/BNC Output: 16-Channel
Internal Recording
No
IP Streaming
IP Video
Encoding/Decoding via H.264/H.265/HLS/NDI/SRT/UDP
3840 x 2160 at 60fps
IP Audio
Encoding, Decoding
Transport Protocols
HLS, NDI, RTMP, RTMPS, RTP, SRT, TS-MPEG, UDP
Simultaneous Streams
4 Streams
Hardware
Media/Memory Card Slot
No
Wireless
No
Cellular Support
No
Power
Power I/O
2x IEC C14 (100 to 240 VAC ) Input
Power Consumption
190 W
General
Operating Conditions
41 to 95°F / 5 to 35°C at 8 to 90% Humidity
Storage Conditions
-40 to 104°F / -40 to 40°C at 5 to 95% Humidity
Rack Form Factor
1 U
Dimensions
17.2 x 16.9 x 1.7" / 436.88 x 429.26 x 43.18 mm
Weight
18.1 lb / 8.2 kg
Packaging Info
Package Weight
28.935 lb
Box Dimensions (LxWxH)
26 x 23 x 8.1"
