Built for broadcast applications, the AJA ColorBox HDR/SDR Color Converter is an SDR/HDR/WCG signal-supporting device capable of managing color-driven workflows for consistent conversion across live programs. One 12G-SDI input delivers up to UHD 4K video to two 12G-SDI outputs or one HDMI 2.0 output for high-quality video. The ColorBox can also support up to 16-bit TIFF images. Outfitted with 3D LUT processing with support for 1D LUTs and 3x3 matrices, the ColorBox offers user-configurable color control using industry-standard file types.

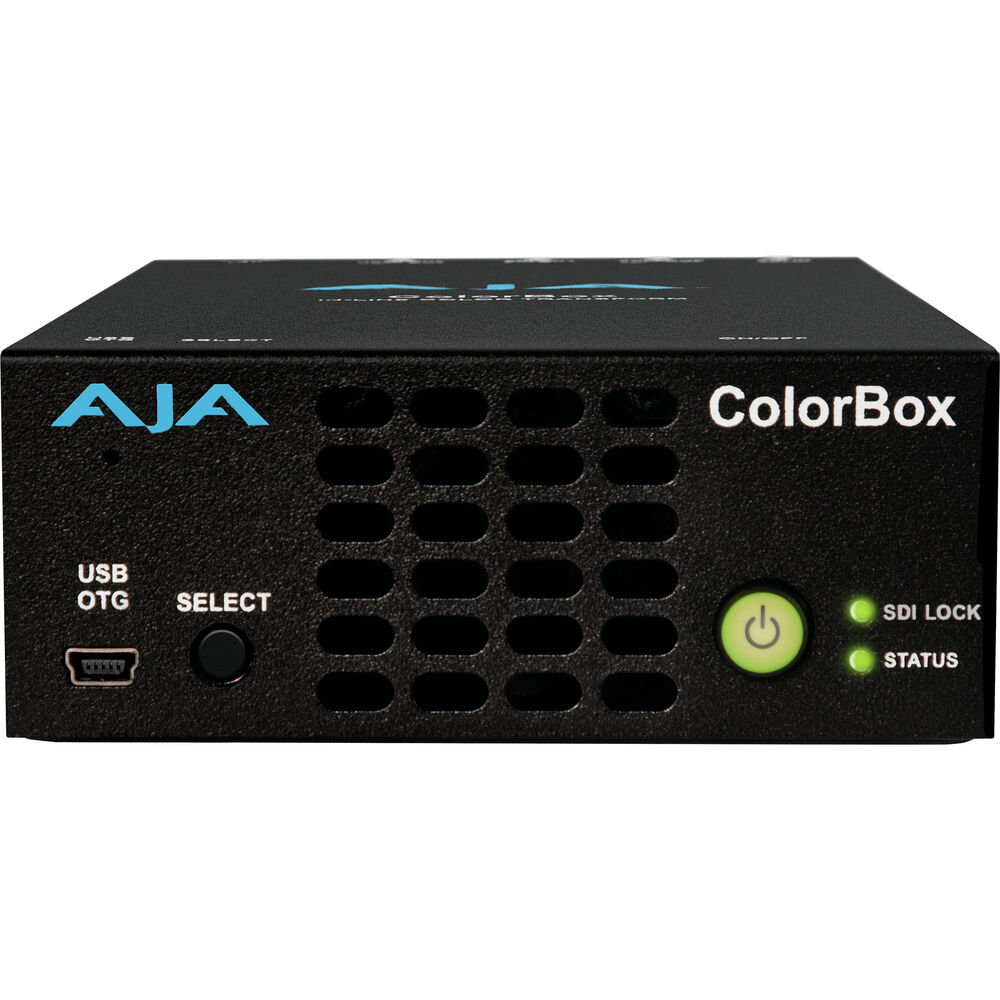

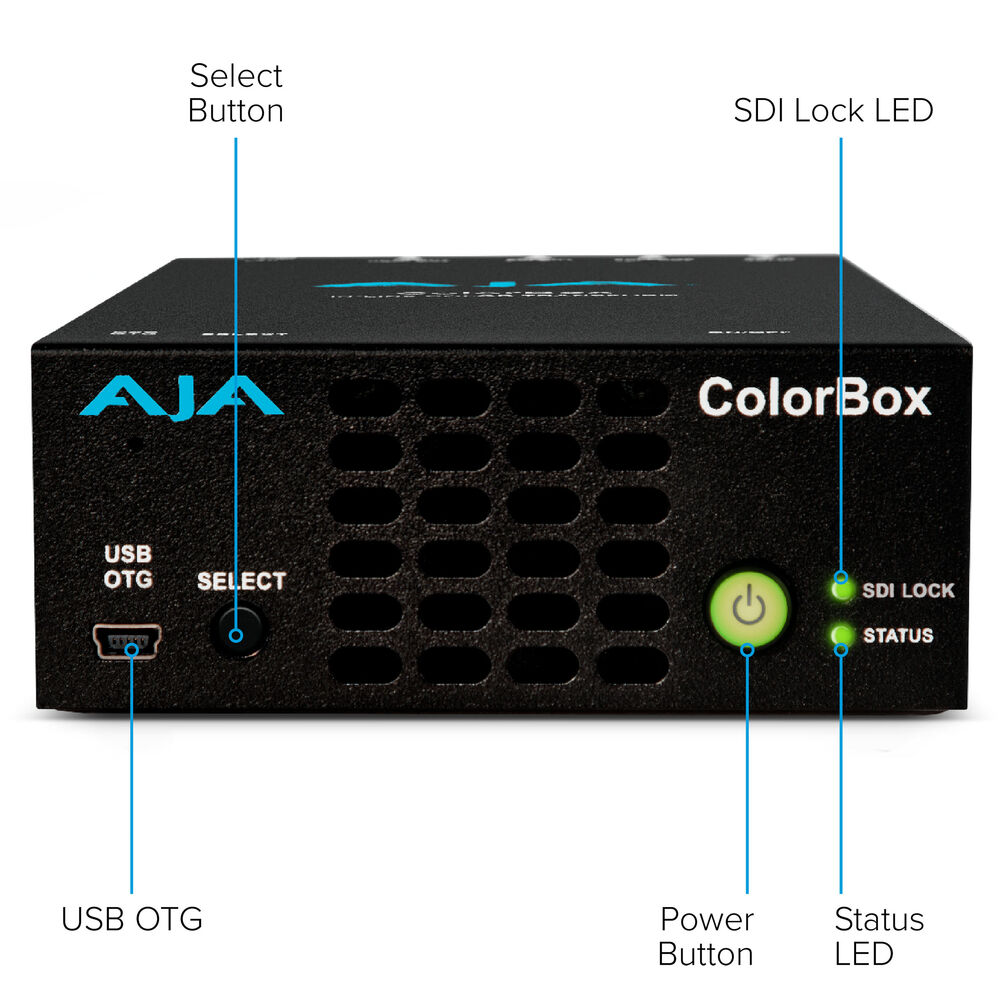

Five processing pipeline modes, including two licensable upgrade options, are available for the ColorBox: AJA Color, Colorfront, NBCU LUTs, ORION-CONVERT, and BBC HLG LUT. Advanced setting control for the device can be achieved via the web user interface using the Gigabit Ethernet port. A mini-USB port on the front panel can connect a third-party controller and configure the initial IP address of the device. Included with the ColorBox is an AC power adapter for integration into your preexisting broadcast configuration.
Features at a Glance
| Colorimetry | BT.709 BT.2020 |
| Video Formats | DCI 4K UHD 4K DCI 2K 1080p 1080i 720p |

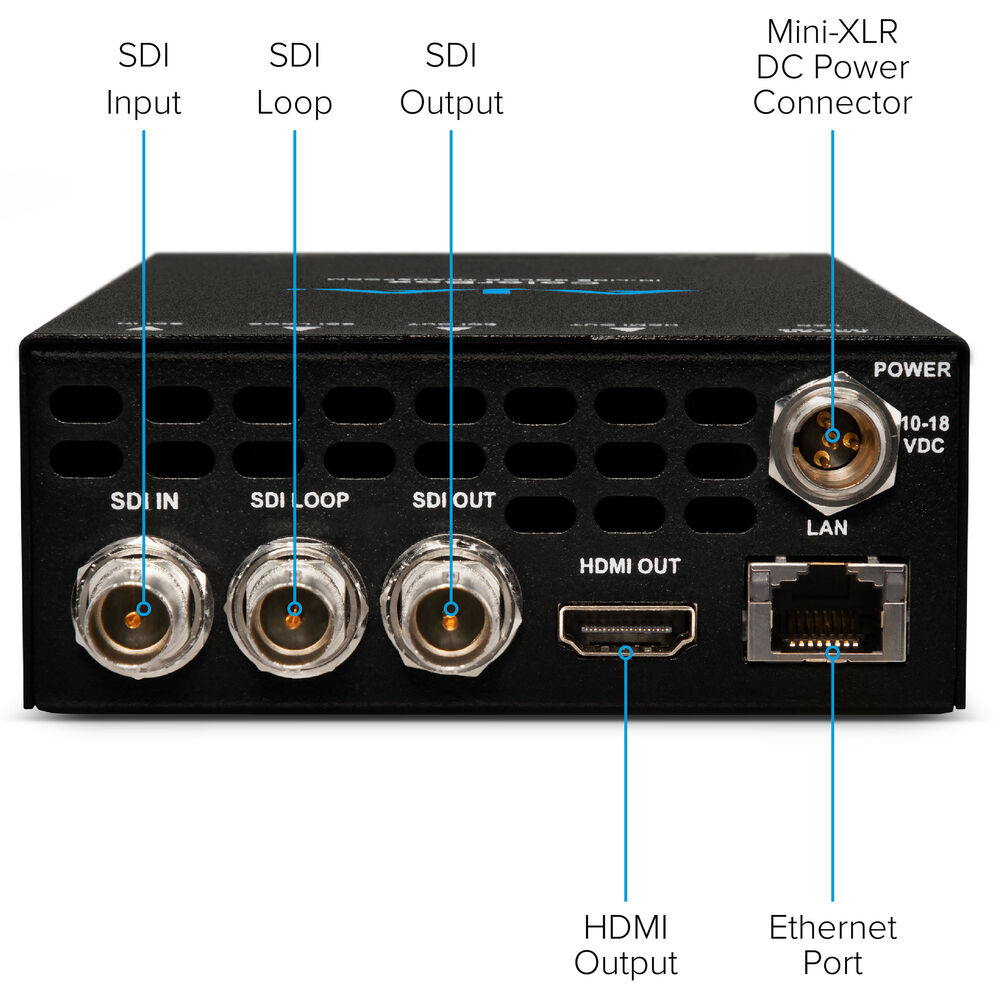

| Video Input | 1 x BNC 12G-SDI |
| SDI Formats Supported | 12G-SDI: DCI 4K up to 60, UHD 4K up to 60 6G-SDI: DCI 4K up to 30, UHD 4K up to 60 3G-SDI (Level A or B Dual-Link): DCI 2K up to 5, 2KPsF up to 25, 1080p up to 60, 1080PsF up to 30, 1080i up to 60, 720p up to 60 1.5G-SDI: DCI 2K up to 30, 2KPsF up to 25, 1080p up to 30, 1080PsF up to 30, 1080i up to 60, 720p up to 60 |

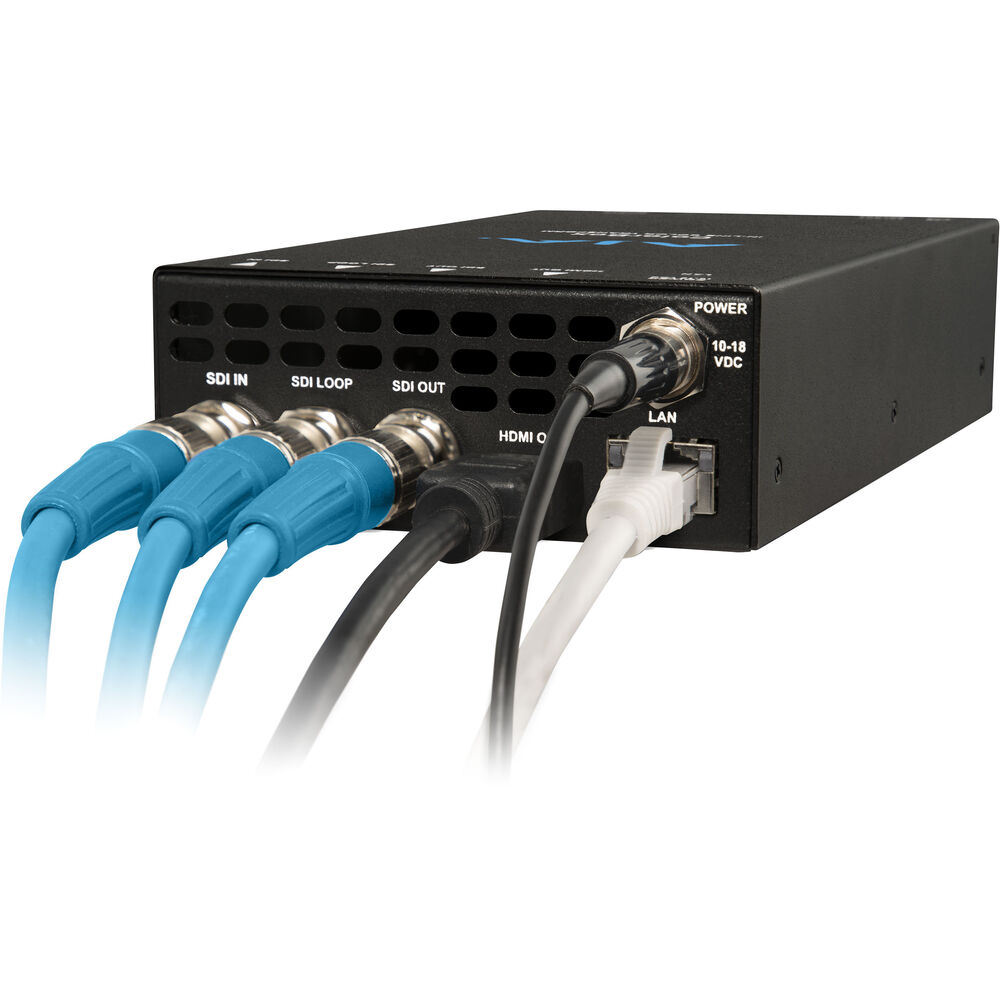

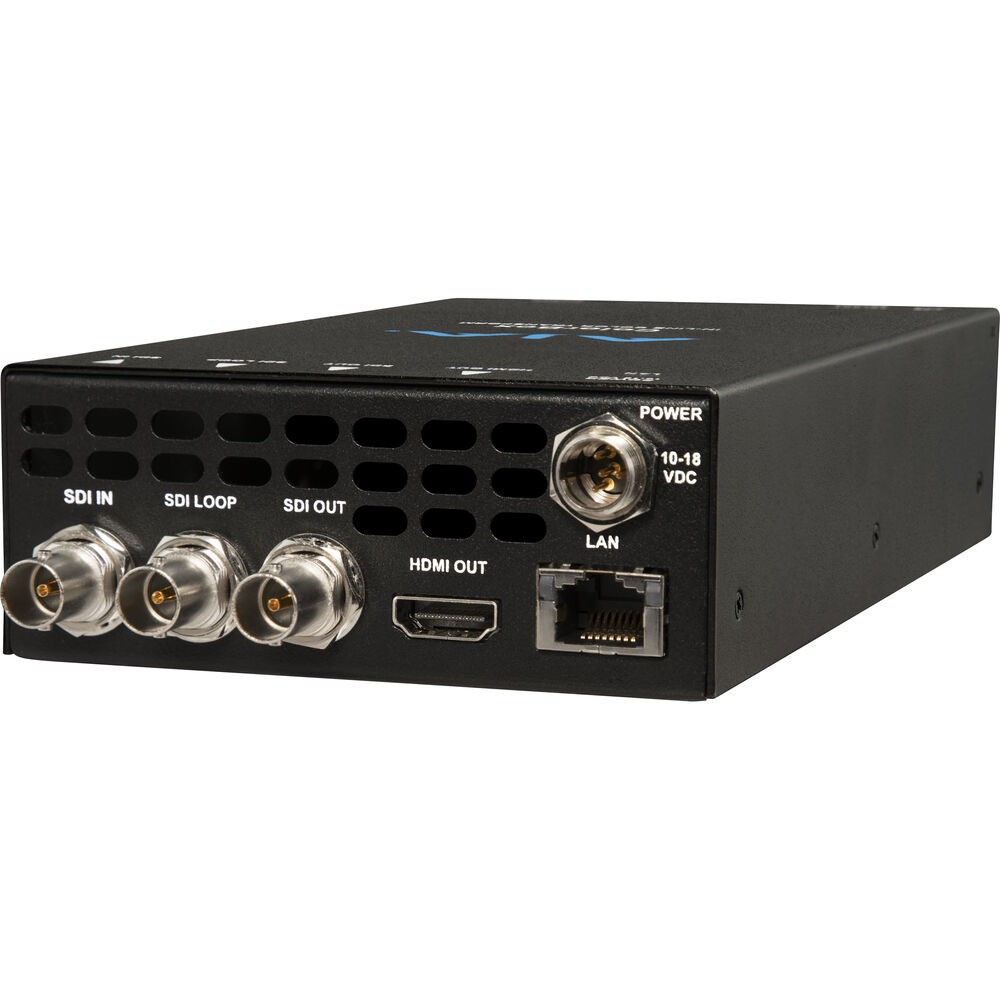

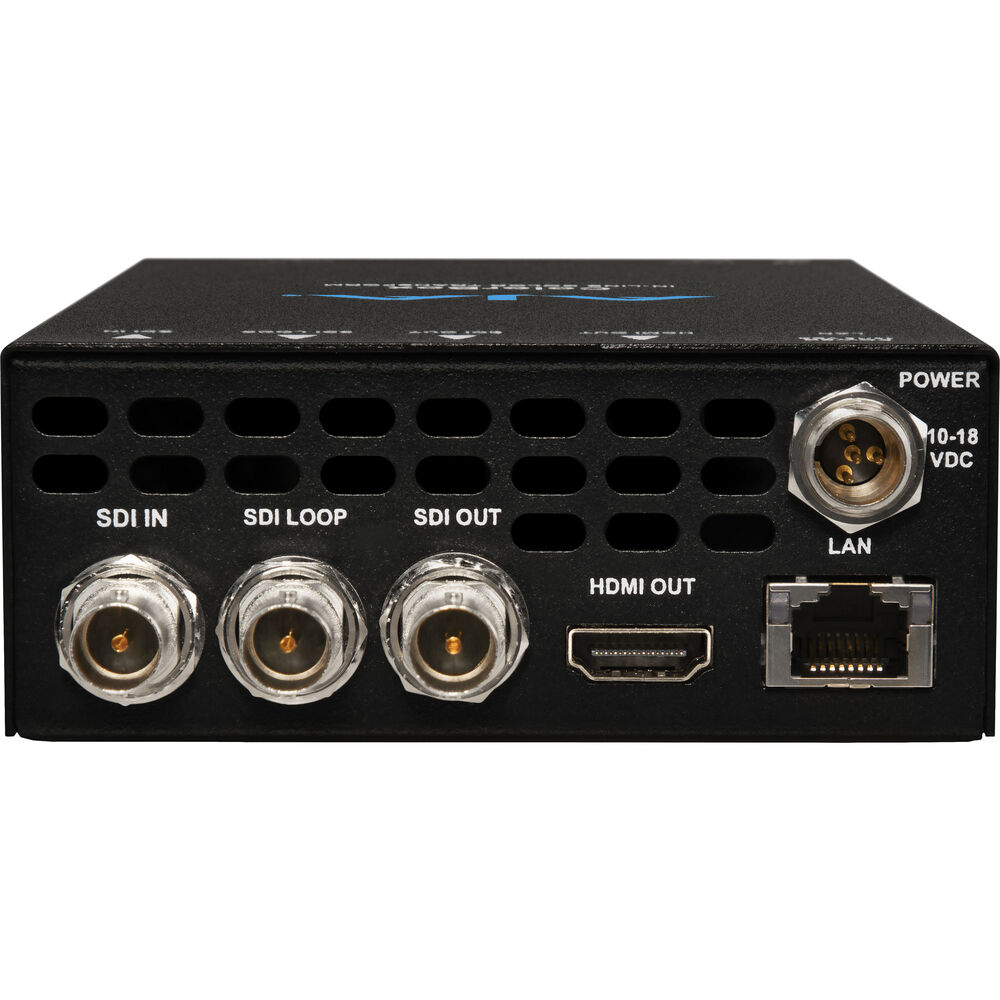

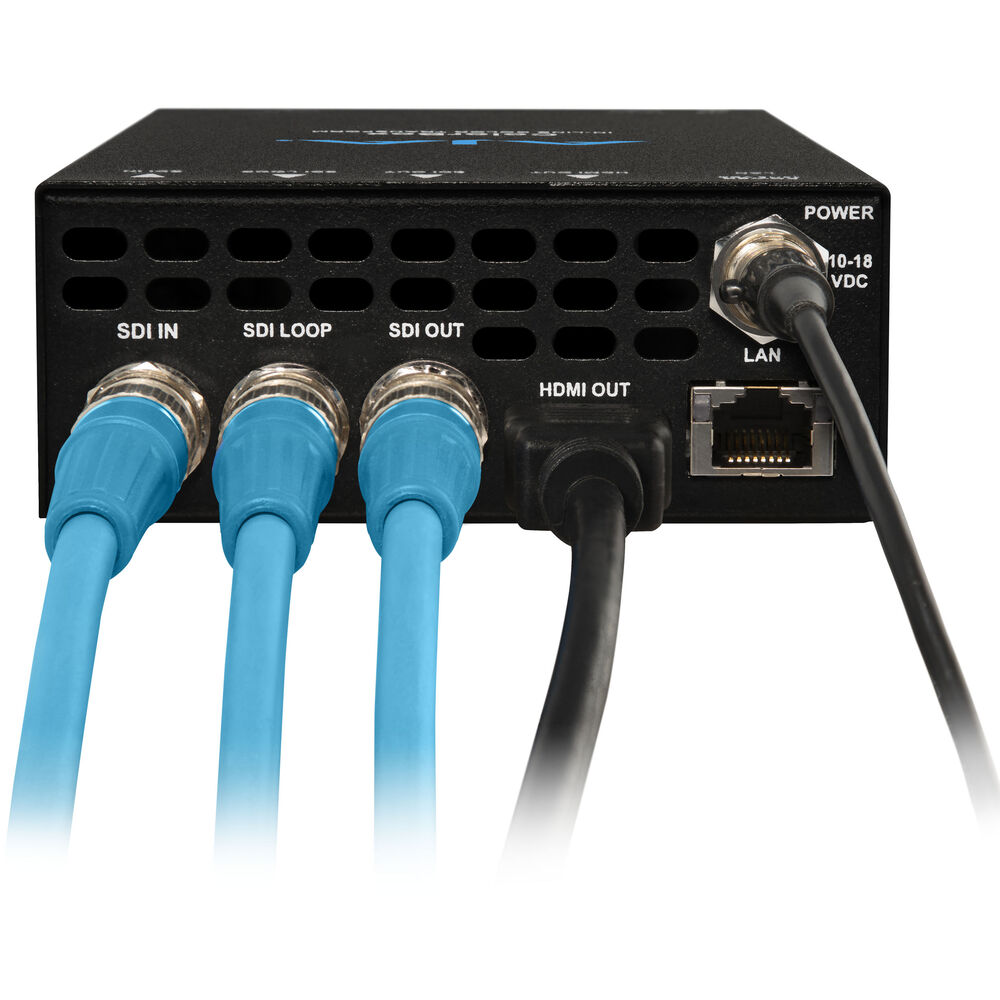

| Video Outputs | 2 x BNC 12G-SDI 1 x HDMI 2.0 Type A |
| HDMI Format Support | UHD 4K 2K 1920 x 1080 |
| Color Sampling | YCC 4:4:4/4:2:2, RGB 4:4:4 10/12-Bit (SDI) YCC 4:2:2, RGB 4:4:4 8/10/12-Bit (HDMI) |
| Latency | < 0.5 Line |
| Supported Image Formats | TIFF, PNG, JPEG |
| Audio Input | Embedded SDI 12-Bit, 16-Channel |
| Audio Output | Embedded SDI 24-Bit, 16-Channel Embedded HDMI 24-Bit, 8-Channel |
| Network Interface | 1 x RJ45 10/100/1000 Ethernet |
| USB Interface | 1 x Mini-USB IP |
| Power Input | 1 x 4-Pin Mini-XLR, 10 to 12 VDC |
| AC Adapter | 100 to 2400 VAC, 50/60 Hz, 60W |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Operating Altitude | < 10,000' / < 3,000 m |
| Dimensions | 7.54 x 4.1 x 1.66" / 191.6 x 104.1 x 42.1 mm |
| Weight | 1 lb / 0.5 kg |
Packaging Info
| Package Weight | 2.885 lb |
| Box Dimensions (LxWxH) | 10.5 x 10.1 x 3.9" |
