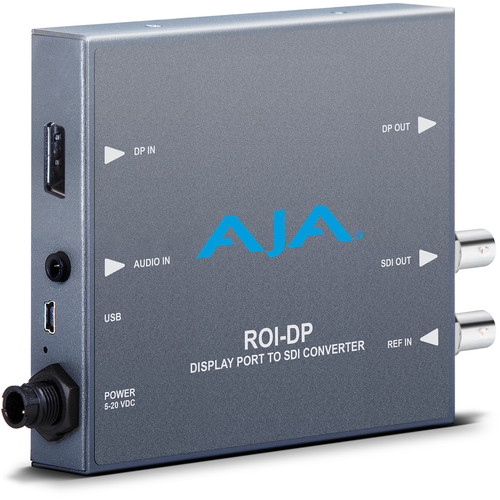

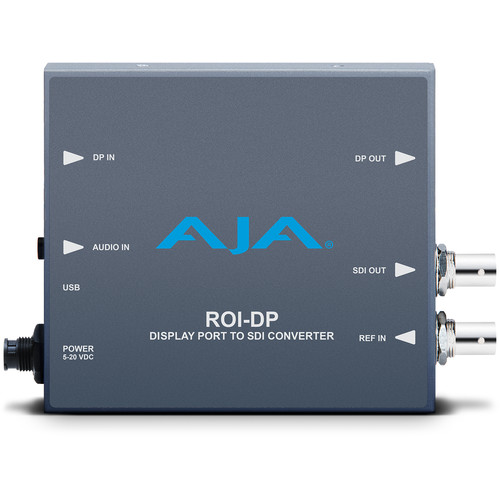

Efficiently incorporate DisplayPort computer signals into the video world with this compact ROI-DP DisplayPort to SDI Mini-Converter, from AJA. Using a simple-to-use free-download MiniConfig application (Mac/PC), select only the region of interest (portion of the image) you want converted, designate how you want the region scaled, and assign the aspect ratio and frame-rate conversion you want.
This converter also features a 3.5mm audio input for connecting separate audio to be embedded, a genlock reference input for locking the SDI signal output, and a DisplayPort loop-through output for keeping a connection to a local DisplayPort monitor during the SDI extract.
Key Features
| Input | 1 x DisplayPort 1 x 3.5 mm audio 1 x Genlock Reference 1 x USB port for connection to MiniConfig software and updates |
| Output | 1 x 3G/HD/SD-SDI on BNC 1 x DisplayPort loop-through |
| Audio | 2-channel audio via 3.5 mm audio input 8-channel embedded audio from DisplayPort input |
| Power | 5-18 VDC (universal power supply included) |
Packaging Info
| Package Weight | 1.555 lb |
| Box Dimensions (LxWxH) | 10.15 x 5.65 x 3.85" |
