Categories: Signal Processing & Distribution

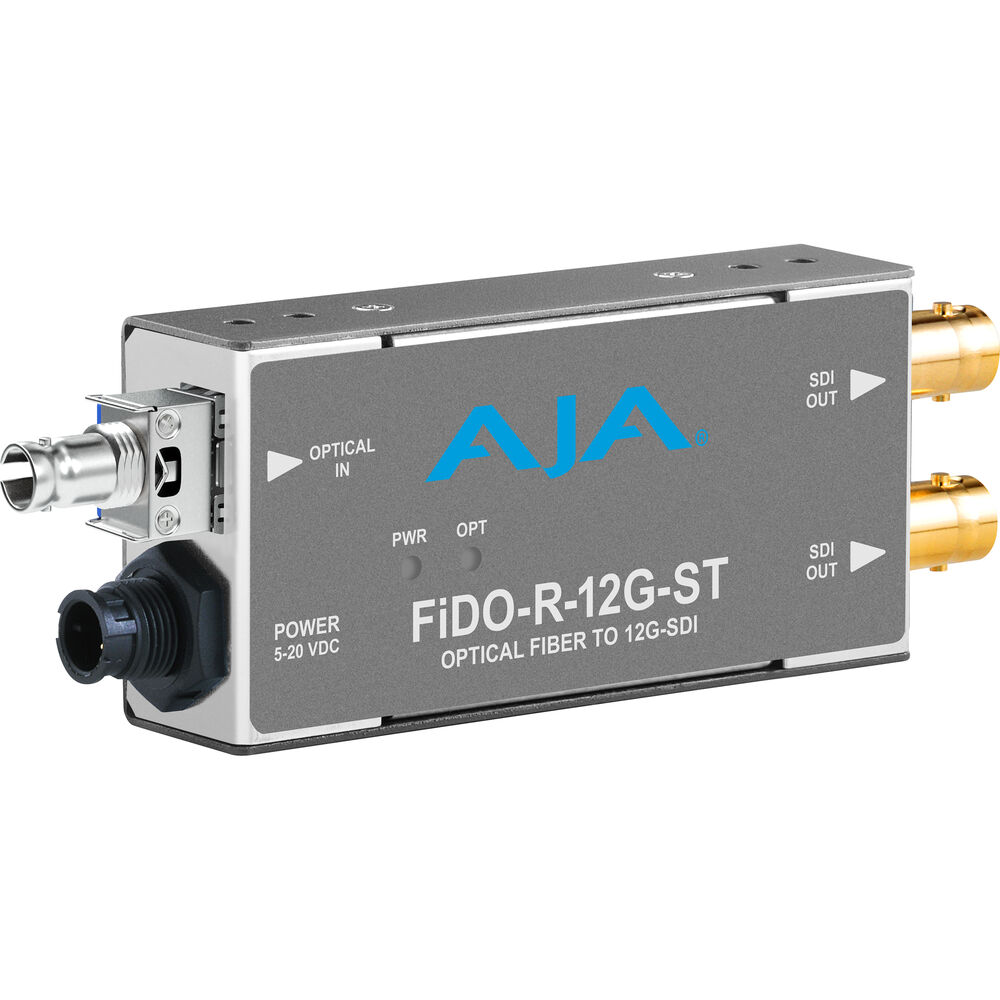

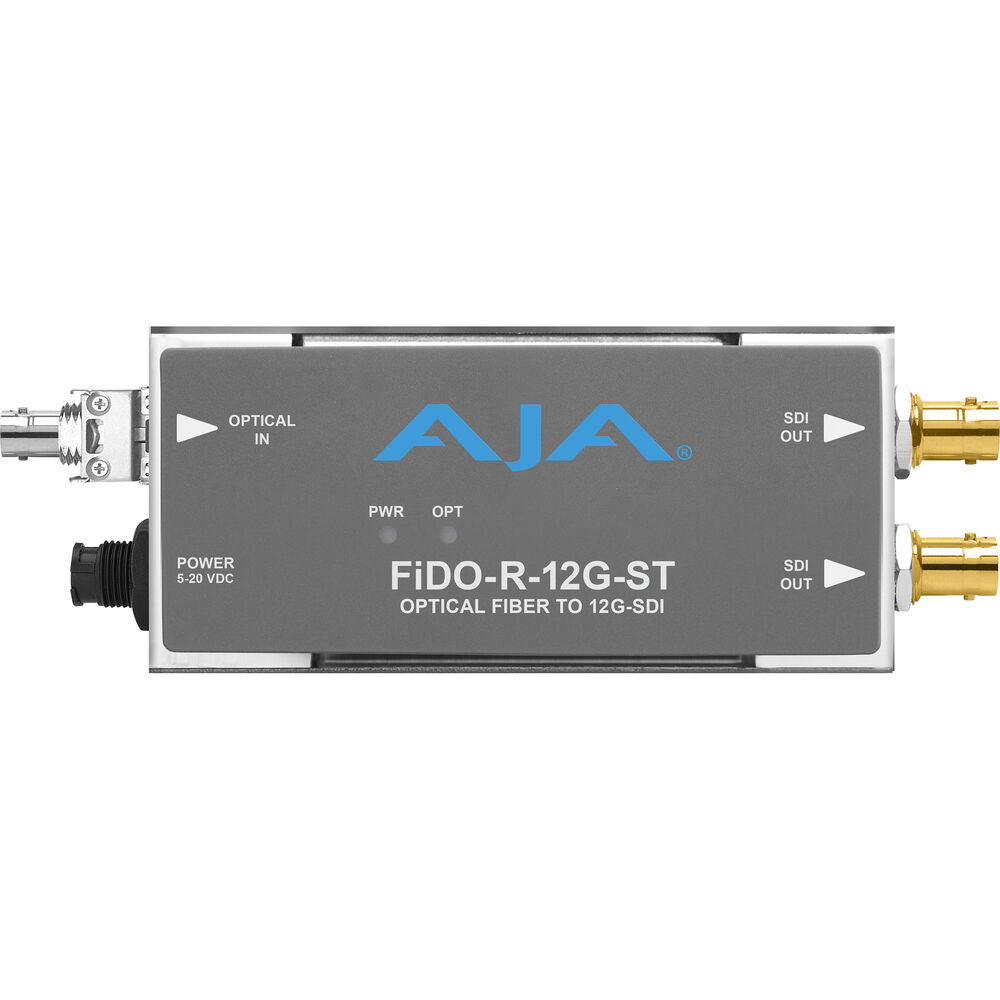

Convert a single LC fiber signal to 12G-SDI output using AJA's FiDO-R-12G-ST Single-Channel ST Fiber Converter. This compact converter supports video resolutions up to 4K60 and has a maximum transmission range of 6.2 miles. It features auto reclocking at select rates, one locking ST optical fiber input, and two 12G/6G/3G/HD-SDI outputs.
Extended Conversion
Enables cable runs up to 6.2 miles using standard single-mode fiber optic cable
ST Fiber Connector
The locking ST barrel provides a secure connection ideal for live event, field production, and mobile environments
Dual SDI Outputs
Dual, matching 12G/6G/3G/HD/SD-SDI BNC outputs
Compact Converter
Small enough to fit behind a monitor, at the back of a rack, or directly on a camera rig
Transmitter Interfaces
| Outputs | 2 x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) |
Receiver Interfaces
| Inputs | 1 x ST |
Standards
| Video Standard Compliance | SMPTE 259M/292M/297M/424M/ST-2081/ST-2082 |
| Reclocking | Yes |
Transmission
| Max Transmission Distance | 6.2 Miles / 10 km (via Single-Mode Fiber) |
| PC Resolutions | 0 x 0 |
| Supported Cable Types | Single-Mode Fiber |
Power
| Power Connector | 1 x Barrel (5 to 20 VDC) Input |
| PoE Support | None |
| Power Consumption | (2 W) |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Dimensions | 4.6 x 1.7 x 0.9" / 117 x 43.5 x 21.6 mm |
| Weight | 7.1 oz / 200 g |
Packaging Info
| Package Weight | 1.22 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.8 x 4.2" |
