Categories: Signal Processing & Distribution

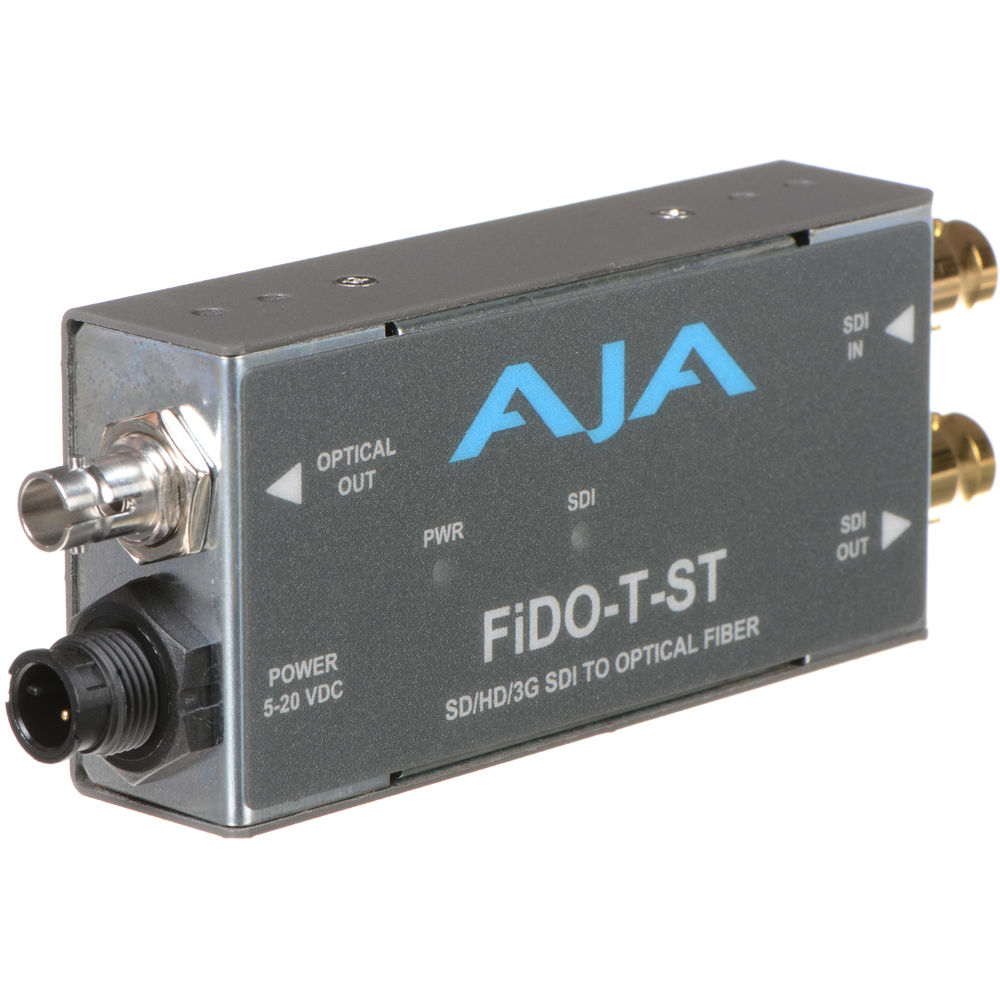

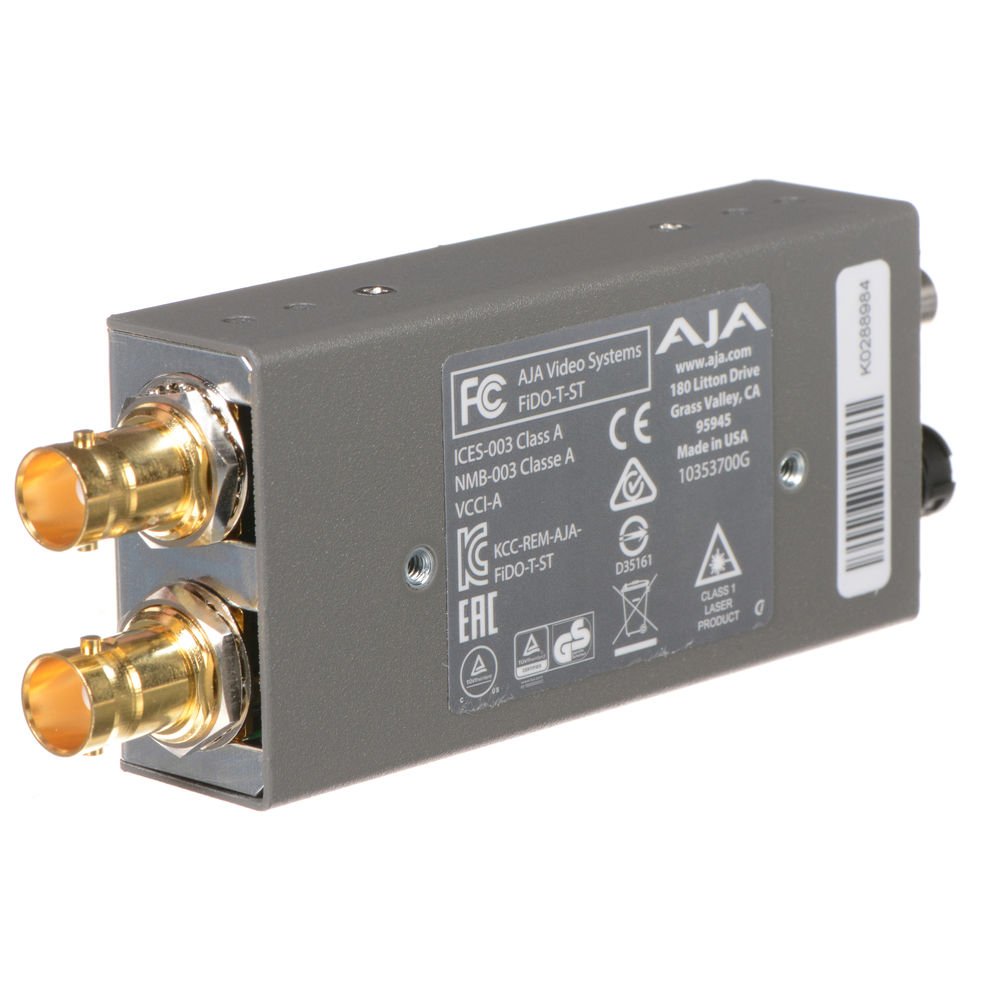

Convert a 3G-SDI signal to an ST fiber output in resolutions up to 1080p. Transmit the output signal up to six miles at the max resolution over a single-mode fiber cable, and monitor the signal locally over a 3G-SDI loop output. AJA's FiDO-T-ST features one 3G-SDI input, one ST optical fiber output, and one 3G-SDI loop output, in a compact body suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding FiDO Mini Converter.
Key Features
| Formats | 3 Gbps, 1.5 Gbps, 270 Mbps (automatically selected based on input) |
| Input | 1 x 3G/HD/SD-SDI on BNC |
| Output | 1 x ST optical fiber 1 x 3G/HD/SD-SDI loop-out on BNC |
| Supported Resolution | Up to 1920 x 1080p |
| Power | 5-20 VDC |
| Power Consumption | 1.5 W |
| Dimensions | 4.6 x 1.7 x 0.9" (12 x 4.3 x 2.4 cm) |
Packaging Info
| Package Weight | 1.25 lb |
| Box Dimensions (LxWxH) | 9.8 x 7.2 x 2.9" |
