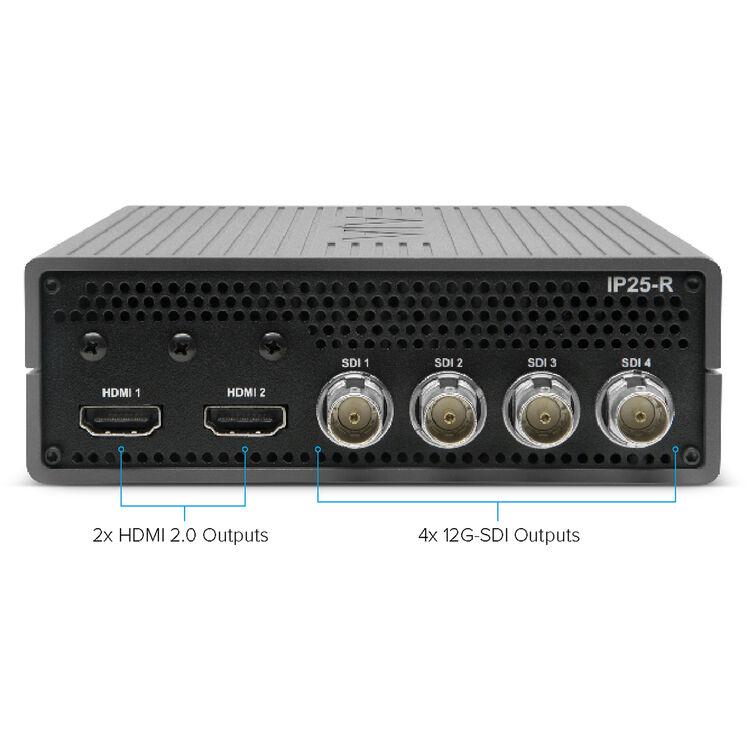

Seamlessly integrate SMPTE ST 2110 IP video with existing SDI and HDMI components using the IP25-R 4K SMPTE ST 2110 to 12G-SDI/HDMI Converter from AJA. This unit provides broadcast-quality conversion in a rugged, compact form. The IP25-R supports up to DCI 4K60 video and features dual 10/25 GigE network ports and two HDMI 2.0 and four 12G-SDI outputs.
The IP25-R provides powerful video conversion with full SMPTE compliance, making it ideal for integration into hybrid SDI/IP facilities. Use it to de-encapsulate ST 2110 video, audio, and ancillary data with frame-accurate synchronization, then output them via baseband SDI and HDMI for confidence monitoring, playout, or routing.
Two SFP28 cages for SMPTE ST 2022-7 video ensure seamless protection switching with uninterrupted delivery across redundant IP networks. Use the IP25-R for network operations centers (NOCs), OB (outside broadcast) trucks and remote productions, live event monitoring, stadium and in-venue AV systems, and broadcast control rooms.
Easily configure the IP25-R using its intuitive web browser and options for in-band and out-of-band control via its RJ45 1GbE port.
An aluminum housing and front-to-back airflow enable the IP25-R converter to withstand high-density use. Mount up to three of these converters in a separate 1 RU shelf or use the separate 3RU DRM2-Plus frame to mount and provide redundant power for up to six units.
