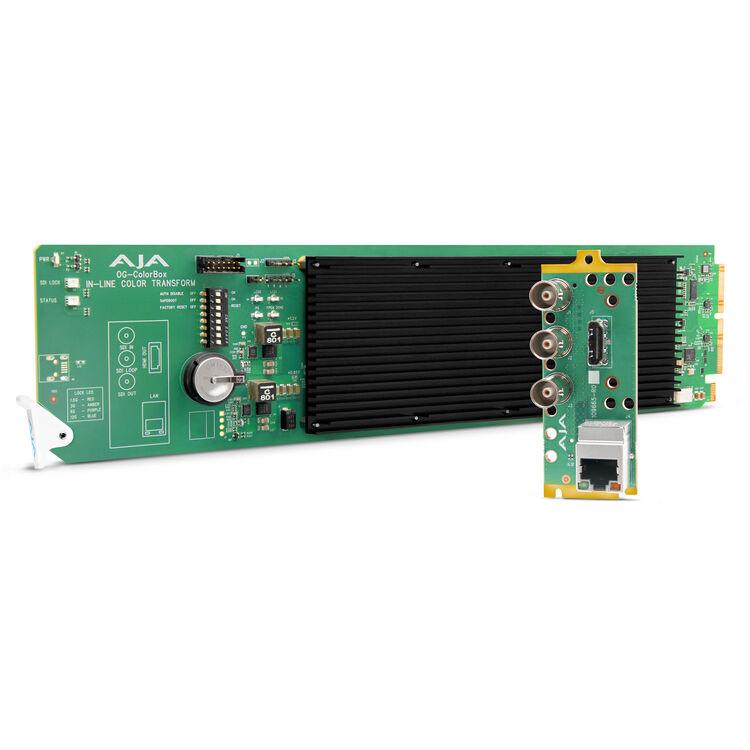

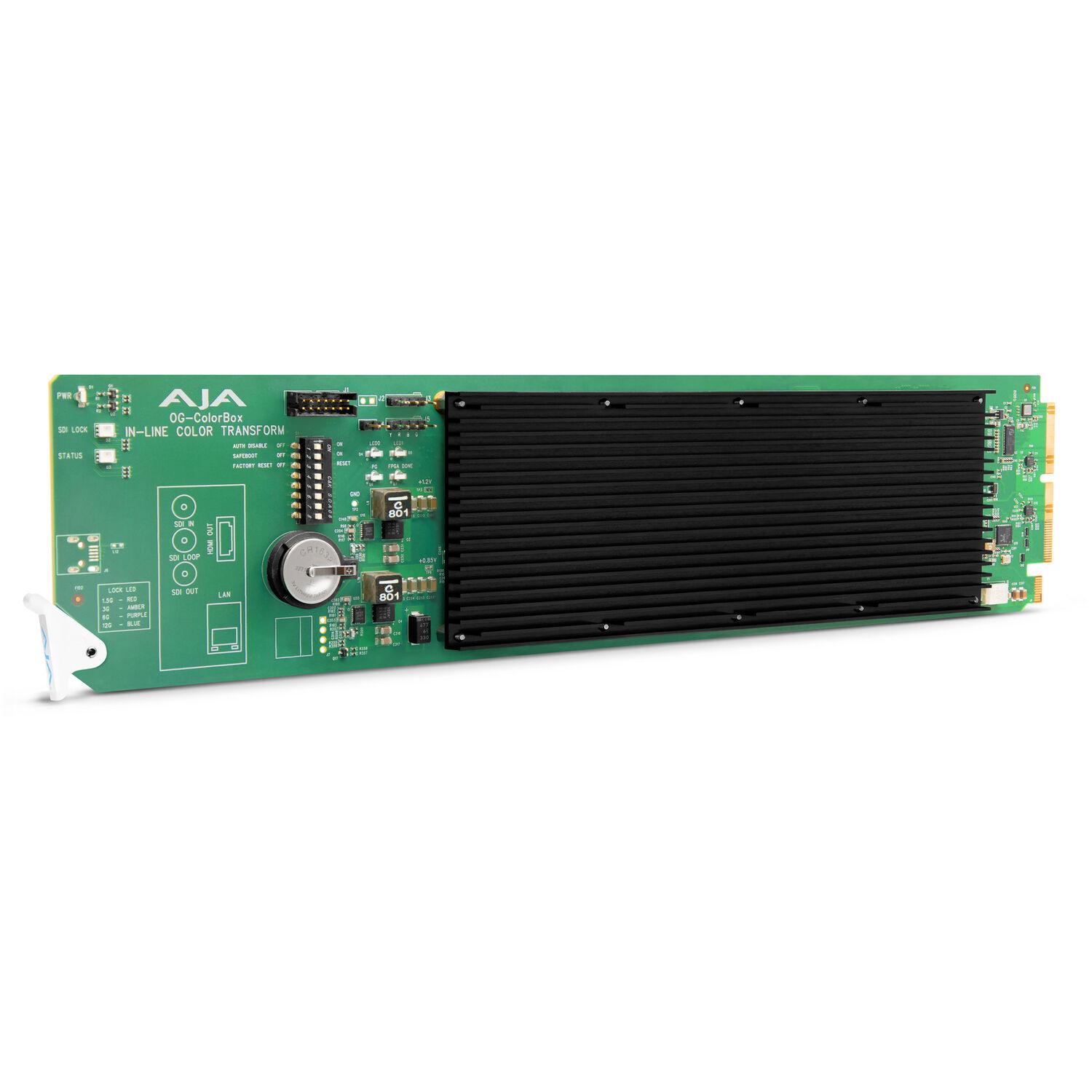

AJA OG-ColorBox openGear In-Line HDR/SDR Algorithmic and LUT Color Transformer
AJA OG-ColorBox openGear In-Line HDR/SDR Algorithmic and LUT Color Transformer
AJA OG-ColorBox openGear In-Line HDR/SDR Algorithmic and LUT Color Transformer
AJA OG-ColorBox openGear In-Line HDR/SDR Algorithmic and LUT Color Transformer

AJA OG-ColorBox openGear In-Line HDR/SDR Algorithmic and LUT Color Transformer

Brand: AJA

MFR: OG-COLORBOX-R0

SKU: SF-2443-D68Y

7,621.00 ﾹ

  • Color Conversion and Management
  • 12G-SDI Input and Output, HDMI Output
  • 12-Bit 12G-SDI In/Out 4:4:4 DCI 4K30
  • 10-Bit 12G-SDI In/Out 4:2:2 DCI 4K60
  • Ultralow <1/2 TV Line Latency
  • AJA 3D LUT Color Pipeline with 7 x Nodes
  • Includes NBCU LUTs and ACES Pipelines
  • Optional Third-Party Licenses
  • 4K and 2K SDI and HDMI Down Conversion
  • openGear 2 RU Form

Items Included

  • AJA OG-ColorBox openGear In-Line HDR/SDR Algorithmic and LUT Color Transformer
  • HDMI Cable Clamp
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Signal Processing & Distribution

High-Performance Color Management
The OG-ColorBox from AJA provides high-performance color conversion and correction with support for HDR, SDR, and Wide Color Gamut signals. Ideal for live events, broadcast, and studio productions, this openGear card features minimal latency, single-cable 12G-SDI support for up to DCI 4K60 video, and 4K/2K down conversion. It provides a unique color-processing pipeline, includes NBCU LUT and ACES pipelines, and offers separately available license upgrade options.
Multiple Image Processing Pipelines

The OG-ColorBox includes six popular pipelines for your live broadcast, live event, and on-set workflow:



  • AJA Colorfront (requires license to remove watermark)
  • ORION-CONVERT (requires license to remove watermark)
  • BBC HLG LUTs (requires license to remove watermark)
  • NBCU
  • LUTs
  • ACES
AJA Color Pipeline

AJA's advanced color management features:



  • Seven processing nodes plus Overlay
  • 12-bit RGB
  • One 3D LUT and four 1D LUTs
  • Two 3x3 matrices
  • Support for standard file types
  • Configurable color space, range, and transfer characteristics
  • Full-frame LUT processing
  • Full bypass node for 12G-SDI and HDMI 2.0
ACES Support
The OG-ColorBox supports ACES (Academy Color Encoding System) color management for maintaining consistent color through capture through editing, presentation, and future remastering.
NBCU LUTs Pipeline
Create a single-master workflow for simultaneous HDR and SDR content using NBCU LUTs. Designed for television broadcasting, the OG-ColorBox supports seven NBCU LUT conversions.
Optional Licenses

Separately available license options include:



  • Colorfront Engine with TV, live, and SDR to Dolby Vision preview modes.
  • ORION-CONVERT with Cromorama color science for dual HDR/SDR broadcast workflows.
  • BBC HLG LUTs with proven HDR conversion options.
Ultralow Latency
The OG-ColorBox's ultralow latency of less than 1/2 video line enables it to process and output a live signal in the critical ±half line input timing requirement of most production switches.
Down Conversion and 4K/2K Crop
Independent SDI and HDMI 4K and 2K down conversions enable the OG-ColorBox to meet various monitoring requirements.
Advanced Overlay and ANC Metadata Management
Overlay selected metadata and user data on your video for live use, capture, embedding, or pass ANC metadata to a linked SDI device or application using the OG-ColorBox API.
DCI and UHD 4K Frame Capture and Recall
  • The OG-ColorBox's frame capture and recall can be used for VF/X composite checks and look comparisons between takes.
  • Store up to 16 frames locally or using third-party software to save images to your computer.
Extensive Onboard Libraries
OG-ColorBox features an extensive library capacity with 16 memory slots for each file category, 10 presets per pipeline, and a startup preset.
ARRI LogC4 Wireless WVO Support
A built-in decoding LUT enables the OG-ColorBox to improve monitoring image quality when using LogC4 Wireless WVO wireless video transmission with an ARRI ALEXA 35.
Partner Integrations
The OG-ColorBox's feature set can be used with third-party a RESTfuL API defined using OpenAPI. Partners include: CyanView RCP, SKAARHOJ Blue Pill, Pomfort Livegrade, QTAKE Video Assist, Assimilate, Calman calibration, and Light Illusion ColourSpace calibration.
openGear Compatibility
  • This AJA card is compatible with other openGear products, offering a modular rear panel, and a redundant power supply.
  • An Ethernet port provides access for card configuration using Ross DashBoard software.

General
Maximum Resolution
DCI 4K 60
UHD 4K 60
Color Depth
YCbCr: 4:2:2, 4:4:4
RGB: 4:4:4
Color Spaces
SDR BT.709
PQ BT.2020
HLG BT.2100
Size
openGear 2 RU
Inputs/Outputs
Connector 1
1x 12G-SDI BNC Input Female
Connector 2
2x 12G-SDI BNC Output Female
1x HDMI 2.0b Output
Other Input/Output
GbE Ethernet: 1 x RJ-45
Physical
Weight
10.6 oz / 300 g
Packaging Info
Package Weight
1.385 lb
Box Dimensions (LxWxH)
17.1 x 8.6 x 3.2"
