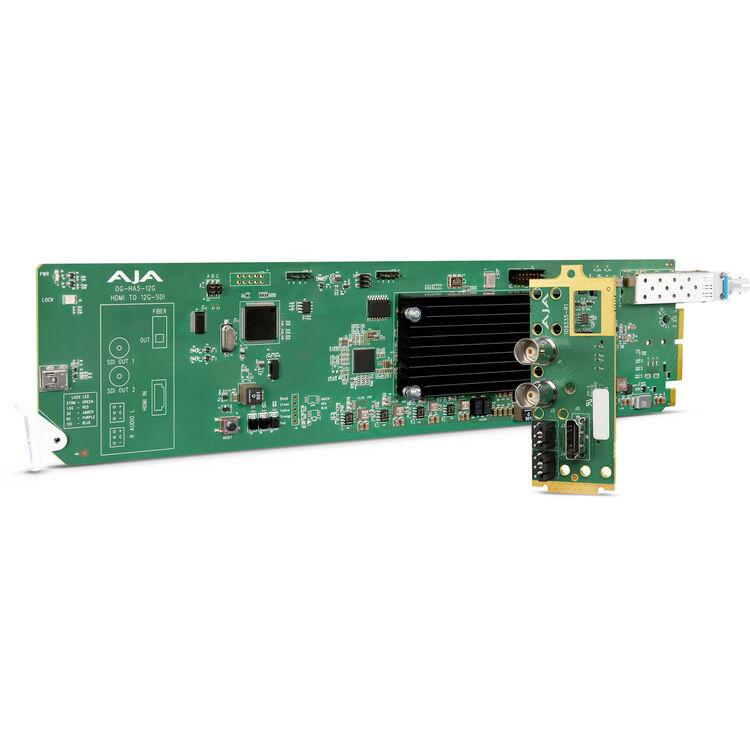

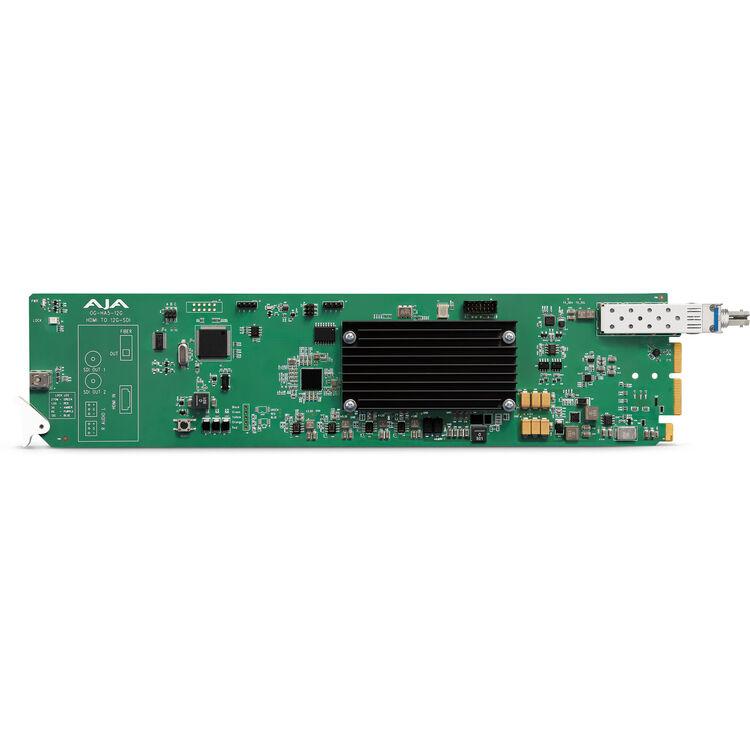

Monitor your HDR camera feed on a 4K monitor when using an openGear frame with this OG-HA5-12G-T-ST OpenGear 4K HDMI 2.0 to 12G-SDI Converter Card with Fiber ST from AJA. This card installs into an openGear frame and provides video input via HDMI 2.0 source and outputs via ST fiber transmitter or 12G-SDI for viewing on a 4K monitor.
The card also features a second 12G-SDI mirrored output for local monitoring or for viewing on other monitors. Other features include EDID LFR and HFR emulation, HDR10 support, HFR support, and 12-bit workflows. The card can be managed and controlled using the Ross DashBoard software.
HDR (High Dynamic Range) provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colors to be communicated to your audience.
The OG-HA5-12G provides support for analyzing HDR infoframe data coming in over HDMI.
Typical 4K signals use a resolution of 4096 x 2160 pixels while UHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UHD workflows. The OG-HA5-12G can compensate for these resolution differences, allowing UHD monitors to be used in 4K productions and vice versa.
The OG-HA5-12G also supports High Frame Rate (HFR) inputs. 4K/UHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
| Video Inputs | |
| Audio Inputs | |
| Video Outputs | |
| Audio Outputs | |
| Expansion Slots |
| Input Video Format | |
| Output Video Format | |
| Embedded Audio |
| Video Standard Compliance | |
| HDR Support | |
| Dolby Compatibility |
| Wireless | |
| OS Compatibility |
| Power Consumption |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity |
| Rack Form Factor | |
| Certifications | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
