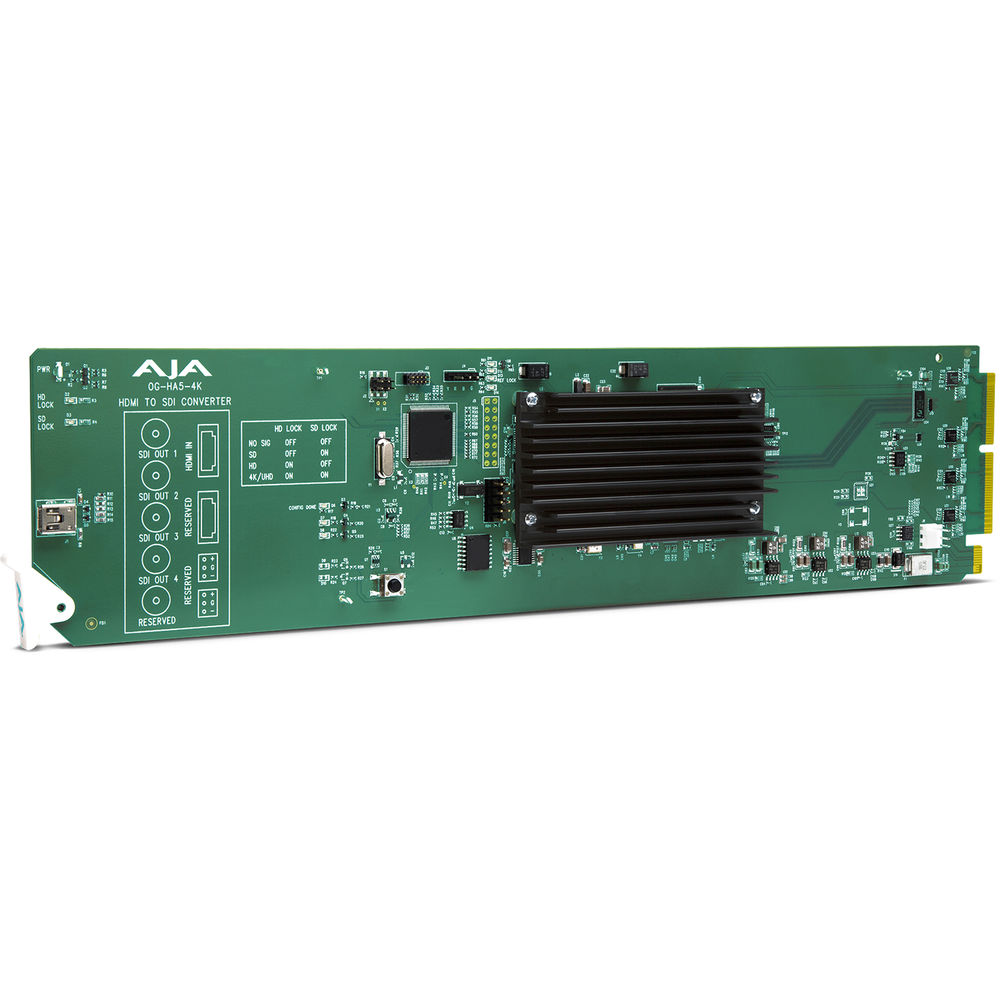

Featuring four 3G-SDI outputs, the openGear compatible OG-HA5-4K openGear 4K/2K/HD/SD HDMI 2.0 to 3G-SDI Converter from AJA enables high-quality conversion of HDMI 2.0 video from DSLRs, mirrorless cameras, action cameras, or prosumer 4K video cameras to 4K/UltraHD 3G-SDI for use in professional workflows. The OG-HA5-4K is also capable of displaying HDR infoframe data coming in over HDMI when used with DashBoard software.
The device is designed for use in high-density openGear 2 RU frames including AJA's OG-X-FR frame. DashBoard software is supported on Windows, macOS, and Linux operating systems and offers remote control and monitoring of the openGear architecture. This provides convenient and industry-standard configuration, monitoring, and control options over a PC or local network.
Features at a Glance
HDR
HD and Audio Support
openGear and DashBoard Software Compatibility
| Video Inputs | 1 x HDMI (HDMI 2.0b) Female |
| Audio Inputs | None |
| Video Outputs | 4 x BNC (3G-SDI) Female |
| Audio Outputs | None |
| Expansion Slots | None |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) DCI 4K 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576p 50 fps 576i / 625 lines 50 fps 480p 59.94 fps 480i / 525 lines 59.94 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation) |
| Output Video Format | SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 4KPsF 23.98/24/25/29.97/30 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4KPsF 23.98/24/25/29.97/30 fps DCI 2K 23.98/24/25/29.97/30 fps DCI 2KPsF 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50/59.94 fps |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio | HDMI/SDI: 8-Channel |
Standards
| Video Standard Compliance | SMPTE 259M/292M/424M |
| HDR Compatibility | Not Specified by Manufacturer |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby Digital Plus |
Hardware
| Wi-Fi | None |
| OS Compatibility | Windows iOS Linux *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Consumption | 10 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
General
| Weight | 0.5 lb / 0.2 kg |
Packaging Info
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 15 x 8 x 3.5" |
