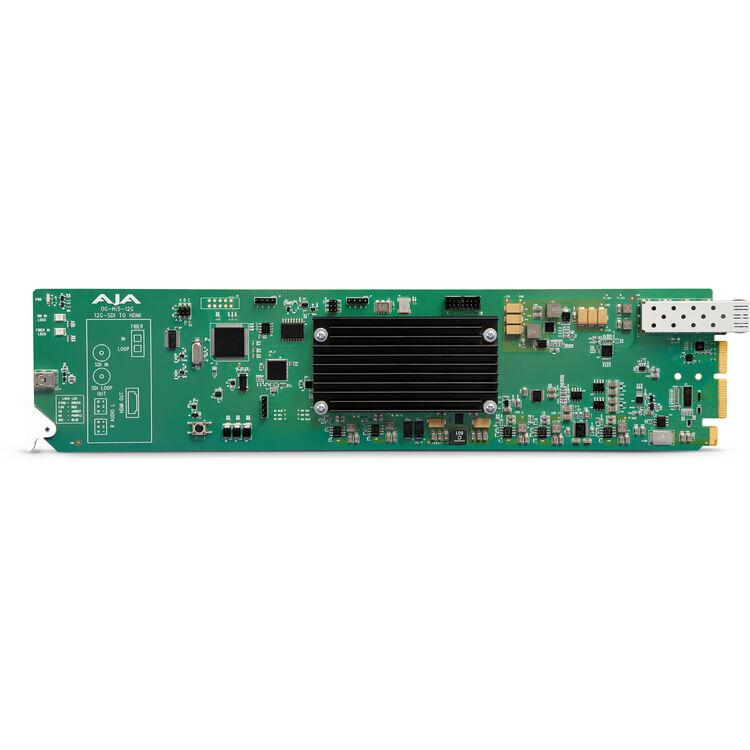

Monitor your HDR camera feed on a 4K monitor when using an openGear frame with this OG-Hi5-12G OpenGear 4K/UHD 12G-SDI to HDMI 2.0 Converter from AJA. This card installs into an openGear frame and provides video input via a 12G-SDI source and outputs via HDMI for viewing on a 4K monitor. It can also utilize a separately available fiber transmitter, receiver, or transceiver SFP module for long-distance feeds.
The card also features a 12G-SDI loop output for confidence monitoring or for viewing on other monitors. Other features include reclocking, HDR10 support, HFR support, HLG over HDMI, and 12-bit workflows. The card can be managed and controlled using the Ross DashBoard software.
HDR (High Dynamic Range) provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more 'dynamic' look and allows for natural true to life colors to be communicated to your audience.
The OG-Hi5-12G and family provide support for your 4K/UHD/HD HDR pipelines to HDMI compatible displays by generating HDR metadata in accordance with HDMI v2.0b/CTA-861-G. The OG-Hi5-12G also provides support for Hybrid Log Gamma (HLG) HDR displays over HDMI.
Typical 4K signals use a resolution of 4096 x 2160 pixels while UHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UHD workflows. The OG-Hi5-12G can compensate for these resolution differences, allowing UHD monitors to be used in 4K productions and vice versa.
OG-Hi5-12G also supports High Frame Rate (HFR) inputs. UHD 4K signals at 50 or 60 fps can be fed into OG-Hi5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.
| Video Inputs | |
| Audio Inputs | |
| Video Outputs | |
| Audio Outputs | |
| Expansion Slots |
| Input Video Format | |
| Output Video Format | |
| Embedded Audio |
| Video Standard Compliance | |
| HDR Support | |
| Dolby Compatibility |
| Wireless | |
| OS Compatibility |
| Power Consumption |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity |
| Rack Form Factor | |
| Certifications | |
| Weight |
| Package Weight | |
| Box Dimensions (LxWxH) |
