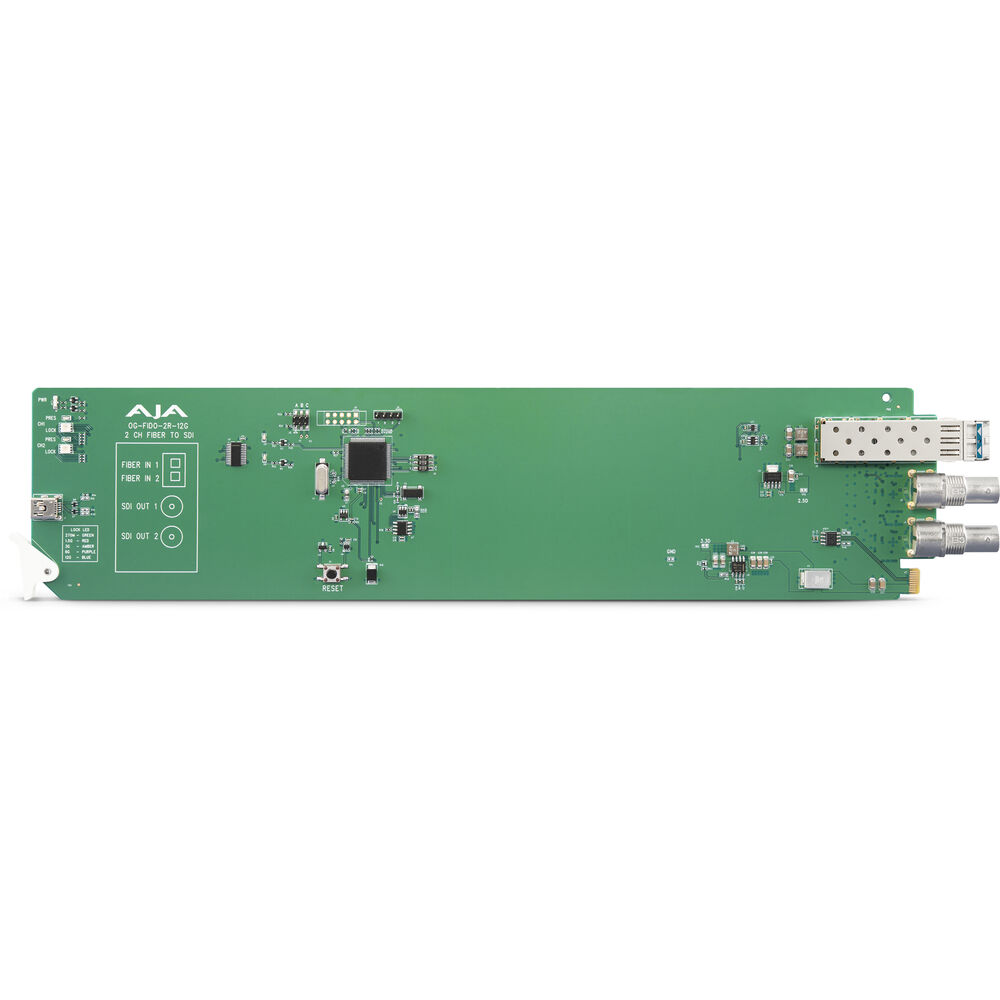

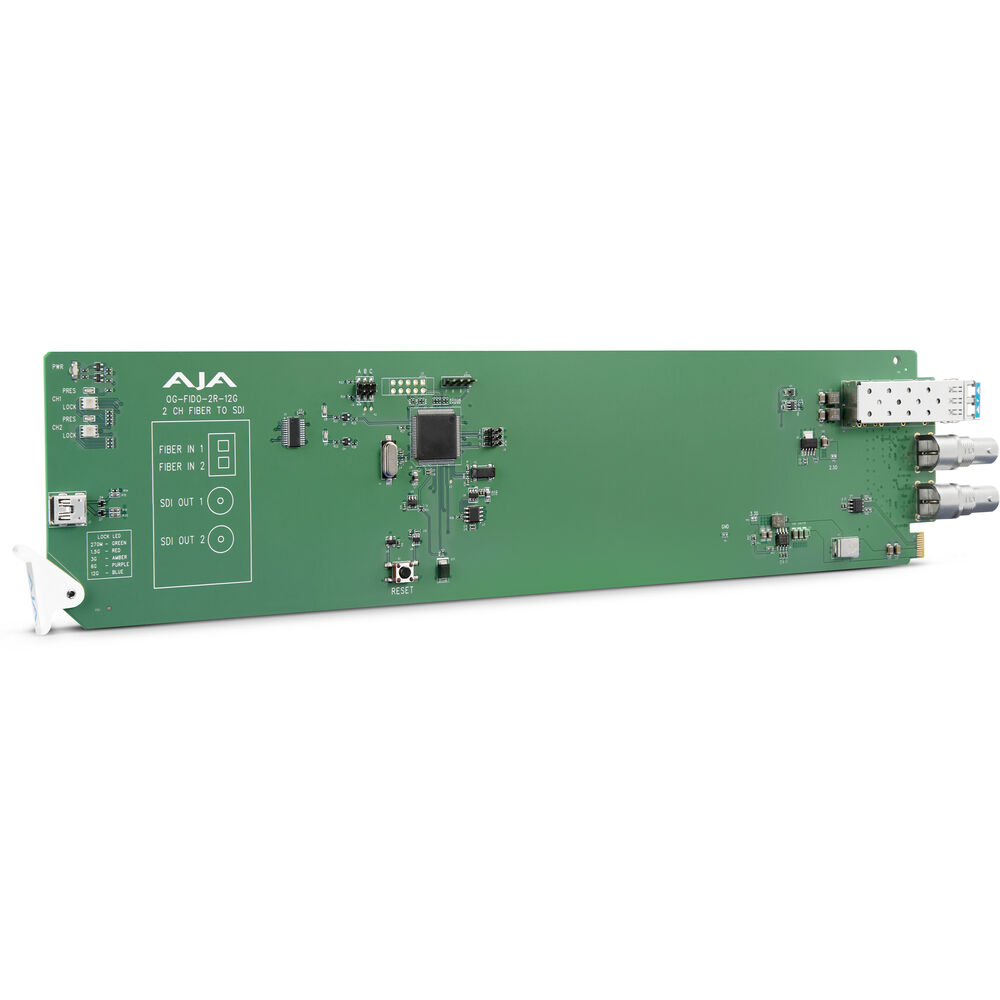

The AJA OpenGear OG-FiDO-2R-12G 2-Channel Single Mode LC Fiber to 12G-SDI Receiver is an openGear-compatible, 2-channel Fiber to 12G-SDI converter, enabling 12G-SDI signals to be extended up to 32,808' over a standard single mode fiber optic cable. The two fiber inputs are completely independent, allowing different 12G-SDI rates to be carried on each channel.
It is designed for use in high-density openGear 2 RU frames, including AJA's OG-X-FR frame, with industry-standard DashBoard software support on Windows, macOS, and Linux, offering remote control and monitoring over a PC or local network.
General
| Compatibility | AJA openGear OG-X-FR AJA openGear OG-3-FR AJA openGear DFR-8321 |
Inputs / Outputs
| Video I/O | 2 x SFP Input 2 x BNC (12G-SDI) Output |
Power
| Power Source | Proprietary Interface |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% (Non-Condensing) |
| Operating Altitude | 9842' / 3000 m |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
Physical
| Cable Length | Not Specified by Manufacturer |
| Dimensions | Not Specified by Manufacturer |
| Weight | 0.7 lb / 0.3 kg |
Packaging Info
| Package Weight | 1.06 lb |
| Box Dimensions (LxWxH) | 16.2 x 7.9 x 3.2" |
