Anton/Bauer Performance Series Quad Charger V-Mount
Anton/Bauer Performance Series Quad Charger V-Mount
Anton/Bauer Performance Series Quad Charger V-Mount
Anton/Bauer Performance Series Quad Charger V-Mount
Anton/Bauer Performance Series Quad Charger V-Mount
Anton/Bauer Performance Series Quad Charger V-Mount
Anton/Bauer Performance Series Quad Charger V-Mount
Anton/Bauer Performance Series Quad Charger V-Mount

Anton/Bauer Performance Series Quad Charger V-Mount

Brand: ANTON BAUER

MFR: 8475-0121

SKU: SF-2443-5JPQ

Price Available Upon Request
  • Allocates to Most-Charged Battery First
  • 40% Increased Efficiency
  • Simultaneous, Multi-Chemistry Charging
  • 4-Pin XLR Output for Powering Cameras
  • Assigns Best Charge/Termination Possible
  • Touchscreen Activity/Management Display
  • Supports Optional Wi-Fi Control Software
  • Ergonomic Design; One-Hand Carry Handle

Items Included

  • Anton/Bauer Performance Series Quad Charger V-Mount
  • Power Supply
  • Limited 2-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Chargers , Chargers

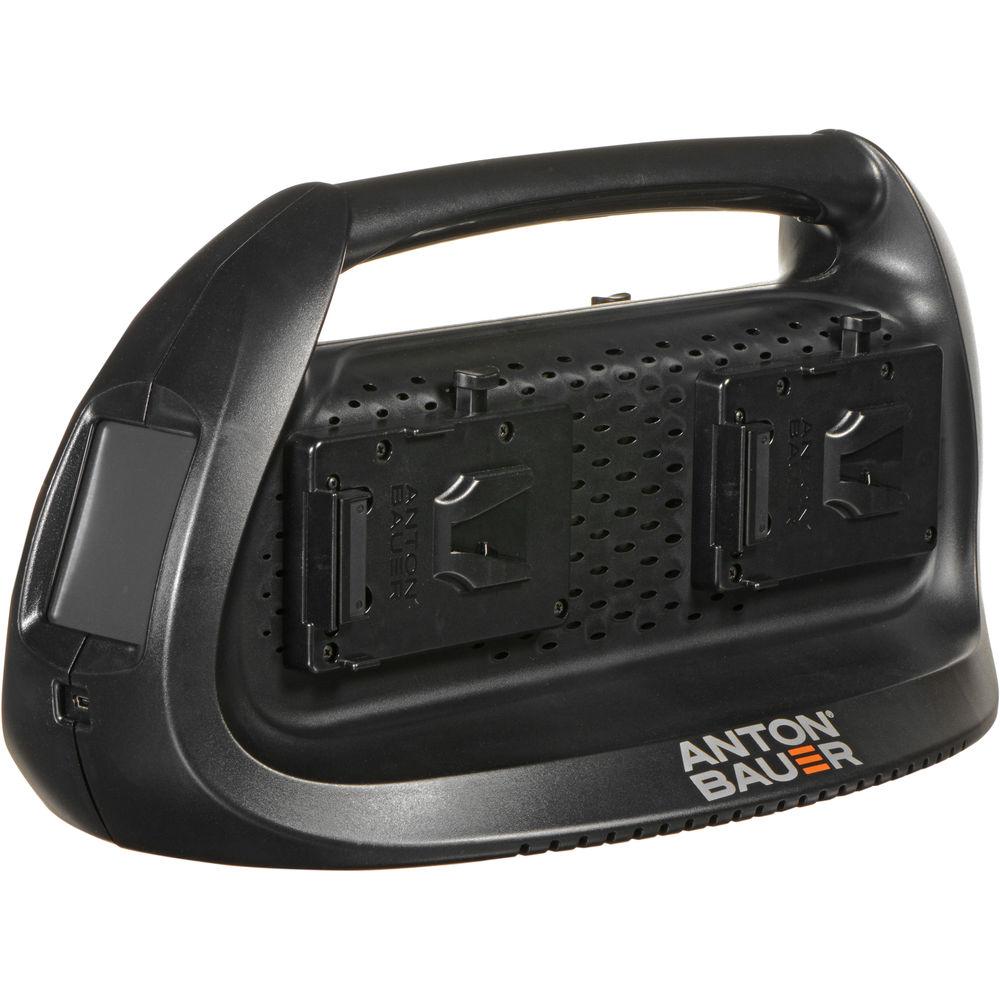

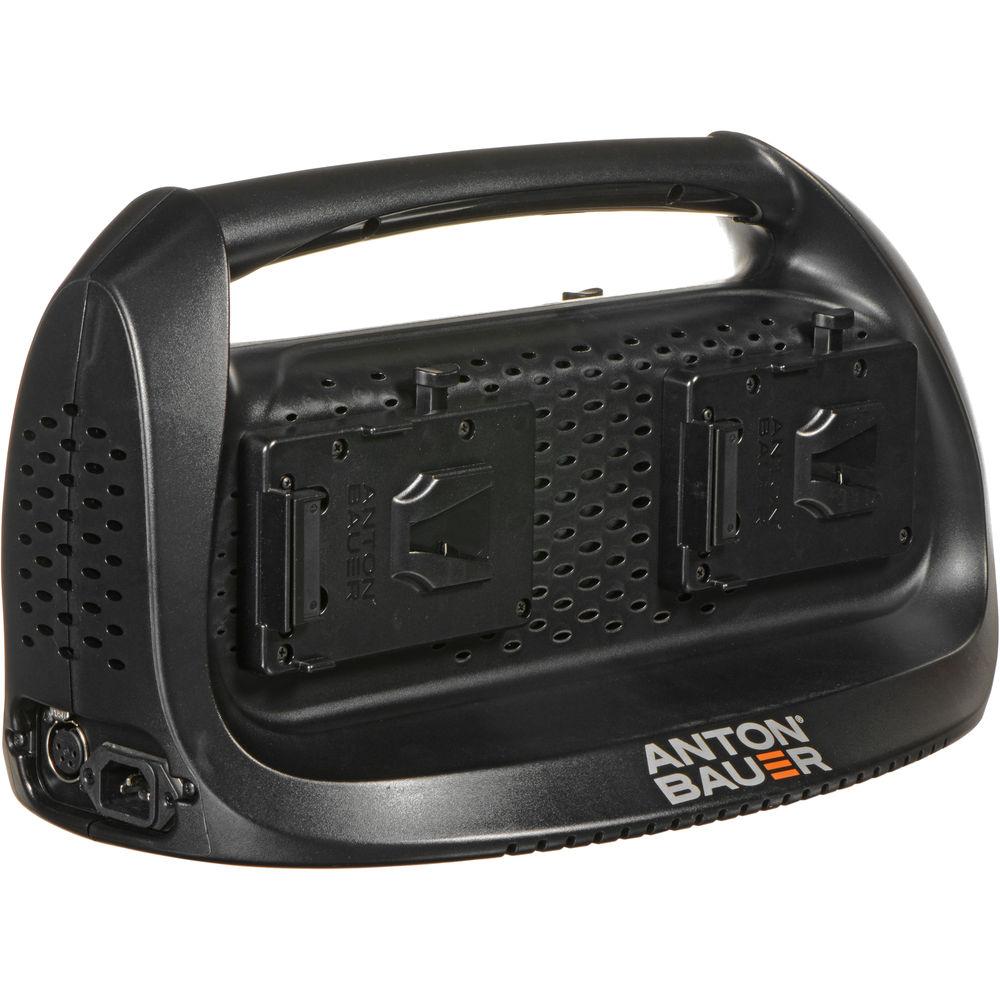

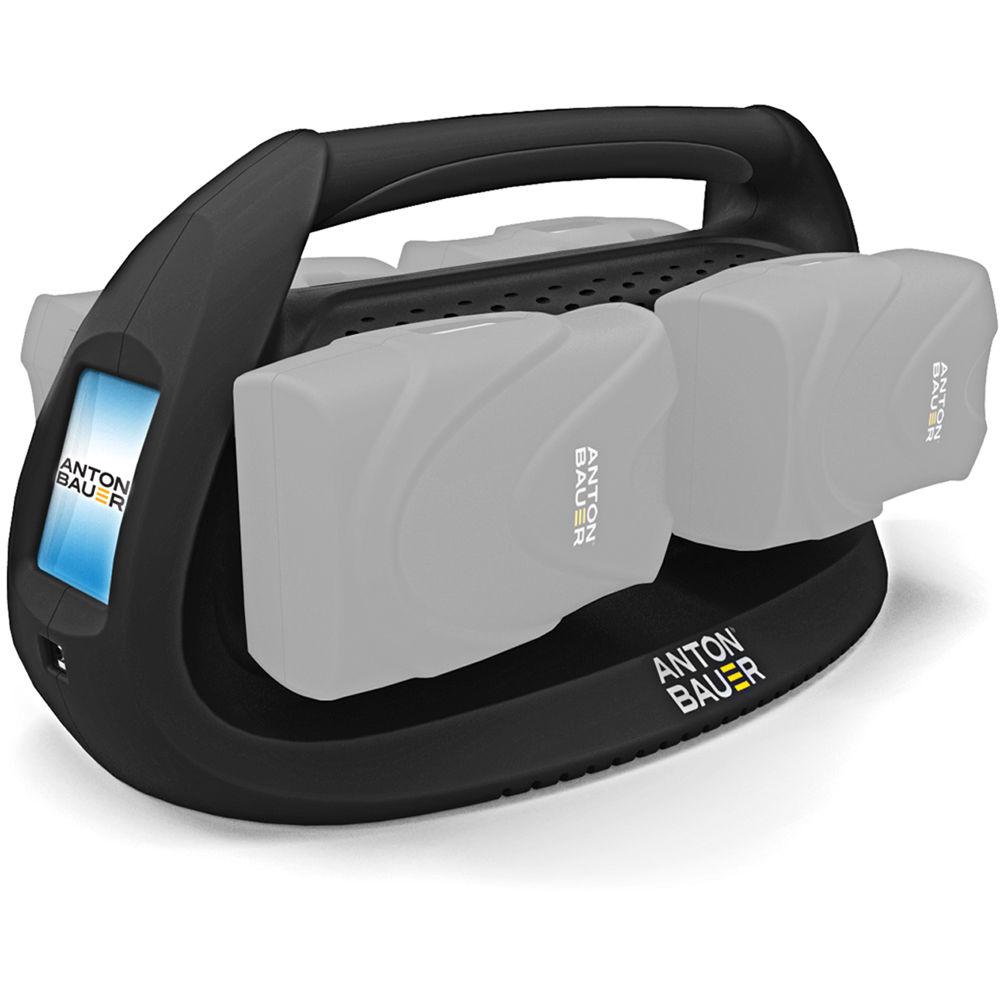

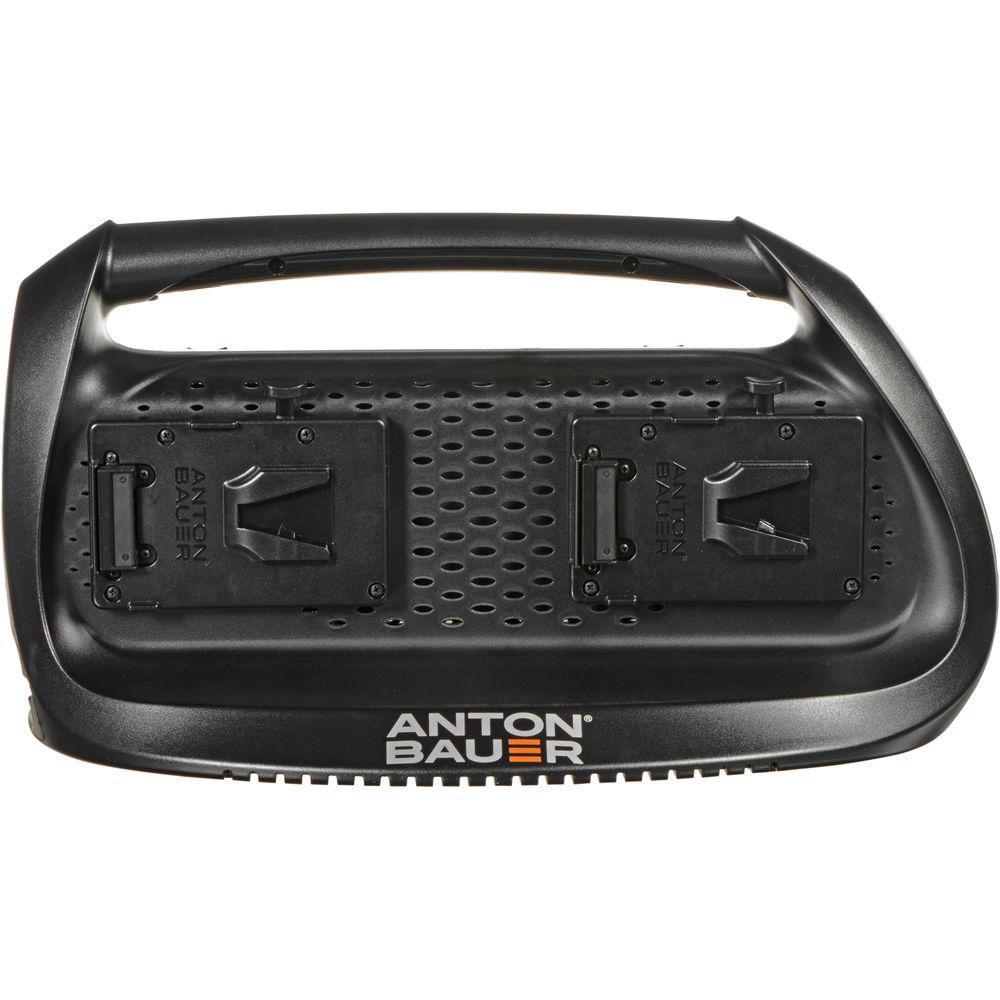

The Anton/Bauer Performance Series Quad Charger V-Mount allocates the most power to the highest-charged battery first and subsequently to the next most charged ones, ensuring that you'll have a fully charged battery as soon as possible. The process is similar to a champagne glass pyramid where the top-most glass overflows into those below it. The Performance Series is 40% more efficient than previous Anton/Bauer chargers by employing faster processing, using a smaller transformer in the power supply, and drawing less amps.

This V Mount version was designed to support the concurrently released Digital Battery Series V Mount models. It's capable of simultaneous, multi-chemistry charging, which will be useful if Anton/Bauer releases V Mount models of different chemistries in the future. (Anton/Bauer provides no guarantees that third party V Mount models will safely be supported.) Common to the Anton/Bauer name, a feature called InterActivity allows the charger to communicate with an Anton/Bauer battery and assign the best charge routine possible based on the battery's cell chemistry and the best termination algorithm possible (TCO, -ΔV temperature compensated VCO, dT/dt, CCO, FUL, or I-min), ensuring better overall life. A 4-pin XLR output allows you to power your camera right out of the charger via an XLR cable or converter cable. This can be done off of wall power at the same time as charging your batteries or off of attached batteries if the charger is unplugged. The batteries in the latter case are hot swappable so you can power your camera with uninterrupted power.

The charger features a simple-to-use, touchscreen display that provides activity and status updates and access to management functions. It also supports an optional Wi-Fi software feature that will allow you to remotely manage the health and status of one or more Performance Series chargers.

Key Features
  • Allocates the most power to the highest-charged battery
  • Supports simultaneous, multi-chemistry charging
  • 4-pin XLR output for powering your camera off of wall power or battery power
  • Assigns the best charge routine possible based on the battery's cell chemistry
  • Assigns the best termination algorithm possible
  • Simple-to-use touchscreen activity, status, and management display
  • Ergonomic design with one-hand carry handle
  • Supports optional remote health and status management software featur

Battery Charger
Charger Compatibility
V-Mount
Number of Battery Bays
4
Multi-Bay Charging Modes
Simultaneous
Charger Power Source
AC Power (Cable Included)
Charger Power I/O
1x IEC Female Input
 • 100 to 240 VAC, 50 / 60 Hz
1x XLR 4-Pin Female Output
 • 16 VDC (70 W)
Charger Other I/O
1x Mini-USB Female Firmware Input
Charger Included Adapter / Cable
1x USA Type-A/B Plug to IEC Male Cable
Battery Output Voltage
16 VDC
Features
Quick Charge
Dimensions
16.5 x 9.9 x 8.7" / 42 x 25 x 22 cm
Weight
8 lb / 3.6 kg
Packaging Info
Package Weight
11.65 lb
Box Dimensions (LxWxH)
18.1 x 12.6 x 12.3"

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Anton/Bauer Performance Series Quad Charger V-Mount
  • Power Supply
  • Limited 2-Year Manufacturer Warranty
