Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)
Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)

Anton/Bauer VCLX LI Kit with Battery, Charger, and Charging Cable (1642Wh)

Brand: ANTON BAUER

MFR: 8275-0159

SKU: SF-2443-XZQI

Price Available Upon Request
  • Freestanding 1642Wh Lithium-Ion Battery
  • 8-Hour Recharging Time
  • VCLX 2 Magnetic Charger
  • 48" 3-Pin XLR Charging Cable

Items Included

    • Limited 2-Year Manufacturer Warranty
    • IEC US Power Cord
    • Limited 2-Year Manufacturer Warranty
    • Limited 2-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Battery Power Stations , Battery Power Stations

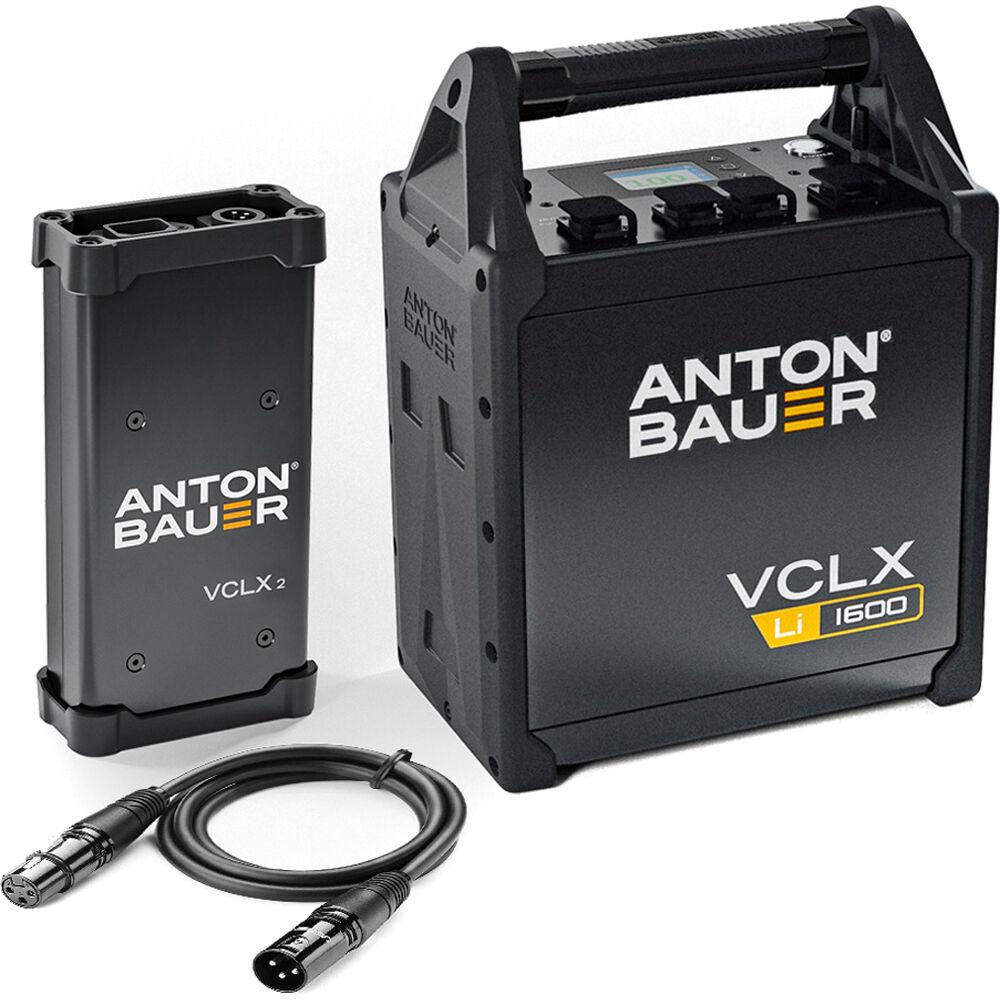

The VCLX LI Kit from Anton/Bauer includes a VCLX LI freestanding battery, a VCLX 2 charger, and a 48" charging cable. The battery features a 1642Wh capacity and a freestanding design with multiple I/O ports to power equipment on set. The charger attaches to the battery magnetically and recharges it in 8 hours. Use the 48" 3-pin XLR charging cable to connect the charger and the battery.

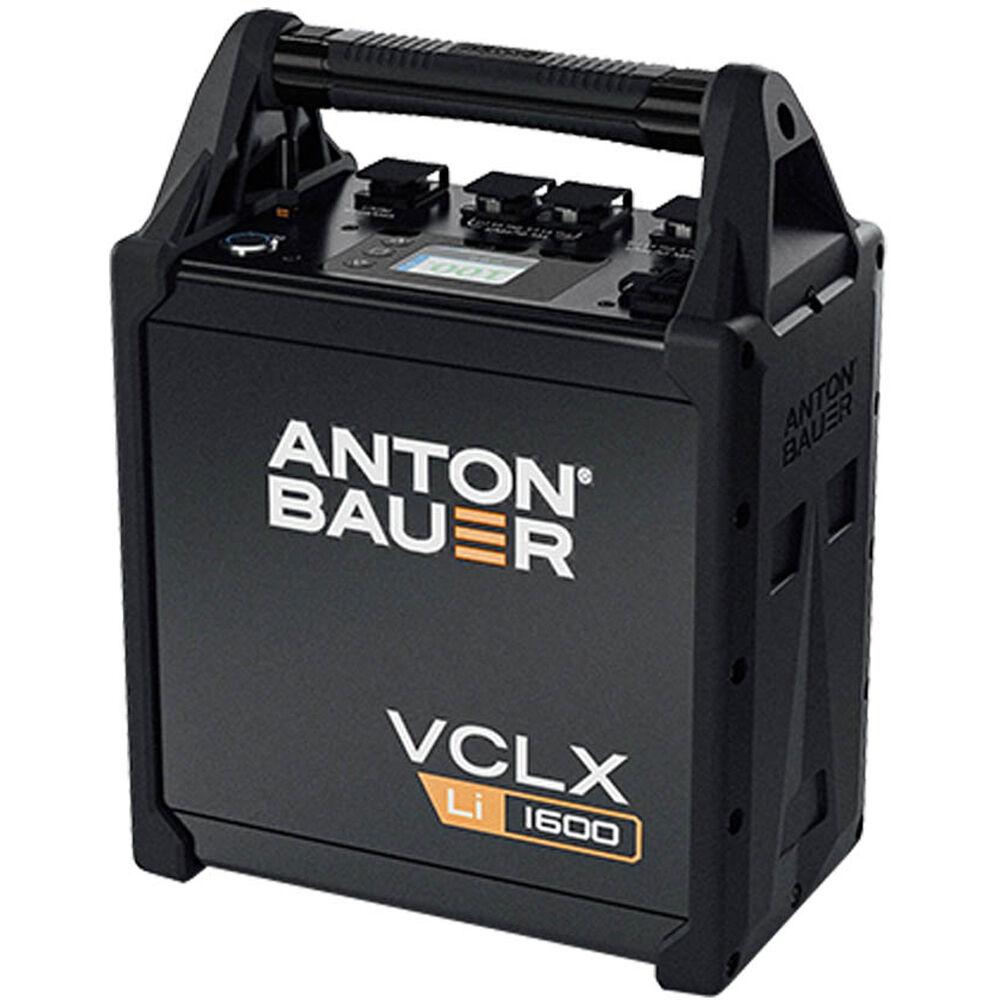

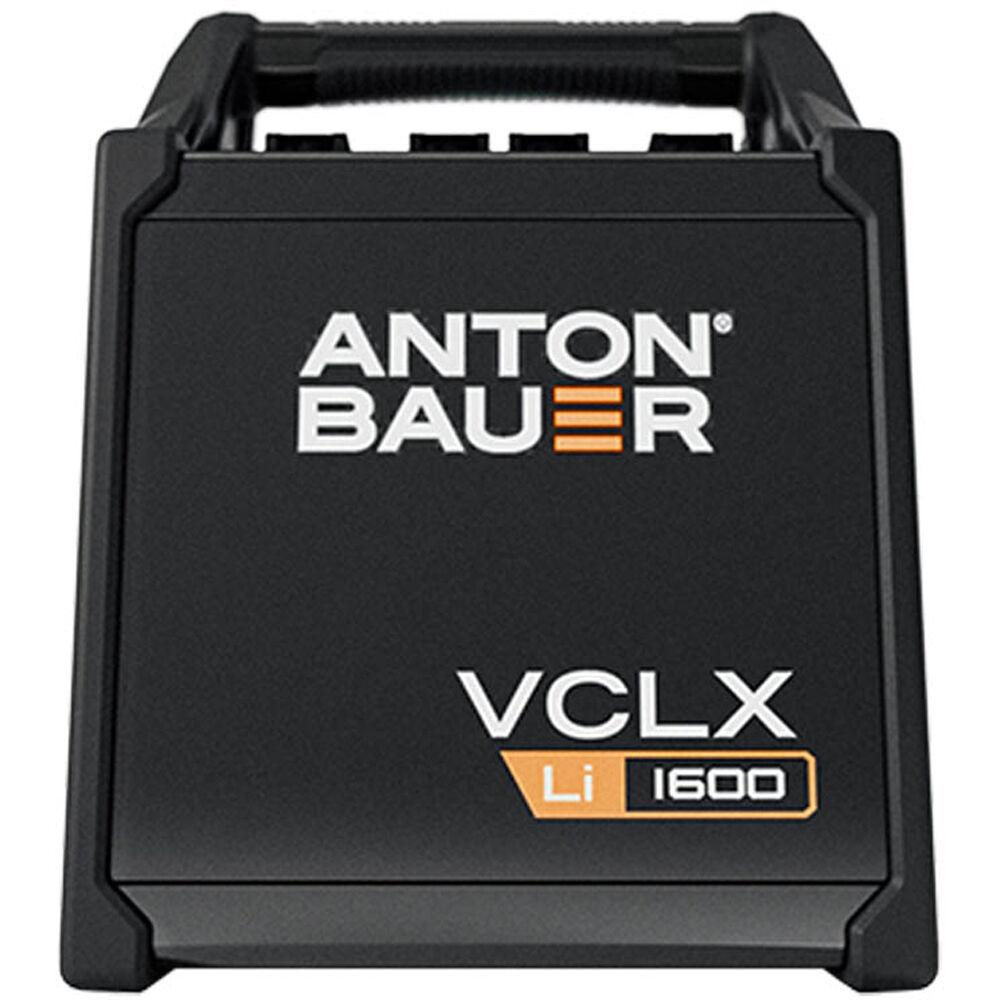

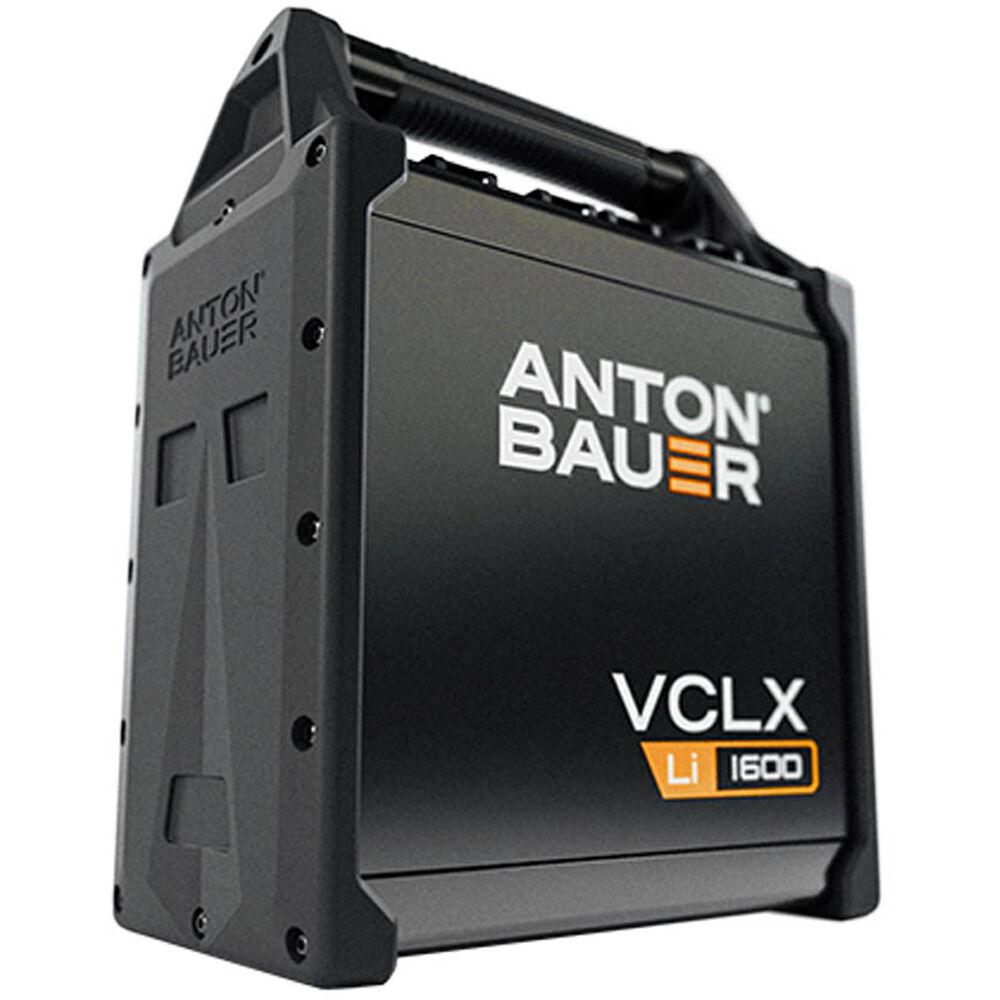

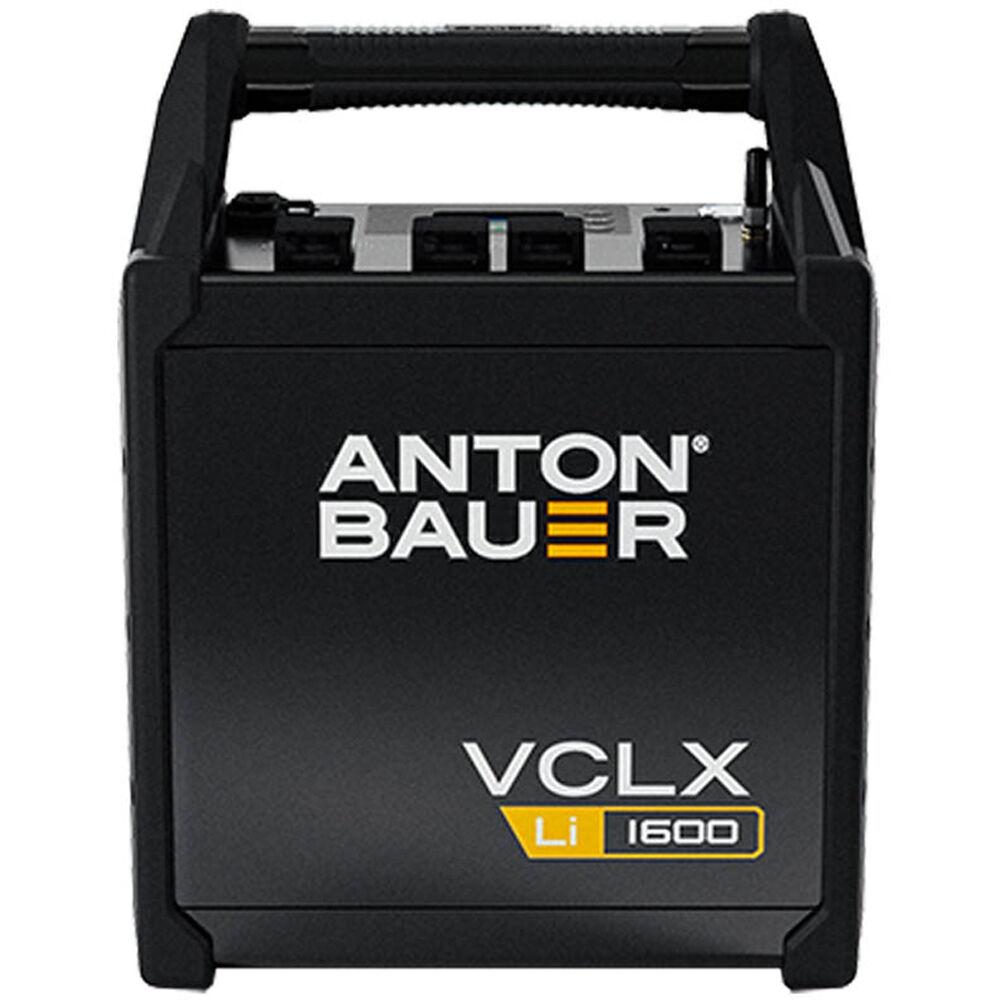

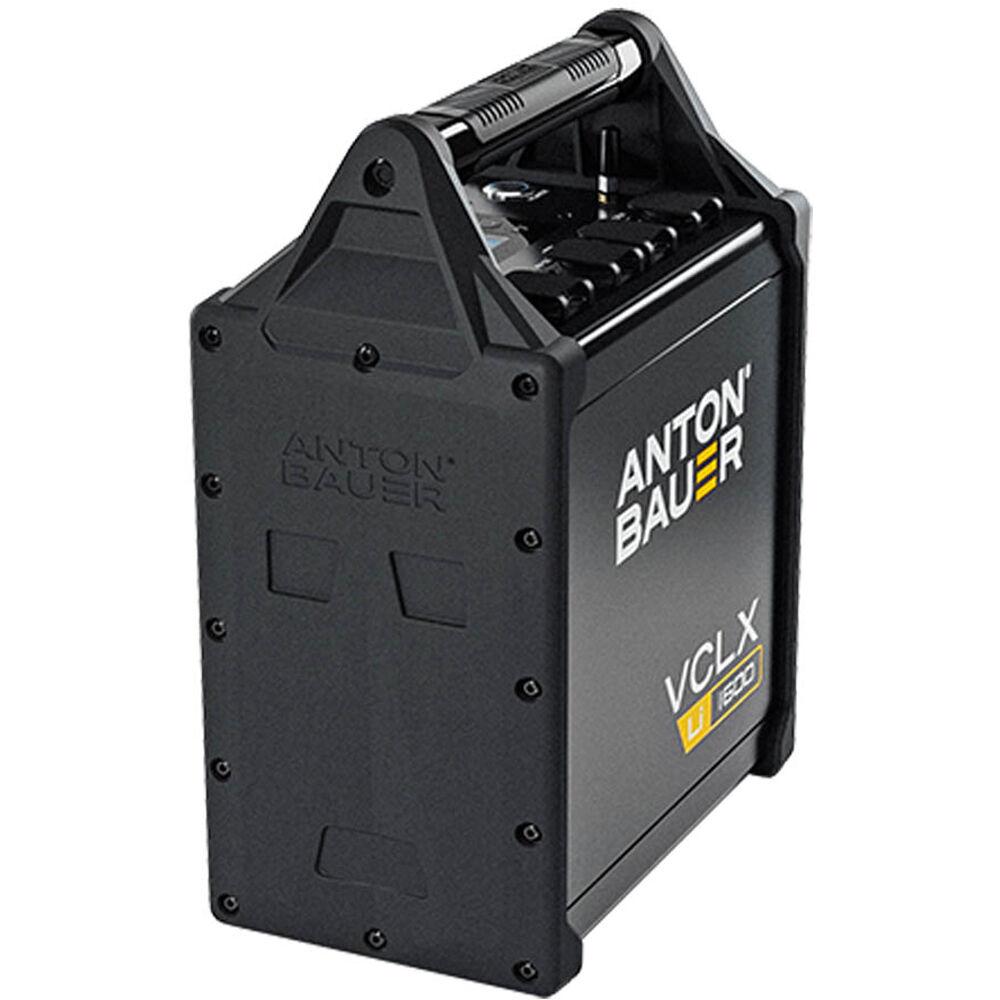

Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery

For long-lasting power, the Anton/Bauer VCLX LI Lithium Ion 1600Wh Freestanding Battery has dual 14.4V outputs and a single switchable 28/48V output, providing a single solution that can handle a wide variety of camera needs. This 1642Wh lithium-ion battery provides dual simultaneous outputs and is ideal for high-current applications. Power is outputted via two 4-pin XLR connectors for 14.4V at 12A and one 3-pin XLR connector for selectable 28 or 48V at 16A.

A USB-A port outputs 5V to charge peripheral accessories on set. A 2.4" LCD screen offers real-time monitoring, smart electronic fuses, and integrated Wi-Fi for easy data management using the Anton/Bauer Fleet Management software. The battery is IP65 rated to withstand the elements for maximum durability on set. Once depleted, the battery recharges with the separately available VCLX 2 charger in eight hours.

High-Current Outputs
The VLCX LI delivers 24A from the 4-pin XLR outputs and 16A from the selectable 3-pin XLR output, making it ideal for light panels and camera rigs.
Accurate Monitoring
The 2.4" LCD makes monitoring remaining runtime, charge time, or active power draw easy. You can even perform real-time onboard diagnostics to ensure your battery performs perfectly. The battery calculates what is being powered by each port for maximum efficiency.
Fleet Management
Built-in fleet management allows you to download vital information instantly. View details on the learned capacity of the battery, the number of cycles it has run, the percentage charge, and any errors with time stamps for quick repairs.
Anton/Bauer VCLX 2 Charger for VCLX NM2 Battery

The Anton Bauer VCLX 2 Charger features a slim and portable design and allows you to charge your Anton Bauer VCLX NM2 battery. It mounts magnetically onto the battery for a slim package, and it charges your battery in approximately five hours using an advanced charging algorithm that provides the fastest possible charge.

While the charger includes a US IEC power cable, it supports 90 to 240 VAC input power, so you can power it throughout the world using an optional IEC power cable of your choice. A built-in 3-pin XLR connector allows you to charge your battery using an optional 3-pin XLR cable.

Anton/Bauer XLR Charging Cable for VCLX 2 Charger (48")

Made tough to stand up to the rigors of the production day while handling the extremes of temperature, the 48" Anton/Bauer XLR Charging Cable for VCLX 2 Charger is made specifically to link your VCLX NM2 battery to the charger. Featuring one male and one female 3-pin XLR connector, and 14 AWG wire gauge cable, you can safely charge your battery with this cable.


General
Power I/O
2 x 4-Pin XLR
1 x 3-Pin XLR
1 x USB-A
Display
2.4" LCD
IP Rating
IP65
Battery
Battery Chemistry
Lithium-Ion
Battery Capacity
1642 Wh
Output Voltage
14.4 VDC
28 VDC
48 VDC
Charging Power
850 W(48 VDC / 16 A)
Recharge Time
8 Hours
Physical
Operating Conditions
32 to 104°F / 0 to 40°C
Charging Temperature
23 to 95°F / -5 to 35°C
Discharging Temperature
32 to 122°F / 0 to 50°C
Dimensions
12.99 x 10.04 x 6.02" / 32.99 x 25.5 x 15.29 cm
Weight
25.49 lb / 11.56 kg
Packaging Info
Package Weight
31.06 lb
Box Dimensions (LxWxH)
18.1 x 12.3 x 8.1"
