Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)

Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)

Brand: APUTURE

MFR: AG07060003

SKU: SF-2443-KOHD

50,314.00 ﾹ

  • For Studio & Film/TV Production
  • Output: 103,500 Lux at 9.8' w/ Reflector
  • 2500-10,000K CCT
  • High-Output/Tunable-White/BLAIR Chipset
  • Onboard, DMX & App Control
  • Art-Net, sACN & LumenRadio CRMX Control
  • CRI >96 | TLCI >96 | SSI 87/86
  • Advanced Liquid Cooling, IP65 Rated
  • Electronic Aputure Mount, 35° Reflector
  • Includes Control Box & Lamp Head Cases

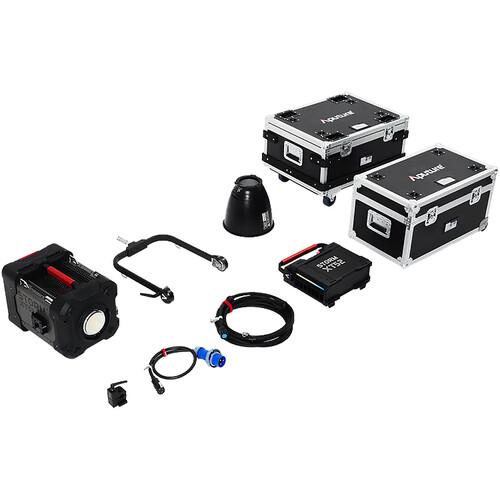

Items Included

  • Aputure STORM XT52 Point-Source Tunable-White LED Monolight Dual Flight Case Kit (Bare Ends Cable)
  • Removable Yoke
  • Aputure Mount Protection Cover

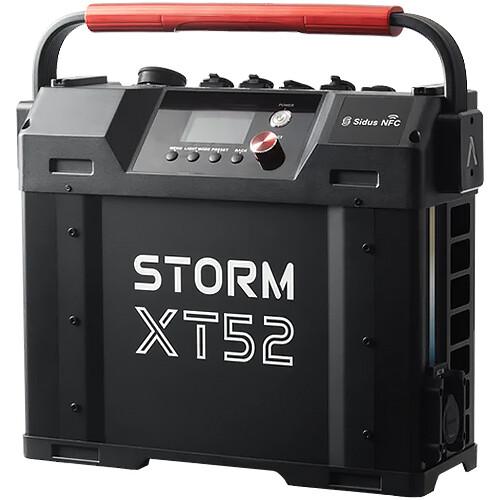

  • Control Box
  • Aputure-Mount Medium Reflector (35°)
  • AC Power Cable (3.3')
  • Head Cable (24.6')
  • Safety Cable
  • Lamp Head Flight Case
  • Control Box Flight Case
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: LED Lights

Designed for large-scale film and television productions, the STORM XT52 Point-Source Tunable-White LED Monolight from Aputure offers 5200W of high-output white CCT from 2500 to 10,000K. This fixture features a BLAIR chipset for exceptional accuracy, advanced connectivity options, and a rugged IP65 dust and weather-resistant construction that withstands demanding capture environments. Its electronic mount is compatible with Aputure's innovative electronic modifiers that provide enhanced optimization and motorized control. This version of the XT52 fixture comes with a bare ends cable and two flight cases.

Chipset and Color Accuracy
In addition to a 5200W output that rivals industry-standard 6000W HMIs, the XT52 light is equipped with a powerful BLAIR (blue, lime, amber, indigo, and red) chipset that delivers exceptionally accurate color reproduction across its tunable CCT range of 2500 to 10,000K. It offers a CRI and TLCI of >96 and SSI of daylight and tungsten at 86 and 87, respectively. Its advanced white-point control offers ±G 100% ASC MITC range green-magenta color correction, for seamless integration in mixed-lighting environments. The XT52 outputs up to 103,500 lux at a distance of 9.8' using its included 35° reflector.
Expanded Mounting
The XT52's innovative electronic Aputure mount is designed for heavy-duty modifiers, including the optional CF14 or upcoming CF16 Motorized Fresnel, guaranteeing stability, durability, and optimized color accuracy while supporting motorized focus control. Take full advantage of this mount's versatility by swapping out the included 35° reflector with one of Aputure's optional 20 and 50° reflectors.
Available Power Options
Depending on your location, the XT52 can be powered from household circuits, but please note that it requires 180V or greater to operate at full power. This XT52 fixture comes with a bare ends cable, letting users customize their plug solutions. It includes a 24.6' head cable and offers head-cable daisy chaining at lengths up to 147.6'.
Professional Connectivity
Designed with professionals in mind, the XT52 offers advanced connectivity options, including Sidus Link app control, LumenRadio CRMX, Art-Net and sACN via etherCON, and 16-bit DMX512 input and output. These features seamlessly integrate the fixture into existing lighting workflows, providing lighting technicians and programmers with complete control over its operation.
Advanced Liquid Cooling Technology
To effectively manage heat dissipation and maximize light output, the XT52 incorporates advanced liquid cooling technology. This innovative design guarantees that users can access the full potential of the fixture's light output while maintaining optimal performance.
Flexible Flicker-Free Performance
The flexible XT52 fixture supports both CIE daylight or Blackbody white light standards and uses a HyperDrive LED driver to ensure flicker-free performance at all color temperatures above 20% output.
Additional Features
The XT52's design features a stackable lamp head and a removable manual yoke, streamlining your storage options. Also featured is a modular, service-friendly sub-assembly with circuit board-level monitoring and fault error codes.
Flight Case
This fixture comes with two robust, wheeled flight cases for lamp head and control box storage and transportation.

Light Fixture
Item Type
1x LED Monolight
Included Light Modifier
1x Reflector
Included Storage Case
Yes
Photometrics
93° at 3200K:
15,777 fc / 169,830 Lux at 3.3' / 1 m (Unmodified)*
1753 fc / 18,870 Lux at 9.8' / 3 m (Unmodified)
667 fc / 7180 Lux at 16.4' / 5 m (Unmodified)
93° at 5600K:
18,461 fc / 198,720 Lux at 3.3' / 1 m (Unmodified)*
2051 fc / 22,080 Lux at 9.8' / 3 m (Unmodified)
782 fc / 8420 Lux at 16.4' / 5 m (Unmodified)
35° at 3200K:
86,536 fc / 931,500 Lux at 3.3' / 1 m (with Reflector)*
9615 fc / 103,500 Lux at 9.8' / 3 m (with Reflector)
3288 fc / 35,400 Lux at 16.4' / 5 m (with Reflector)
35° at 5600K:
104,010 fc / 1,119,600 Lux at 3.3' / 1 m (with Reflector)*
11,556 fc / 124,400 Lux at 9.8' / 3 m (with Reflector)
3892 fc / 41,900 Lux at 16.4' / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature
2500 to 10,000K (in CCT Mode)
Color Modes
Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
SSI 87 at 3200K
SSI 86 at 5600K
TM-30 Rf 96
TM-30 Rg 101
Dimming
App-Controlled / Built-In Dimmer / DMX
 • 0 to 100%
Cooling System
Fan
Beam Angle
93° Unmodified
35° with Included Reflector
Built-In Flash
No
Preprogrammed Effects
No
Umbrella Mount
No
Front Accessory Mount
Proprietary
Connectivity
Wireless Remote Control Type
Bluetooth
CRMX
Mobile App Compatible
Yes: Android & iOS
App Name: Sidus Link/Link Pro
Functionality: Firmware Update, Remote Control
Wireless Range
328.1' / 100 m
Power & I/O
Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs
Light Fixture
1x Unspecified Power Input
Power Supply/Controller
1x Unspecified Power Output
1x Unspecified AC Power Input
1x XLR 5-Pin DMX Input
1x XLR 5-Pin DMX Output
1x etherCON/RJ45 Network Input/Output
1x USB-A Firmware Input
Input Power
100 to 240 VAC, 50 / 60 Hz at 32 A
Included Adapter / Cable
1x Bare Ends to Unspecified Cable (3.3' / 1 m)
1x Unspecified to Unspecified Cable
Inline Switch
No
Power Pass-Thru
No
Power Consumption
5200 W
6000 W (Maximum)
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8" Stud (Via Yoke Mount)
General
Display
LCD (Via Included Power Supply/Controller)
Environmental Resistance
Dust/Water-Resistant (IP65)
Operating Conditions
-4 to 113°F / -20 to 45°C
Storage Conditions
-40 to 176°F / -40 to 80°C
Dimensions
21.7 x 14.3 x 13.9" / 55 x 36.2 x 35.3 cm (Fixture without Yoke)
32.7 x 21.7 x 21.3" / 83 x 55 x 54.1 cm (Fixture with Yoke)
16.2 x 15.3 x 6.3" / 41.1 x 38.8 x 16 cm (Power Supply/Controller)
Weight
61.3 lb / 27.8 kg (Fixture without Yoke)
69 lb / 31.3 kg (Fixture with Yoke)
29.5 lb / 13.4 kg (Power Supply/Controller)
Packaging Info
Package Weight
265.5 lb
Box Dimensions (LxWxH)
45.5 x 32.75 x 20.5"
