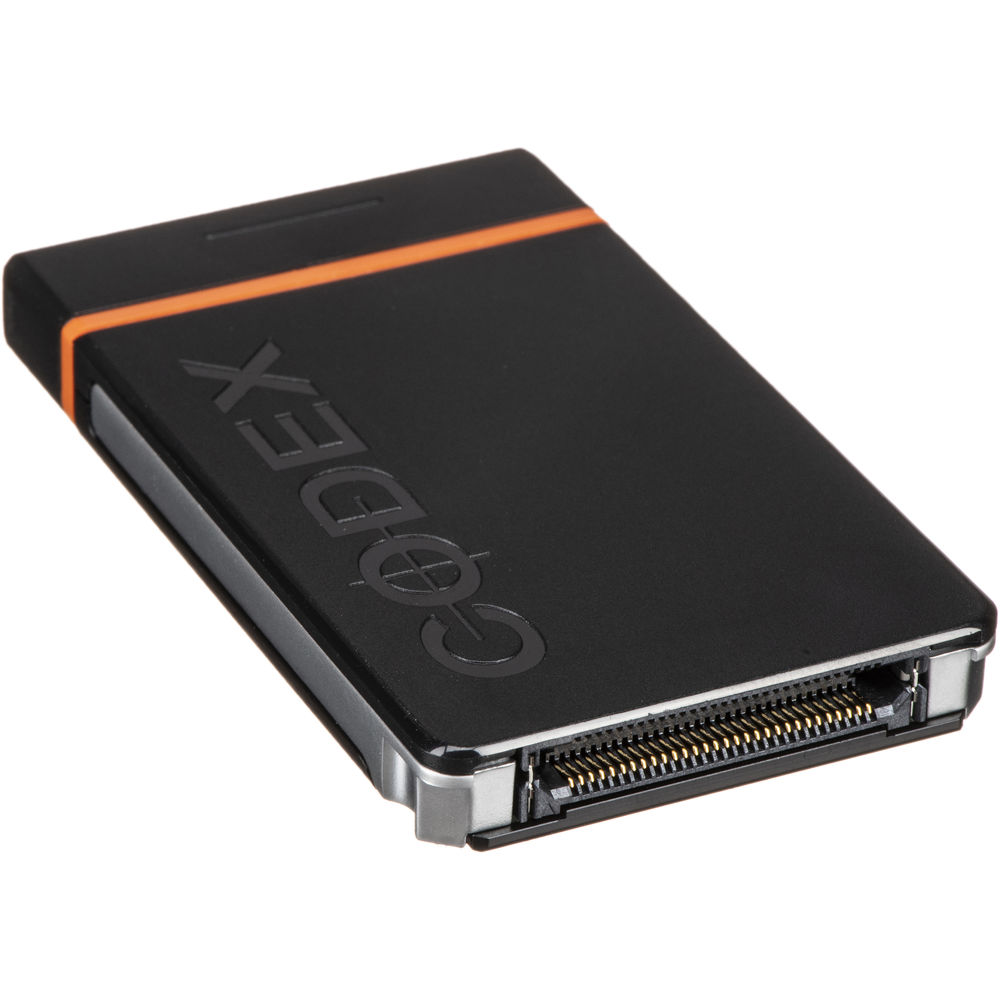

ARRI Codex Compact Drive Set 3 x 1TB
ARRI Codex Compact Drive Set 3 x 1TB
ARRI Codex Compact Drive Set 3 x 1TB
ARRI Codex Compact Drive Set 3 x 1TB
ARRI Codex Compact Drive Set 3 x 1TB
ARRI Codex Compact Drive Set 3 x 1TB

ARRI Codex Compact Drive Set 3 x 1TB

Brand: ARRI

MFR: K0.0024596

Price Available Upon Request
  • For ALEXA Mini LF and ALEXA 35 Cameras
  • Set of 3 x 1TB Drives
  • ARRIRAW and ProRes Recording
  • Tough, Industrial-Style SSD
  • Sustained Write Rate up to 8 Gb/s
  • Compact, Durable Design
  • No Driver or License Required
  • Efficient Cooling
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Video Recording Media , Video Recording Media , Video Recording Media

Save on the cost of individual drives with the economical Codex Compact Drive Set 3 x 1TB from ARRI. This kit bundles three compact, durable SSDs for recording with your ALEXA Mini LF or ALEXA 35 camera. Each drive's full 1TB capacity is available for recording both ARRIRAW and ProRes without needing to reformat or switch drives.

Each compact drive works without a driver or license and features a sustained write speed of up to 8 Gb/s. Using a Compact Drive Adapter allows you to mount the drives on an existing SXR Capture Drive Dock (Mac only) or any other SXR Capture Drive hardware from Codex.

Note:

A drive firmware update may be needed before using the Compact Drive in your ALEXA Mini LF or ALEXA 35 camera.

File Access

  • ARRI cameras use the ARRI UDF file system to store the original camera files on a CODEX Compact Drive. ARRI UDF can be accessed freely with standard operating system software without needing additional software.
  • CODEX Compact Drives can be accessed with the versatile Compact Drive Reader (USB-C), the high-speed Compact Drive Dock (Thunderbolt 3), or an existing SXR Capture Drive Dock or a CODEX Vault that has been upgraded to accept the new drives with a cost-effective Compact Drive Adapter.

Note:

This set does not include a carrying case or foam cutout.

High-Density Encoding

  • Supported by major studios and many standard post-production applications, the lossless CODEX HDE (High-Density Encoding) standard reduces ARRIRAW files by about 40%.
  • After decoding, HDE files result in a bit-for-bit match to the original file, saving you time and storage requirements.
  • Use the free, downloadable CODEX Device Manager software to encode ARRIRAW data from ALEXA series cameras prior to the ALEXA 35 (Mac only).
  • Download the ARRIRAW HDE Transcoder software to encode ALEXA 35 ARRIRAW data to HDE MFX clips (macOS, Windows, and CentOS 6).

Storage Capacity1 TB

Performance

InterfacePCIe (Unspecified Type)
Maximum Write Speed1000 MB/s

Reliability / Data Integrity

Load/Unload Cycles10,000

Power

Power Consumption6 W

Environmental

Operating Temperature32 to 102°F / 0 to 70°C
Storage Temperature-40 to 185°F / -40 to 85°C
Operating Shock1500 G / 0.5 ms
Operating Vibration3.08 G / 7 to 800 Hz

Physical

Dimensions3.03 x 1.77 x 0.39" / 77 x 45 x 9.8 mm
Weight3 oz / 85 g

Packaging Info

Package Weight1.01 lb
Box Dimensions (LxWxH)4.4 x 3 x 2.4"
