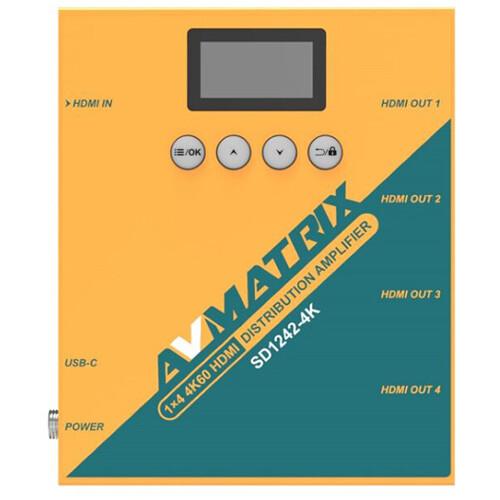

The 1x4 4K HDMI Distribution Amplifier from AVMATRIX helps you direct a single HDMI source to up to four HDMI outputs using a single device. The amplifier supports up to 4K60 video resolutions. Multiple EDID management modes are also supported by the amplifier—Auto, Standard, Custom, EDID Copy, and Pre-Saved—for flexible configuration and optimized compatibility. DC and USB-C ports allow you to use USB-C and DC power supplies for flexible integration.
| Inputs | 1 x HDMI |
| Embedded Audio | No |
| Outputs | 4x HDMI |
| Other I/O | 1x USB-C |
| Reclocking | No |
| HDR Support | No |
| HDCP Support | No |
| EDID Support | Auto-Detect |
| Audio Decoding | No |
| Video Format | HDMI 4096 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps 3840 x 2160: 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i: 50/59.94/60 fps 1280 x 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 720 x 576p: 50 fps 640 x 480p: 59.94/60 fps |
| Power I/O | 1x Barrel (12 VDC) Input |
| Power Consumption | Device: (6 W) |
| ESD Protection | No |
| Operating Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Storage Conditions | -22 to 158°F / -30 to 70°C up to 90% Humidity |
| Dimensions | 4.9 x 4.1 x 1.0" / 125.5 x 104.0 x 24.5 mm |
| Weight | 28.2 oz / 800 g |
| Package Weight | 1.895 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.5 x 2.9" |
