AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom

AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom

Brand: AVMATRIX

MFR: EAGLE P12A-NDI

SKU: SF-2443-BRG7

3,900.00 ﾹ

  • Up to 1080p60 Video via HDMI/SDI/NDI
  • LAN Port for RTMP/RTSP/ONVIF Streams
  • 12x Optical/16x Digital Zoom
  • AI Auto-Tracking to Follow Subject
  • UVC, VISCA, Pelco-D, Pelco-P Control
  • 3.5mm Stereo Audio Line-Level In
  • Autofocus, up to 255 Presets
  • DC Adapter or PoE+ Power

Items Included

  • AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
  • 12V Power Adapter
  • IR Remote Control
  • USB-A 3.0 Cable
  • RS-232 Serial Cable
  • RS-485 Terminal Connector
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: PTZ Cameras & Solutions

Add a powerful PTZ camera with 1080p60 video capture and auto-tracking to your professional broadcasts with this EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom from AVMATRIX. The camera offers precision control and multiple output ports, and is designed for broadcast, security, and teleconferencing needs. It also supports NDI/IP, UVC, VISCA, Pelco-D, and Pelco-P control protocols. This camera supports video output via NDI/IP, USB, HDMI, and 3G-SDI and has a LAN port for IP streaming via RTMP/S, SRT, RTSP, or ONVIF.

1080p Capture
The EAGLE features a high-resolution 2.07MP 1/2.8" CMOS sensor that can capture up to 1080p60 video.
NDI HX3 Support
The camera supports the NDI 6.0 standard by streaming via NDI HX3, a high-quality, low-latency broadcast-grade stream to support high-resolution 4K streams over a broadcast NDI network.
AI Auto-Tracking and Autoframing

The EAGLE features intelligent AI tracking with four selectable modes that can be utilized to follow subjects around a stage or room during live events, lectures, or conferences from up to 59' away:





  • Real-time
  • Stage tracking
  • Area tracking
  • Intelligent view



The AI technology also supports auto-framing to reframe and reposition your subject in the frame when you're in real-time mode, and in stage tracking mode you can adjust the size of the frame.

Optical Zoom Lens
The camera features a 12x optical zoom lens that maintains a crisp image throughout the zoom range. It also features a wide horizontal field of view and an additional 16x digital zoom to get even closer to your subjects with little image quality loss.
Versatile Interfaces

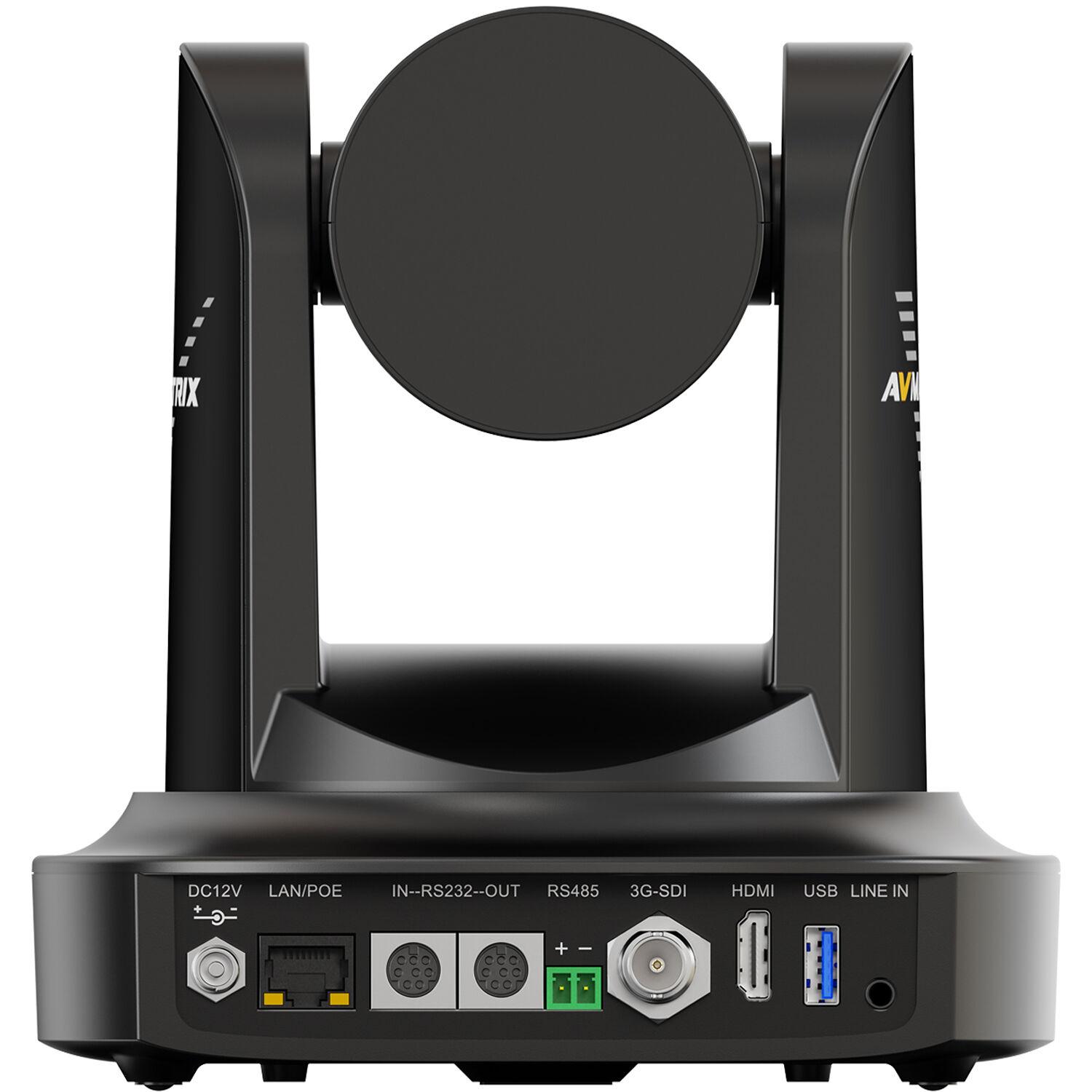

Output your video in multiple ways using the HDMI, 3G-SDI, USB-A 3.0, and LAN streaming ports. All of the ports can output video up to 1080p60, and you can control the camera simultaneously via UVC, serial, or IP.
FreeD Support for AR/VR
Add green screen shots to your productions using FreeD protocols, which are supported by the camera without additional sensors. This enables easy integration into virtual and augmented reality productions.
Control Protocols
In addition to UVC control over the USB port, the camera can be controlled via NDI, VISCA-over-IP, UDP, and ONVIF protocols via the LAN port, or it can be controlled via RS-485 or RS-232 serial using VISCA, Pelco-P, or Pelco-D protocols.
Presets
The camera supports saving up to 255 presets via optional IP/serial controllers, and it can save up to 10 presets on the included IR remote. The preset freeze function allows you to "freeze" actions for free switching between preset configurations.
Other Notable Details
  • Manual or autofocus
  • ±175° panning range
  • -30/+90° tilting range
  • NDI HX3, ONVIF, RTSP, RTMP/S, SRT streaming protocols
  • H.265/H.264/MJPEG compression format support
  • 3.5mm line audio input
  • 100 Mb/s Ethernet
  • Powered via included power supply or via PoE+

Imaging
Image Sensor
1/2.8"-Type CMOS
Effective Sensor Resolution
2.07 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.5 Lux at f/1.8 Aperture
Flip / Mirror Support
Image Flip
White Balance
Presets: Auto, Manual, One-touch
Range: 2400 to 7100K
Lens
Focal Length
4.1 to 49.2mm
Max Optical Zoom
12x
Max Digital Zoom
16x
Field of View
Horizontal: 70.28 to 6.57°
Vertical: 42.06 to 3.76°
Diagonal: 78.36 to 7.5°
Video Capture
Video Output
via RJ45 / SDI/BNC / HDMI
1920 x 1080p
1920 x 1080p at 59.94/60.00/25/29.97/30.00/50 fps
1920 x 1080i at 59.94/60.00/50 fps
1280 x 720 at 59.94/60.00/50 fps
via USB
1920 x 1080p
1920 x 1080p at 15/20/60.00/25/10/30.00/50 fps
1280 x 720 at 15/20/60.00/25/10/30.00/50 fps
800 x 600 at 15/20/60.00/25/10/30.00/50 fps
1024 x 576p at 15/20/60.00/25/10/30.00/50 fps
640 x 480p at 15/20/60.00/25/10/30.00/50 fps
800 x 448 at 15/20/60.00/25/10/30.00/50 fps
480 x 270p at 15/20/60.00/25/10/30.00/50 fps
320 x 180p at 15/20/60.00/25/10/30.00/50 fps
Embedded Audio
HDMI/IP/LAN (RJ45)/NDI/SDI/USB
Internal Recording
No
Audio Recording
Yes
Broadcast Output
NTSC/PAL
Supported Protocols
Camera Control
FreeD/IP/IR/NDI/NDI|HX3/ONVIF/Pelco-D/Pelco-P/RS-232/RS-485/UVC/VISCA
Video Streaming
HTTP/NDI/NDI|HX3/RTMP/RTMPS/SRT
IP Streaming
H.264/H.265/MJPEG
640 x 480 to 1920 x 1080 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Main Stream: 64.00 to 40,000 Kb/s)
320 x 180 to 1280 x 720 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Sub Stream: 64.00 to 40,000 Kb/s)
Control
Presets
255 via IP, RS-232, RS-485, UVC, VISCA, Pelco-P, Pelco-D
10 via IR
Pan/Tilt
Pan: 340° (-170 to 170°) at 0.1 to 100°/s
Tilt: 120° (-90 to 30°) at 0.1 to 45°/s
Networking
Wireless
No
Interface
Video I/O
1x HDMI Output
1x BNC (3G-SDI) Output
1x USB-A 2.0 Output
1x RJ45 (NDI) Input/Output
Audio I/O
1x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O
1x DIN 8-Pin (RS-232) Control Input
1x DIN 8-Pin (RS-232) Control Output
1x Block 2-Pin (RS-485) Control Input/Output
Built-In Microphone
No
Power
PoE Support
Yes: PoE+ 802.3at
Power I/O
1x Barrel (12VDC at 1.2 A) Input
Power Consumption
Device: 13.8 W
Environmental
Operating Conditions
14 to 122°F / -10 to 50°C at 20 to 80% Humidity
Storage Conditions
14 to 158°F / -10 to 70°C at 20 to 95% Humidity
Impact Resistance
No
Environmental Resistance
No
General
Mounting
1x 1/4"-20 Female for Bracket/Ceiling/Tripod/Wall
Dimensions (W x H x D)
7.1 x 6.7 x 6.7" / 180 x 170 x 170 mm
Weight
2.78 lb / 1.26 kg (Body Only)

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • AVMATRIX EAGLE AI Tracking 1080p NDI PTZ Camera with 12x Zoom
  • 12V Power Adapter
  • IR Remote Control
  • USB-A 3.0 Cable
  • RS-232 Serial Cable
  • RS-485 Terminal Connector
