AVMATRIX PKC3500 IP PTZ Camera Controller
AVMATRIX PKC3500 IP PTZ Camera Controller
AVMATRIX PKC3500 IP PTZ Camera Controller
AVMATRIX PKC3500 IP PTZ Camera Controller
AVMATRIX PKC3500 IP PTZ Camera Controller
AVMATRIX PKC3500 IP PTZ Camera Controller
AVMATRIX PKC3500 IP PTZ Camera Controller
AVMATRIX PKC3500 IP PTZ Camera Controller

AVMATRIX PKC3500 IP PTZ Camera Controller

Brand: AVMATRIX

MFR: PKC3500

SKU: SF-2443-CHSY

1,750.00 ﾹ

  • Pan/Tilt/Zoom/Lock PTZ Controls
  • Control up to 255 PTZ Cameras via IP
  • ONVIF/VISCA-over-IP/Pelco-P & D Support
  • Bright 5" Color Display
  • Power-over-Ethernet (PoE) Support
  • Simultaneous Multi-Brand Camera Control
  • Includes 12 VDC Power Supply

Items Included

  • AVMATRIX PKC3500 IP PTZ Camera Controller
  • Power Adapter
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: PTZ Cameras & Solutions

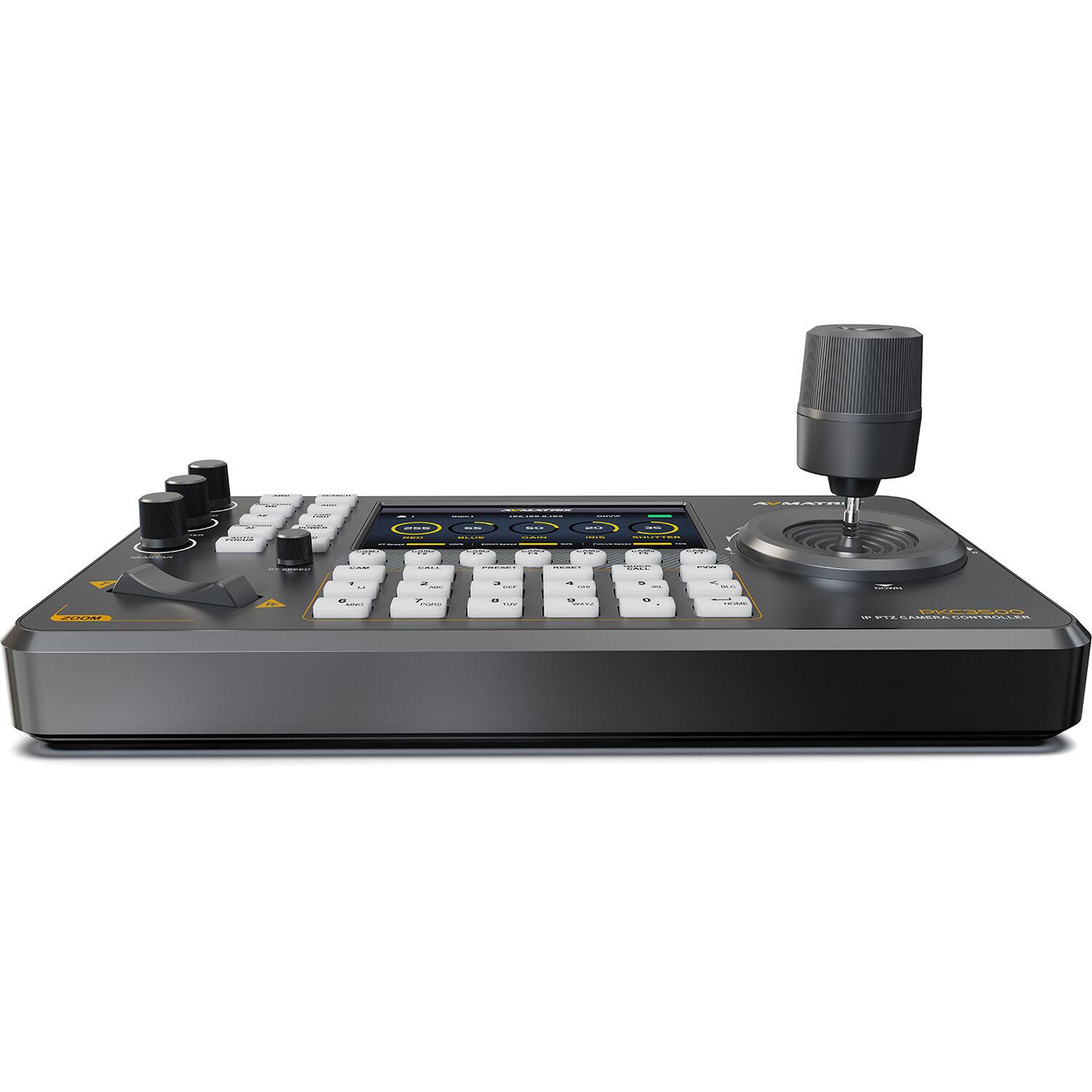

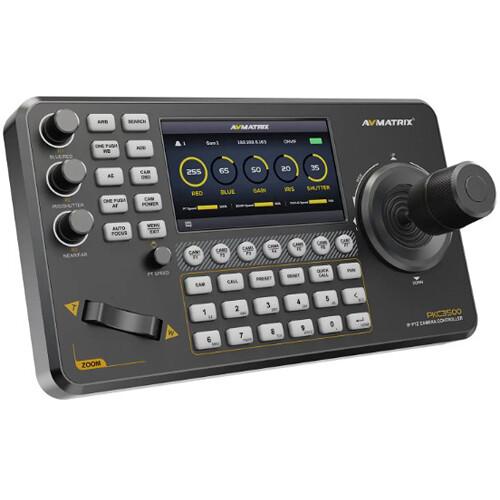

Control up to 255 PTZ cameras with a single operator over IP with the PKC3500 IP PTZ Camera Controller from AVMATRIX. The controller offers joystick and button control for up to 255 PTZ cameras over IP and it can store up to 255 presets.
Buttons and Joystick

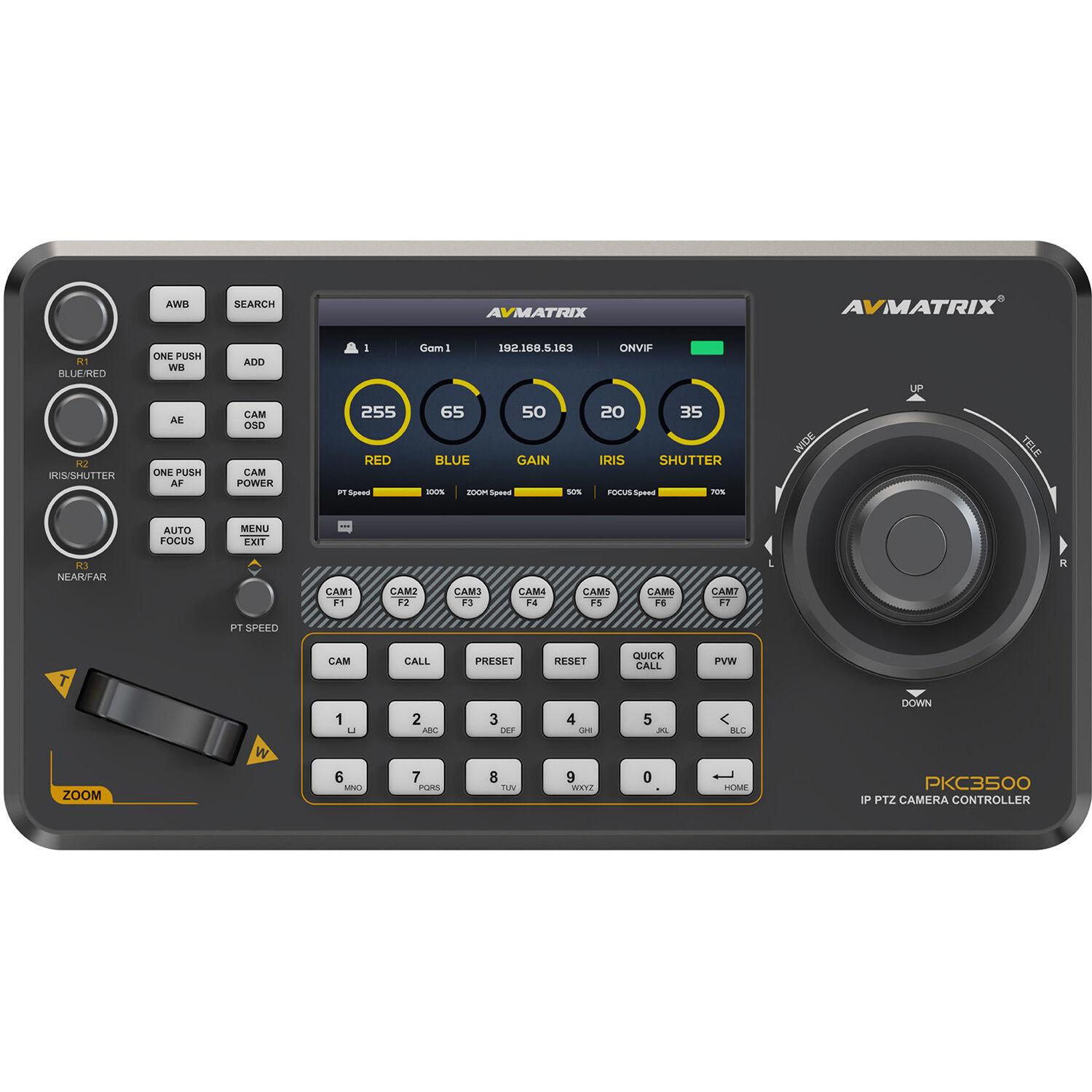

Physical control features include glowing buttons for working in the dark, 7 user-assignable camera keys for quick access, a 4D joystick, a rocker for smooth in/out zooms, 255 programmable camera presets, 255 camera addresses, and numerous knobs and buttons.
Control Protocol Options
PTZ control protocol support includes VISCA-over-IP, ONVIF, Pelco-P, and Pelco-D protocols over IP that enable you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen. The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras.
Bright 5" Touchscreen
The PTZ controller features a bright touchscreen that allows you to control settings and camera movements directly on the screen. You can also monitor camera previews in real time.
Power Options
You can power the controller using the included power adapter or via PoE on supported networks.
Real-Time Previews
The controller allows decoding via RTSP and ONVIF, which allow simultaneous real-time previews of your camera video streams on the controller's 5" display.






General
Number of Supported Cameras
255 Channels
Supported Control Protocols
IP
Control I/O

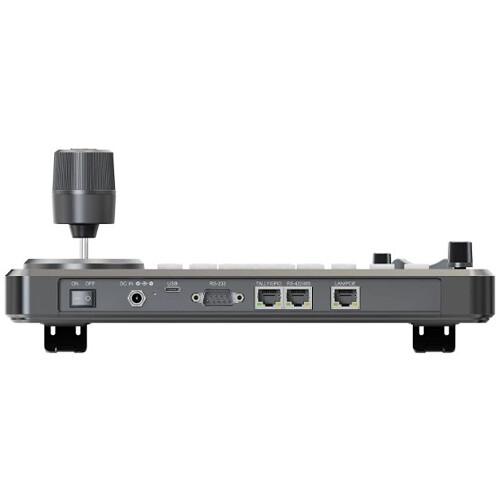

1x RJ45 (IP Control, LAN, Pelco-D, Pelco-P, VISCA) Input/Output
Controls
28x Buttons
3x Knobs
1x Zoom Rocker
1x 3-Axis, Pan/Tilt, Zoom Joystick
Presets
255 via IP
Display
Panel Type
LCD
Size
5"
Touchscreen
No
Power
PoE Support
Yes
Power Connectors
1x Barrel / Coaxial
Power Consumption
8 W
Input Power
7 to 24 VDC
Physical
Operating Conditions
-4 to 140°F / -20 to 60°C
Storage Conditions
-4 to 158°F / -20 to 70°C
Security Lock Support
No
Dimensions
11.1 x 6.2 x 1.9" / 282 x 158 x 47 mm
11.1 x 6.2 x 4" / 282 x 158 x 100.5 mm (Including Joystick)
Weight
2.4 lb / 1.09 kg

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • AVMATRIX PKC3500 IP PTZ Camera Controller
  • Power Adapter
