AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter

AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter

Brand: AVMATRIX

MFR: SC7030

SKU: SF-2443-H0PO

1,245.00 ﾹ

  • SDI/HDMI/DVI-I/VGA/CVBS/S-Video Inputs
  • Up/Down Scaling & Frame Rate Conversion
  • Supports up to 1080p60 Resolution
  • 4:3/16:9 Aspect Ratio Conversion
  • Analog Audio Embedding
  • Video & Power Signal LED Indicators
  • DIP Switches & PC Software
  • Locking 12 VDC or USB-C 5V Power

Items Included

  • AVMATRIX SC7030 Multi-Signal to SDI/HDMI Cross Converter
  • 12V, 2A Locking Power Supply
  • DVI to VGA Adapter
  • 3-in-1 Multi-Interface Connector
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Signal Processing & Distribution

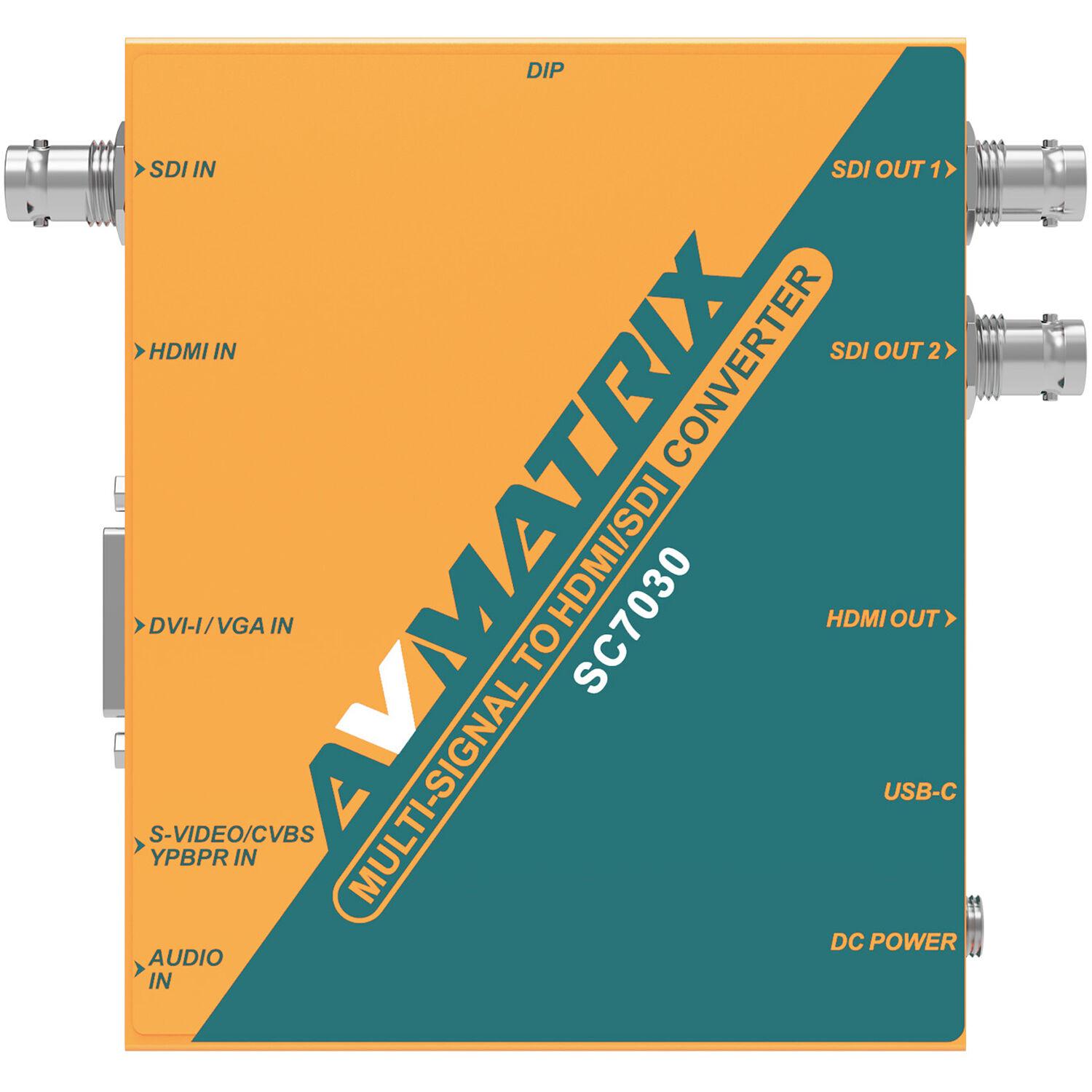

The SC7030 Multi-Signal to SDI/HDMI Cross Converter from AVMATRIX combines cross-conversion and frame rate conversion capabilities with up/down scaling. The SC7030 features SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr input connectivity, as well as a 3.5mm analog audio input that can be embedded into your output signal. The unit's selectable conversion modes are accessible via integrated DIP switches or using a Windows computer with AVMATRIX PC software via the USB-C port, which may also used to power the unit. Dual threaded locking connectors allow you to power the unit with external power supplies for redundancy, and LED indicators provide video and power signal status.

Flexible Format Conversion
The converter offers flexible format conversion with passthrough, up/down scaling, and frame rate conversion capabilities, with support for resolutions up to 1080p60.
All-in-One Conversion Solution
Equipped with a wide range of inputs, including SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr, the SC7030 provides conversion flexibility for both consumer and professional broadcast equipment.

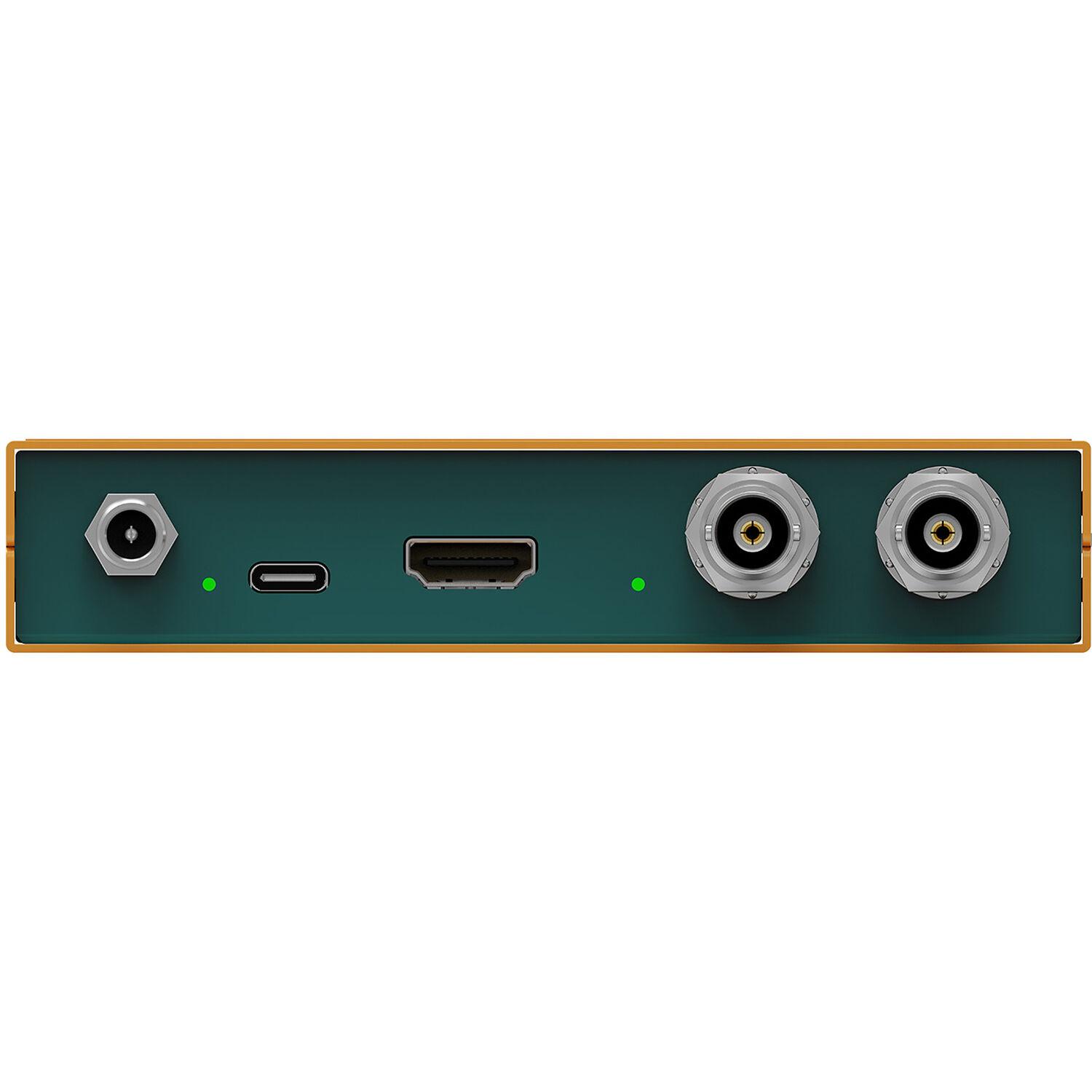

Output Flexibility
Simultaneously convert and split input signals to two 3G-SDI outputs and one HDMI output for long-distance, lossless transmission of high-quality video signals.
Easy Audio Embedding
Easily add audio to your video content via the external analog audio input, embedding it directly into the SDI and HDMI outputs.
Aspect Rate Conversion
Seamlessly convert a 4:3 aspect ratio to 16:9, pillarboxing your image or stretching it for a full screen presentation.
User-Friendly Configuration

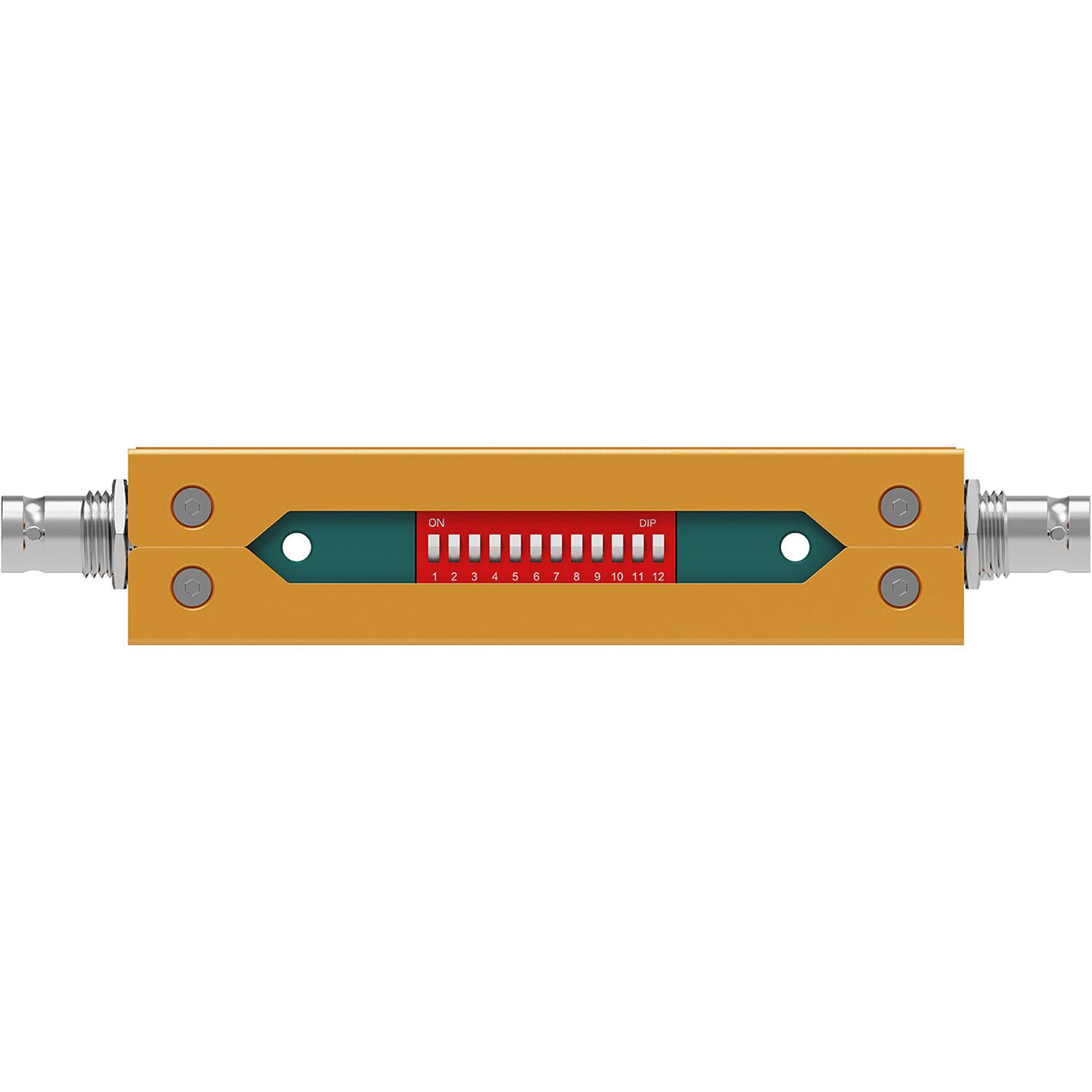

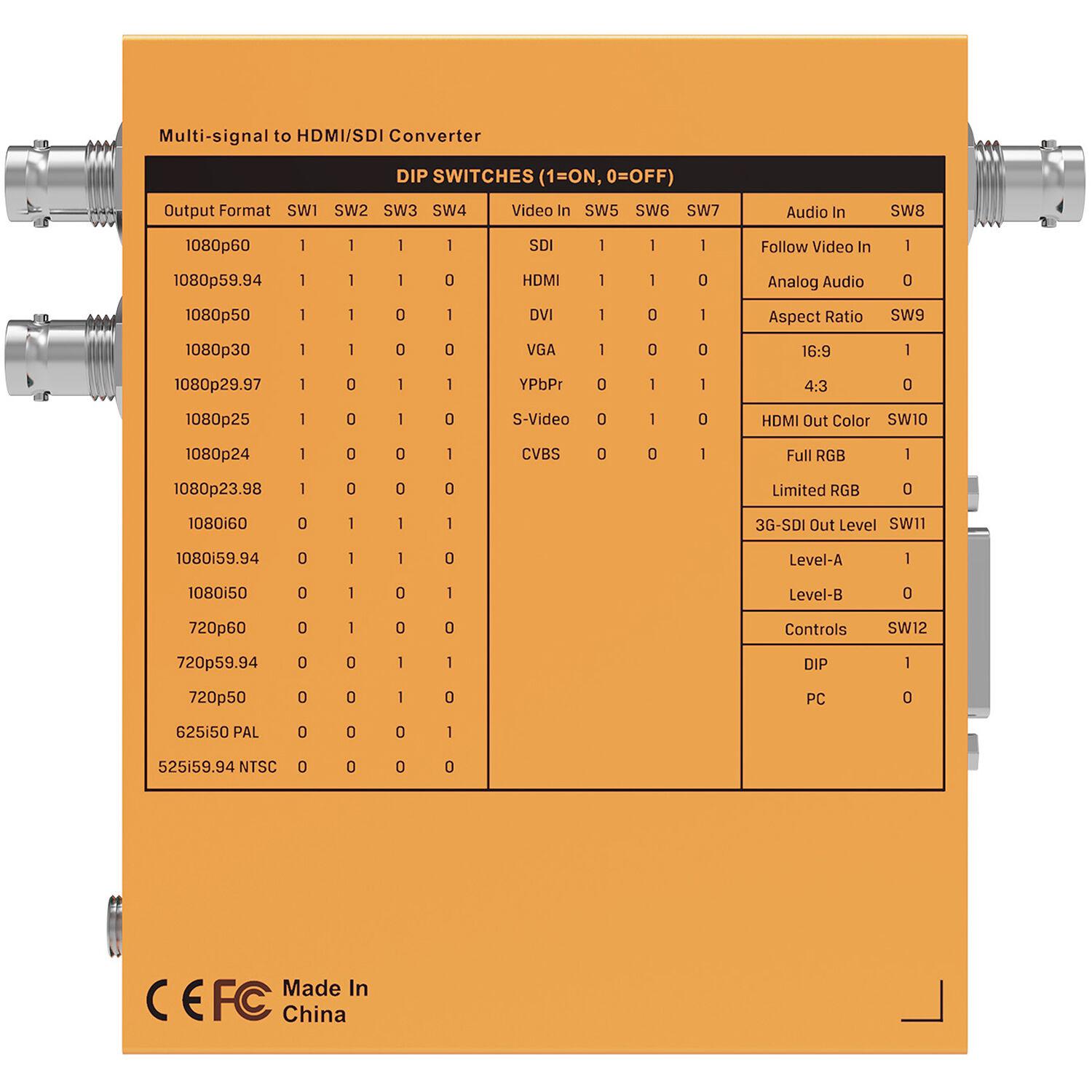

The converter's user-friendly configuration options allow users to easily set input, output, and other parameters via the integrated DIP switches and remote control PC software.
USB-C Connectivity for Power & Firmware Updates
The SC7030 features a built-in USB-C port that provides power and can also be used for future firmware updates.

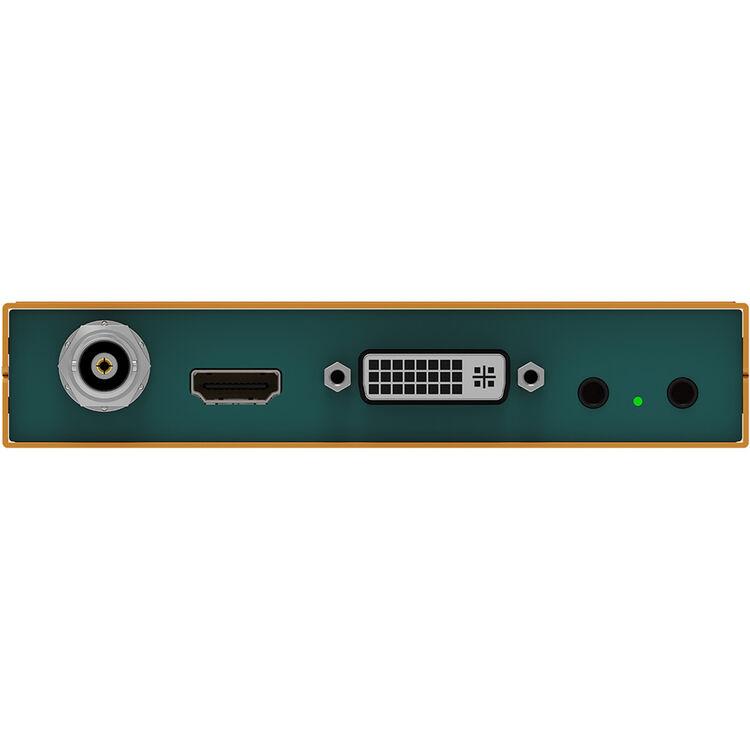

Inputs/Outputs
Video I/O
Input
1x BNC
1x HDMI
1x DVI-I DL
1x 1/8" / 3.5 mm TRRS A/V (Composite)
Output
2x BNC
1x HDMI
Audio I/O
Input
1x 1/8" / 3.5 mm TRS
Other I/O
Input
1x USB-C (Firmware) (Shared with Power)
Expansion Slots
No
Format Support
Video Resolution
BNC Input
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1920 x 1080PsF at 23.98/24/25/29.97/30 fps
1280 x 720 at 23.98/24/25/29.97/30/50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps
HDMI Input
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 768 at 60 fps
1280 x 720 at 23.98/24/25/29.97/30/50/59.94/60 fps
DVI Input
1920 x 1080p
1680 x 1050
1600 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024
1280 x 960
1280 x 800
1280 x 768
1280 x 720
1280 x 600
1152 x 864
1024 x 768
800 x 600
Component Input
1920 x 1080p
1920 x 1080i
1280 x 720
720 x 480p
720 x 480i
720 x 576p
720 x 576i
HDMI Output (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps
SDI Output (10-Bit 4:2:2 YUV)
1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps
Audio Format
Unspecified Digital Signal Input
Embedded Audio
HDMI/SDI
Standards
Broadcast System Compatibility
NTSC, PAL
Hardware
Wireless
No
Power
Power I/O
1x Barrel (6 to 24 VDC ) Input
1x USB-C (5 VDC ) Input
Power Consumption
5.5 W
General
Operating Conditions
-4 to 140°F / -20 to 60°C at 20 to 90% Humidity
Storage Conditions
-22 to 158°F / -30 to 70°C at 20 to 90% Humidity
Dimensions
4.9 x 4.1 x 1" / 125.5 x 104 x 24.5 mm
Weight
17.5 oz / 496.1 g
Packaging Info
Package Weight
2.09 lb
Box Dimensions (LxWxH)
8.9 x 5.5 x 2.8"
