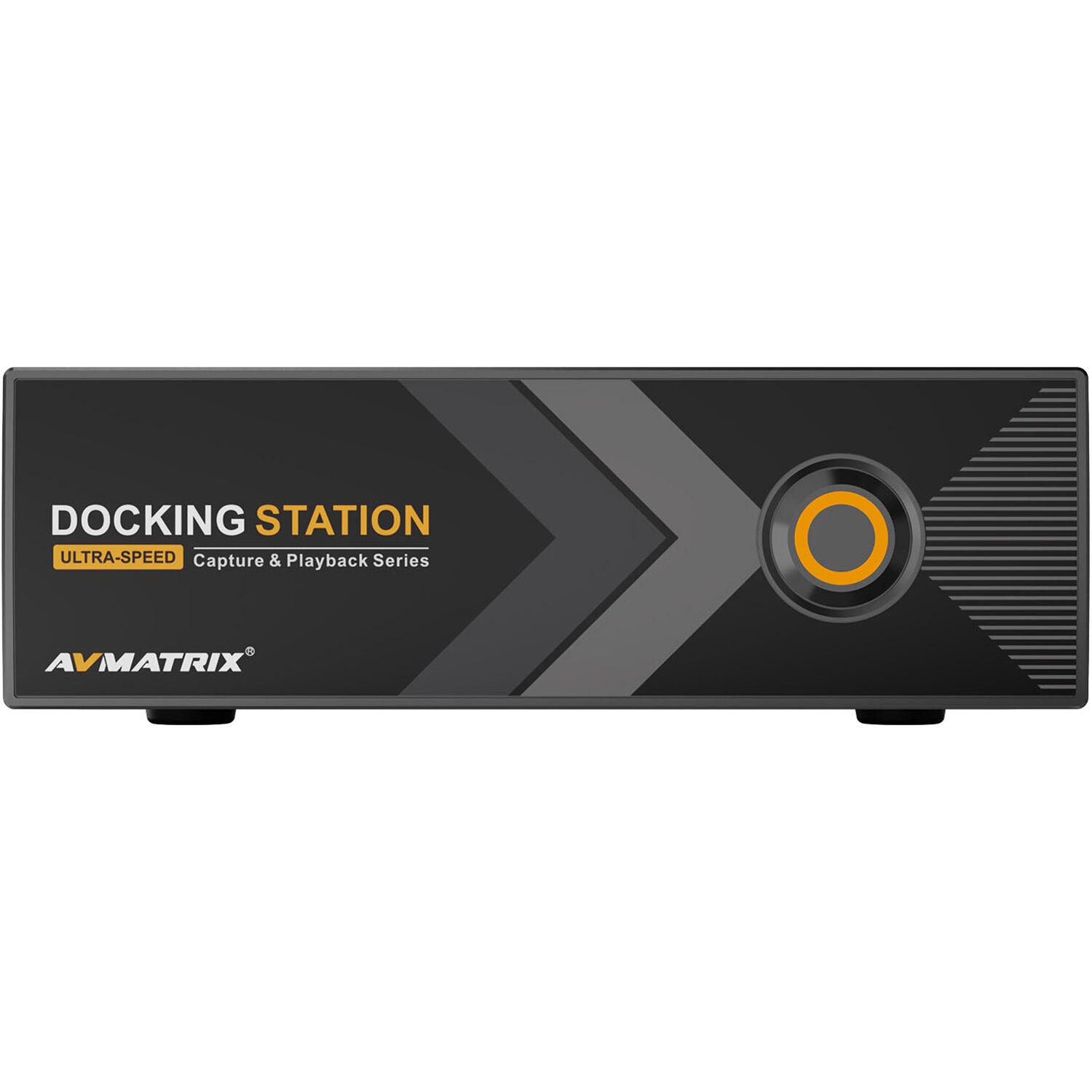

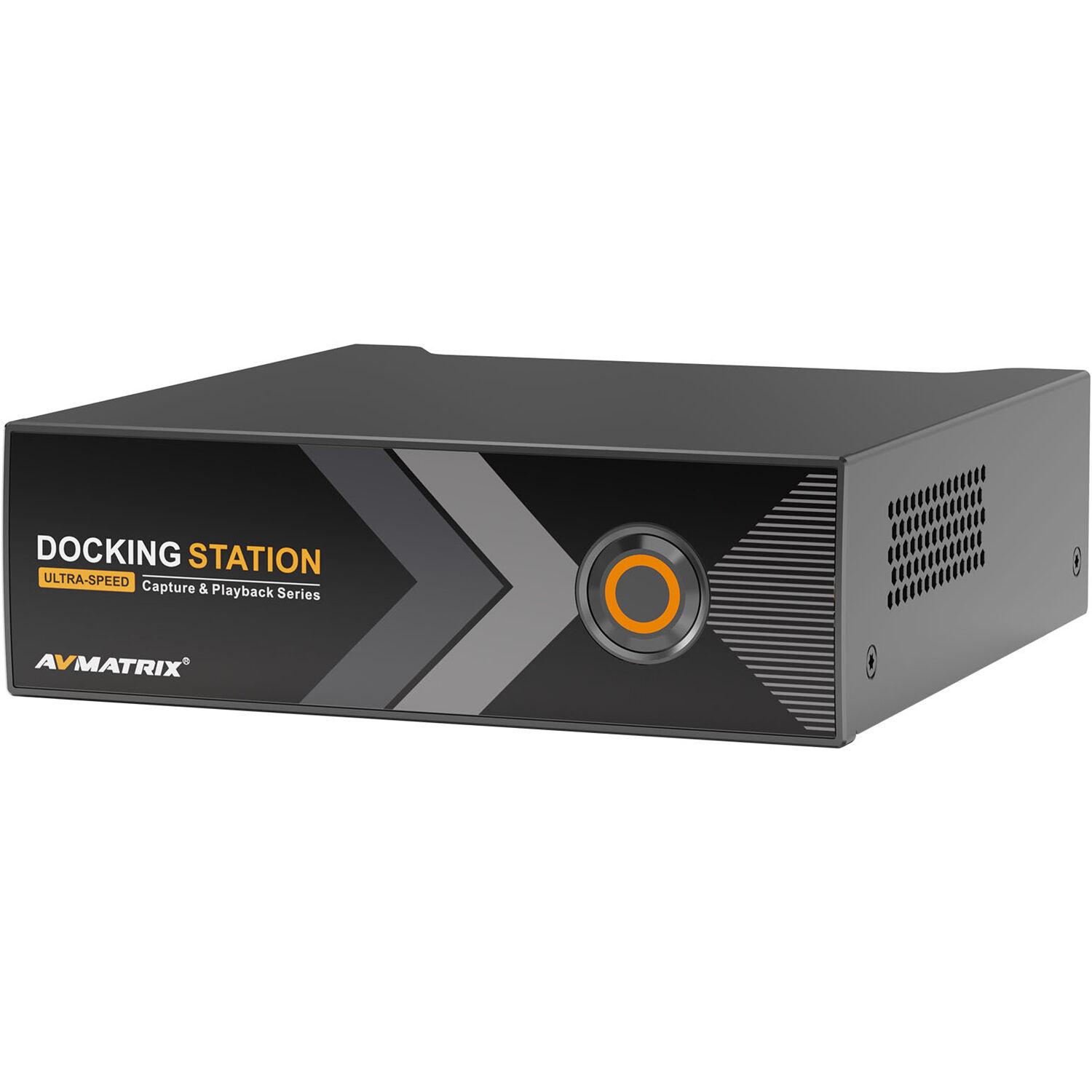

The TB-P51 3G-SDI Capture & Playback Thunderbolt Series Docking Station from AVMATRIX features two ultra-speed 40 Gb/s Thunderbolt ports. Equipped with built-in coiling for continuous 24/7 use, the unit is equipped with five-channel 3G-SDI connectivity supporting resolutions up to 1080p60. It also has a DisplayPort output and a USB-3.1 Gen2 USB-A port. The device supports daisy-chaining via its Thunderbolt connectors, and it works with Windows and Linux operating systems with SDK.
| System Connection | USB-C (Thunderbolt) |

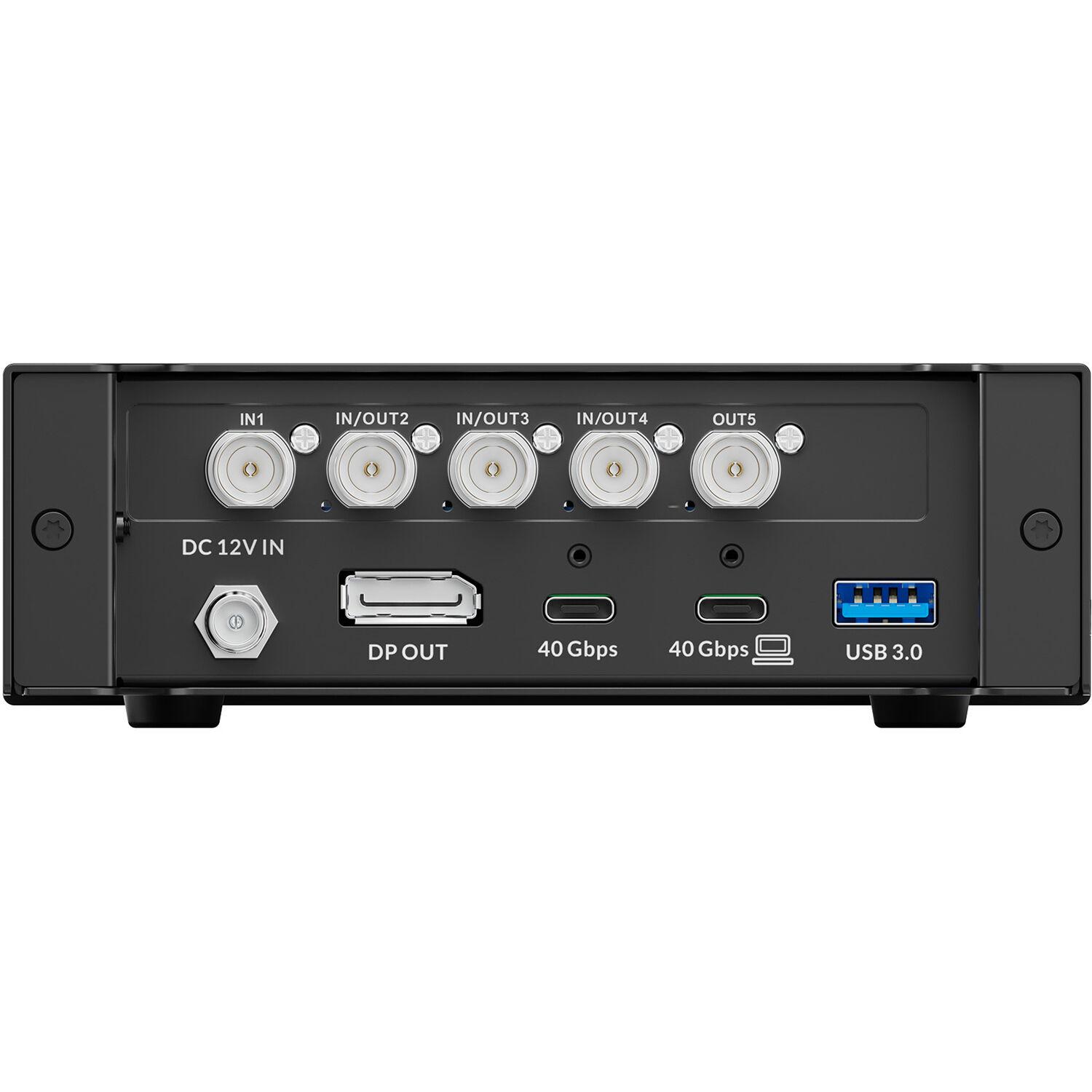

| Video I/O | Input 1x BNC (3G-SDI) Female Input/Output 3x BNC (3G-SDI) Female Output 1x BNC (3G-SDI) Female 1x DisplayPort 1.4 Female 2x Thunderbolt Female |
| Audio I/O | No |
| Other I/O | Input/Output 1x USB-A 3.1/3.2 Gen 2 |
| Video Resolution | BNC Input/Output (8-Bit 4:2:2 YUV) 1920 x 1080 up to 60 fps |
| Audio Format | Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit |
| Embedded Audio | HDMI/SDI |
| OS Compatibility | Windows Linux |
| Power I/O | 1x Barrel (12 to 21 VDC ) Input |
| Power Consumption | 12 W |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Dimensions | 5.5 x 5.4 x 1.7" / 138.8 x 138 x 42.6 mm |
