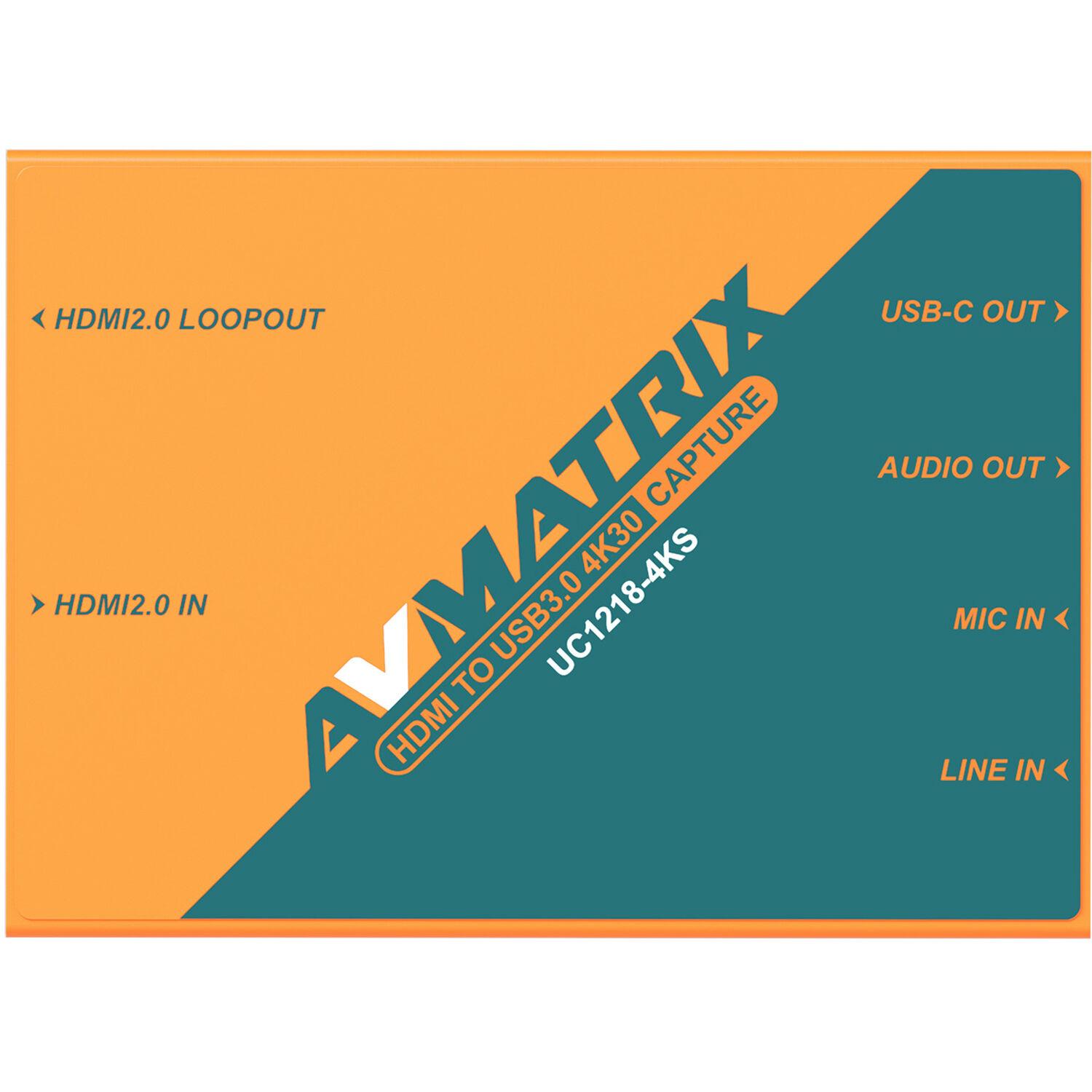

Capture uncompressed video and audio with the UC1218-4KS HDMI to USB 4K Capture Box from AVMATRIX. Equipped with an HDMI 2.0 input and an HDMI 2.0 loop output, the versatile box will get you up and running in minutes with its plug-and-play, driver-free functionality. A USB-C 3.0, 5 Gb/s port enables seamless connectivity with a plethora of popular streaming options, including OBS, Zoom, MS Teams, Twitch, vMix, and more. The device is compatible with Windows, Linux, and macOS operating systems.
| System Connection | USB-C 3.0 / 3.1/3.2 Gen 1 |

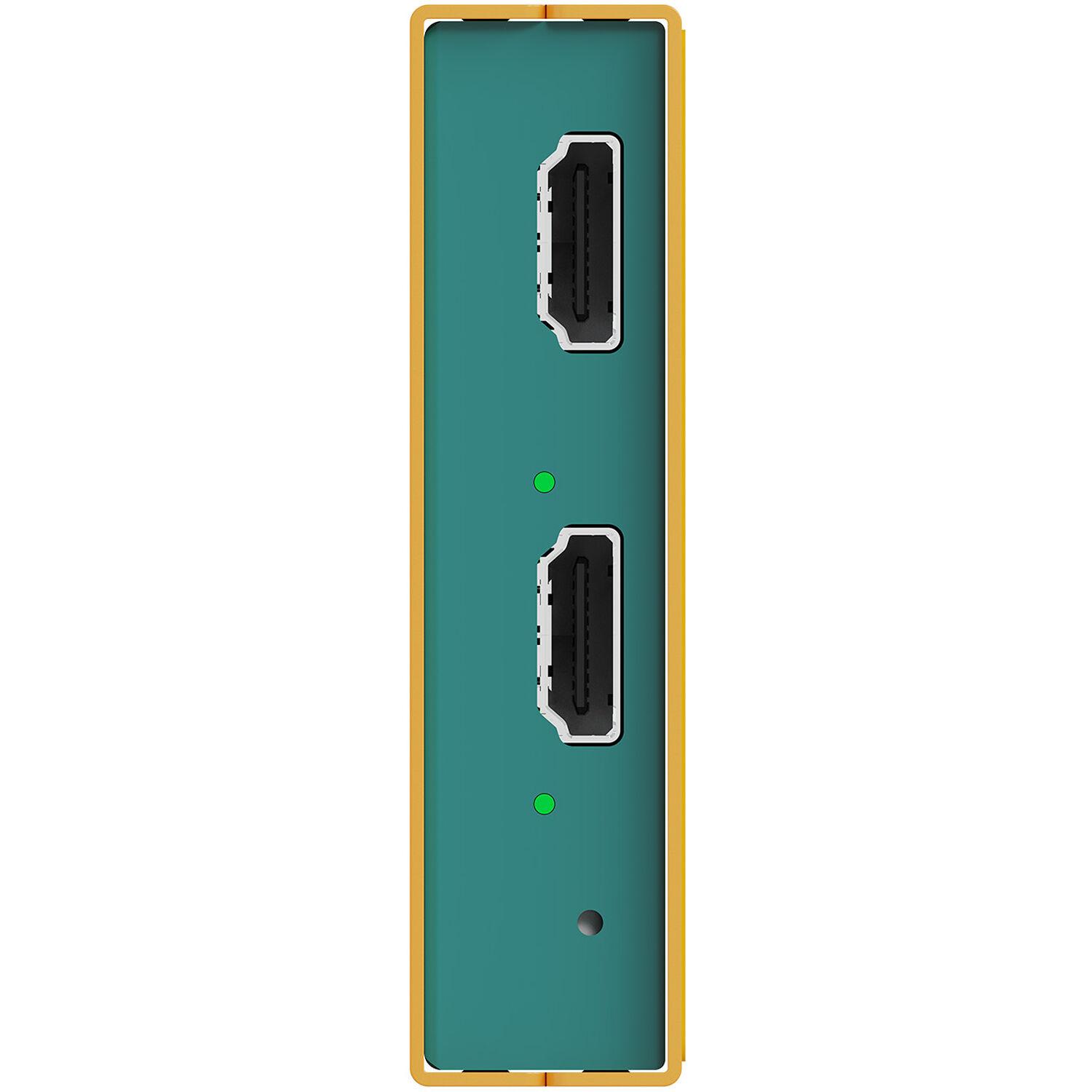

| Video I/O | Input 1x HDMI 2.0 Female 1x HDMI 2.0 Female (Loop Output) |

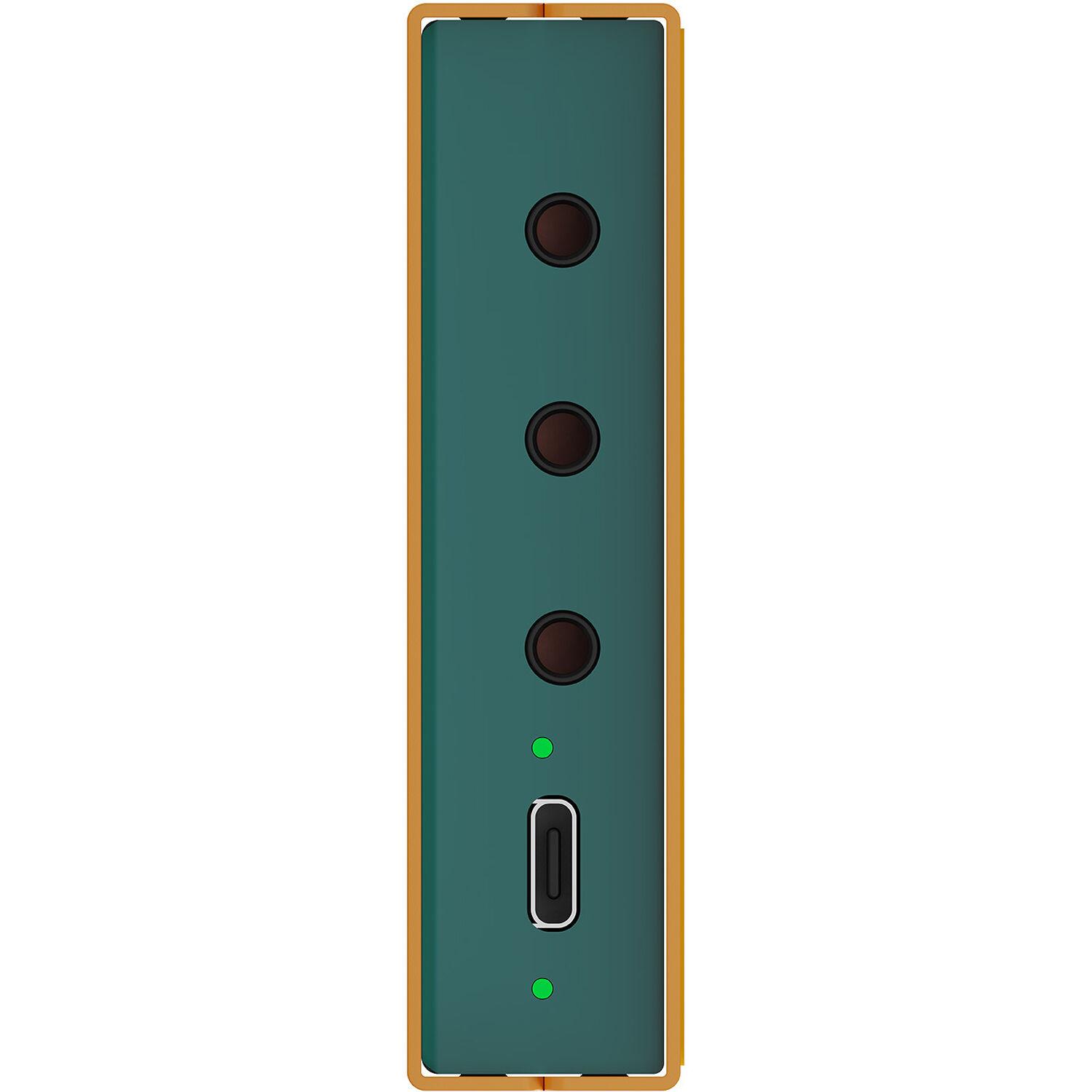

| Audio I/O | Input 1x 1/8" / 3.5 mm TRS Stereo Analog Female 1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female Output 1x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Other I/O | Input 1x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Video Resolution | HDMI Input/Output 3840 x 2160 |
| Audio Format | Unspecified Digital Signal Input/Output: 48 kHz / 16-Bit |
| Embedded Audio | HDMI/USB |
| HDCP Support | No |
| Broadcast System Compatibility | NTSC, PAL |
| OS Compatibility | Windows 7 to 11 Linux 2.6.38 or Later macOS 10.8 or Later |
| Power Consumption | 4.5 W |
| Operating Conditions | -4 to 140°F / -20 to 60°C at 20 to 90% Humidity |
| Storage Conditions | -22 to 158°F / -30 to 70°C at 20 to 90% Humidity |
| Dimensions | 4.1 x 3 x 0.7" / 104 x 75.5 x 19 mm |
| Weight | 9.7 oz / 274 g |
| Package Weight | 0.965 lb |
| Box Dimensions (LxWxH) | 7.4 x 5.3 x 1.6" |
