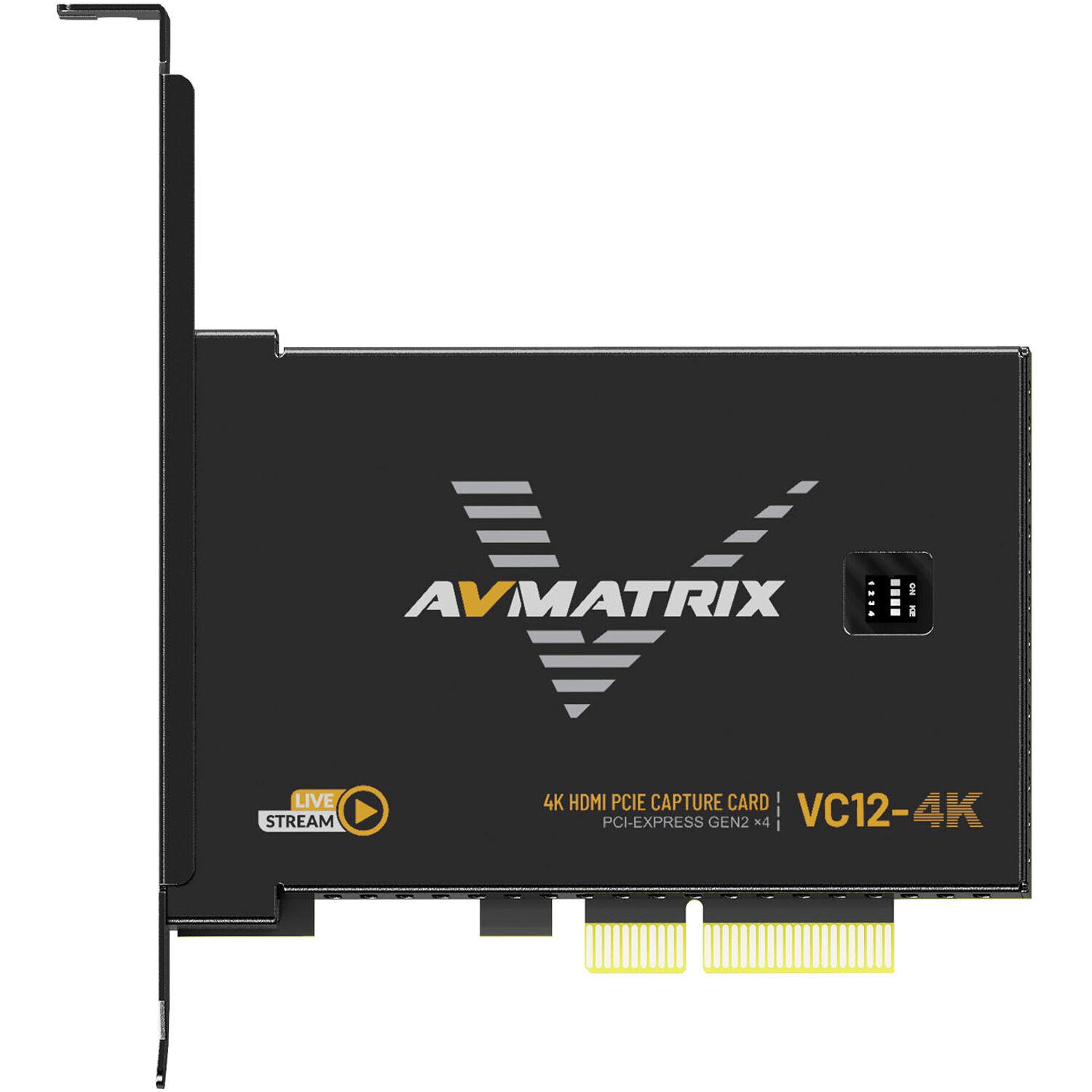

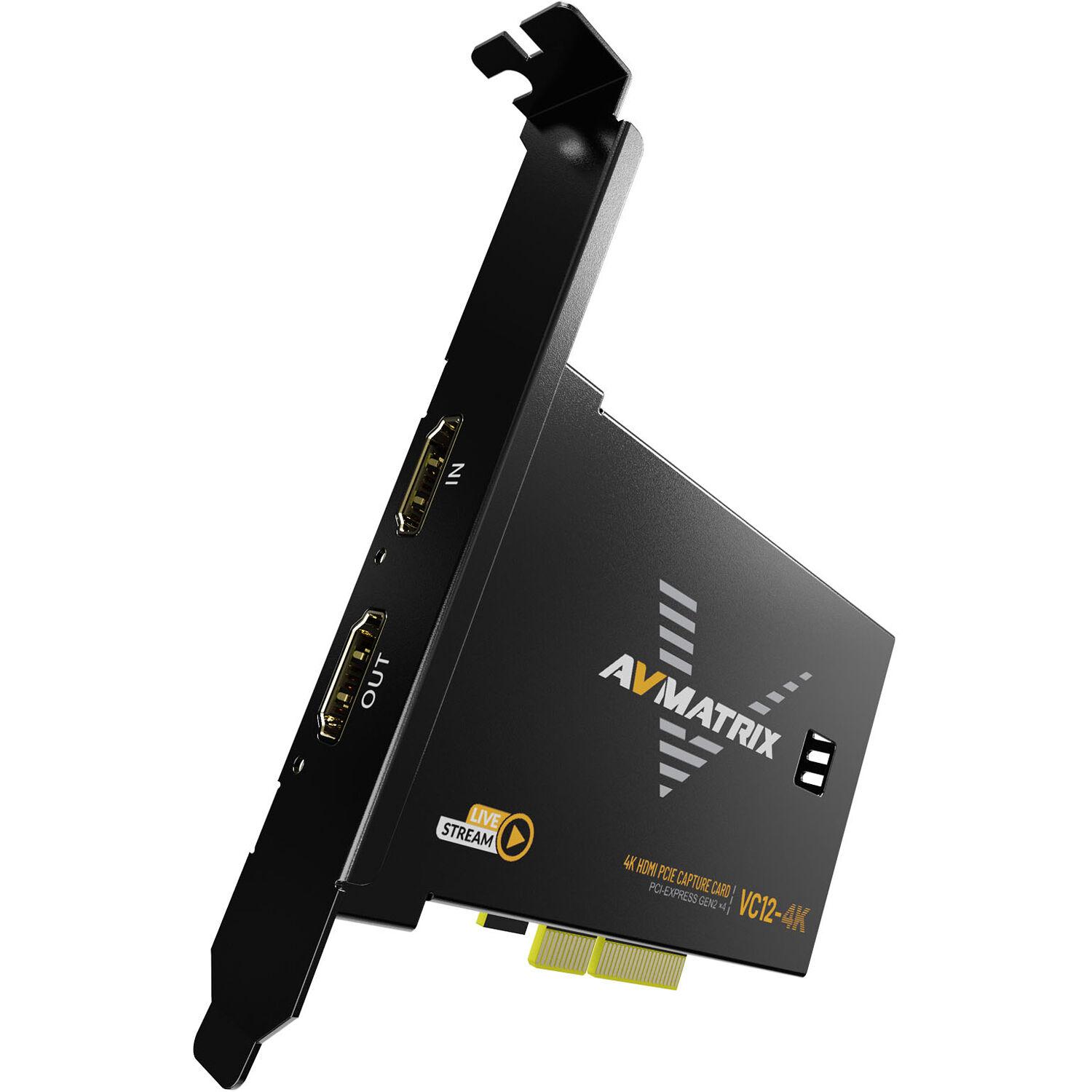

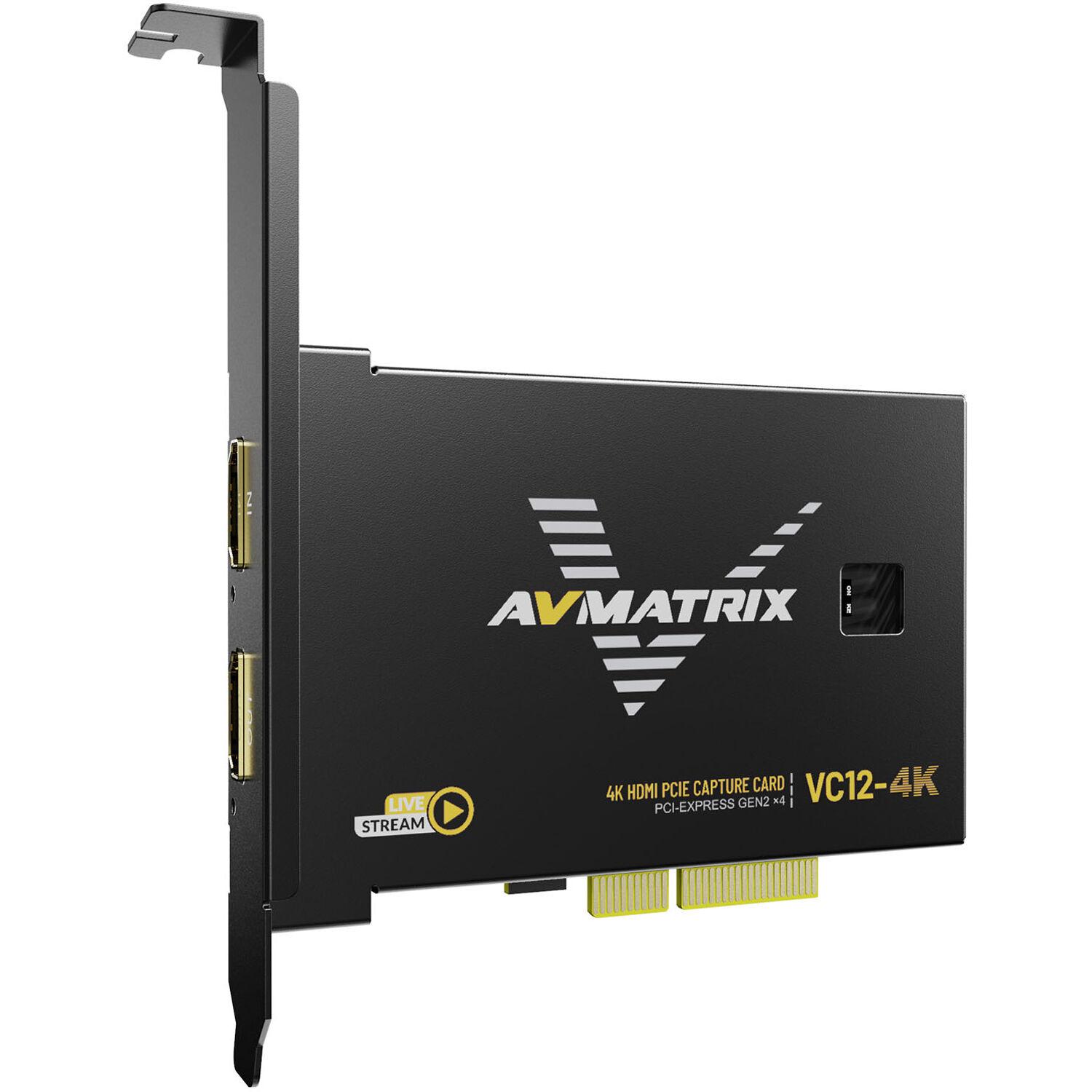

AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card

Brand: AVMATRIX

MFR: VC12-4K

SKU: SF-2443-B2AR

1,037.00

  • PCIe 2.0x4 Interface
  • 1 x HDMI Input, 1 x HDMI Loop Output
  • Supports up to UHD 4K at 60 fps
  • Simultaneous Display and Broadcast
  • YUY2 Uncompressed Video
  • For Windows and Linux OS

Items Included


  • AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Capture Devices

Simultaneously stream and display your gameplay or broadcast using this VC12-4K UHD 4K HDMI PCIe Capture Card from AVMATRIX with its HDMI input and loop output. The PCIe 2.0x4 interface supports up to UHD 4K video at 60 fps. It outputs YUY2 uncompressed video for a high-quality picture.

The image integrity is further preserved thanks to the 1080i hardware deinterlacing and 3D noise reduction algorithm. Compatible with Windows and Linux operating systems, the card is capable of recording to applications like OBS and Teams and livestreaming the captured video to major platforms.

High Bandwidth and Ultralow Latency
The PCIe 2.0 interface has 2.5GB/s transmission bandwidth for faster data transfer speed in gaming and livestream applications, bringing uncompressed and ultralow latency to the streaming experience.
24-Hours of Non-Stop Work
The card has a thick gold-plated interface for more stable contact and transmission to work continuously for a long period of time.
Compatibility
Windows 7 and Linux 18.04 operating systems and above are supported by the card. Streaming and recording via OBS, Teams, Twitch, and other platforms is also supported for broadcast to major livestreaming platforms like YouTube and Facebook via the network.

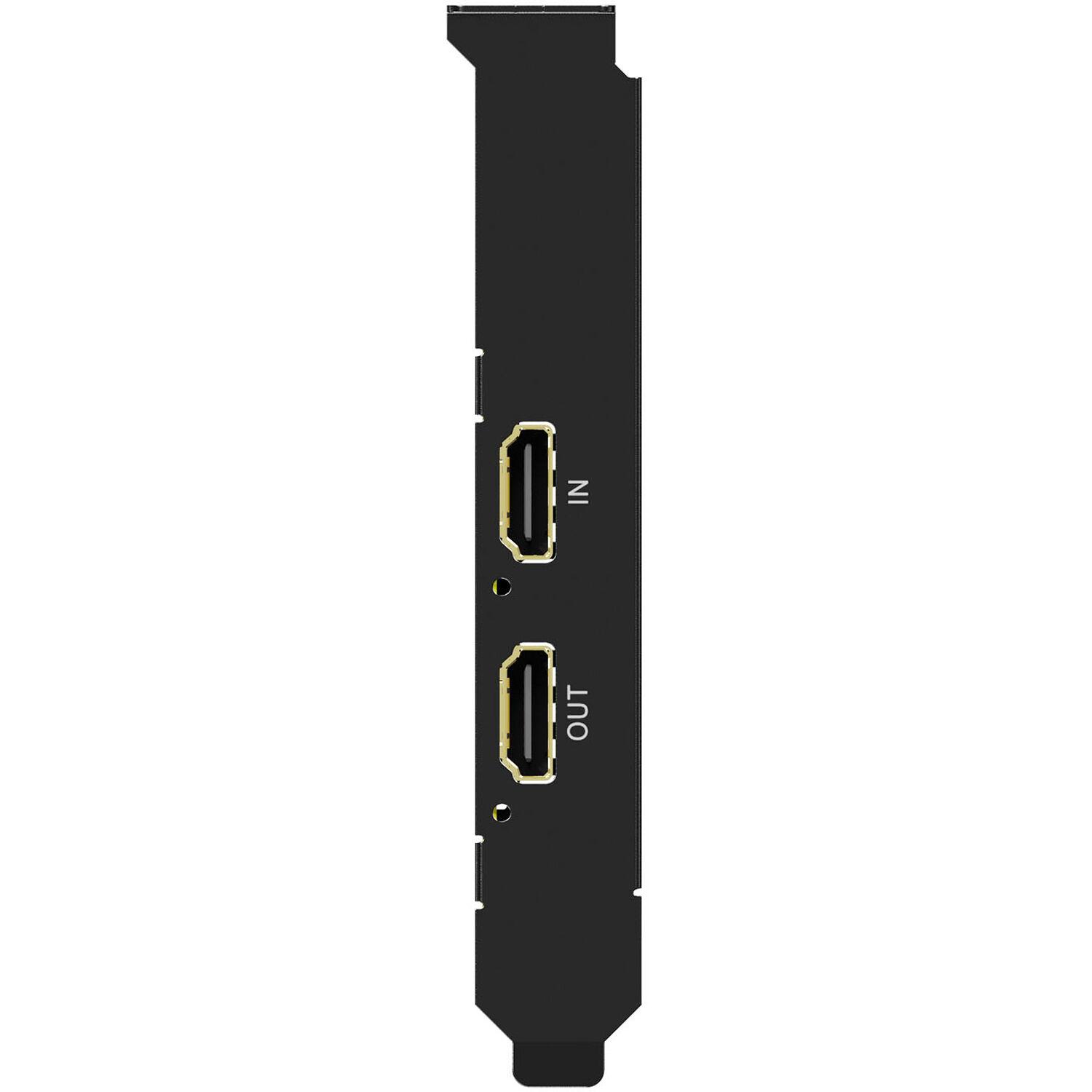

Inputs/Outputs
System Connection
PCIe 2.0 x4
Video Inputs
1x HDMI (2.0) Female
Audio Inputs
No
Video Outputs
1x HDMI (2.0) Female (Loop Output)
Format Support
Input Video Format
HDMI
UHD 4K 60 fps
1440p 144 fps
1080p 240 fps
Input Audio Format
LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Output Video Format
HDMI
UHD 4K 25/30/50/60 fps
DCI 4K 25/30/50/60 fps
1440p 60 fps
DCI 2K 60 fps
2560 x 1440 25/30/50/60/120/144 fps
1080p Ultrawide (2560 x 1080) 60 fps
WUXGA (1920 x 1200) 60 fps
1080p 25/30/50/59.94/60/120/144/240 fps
UXGA (1600 x 1200) 60 fps
WXGA+ (1440 x 900) 60 fps
SXGA (1280 x 1024) 60 fps
WXGA (1280 x 800) 60 fps
1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60/120/144/240 fps
XGA (1024 x 768) 60 fps
SVGA (800 x 600) 60 fps
576p 60 fps
480p 60 fps
Output Audio Format
LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
Embedded Audio
HDMI
Standards
HDR Support
Not Specified by Manufacturer
Hardware
OS Compatibility
Windows 7 or Later
Linux 18.4 or Later
Power
Power Consumption
Device: 2 W
Environmental
Operating Temperature
32 to 140°F / 0 to 60°C
Storage Temperature
-4 to 158°F / -20 to 70°C
Operating Humidity
5 to 90% ()
General
Dimensions
4.7 x 3.8 x 0.9" / 120.1 x 95.7 x 21.6 mm
Weight
3.5 oz / 100 g
Packaging Info
Package Weight
0.35 lb
Box Dimensions (LxWxH)
5.8 x 4.6 x 1.4"
