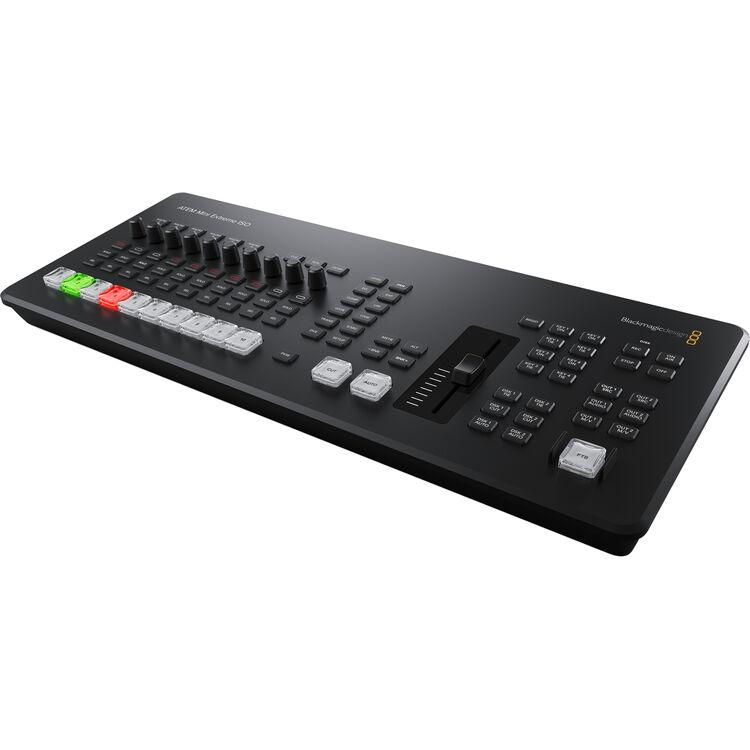

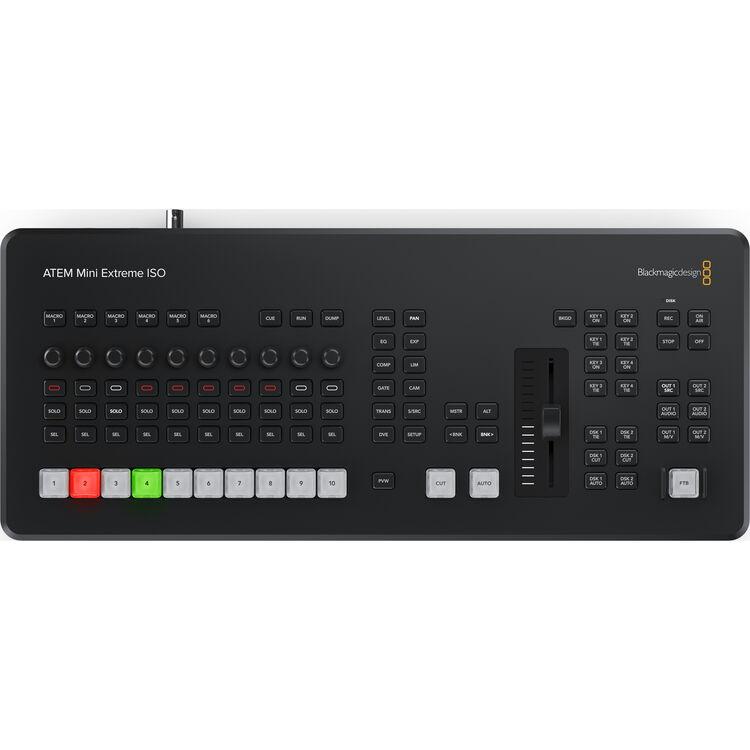

The ATEM Mini Extreme ISO G2 from Blackmagic Design is an advanced 8‑input live production switcher built for professional streaming, multi‑camera workflows, and ISO recording. It features a redesigned control interface with larger NKK buttons, multiple knobs, a hardware fader, CFexpress recording, and Thunderbolt connectivity for high‑performance replay and capture.

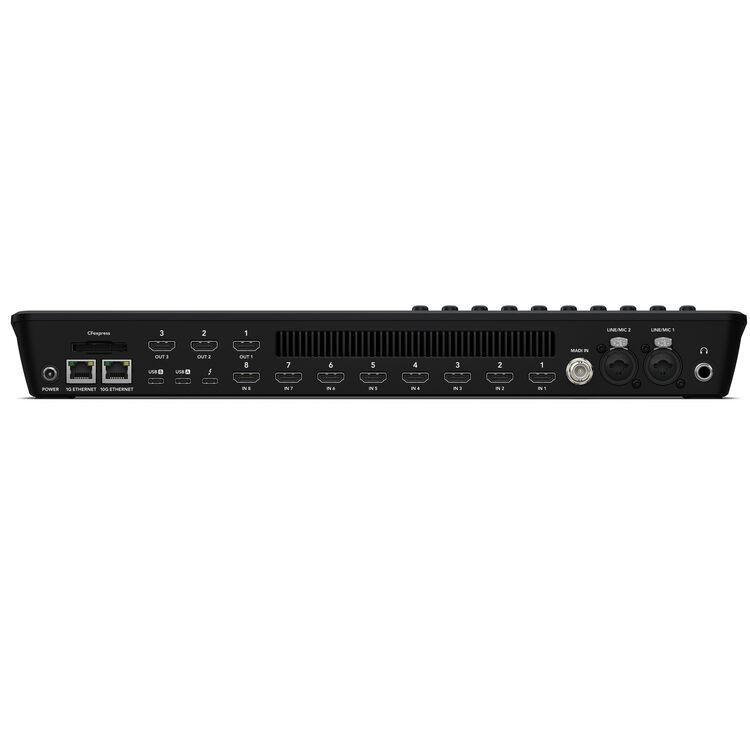

The G2 model introduces a more ergonomic layout with dedicated buttons for audio, recording, streaming, and output selection. Rear connectivity includes HDMI inputs, XLR and MADI audio, USB‑C for webcam output, Thunderbolt for record/playback, and three HDMI outputs for program, preview, and multiview.
You can stream directly via Ethernet or use USB‑C to appear as a webcam in applications like Zoom, Teams, Skype, OBS, and XSplit.
The switcher supports up to 9 layers, including:
It also supports CCU control for Blackmagic Studio and URSA cameras, and provides HDMI outputs for monitoring with up to 16‑view multiview.
The “ISO” capability allows recording of:
Each HDMI input features a dedicated standards converter for seamless switching between mixed formats and frame rates.
Thunderbolt enables:
DaVinci Resolve can be used as a full replay system, switching instantly to ISO files when the POI button is pressed.
A built‑in hardware streaming engine allows direct streaming to YouTube, Facebook, and Twitch via Ethernet. Settings are simple—select the platform and enter the stream key.
Apple or Android phones can be connected via USB for mobile data streaming or as an automatic backup if Ethernet fails. The USB port also powers the phone.
The switcher records clean feeds, program output, and media pool images with metadata such as timecode and camera numbers, enabling full re‑editing with new grades, graphics, and audio mixing.
Compatible with:
Supports recording to:
Record status is visible in multiview, and recording can be triggered on Blackmagic Pocket Cinema Cameras.
The switcher integrates with:
Includes professional transitions:
Transition durations: 0.5 / 1 / 1.5 / 2 seconds.
With two XLR inputs and Fairlight audio mixing, you can connect microphones, music players, and mix all HDMI audio sources. A headphone output is included for monitoring.
Each HDMI input has a dedicated standards converter. HDMI outputs support clean switching, low‑latency direct loops, and full multiview with program, preview, and streaming status.
