Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router

Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router

Brand: Blackmagic Design

MFR: VHUBSMAS12G120120

SKU: SF-2443-YZNJ

53,562.00 ﾹ

  • 120 x 12G-SDI Inputs & 120 x Outputs
  • Zero-Latency Routing Switcher
  • Supports up to DCI 4K60 Video
  • Combines SD, HD, UHD 4K & DCI 4K Video
  • 4:2:2 & 4:4:4 Video Sampling Supported
  • Push-Button, Knob & Ethernet Control

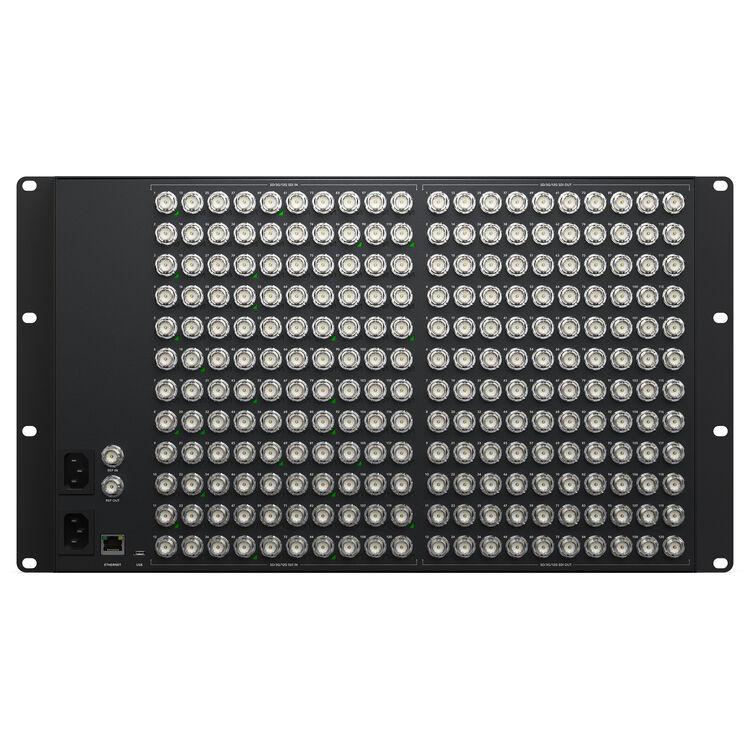

  • SDI Reclocking, Standard BNC Connectors
  • 32 Channels of Embedded Audio
  • Mac, Windows, iPad Router Control
  • Separate Connector Rows for Easy Repair

Items Included

  • Blackmagic Design Videohub 120x120 12G Zero-Latency Video Router
  • Router Control Software
  • Internal Software Updater Application
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Production Switchers & Controllers

Support a mix of multiple video formats using the Videohub 120x120 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 120 x 12G-SDI inputs and 120 x 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 120x120 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering to route video to multiple streaming processors for all your broadcast platforms or to add extra inputs to an ATEM switcher.
12G-SDI Multi-Rate Connections
  • Multi-rate 12G-SDI connections enable you to route up to 120 different video standards at the same time.
  • Supports up to DCI 4K60 video resolutions.
  • Provides 4:2:2 8 or 10-bit color routing in any standard.
  • Works with 4:4:4 12-bit SDI up to DCI 4K30 for feature films.
  • SDI Reclocking
    • Reclocking on every 12G-SDI input regenerates the signal, providing the maximum video quality.
    • Reduces or eliminates signal loss and jitter when using longer cables that can degrade the signal.

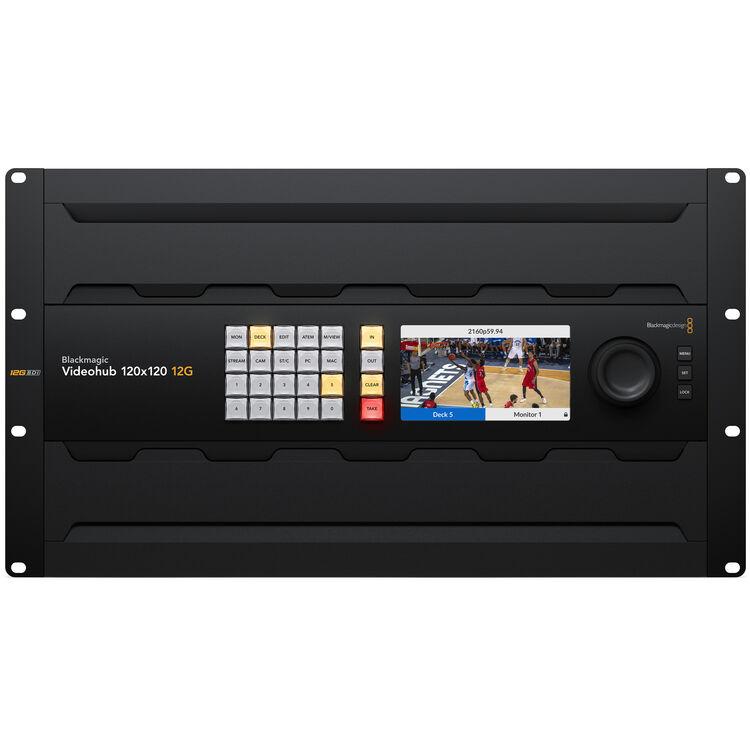

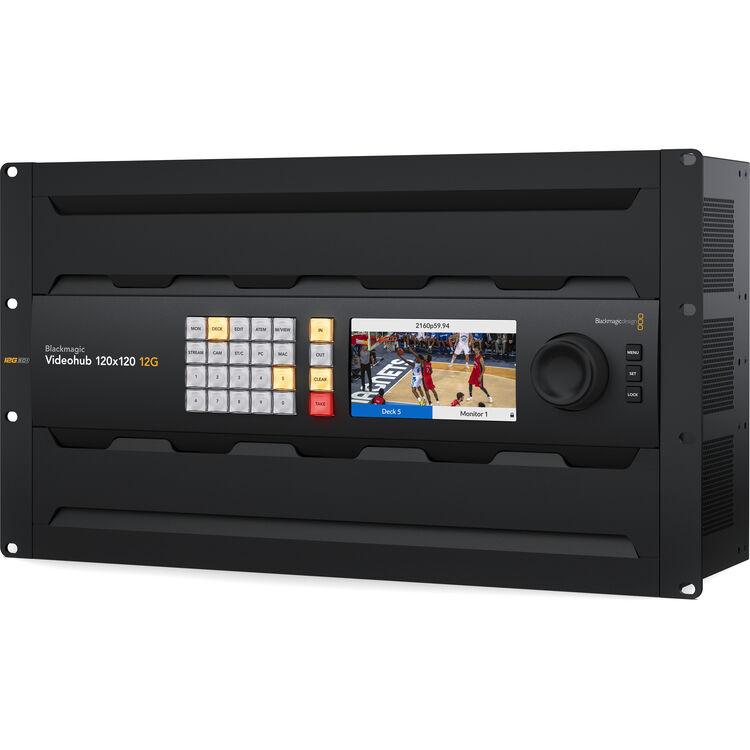

  • Front-Panel Controls
    • A sleek front panel offers multiple control options.
    • Buttons include assignable shortcuts and In, Out, Clear, and Take buttons.
    • The machined metal spin knob provides precise control using an electronic clutch.
    Optional Hardware Control Panels
    • Can be used with optional hardware panels for easier control when components are spaced out in large facilities.
    • Compatible with both the Videohub Master Control Pro and the Videohub Smart Control Pro.
    • The Videohub Master Control Pro is similar to the front panel and has a spin knob, LCD, and shortcut buttons.
    • The Videohub Smart Control Pro model features an all-button design and is generally programmed, so the panel controls a single router output with each button programmed to a router input, enabling you to cut along the panel buttons to change the router output instantly.
    Flexible Router Control
    The macOS, iPad, and Windows-compatible Videohub Software Control provides easy-to-use touchscreen router control. This software features large buttons that are easy to press, and you can run it on the computers you're already using for creative work. Each button can be customized to a router input or a router output, and it has an icon assigned to help you identify it visually.
    Setup Utility and SDK
    Use the Videohub Setup software to get started or the SDK to add protocol support for broadcast automation systems.
    Built-In LCD
    • View your live input before routing the signal on the built-in 5" LCD screen.
    • Bottom labels enable you to scroll through your sources in alphabetical order.
    • Eliminates the need to add an external SDI monitor to your setup.
    Multiple Language Support

    Customized support is available in:



    • English, Chinese, Japanese, Korean
    • Spanish, German, French, Russian
    • Italian, Portuguese, Turkish, Polish, Ukrainian

Processing
Switching Type
Pushbutton, Software
Processing Resolution
DCI 4K at 60
Color Processing
10-Bit 4:2:2 YUV
12-Bit 4:4:4 RGB
Audio Processing
48 kHz / 24-Bit
Input
Video Inputs
120x BNC (12G-SDI)
Input Video Format
SDI (10/12-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
Embedded Audio Input
SDI
Output
Video Outputs
80x BNC (12G-SDI)
Output Video Format
SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output
SDI
Connectivity
Other I/O
1x RJ45 LAN
1x USB-C
1x BNC Reference Input
1x BNC Reference Output
Video Standard Compliance
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU -R BT.601/BT.656
HDCP Support
Yes
HDR Support
Yes
Display
Display Size
5"
Hardware
OS Compatibility
macOS 13 or Later / Windows 10 or Later
Wireless
Bluetooth / Wi-Fi
Power
Power I/O
2x IEC C14 (100 to 240 VAC ) Input
Power Consumption
140 W
General
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 140°F / -20 to 60°C
Rack Form Factor
6 RU
Dimensions
19 x 10.47 x 6.52" / 48.3 x 26.59 x 16.56 cm
Weight
33 lb / 15 kg
Packaging Info
Package Weight
40.975 lb
Box Dimensions (LxWxH)
21.8 x 15.8 x 15.6"
