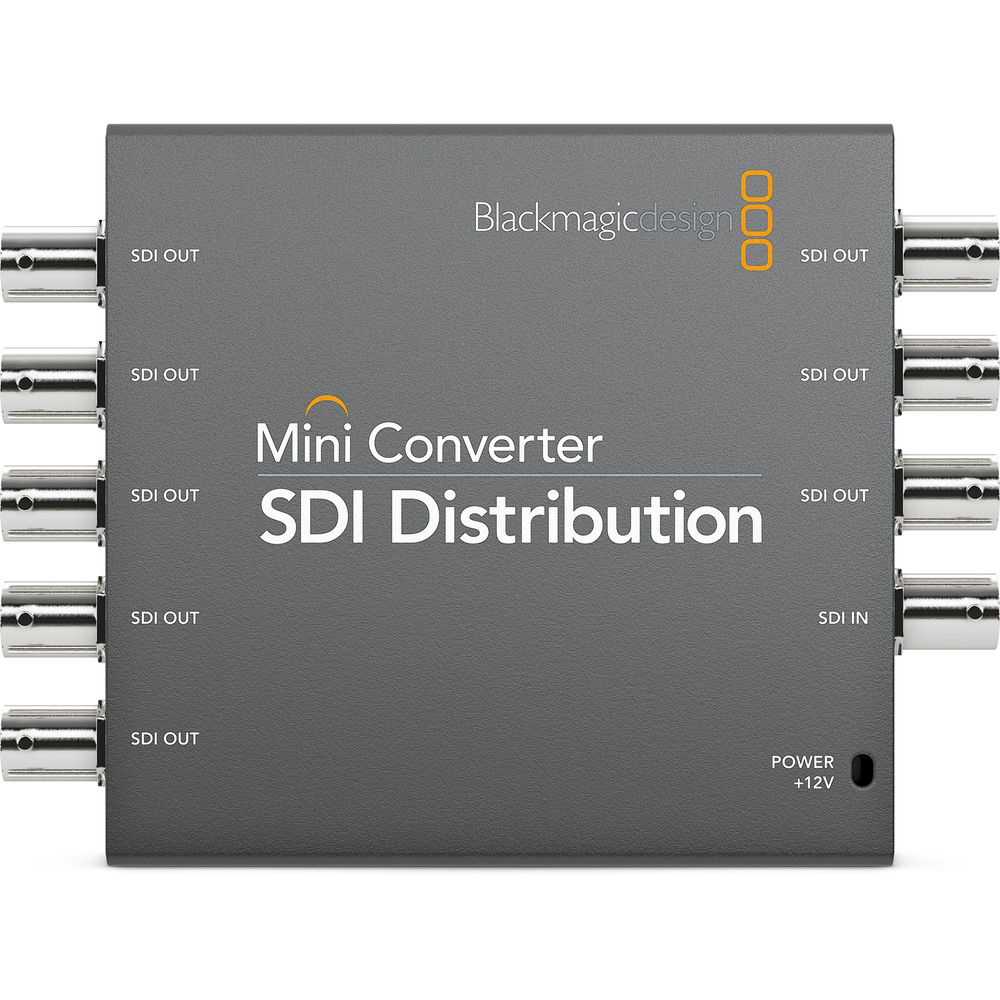

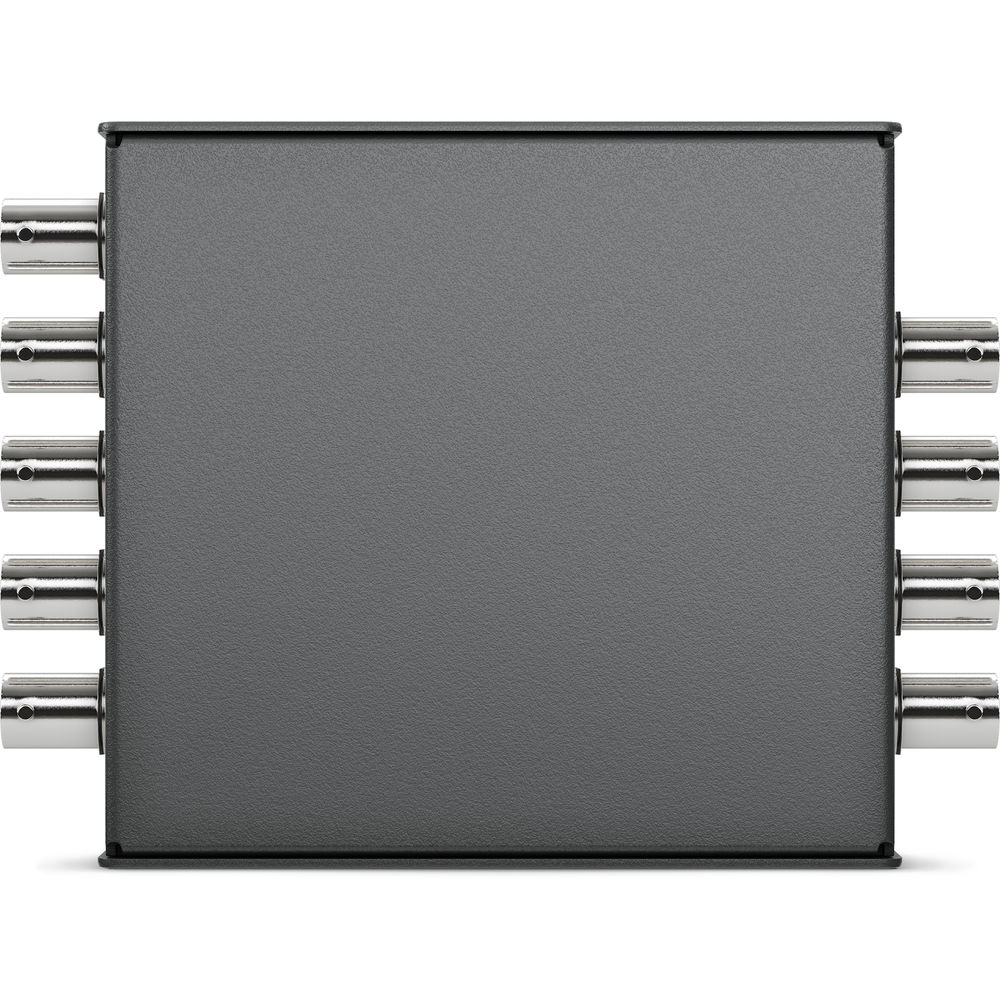

Blackmagic Design Mini Converter SDI Distribution
Blackmagic Design Mini Converter SDI Distribution
Blackmagic Design Mini Converter SDI Distribution
Blackmagic Design Mini Converter SDI Distribution

Blackmagic Design Mini Converter SDI Distribution

Brand: Blackmagic Design

MFR: CONVMSDIDA

659.00 ﾹ

  • (1) SDI Input, (8) SDI Outputs
  • 3G/HD/SD-SDI Auto-Switching Input
  • Re-Clocked Outputs
  • Ancillary Data & Embedded Audio
  • 1080p & 2K Distribution
  • Supports ASI Signals
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Distribution Amplifiers

The Blackmagic Design Mini Converter SDI Distribution is a 1x8 distribution amplifier for SD-SDI, HD-SDI, and 3G-SDI signals. The Mini Converter auto-detects the input signal type, re-clocks it, and its eight outputs automatically match the SDI video input. This device represents an affordable way to distribute SDI signals throughout a facility or truck.

The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.


Blackmagic Design Mini Converter Specs

Inputs1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI
Outputs8x SDI: Automatically match the SDI video input
Re-clockingYes
Supported FormatsNTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M
Video Sampling4:2:2 and 4:4:4
Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit
Color Precision4:2:2 and 4:4:4
Color SpaceYUV and RGB
ASI SupportYes
Power Supply12V universal power supply included
Power Consumption110V: 40mA
220V: 20mA
Voltage Range12-30V

Packaging Info

Package Weight1.2 lb
Box Dimensions (LxWxH)5.6 x 5.4 x 2.6"
