Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro
Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro
Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro
Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro
Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro
Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro
Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro
Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro

Blackmagic Design Pocket Cinema Camera Pro EVF for 6K Pro

Brand: Blackmagic Design

MFR: CINECAMPOCHDMFTEVF

2,006.00 ﾹ

  • EVF for Pocket Cinema Camera 6K Pro
  • Glass Diopter with -4 to +4 Adjustment
  • Built-In Status & Digital Focus Chart
  • 70° Swivel, 1280 x 960 Resolution
  • Micro OLED, 24-Bit RGB, 16.7M Colors
  • Set of 4 Eyecups for Right & Left Eyes
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Viewfinders

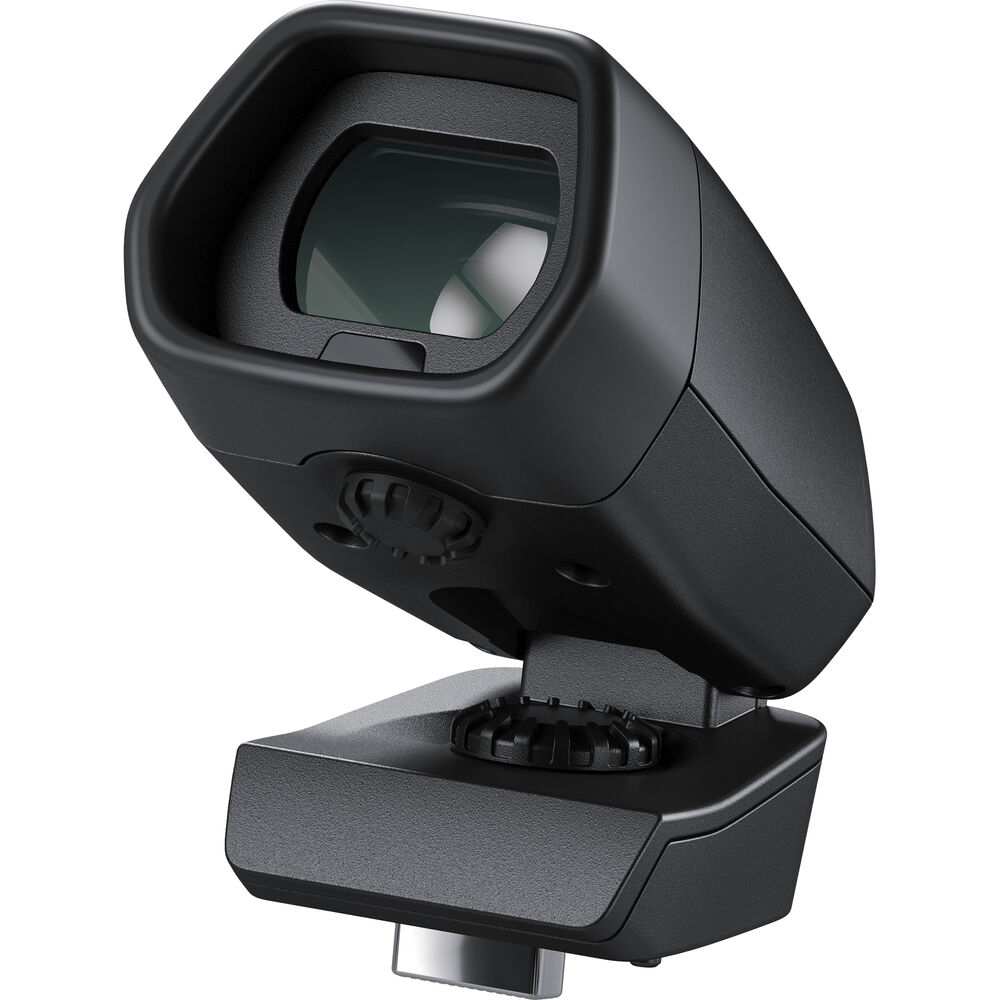

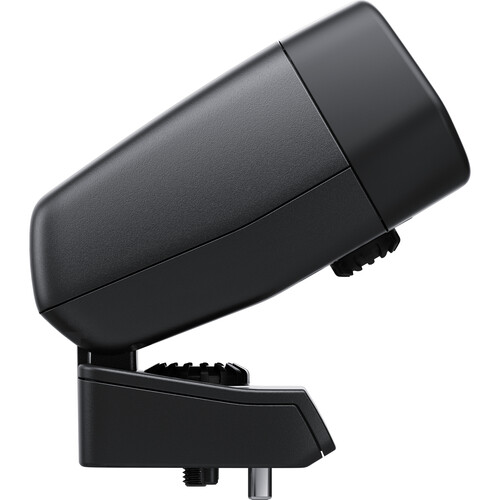

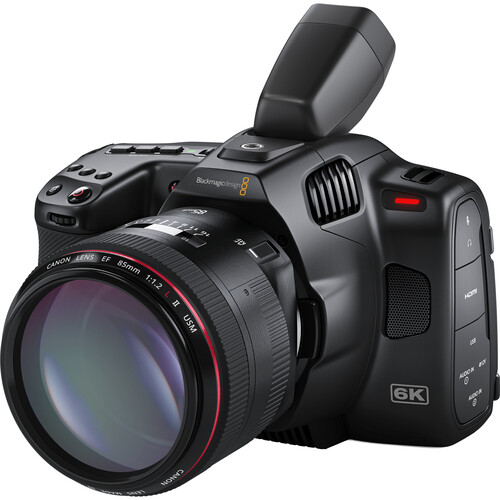

Add a compact viewfinder to your Pocket Cinema Camera 6K Pro with this Pocket Cinema Camera Pro EVF from Blackmagic Design. The EVF is designed specifically to fit into the EVF slot on the 6K Pro, and it locks using an integrated M4 screw. When in use, it turns off the built-in touchscreen LCD, so you don't accidentally change settings while using the EVF. The display provides a 1280 x 960 resolution image on its crisp micro-OLED display.

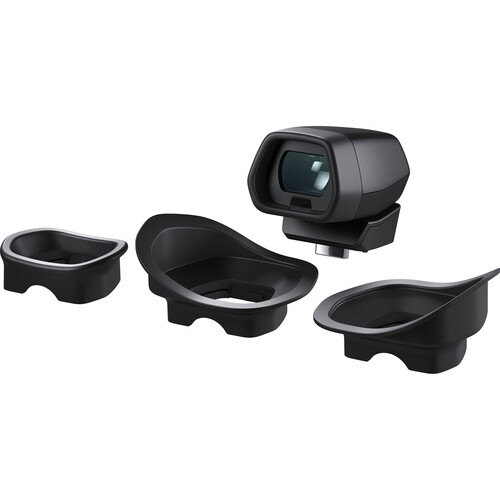

The display provides a variety of overlays such as status, meters, and settings in the blank areas above and below the camera image. It accepts input frame rates up to 60 fps and 24-bit RGB color for a clear representation of your image. Its glass diopter features -4 to +4 adjustment, and the display also features a digital focus chart. It can swivel up to 70°, and a set of four eyecups are included and provide compact, medium, cinematic left eye, and cinematic right eye configurations.

Compatibility

Blackmagic Design Pocket Cinema Camera 6K Pro


Blackmagic Design CINECAMPOCHDMFTEVF Specs

Display

Color/MonochromeColor
Panel TypeOLED
Screen Resolution1280 x 960
TouchscreenNo
Bit Depth / Color Support8-Bit (16.7 Million Colors)

Optics

Diopter Correction-4.0 to +4.0

Environmental

Operating Humidity0 to 90%
Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C

General

Mounting1 x M4 Male
Dimensions2.56 x 1.91 x 1.59" / 6.5 x 4.85 x 4.04 cm
Weight2.82 oz / 80 g

Packaging Info

Package Weight0.375 lb
Box Dimensions (LxWxH)3.6 x 3.4 x 3.1"
