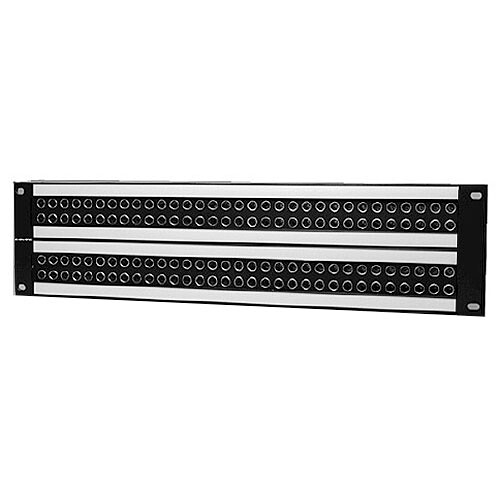

The Canare 32MD-ST-2U / Mid-size HD-SDI Patchbay (2 x 32 / Normal Through) is used to quickly change the path of select signals without the need for dedicated switching equipment. It comes loaded with 32 MDVJ-STW 75 ohm dual video jacks and is compatible with HD-SDI, Serial Digital Video, and NTSC Analog.
With a frequency ranging from DC to 3.0 GHz and a return loss greater than 10 dB, the Mid-size HDTV Patchbay is ideal for use in OB vans and for HDTV upgrades. In addition to Canare's rotary switch, this lightweight alloy patchbay also comes with beryllium copper and gold-plated center contacts. Housed in a 2RU case, this patchbay can be easily maintained through a standard or Canare' Slim BNC crimp plug.
| Rack Height | 2RU |
| Circuit Design | Normal through |
| Jack | x32 (MDVJ-STW) |
| Configuration | 2 x 32 |
| Return Loss | 26dB or greater (~750MHz) 20dB or greater (~2.4GHz) 10dB or greater (~3.0GHz) |
| Isolation | 35dB or greater (~1.5GHz) 20dB or greater (~3.0GHz) |
| Dimensions | 19 x 3.5" (483 x 89mm) |
Packaging Info
| Package Weight | 8.05 lb |
| Box Dimensions (LxWxH) | 24.5 x 7.5 x 3" |
