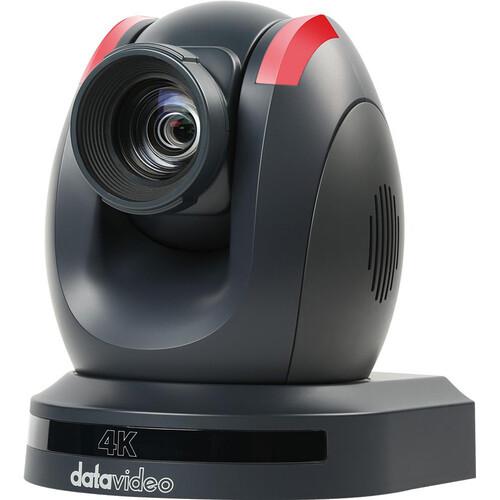

DATAVIDEO PTC-325 4K 3G-SDI/HDMI/NDI Auto Tracking PTZ Camera with 30x Optical Zoom

DATAVIDEO PTC-325 4K 3G-SDI/HDMI/NDI Auto Tracking PTZ Camera with 30x Optical Zoom

Name: DATAVIDEO PTC-325 4K 3G-SDI/HDMI/NDI Auto Tracking PTZ Camera with 30x Optical Zoom
Brand: DATAVIDEO
SKU: SF-2443-ZAJC
Price: 7935 AED
Availability: InStock

Brand: DATAVIDEO

MFR: PTC-325

SKU: SF-2443-ZAJC

7,935.00 ﾹ

Object Auto Tracking PTZ
1/2.8" CMOS Sensor, 8.46MP
Resolution up to UHD 4K
30x Optical, 16x Digital Zoom
255 Preset Positions, IR Remote Control
H.264/H.265 Video Compression Support
NDI|HX Support
DVIP & VISCA/Pelco-P/D Control
RTSP/RTMP(S)/SRT & ONVIF Streaming
1/4"-20 Thread, Ceiling Mount

Items Included

Datavideo 4K 3G-SDI/HDMI/NDI Auto Tracking PTZ Camera with 30x Optical Zoom (Black)
IR Remote Controller
Ceiling Mount Bracket Set
6 x Ceiling Mount Bracket Screw (M3 x 4mm)
Power Adapter (12 VDC)

Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less

Quantity

Categories: PTZ Cameras & Solutions

Add a high-resolution PTZ camera to your conference room, education setting, live event, house of worship, or remote video conference with this 4K 3G-SDI/HDMI/NDI Auto Tracking PTZ Camera with 30x Optical Zoom from Datavideo. The camera features remote pan, tilt, and zoom control via a remote control or via IP and serial protocols, and its built-in zoom lens offers an optical zoom range of 30x with a 16x digital zoom to view just about any angle in your setting. The camera also features an auto tracking algorithm that allows you to follow the subject automatically.

Simultaneous Outputs

Connect your PTC-325 to multiple devices in your workflow for flexibility. All of the outputs are active at the same time, supporting simultaneous 3G-SDI output up to 1080p60 and HDMI and NDI/IP output up to UHD 4K60.

Quick Access Auto Tracking

Directly access the auto tracking technology using external controllers like the included IR remote controller and select DVIP controllers like the RMC-300A, PTC View Assist, among other models. In addition to camera controllers, you can enable tracking on smart switchers like the iCAST mini, SHOWCAST 100 as well as complete systems like the ZR-1 Hybrid Video Production Solution.

If you are capturing multiple people, you can designate a single person for auto tracking. Once set up on the camera, only the designated person will be tracked, avoiding interferences such as the desks, people crossing back and forth, and large objects.

Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt, and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Low Noise in Low Light

Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Streaming and Network Support

The camera supports NDI|HX, RTSP, RTMP, RTMPS, SRT, ONVIF, and Multicast streaming protocols. Easily stream directly to two different CDM platforms and Datavideo dvCloud

NDI and PoE Support

The PTC-325 supports PoE for easy installation without the need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single Cat 6 cable to power your PTC-325. NDI|HX technology allows you to utilize a single wire to transfer video, audio, power, tally, and control.

Tally Lights

Green and red lights tally to show the preview and program status for broadcast applications.

IP and Serial Control

Control the camera from a variety of controllers that support multiple network protocols, including Pelco-D, Pelco-P, VISCA, VISCA over IP, NDI, and DVIP.

Audio Input

Input audio to insert into your output via the mic/line-level 3.5mm stereo audio input. The camera supports AAC, MP3, and PCM audio compression.

Multiple Power and Mounting Options

The camera can be powered via PoE or the included power adapter. It also includes a ceiling mount bracket set and an integrated 1/4"-20 thread for tripod stand mounting.

PTZ View Assist App Control

The PTZ View Assist camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, PTC-300, PTC-305, and PTC-325 series. The app can control up to four cameras simultaneously via DVIP; you can intuitively set up and recall the presets, and adjust white balance, focus, and iris.

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 8.46 Megapixel
Shutter Speed	1/10000 to 1/30 Second
Max Optical Zoom	30x
Max Digital Zoom	16x
Video Output	HDMI 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps SDI/BNC 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps
Broadcast Output	NTSC/PAL
IP Streaming	RTMP/RTSP 720 x 480 to 3840 x 2160 H.264/H.265/MJPEG via NDI HX3/ONVIF/RTMP/RTMPS/RTSP/SRT 640 x 360 to 3840 x 2160 (Simultaneous Multi-Stream: 0.03 to 50.00 Mb/s)
Wireless	No
PoE Support	PoE 802.3af
Mounting	1x 1/4"-20 Female

Imaging

Image Sensor	1/2.8"-Type CMOS
Sensor Resolution	Effective: 8.46 Megapixel
Focus Control	Autofocus Manual Focus

Exposure Control

Shutter Speed	1/10000 to 1/30 Second
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.5 Lux
Flip / Mirror Support	Image Flip, Mirror (Vertical)
White Balance	Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR

Lens

Focal Length	4.5 to 135mm
Max Optical Zoom	30x
Max Digital Zoom	16x
Field of View	Horizontal: 62.3°
Maximum Aperture	f/1.8 to 4.7

Video Capture

Video Output	HDMI 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps SDI/BNC 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 50/59.94/60.00 fps
Embedded Audio	HDMI/SDI
Audio Recording	AAC Audio G.711 Audio
Broadcast Output	NTSC/PAL
IP Streaming	RTMP/RTSP 720 x 480 to 3840 x 2160 H.264/H.265/MJPEG via NDI HX3/ONVIF/RTMP/RTMPS/RTSP/SRT 640 x 360 to 3840 x 2160 (Simultaneous Multi-Stream: 0.03 to 50.00 Mb/s)

Control

Presets	255
Pan/Tilt	Pan: 300° at 0.876 to 43°/s Tilt: 145° (-15 to 130°) at 0.693 to 21.32°/s
Tally Light	Yes

Networking

Wireless

Interface

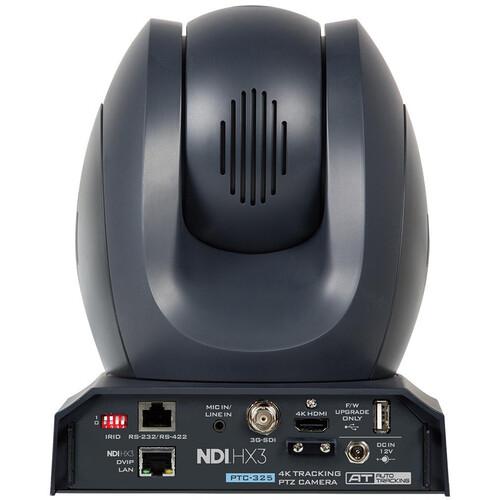

Video I/O	1x HDMI 2.0 Output 1x BNC (3G-SDI) Output 1x RJ45 (NDI) Output
Audio I/O	1x 1/8" / 3.5 mm TRRS Headphone/Mic Mic/Line Input
Other I/O	1x RJ45 (RS-232, RS-422) 1x USB-A (Firmware)
Built-In Microphone	No
Built-In Speaker	No

Power

PoE Support	PoE 802.3af
Power I/O	1x Barrel (12VDC) Input
Power Consumption	21 W

Environmental

Operating Conditions

32 to 104°F / 0 to 40°C

General

Mounting	1x 1/4"-20 Female
Security Lock Support	Bolt-Down Base
