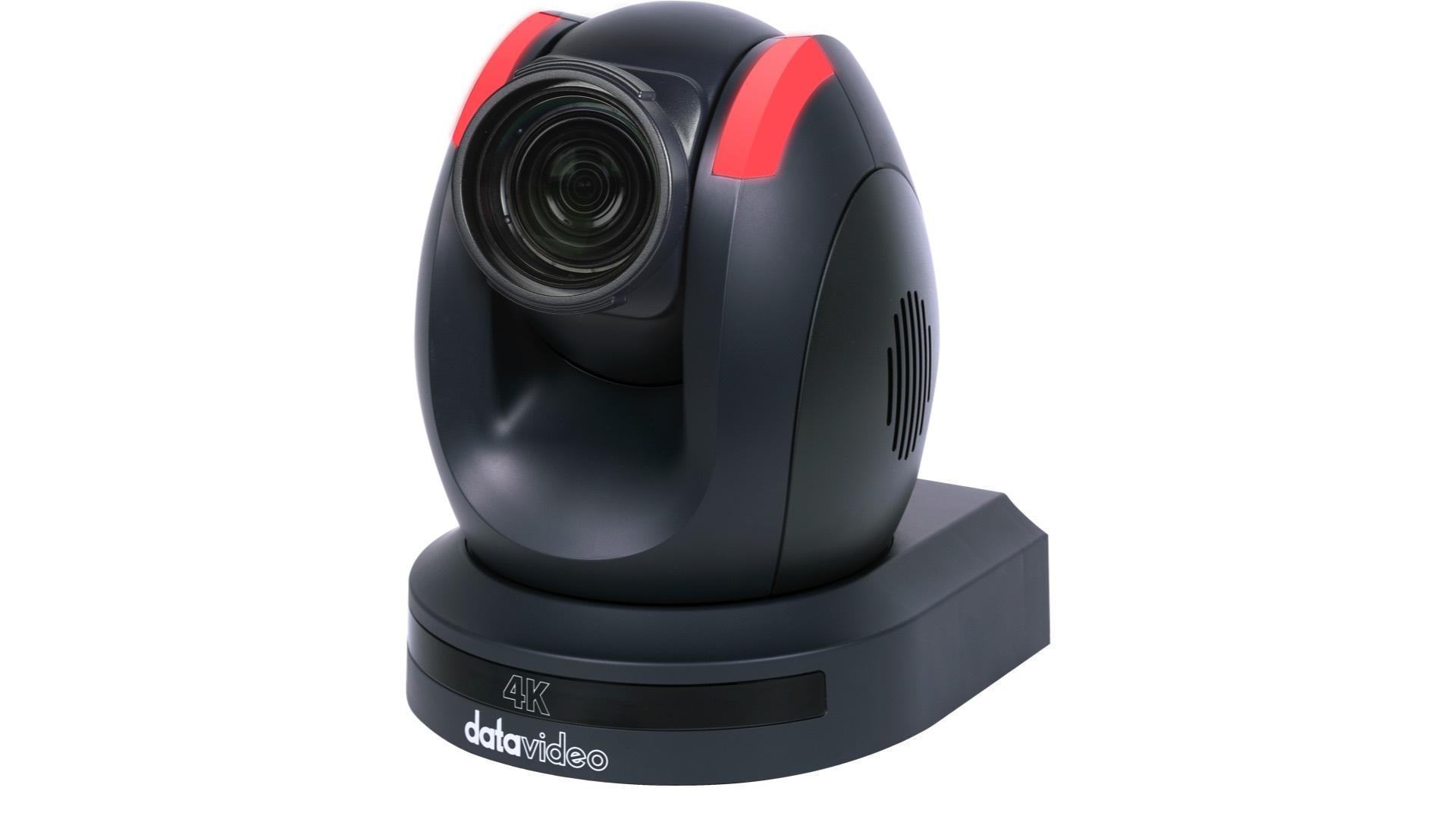

DATAVIDEO PTC-285G 4K HDMI/12G-SDI Autotracking PTZ Camera with 12x Optical Zoom

DATAVIDEO PTC-285G 4K HDMI/12G-SDI Autotracking PTZ Camera with 12x Optical Zoom

Name: DATAVIDEO PTC-285G 4K HDMI/12G-SDI Autotracking PTZ Camera with 12x Optical Zoom
Brand: DATAVIDEO
SKU: SF-2443-AHBH
Price: 7803 AED
Availability: InStock

Brand: DATAVIDEO

MFR: PTC-285G

SKU: SF-2443-AHBH

7,803.00 ﾹ

AI Subject-Autotracking PTZ Camera
1/2.8" CMOS Sensor, 8.51MP
Up to UHD 4K60 Video Resolution
12x Optical, 16x Digital Zoom
255 Preset Positions, High SNR
H.264/H.265 Video Compression Support
AAC, MP3 & PCM Audio Compression
DVIP, RS-422, VISCA/Pelco-P/D Control
Supports NDI HX3 & RTSP, RTMP Streaming
1/4"-20 Thread, Ceiling Mount

Items Included

Datavideo 4K HDMI/12G-SDI Autotracking PTZ Camera with 12x Optical Zoom (Black)
RMC-1 IR Remote Controller
Ceiling Mount Bracket Kit
12 VDC Power Adapter
Security Cable

Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less

Quantity

Categories: PTZ Cameras & Solutions

12G-SDI PTZ Camera with Autotracking

Add a high-resolution PTZ camera to your conference, class, or live event using the black 4K HDMI/12G-SDI Autotracking PTZ Camera from Datavideo. This camera features remote pan, tilt, and zoom via IR remote, IP, or serial control, 12x optical and 16x digital zoom, and an AI algorithm that enables automatic subject tracking

Simultaneous Outputs

Connect your PTC-285G to multiple devices in your workflow for flexibility. All the outputs are active at the same time, supporting simultaneous HDMI 2.0, IP, and 12G-SDI output up to UHD 4K 2160p60.

Quick-Access AI & Object Tracking

Setting up AI tracking is available via various external controllers such as the included RMC-1 remote control and DVIP controllers (RMC-300A, PTC View Assist, etc.)
In addition to camera controllers, you can also easily enable AI tracking on smart switchers, which include KMU-200, SHOWCAST 100, and others as well as complete solution systems like ZR-1 Smart Classroom.
If you are capturing multiple people, you can designate a single person for AI tracking. Once set up on the camera, only the designated person will be tracked, avoiding interferences such as the desks, people crossing back and forth, and large objects.

Low Noise in Low Light

Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt, and zoom speeds.
This ensures that lens movements will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Streaming and Network Support

The camera supports RTSP and RTMPS protocols, making it easy to stream directly to two different CDN platforms and Datavideo dvCloud. ONVIF Profile S compatibility lets you easily integrate the camera into a network video system.

Power over Ethernet

The PTC-285G supports PoE for easy installation without the need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single Cat 6 cable to power your PTC-285.

12x Optical Zoom

The camera features 12x optical zoom and has a 16x digital zoom.
The PTC-285G provides a wide field of view of 80°, easily capturing your entire scene.

Tally Lights

Green and red lights tally to show the preview and program status for broadcast applications.

IP, NDI|HX3, and Serial Control

Control the camera from a variety of controllers that support multiple network protocols, including NDI|HX3, Pelco-D, Pelco-P, VISCA, VISCA over IP, and DVIP.

Multiple Remote Control Options

The RMC-1 PTZ remote control can set and control up to four cameras and save presets.
The PTZ View Assist camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, and PTC-300 series. The app can control up to four cameras simultaneously via DVIP; you can intuitively set up and recall the presets, and adjust white balance, focus, and iris.

Audio Input

Input audio to insert into your output via the mic/line-level 3.5mm stereo audio input.

Power and Mounting Options

The camera is powered by the included power adapter or via PoE, and it includes a ceiling mount bracket kit. You can also use it with the separately available WM-1 wall mount kit.

Video format/Resolution	HDMI: 2160p60/59.94/50/30/29.97/25 1080p60/59.94/50/30/29.97/25 1080i60/59.94/50 720p60/59.94/50 *2160p60/59.94/50 YUV 4:2:2 SDI: 2160p60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50
Image Sensor	Sony 1/2.8" CMOS
Effective Pixels (approx.)	8.51Mega Pixels
S/N Ratio	≥55dB
Min. Illumination	0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter	1/30s ~ 1/10000s
Zoom Ratio	12x Optical Zoom, 16x Digital Zoom
Effective Zoom Ratio	12x
Gamma Control	N/A
Iris Control	Auto / Manual
Digital Noise Reductions	3D
On-Screen Display (OSD)	English/Simplified Chinese/Traditional Chinese
White Balance	Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control	Yes
HDR/WDR	N/A
Mirror / Flip Image	Yes
Focus Mode	Auto/Manual
Panning / Tilting Range	Pan: 300° Tilt: +90° to -15°
Panning / Tilting Speed	Pan: 0.876°/s~43°/s Tilt: 0.693°/s ~21.32°/s
Preset	255
Focal Length	12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View (Horizontal, Wide)	80°
Image Compensation	Back light compensation

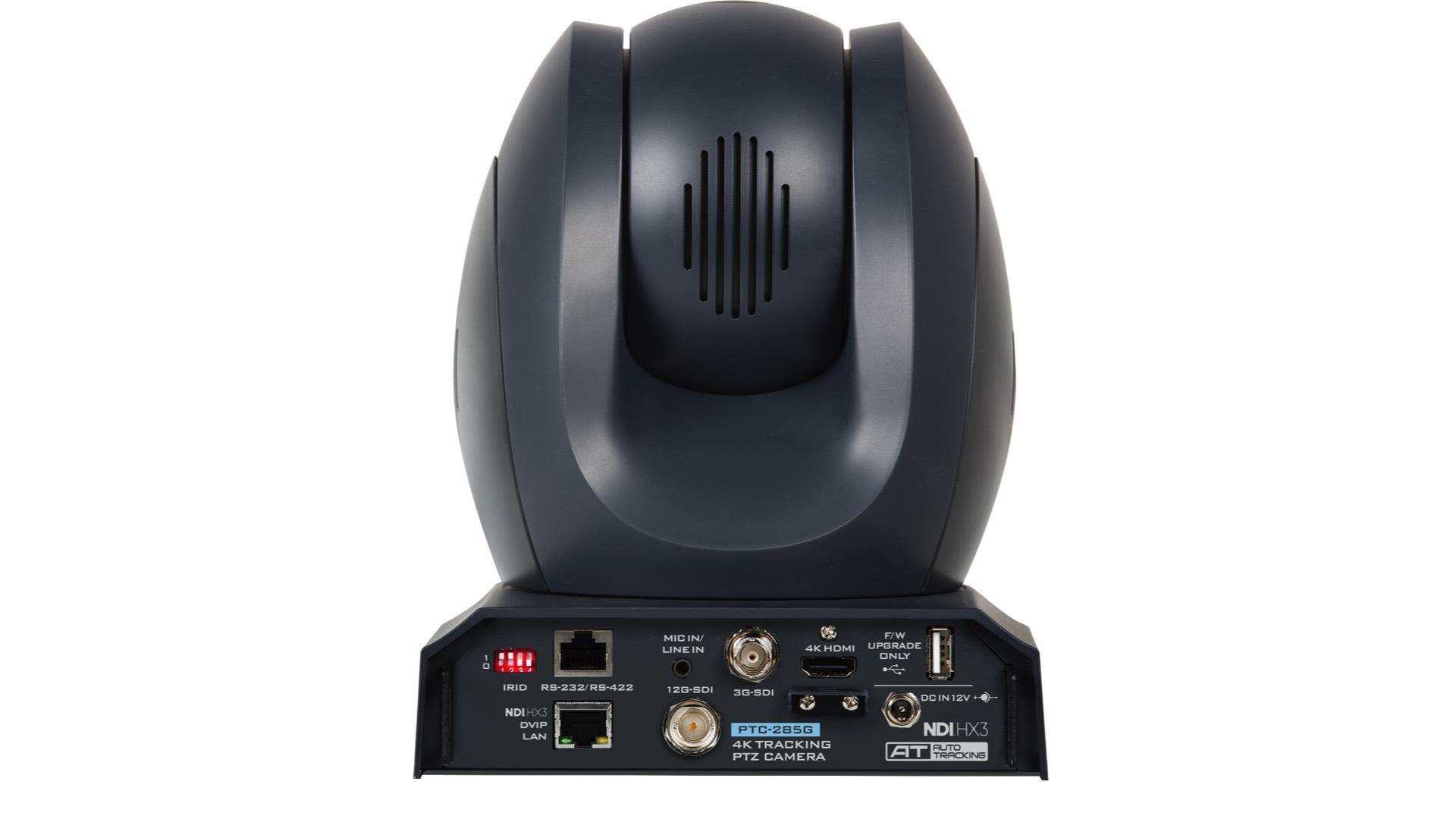

Video Output	HDMI 2.0 x1 3G-SDI x1 12G-SDI x1 10/100/1000M RJ45 (PoE) x1
Audio Input	3.5 mm x1 (mic in/line in) switch from Web UI
Tally LED	Yes
Lens Filter	N/A
Control Protocol	Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
Remote Control Interface	IR Web GUI RS-422/RS-232 DVIP NDI
Video Compression Format	H.264/H.265/MJPEG
Audio Compression Format	AAC, G711
Audio Bitrate	96Kbps, 128Kbps, 256Kbps
HD IP Interface	----
Streaming Protocols	RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI\|Hx3 (1080p)
First Stream Supported Resolution	3840x2160 1920x1080 1280x720 1024x576 960x540 640x480 640x360
Second Stream Supported Resolution	720x480 640x360 480x270 320x240
Video Bitrate	32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode	VBR, CBR
Encoding Frame rate	50Hz: 1-50fps 60Hz: 1-60fps
POE	IEEE 802.3at
F/W Update	Via Web UI or USB 2.0
IR Control	Yes
Camera Control Unit	RMC-2P RMC-180 series/ RMC-300 series/ PTZ View Assist APP
Tripod Mount	1/4-20 UNC
Optional Accessories	WM-1/ WM-10/ WM-11
Color	Black/White
Dimension (LxWxH)	173 (W) x 219 (H) x 189.08 (D)
Weight	2.6 kg

Operating Temp. Range	0~40 °C
Power	DC 12V/3A (26W)
