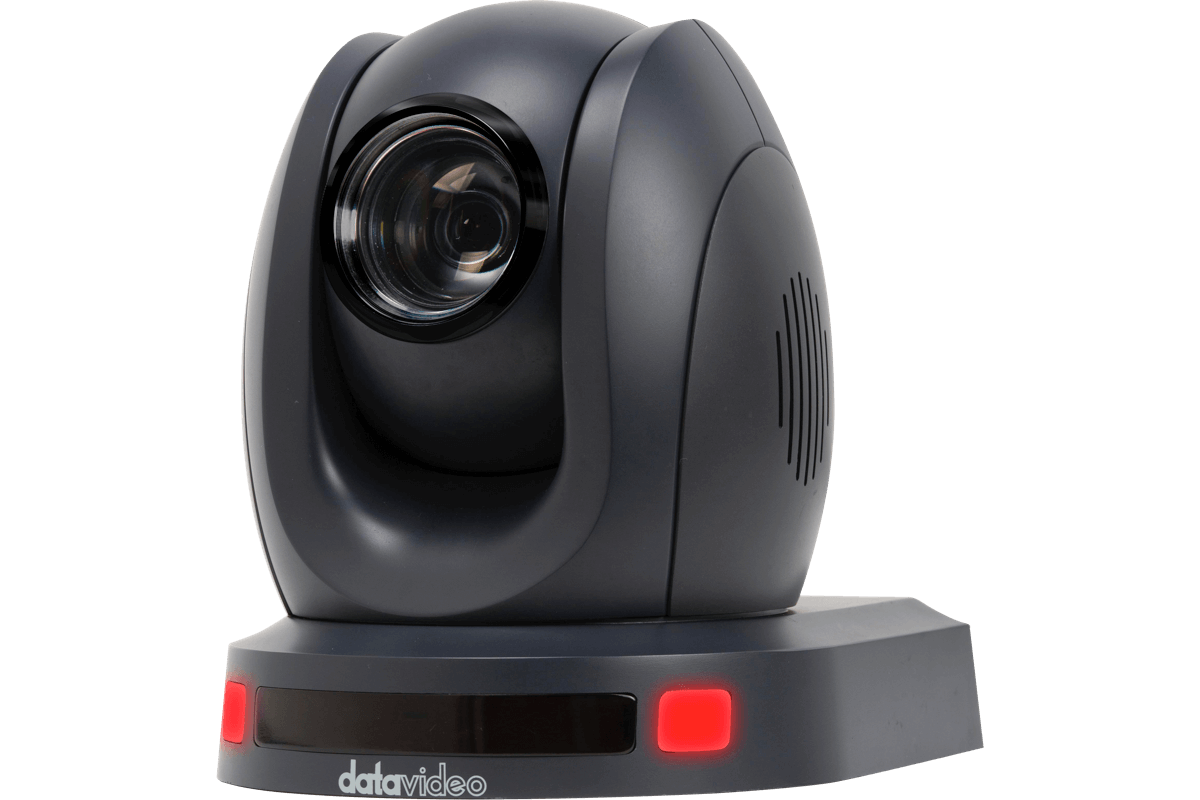

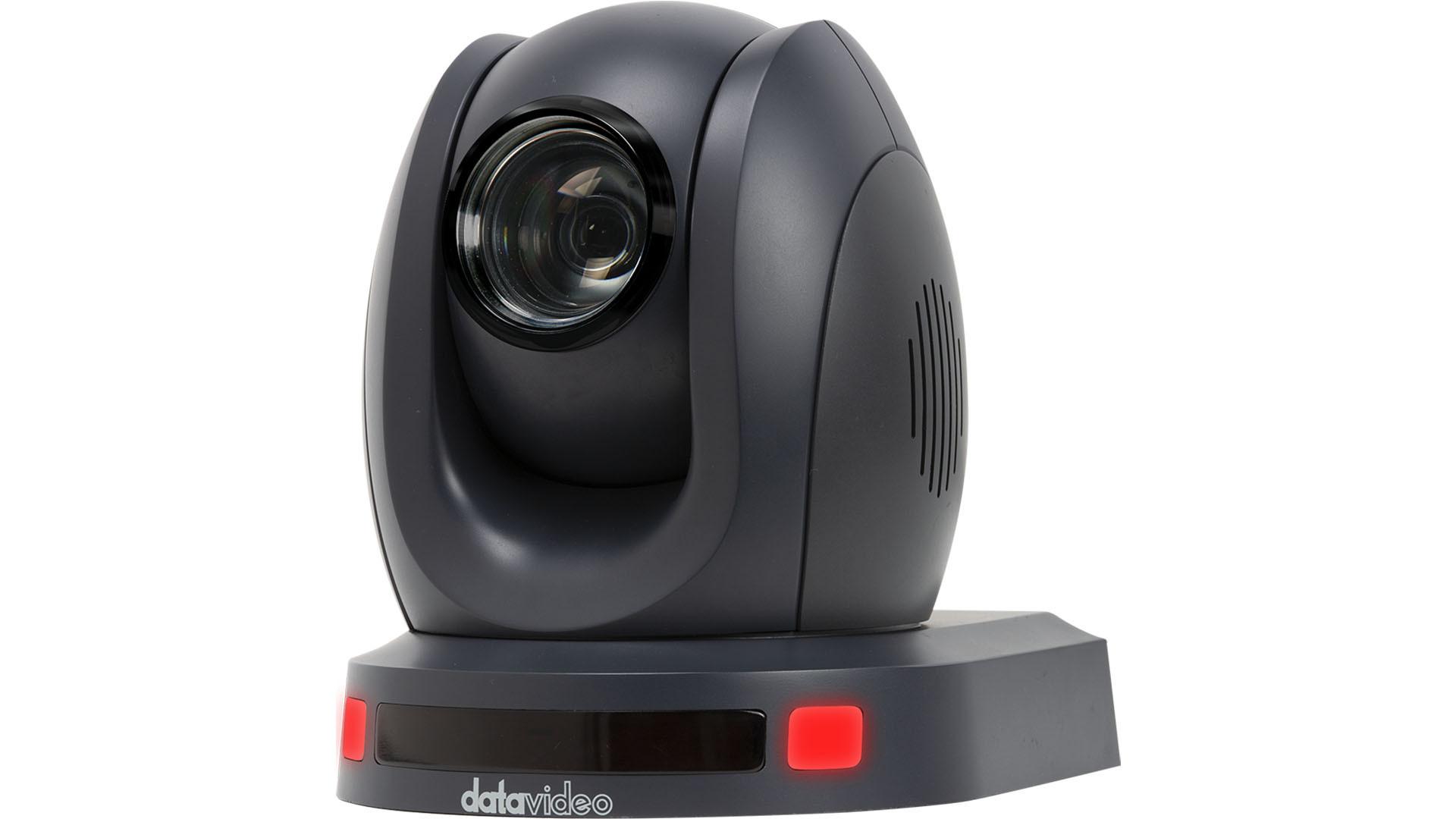

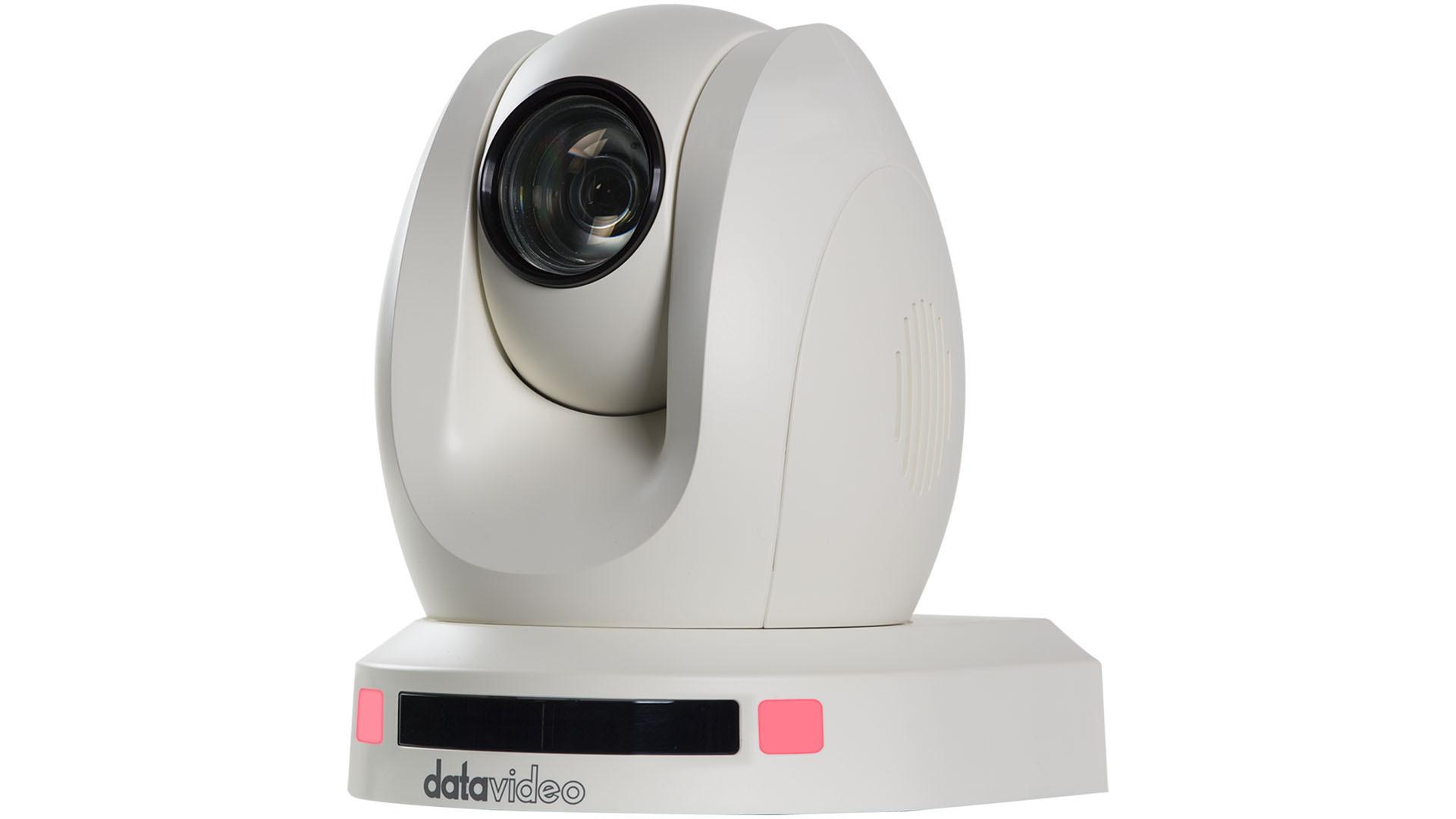

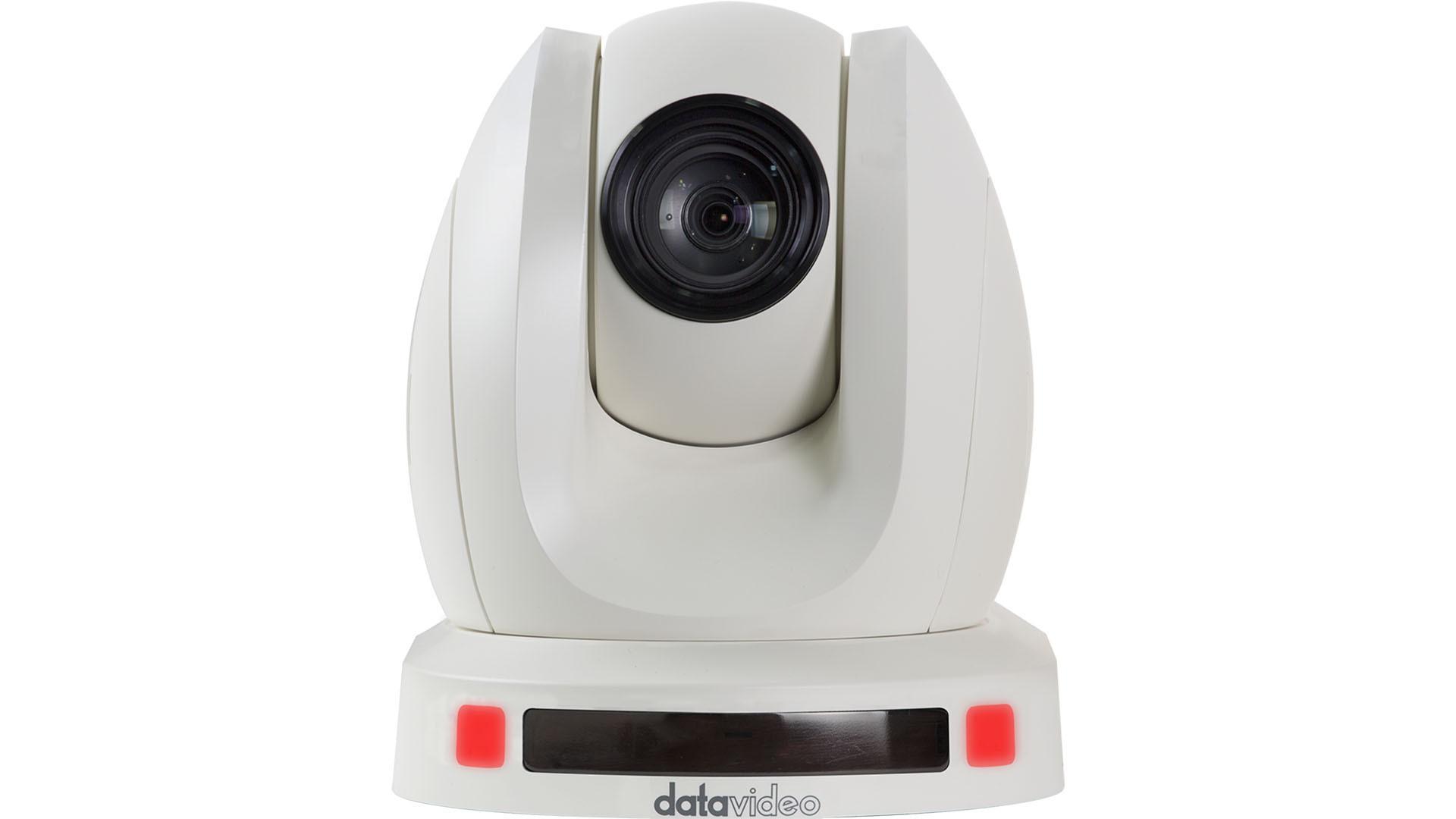

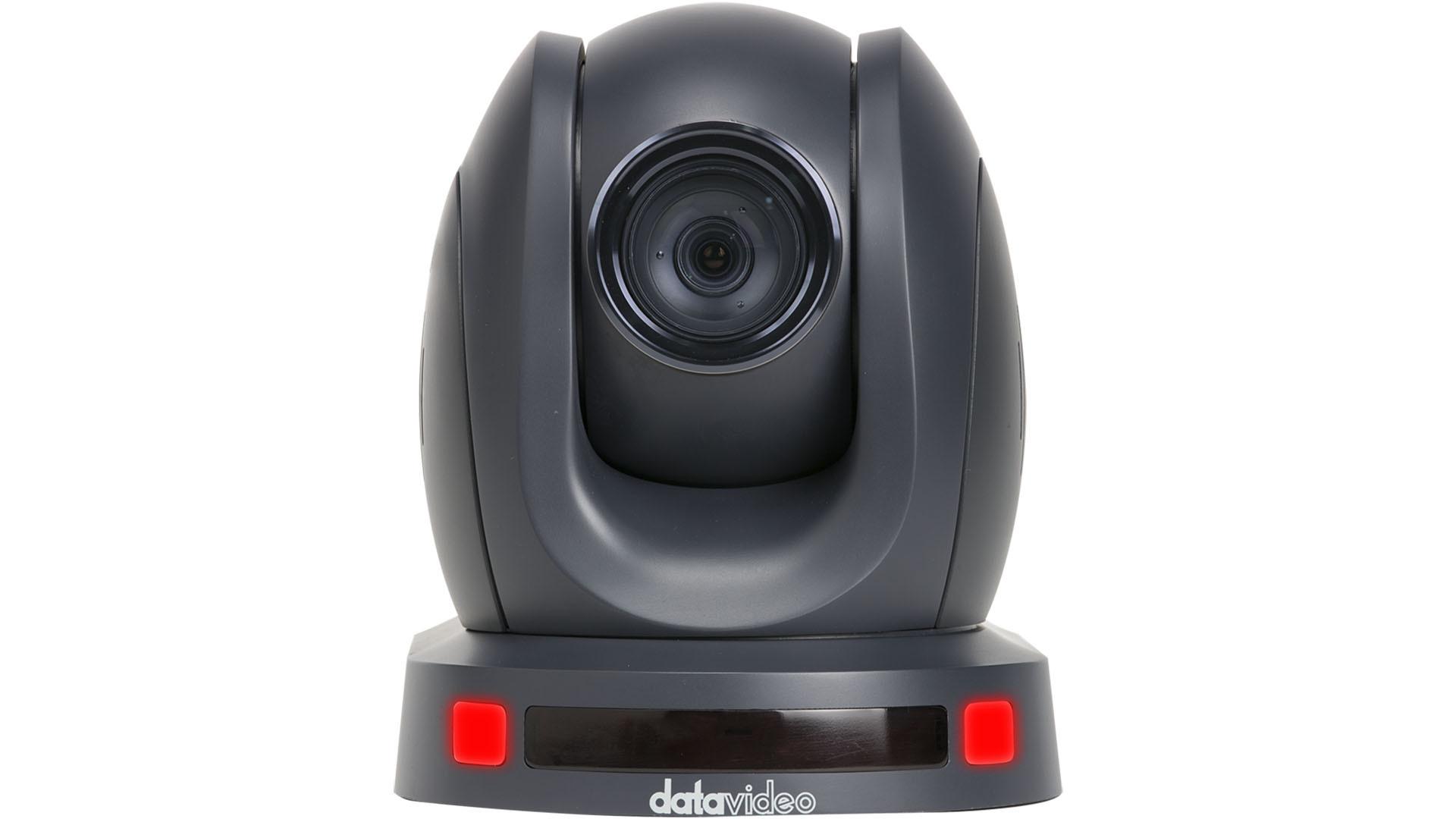

Stunning Full HD Resolution
The PTC-140 features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.
1 x PTC-140 Unit

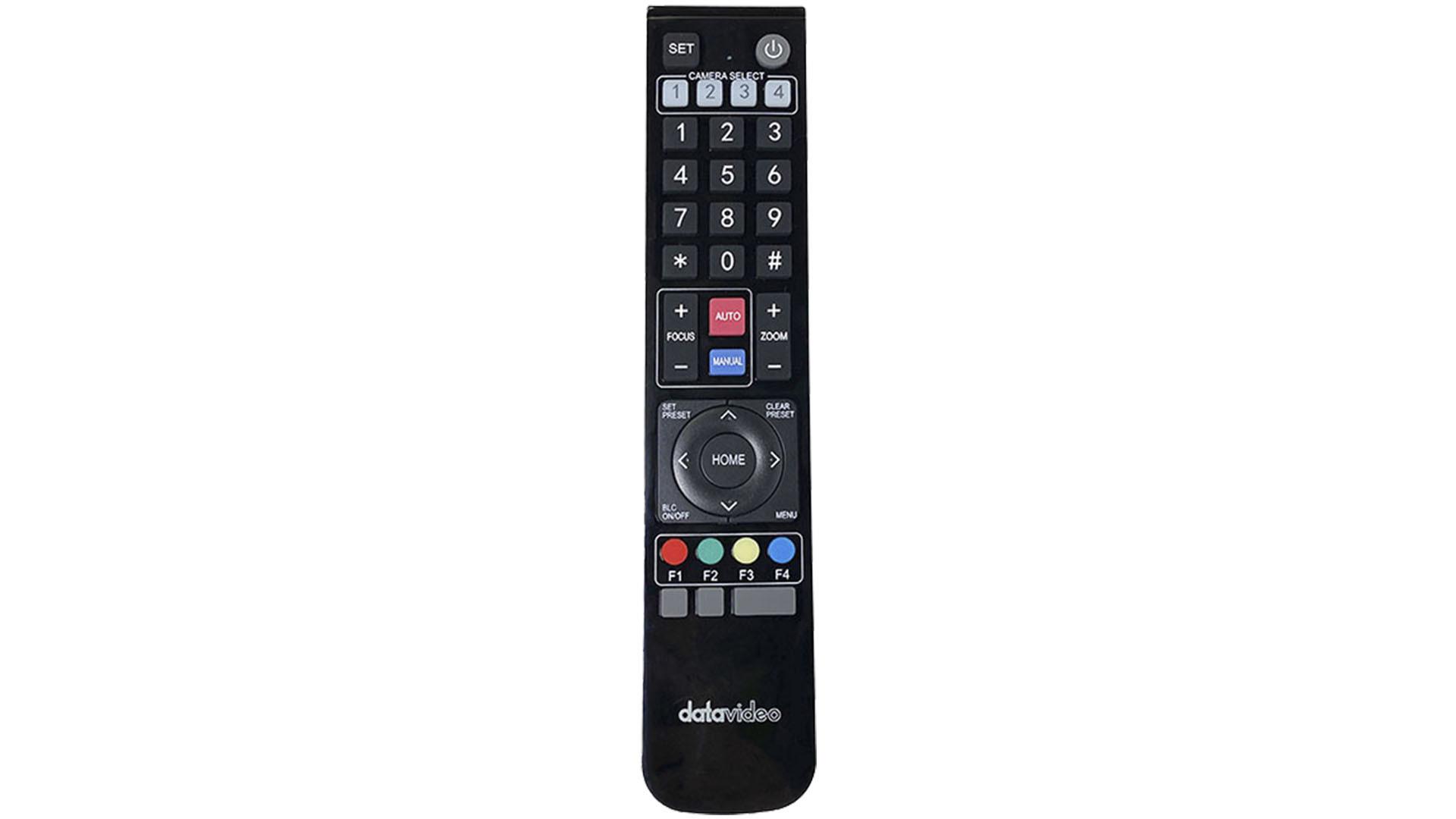

1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x Safety cable
Categories: PTZ Cameras & Solutions
Adopts High-Quality and Reliable Sony CMOS Sensor
Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.
20x Optical Zoom, 10x Digital Zoom
The PTC-140's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots

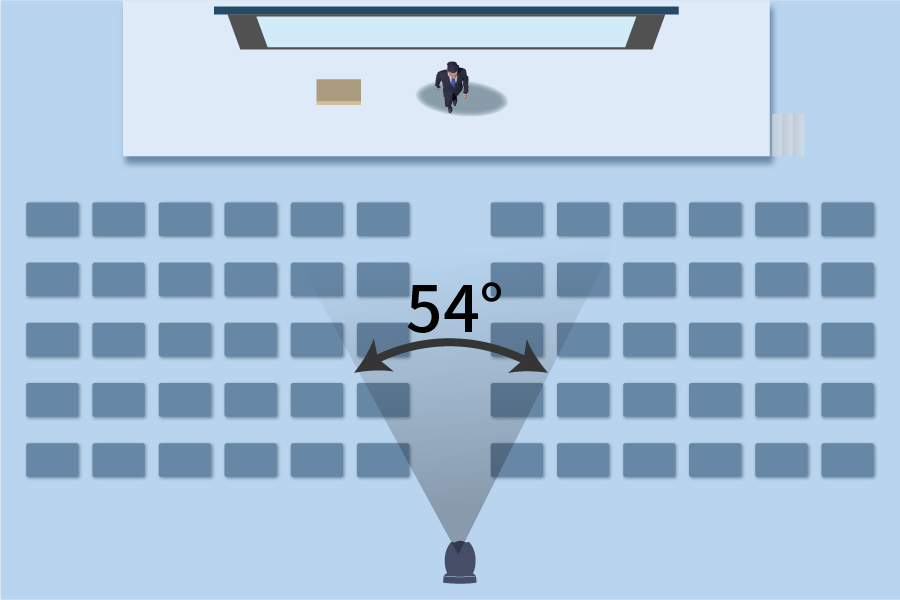

Wide 54° Field of View
PTC-140 provides a wide Field of View of 54°, easily shooting all the scenes in the field
Video format/Resolution | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
Image Sensor | Sony 1/2.8" CMOS |
Effective Pixels (approx.) | 2.07 Mega pixels |
S/N Ratio | >55dB |
Min. Illumination | 0.5Lux (F1.8, AGC ON) |
Electronic Shutter | Auto / Manual |
Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
Effective Zoom Ratio | 18.85x |
Gamma Control | Off / Normal |
Iris Control | Auto / Manual |
Digital Noise Reductions | Yes |
On-Screen Display (OSD) | English/Simplified Chinese/Traditional Chinese |
White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
AGC / Gain Control | Auto / Manual |
HDR/WDR | ---- |
Mirror / Flip Image | Yes |
Focus Mode | Auto / Manual |
Panning / Tilting Range | Pan: 340° , Tilt: +90° to -30° |
Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
Preset | 255 Position |
Focal Length | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
Field of View (Horizontal, Wide) | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
Image Compensation | Backlight Compensation |

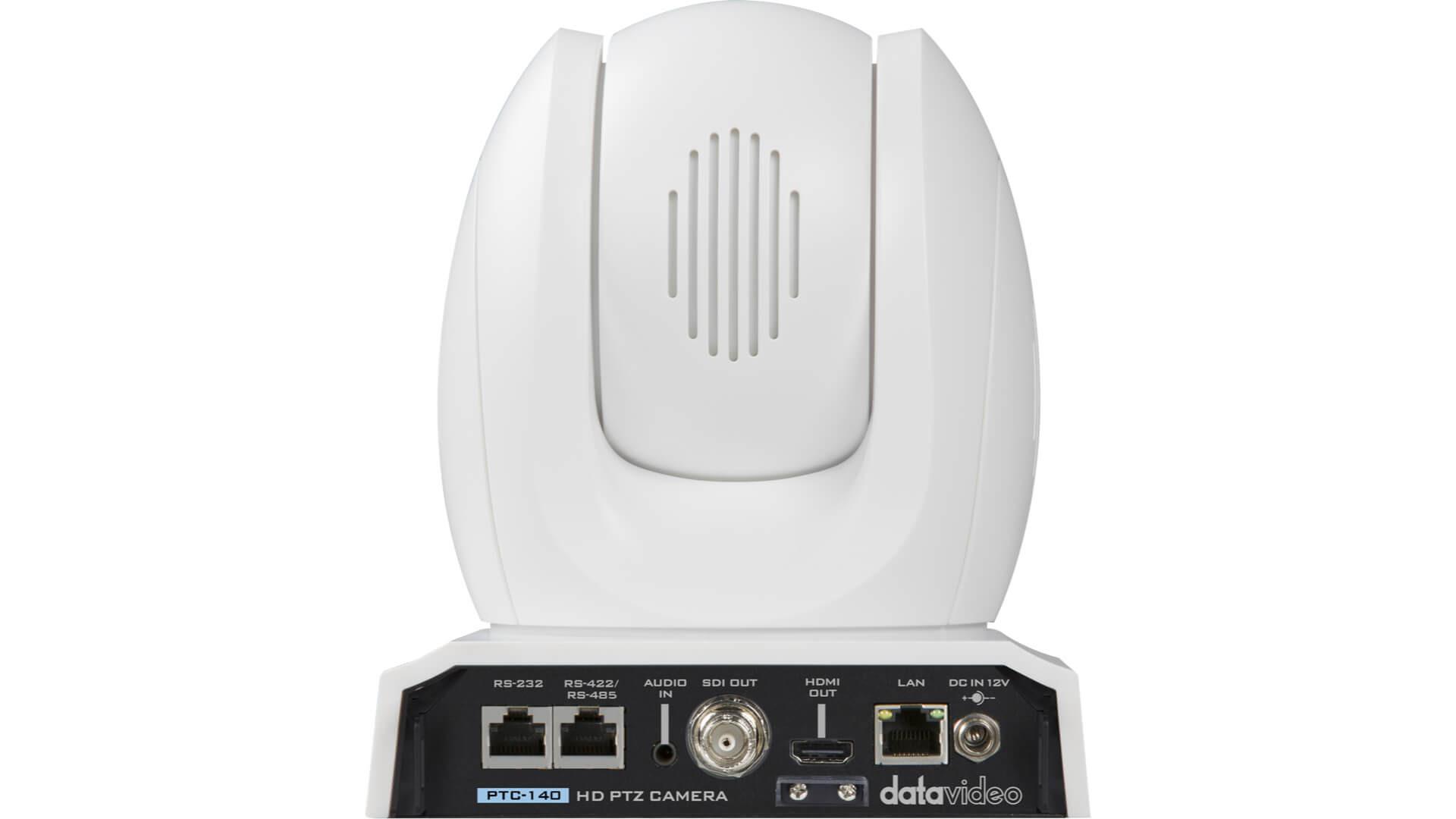

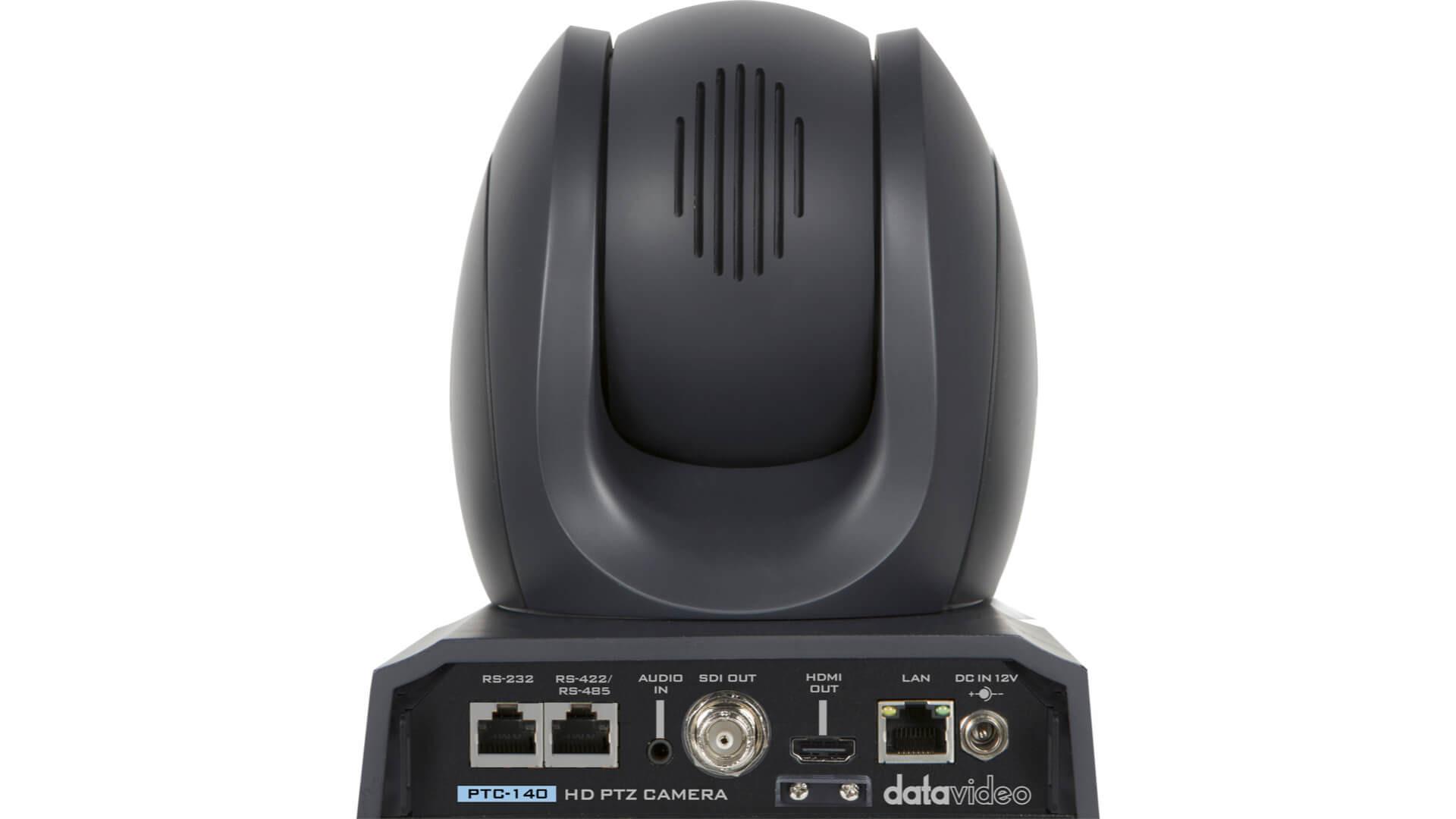

Video Output | HDMI x 1 SDI x 1 |
Audio Input | 3.5mm Line in |
Tally LED | Dual color (Red, Green) |
Lens Filter | M52.0 x 0.75 Thread with UV Protection |
Control Protocol | Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF |
Remote Control Interface | RJ-45: for IP control (DVIP) RS-232: Mini DIN 8-pin (IN / OUT) RS-485 |
Video Compression Format | H.264/H.265 |
Audio Compression Format | AAC, G711 |
Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
HD IP Interface | 100M IP port(100BASE-TX); Support DVIP |
Streaming Protocols | RTSP, RTMP(S), ONVIF, Multicast, SRT |
First Stream Supported Resolution | ---- |
POE | ---- |
F/W Update | Via Web GUI |
IR Control | Yes |
Camera Control Unit | RMC-2P RMC-180 series/ RMC-300 series/ PTZ View Assist APP |
Tripod Mount | 1/4-20 UNC |
Optional Accessories | WM-1/ WM-10/ WM-11 |
Color | Black/White |
Operating Temp. Range | 0~40 °C |
Power | DC 12V 12W |
