Stunning Full HD Resolution
The PTC-140T boasts a 1/2.8-inch CMOS sensor, delivering a Full HD resolution of 1920x1080 pixels at a smooth 60 frames per second.
1 x PTC-140T Unit

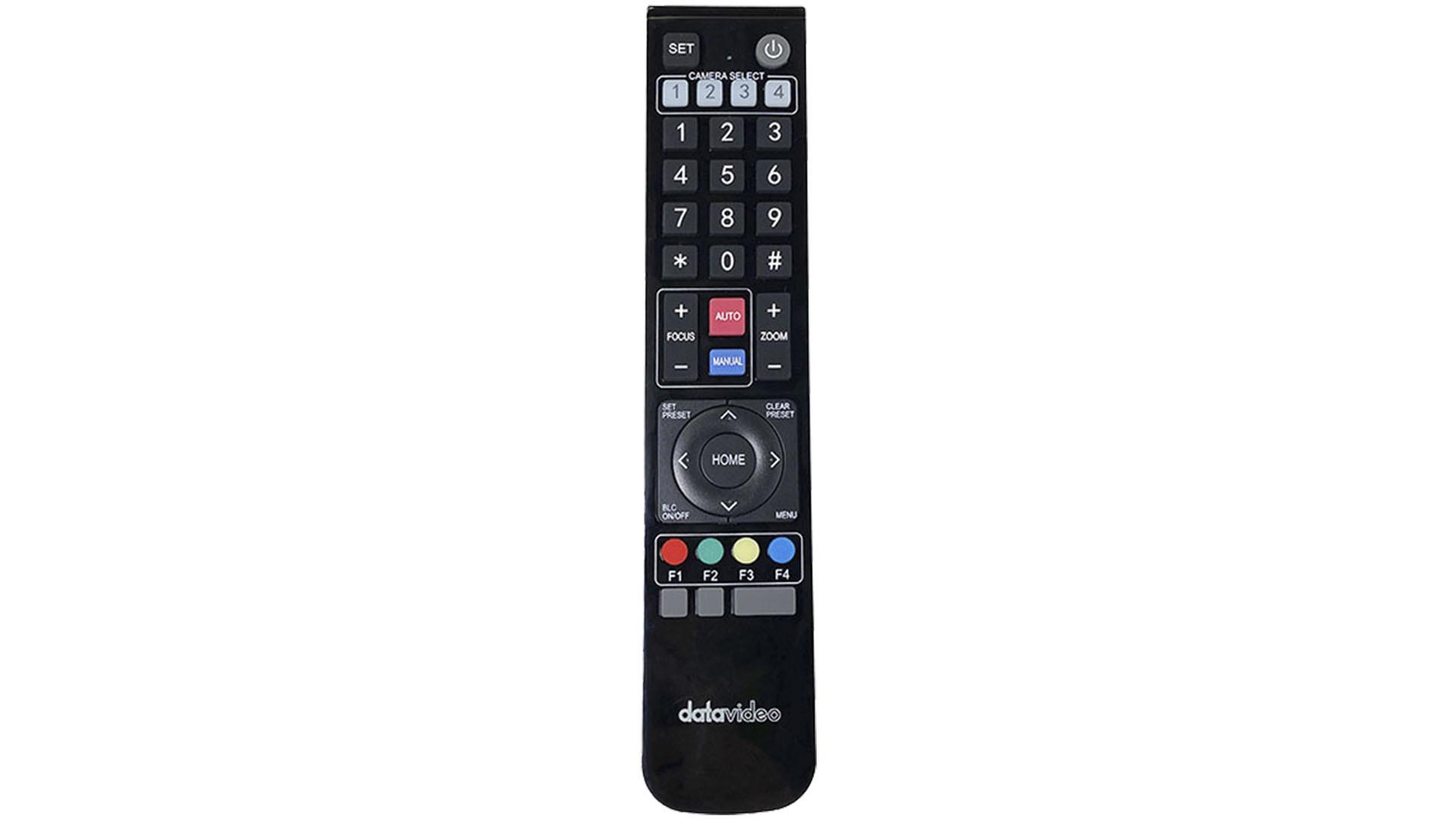

1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x Safety Cable
1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cabl
Categories: PTZ Cameras & Solutions
Adopts High-Quality and Reliable Sony CMOS Sensor
Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower powaer consumption, which leads to reduced heat generation and a longer camera lifespan.
20x Optical Zoom, 10x Digital Zoom
The PTC-140T's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.
Single cable transmissi
on by HDBaseT technology

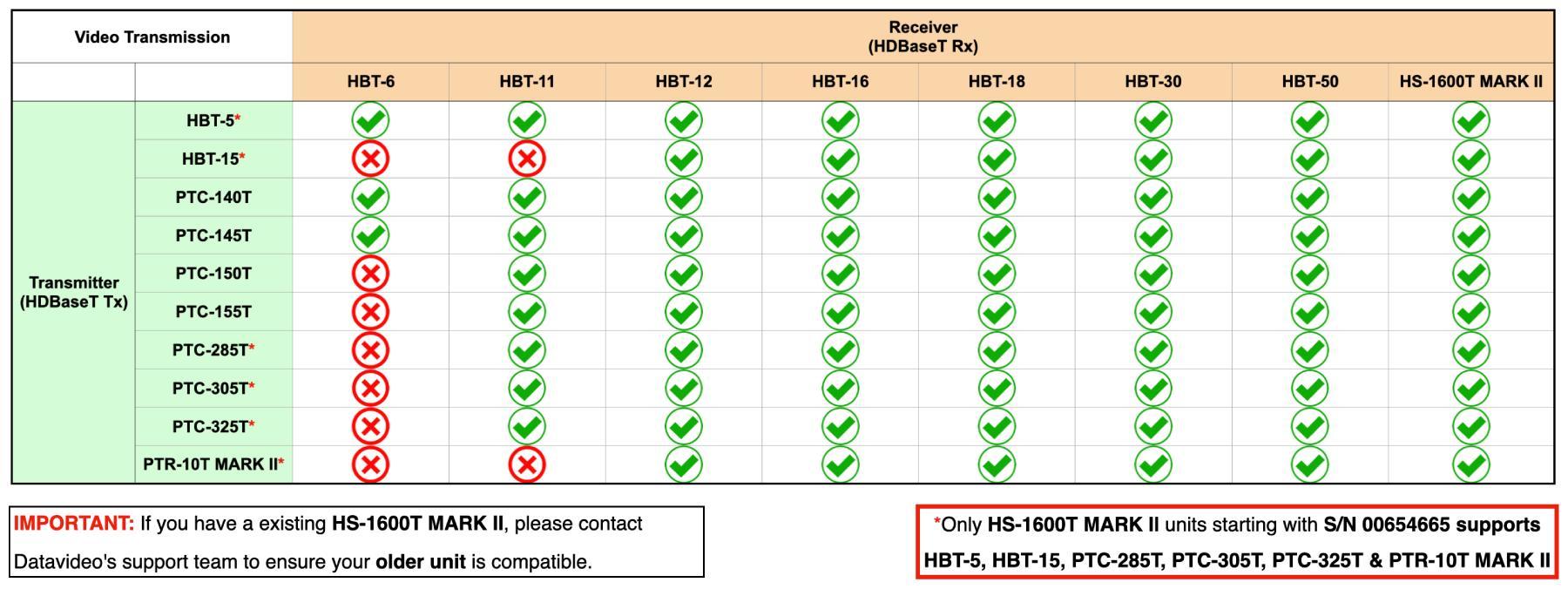

Utilizing HDBaseT technology, all signals, power, and control data travel through a single CAT6 network cable. When paired with the Receiver Box, the transmission distance can reach up to 100 meters.
H.264/H.265 video compression for streaming
With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.
Simple multi-camera control at your fingertips
With its ergonomic joystick and tactile button layout, the RMC-180 MARK II makes it easy to set up and control up to four Datavideo PTC-140T cameras for any live video production.
Video format/Resolution | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
Image Sensor | Sony 1/2.8" CMOS |
Effective Pixels (approx.) | 2.07 Mega pixels |
S/N Ratio | >55dB |
Min. Illumination | 0.5Lux (F1.8, AGC ON) |
Electronic Shutter | Auto / Manual |
Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
Effective Zoom Ratio | 18.85x |
Gamma Control | Off / Normal |
Iris Control | Auto / Manual |
Digital Noise Reductions | Yes |
On-Screen Display (OSD) | English/Simplified Chinese/Traditional Chinese |
White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
AGC / Gain Control | Auto / Manual |
HDR/WDR | ---- |
Mirror / Flip Image | Yes |
Focus Mode | Auto / Manual |
Panning / Tilting Range | Pan: 340° , Tilt: +90° to -30° |
Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
Preset | 255 Position |
Focal Length | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |

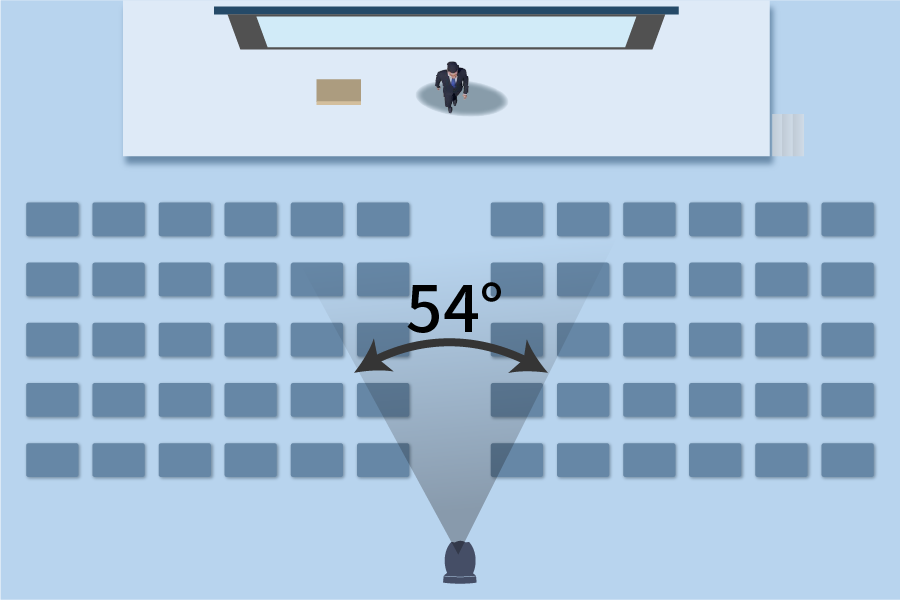

Field of View (Horizontal, Wide) | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
Image Compensation | Backlight Compensation |
Video Output | HDBaseT (PoE) x1 RJ-45 x1 Cable Type: Cat6A Shielded |
Audio Input | 3.5mm Line in |
Tally LED | Dual color (Red, Green) |
Lens Filter | M52.0 x 0.75 Thread with UV Protection |
Control Protocol | Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF |
Remote Control Interface | IR Web GUI RS-422 DVIP HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m |
Video Compression Format | H.264/H.265 |
Audio Compression Format | AAC, G711 |
Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
HD IP Interface | 100M IP port(100BASE-TX); Support DVIP |
Streaming Protocols | RTSP, RTMP(S), ONVIF, Multicast, SRT |
F/W Update | Via Web GUI |
IR Control | Yes |
Camera Control Unit | HS-1650T/HS-1600T Mark II/RMC-2P/RMC-180 series/RMC-300 series/PTZ View Assist APP |
Tripod Mount | 1/4-20 UNC |
Optional Accessories | WM-1/ WM-10/ WM-11 |
Color | Black/White |
Operating Temp. Range | 0~40 °C |
Power | DC 12V 12W |
