Introducing the PTC-145, a versatile PTZ camera designed for enhanced visual experiences. The 1/2.8” CMOS sensor delivers outstanding image quality with 20x optical zoom and 8x digital zoom. Offering HDMI, 3G-SDI, and streaming outputs, it connects to various devices with ease. Equipped with line-in and 3.5mm microphone inputs for exceptional audio quality.
This camera features one-click AI Auto Tracking, enabling smooth camera movements without a dedicated operator. Simultaneous streaming to two platforms is effortless. The PTC-145 includes integrated NDI control functionality, providing enhanced flexibility and efficiency for modern live production environments.

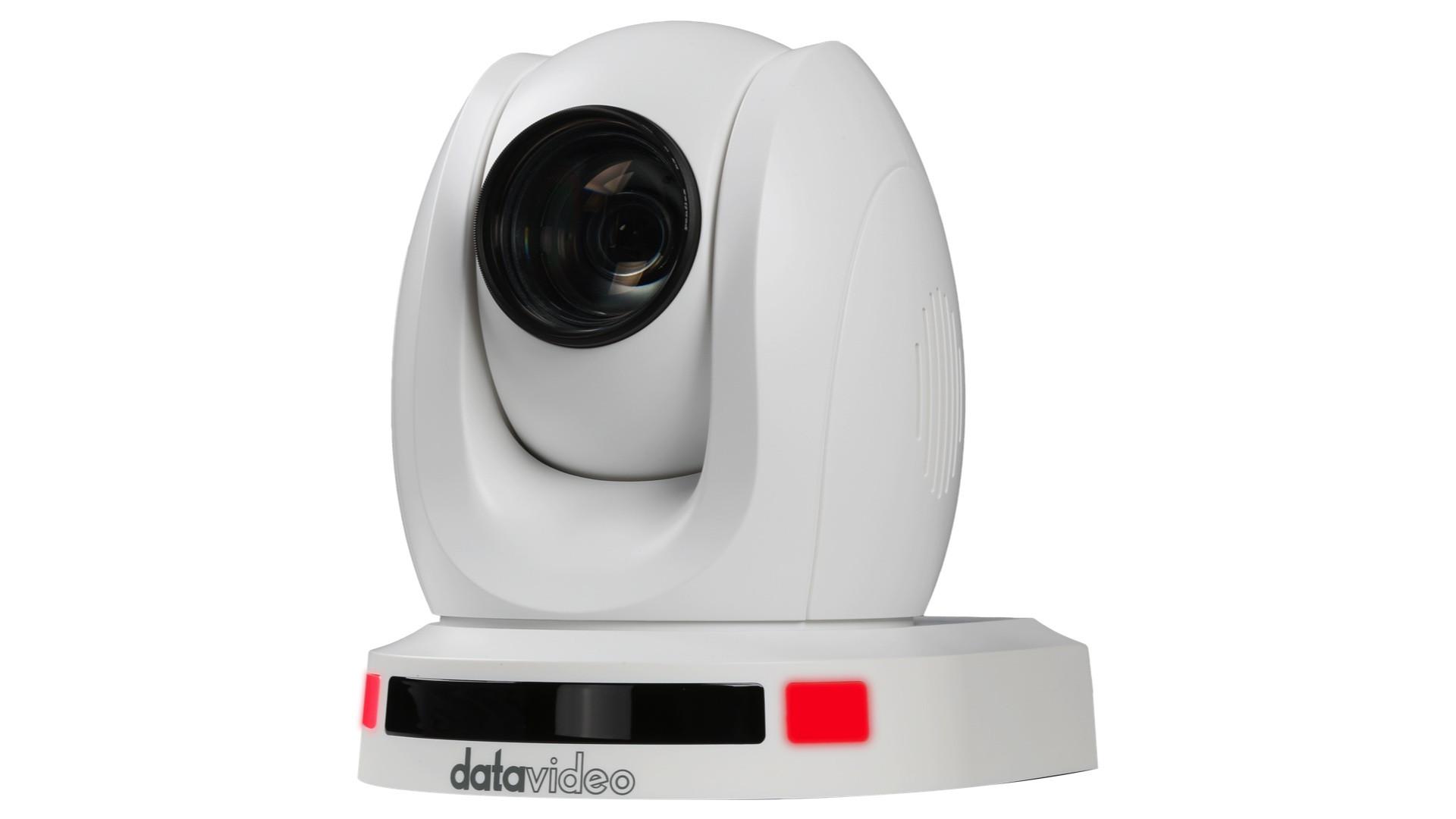

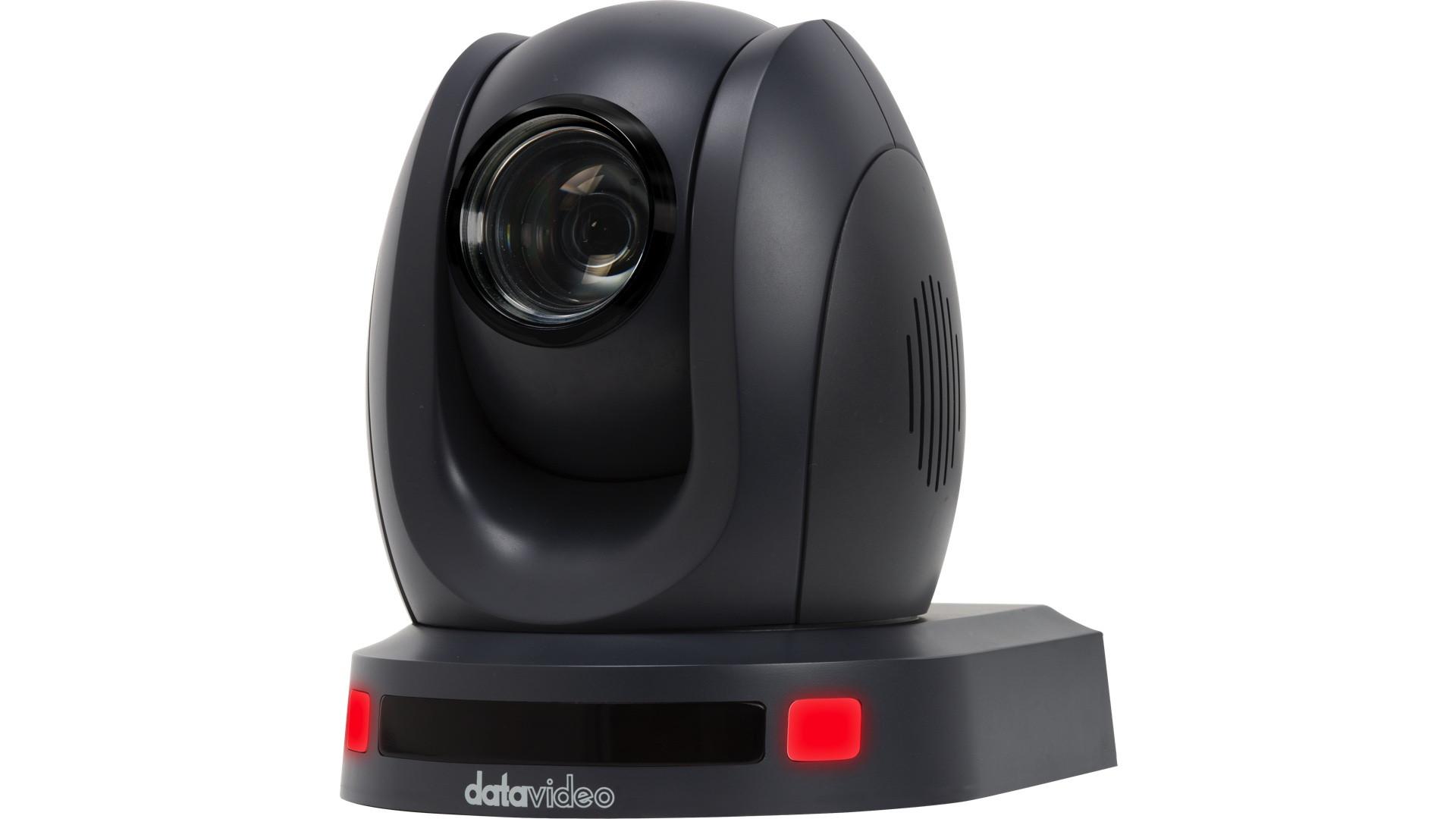

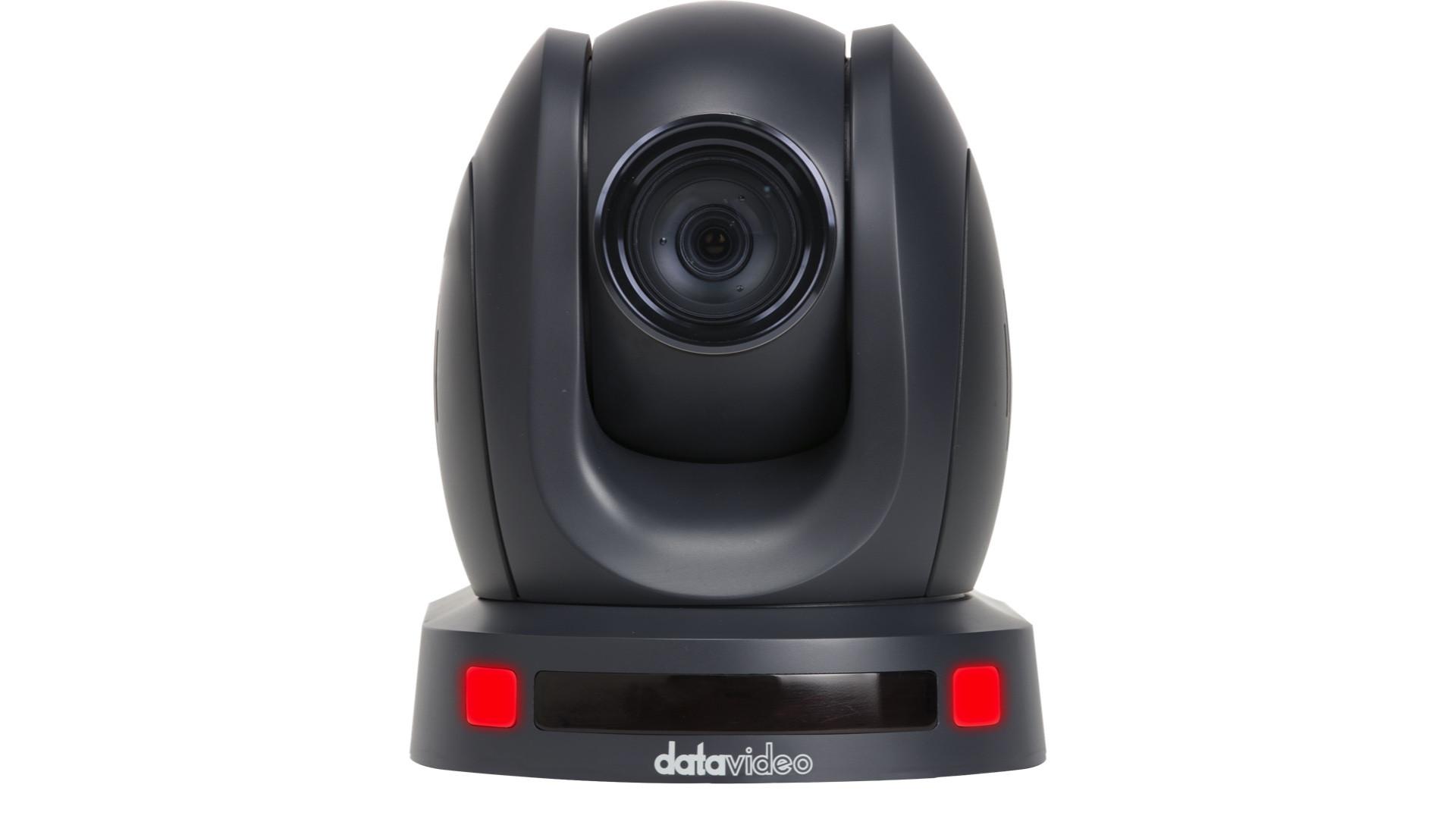

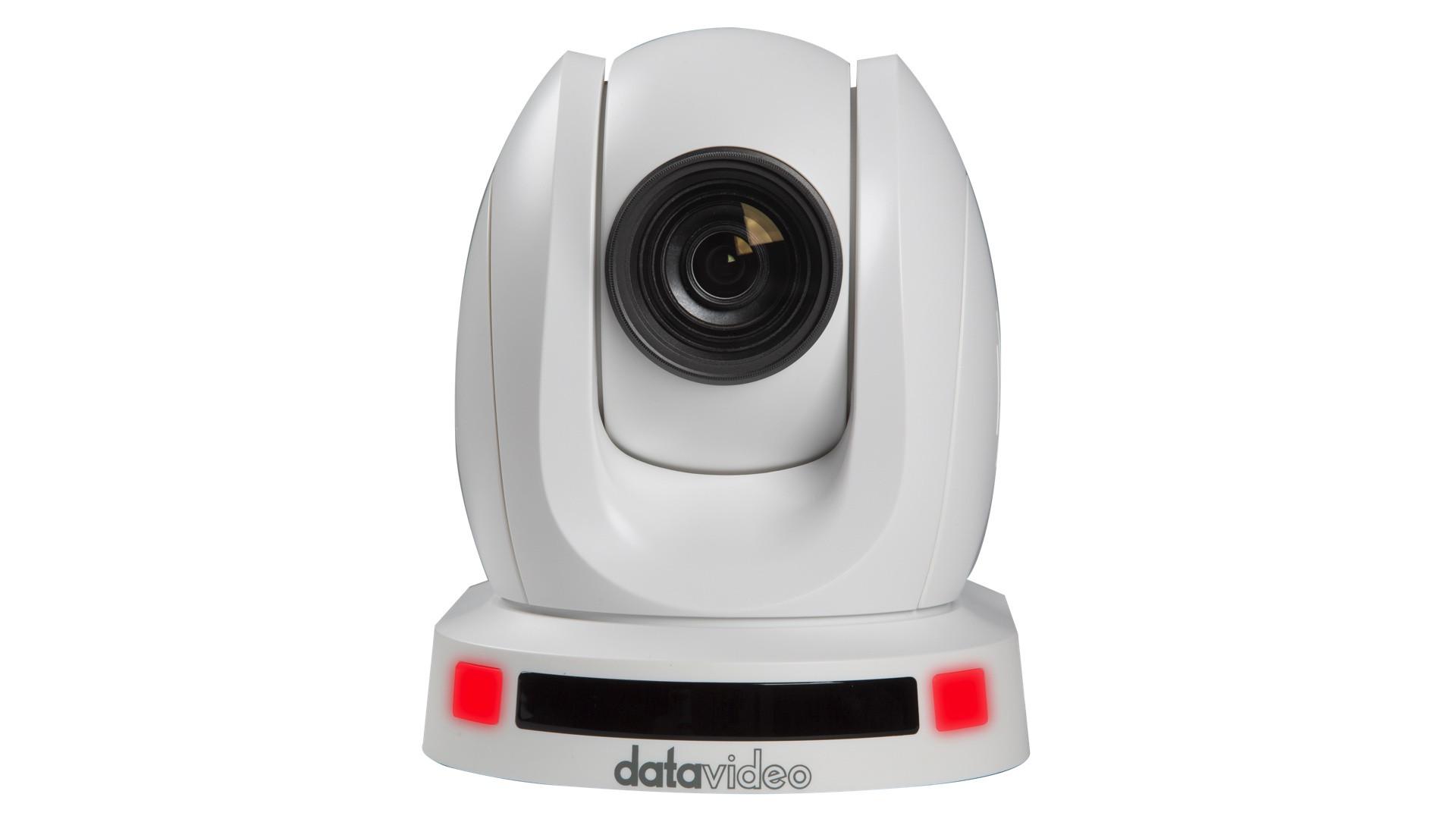

Available in stylish dark blue or white options, it complements indoor design preferences. Elevate your visual excellence with the PTC-145 camera
1 x PTC-145 Unit
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x Safety cable
Categories: PTZ Cameras & Solutions
Advanced 3D Noise Reduction Function
The PTC-145 supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter
Custom Auto Object Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Talent Position: Center / Left Side / Right Side
The positioning of talent depends on the videographer's creativity and intent rather than strict rules. Different positions can convey various emotions, messages, or visual effects. A centered composition provides a sense of stability and balance, suitable for scenes that require highlighting the main subject. Videographers may also place the talent on the left third or right third of the frame, leaving adequate space in the foreground to showcase the talent's sight direction or potential future possibilities.
Quick Selection of Full Body / Half Body / Close-up
All of the PTC-145 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.
Simply enable auto tracking with your IR remote control
RMC-1AT PTZ Controller: All you need is a remote control to set and control all four cameras and save the four presets.
Video format/Resolution | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
Image Sensor | Sony 1/2.8" CMOS |
Effective Pixels (approx.) | 2.07 Mega pixels |
S/N Ratio | ≥50dB |
Min. Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Electronic Shutter | 1/30s ~ 1/10000s |
Zoom Ratio | 20x Optical Zoom, 8x Digital Zoom |
Effective Zoom Ratio | 18.12x |
Gamma Control | N/A |
Iris Control | Auto / Manual |
Digital Noise Reductions | 3D |
On-Screen Display (OSD) | English/Simplified Chinese/Traditional Chinese |
White Balance | Auto, Indoor, Outdoor, Manual, One Push |
AGC / Gain Control | Yes |
HDR/WDR | N/A |
Mirror / Flip Image | Yes |
Focus Mode | Auto / Manual |
Panning / Tilting Range | Pan: 340° , Tilt: +90° to -30° |
Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
Preset | 255 Positions |
Focal Length | f = 5.05mm (wide) to 91.49 mm (tele) F1.8(Wide) ～ F2.9(Tele) |

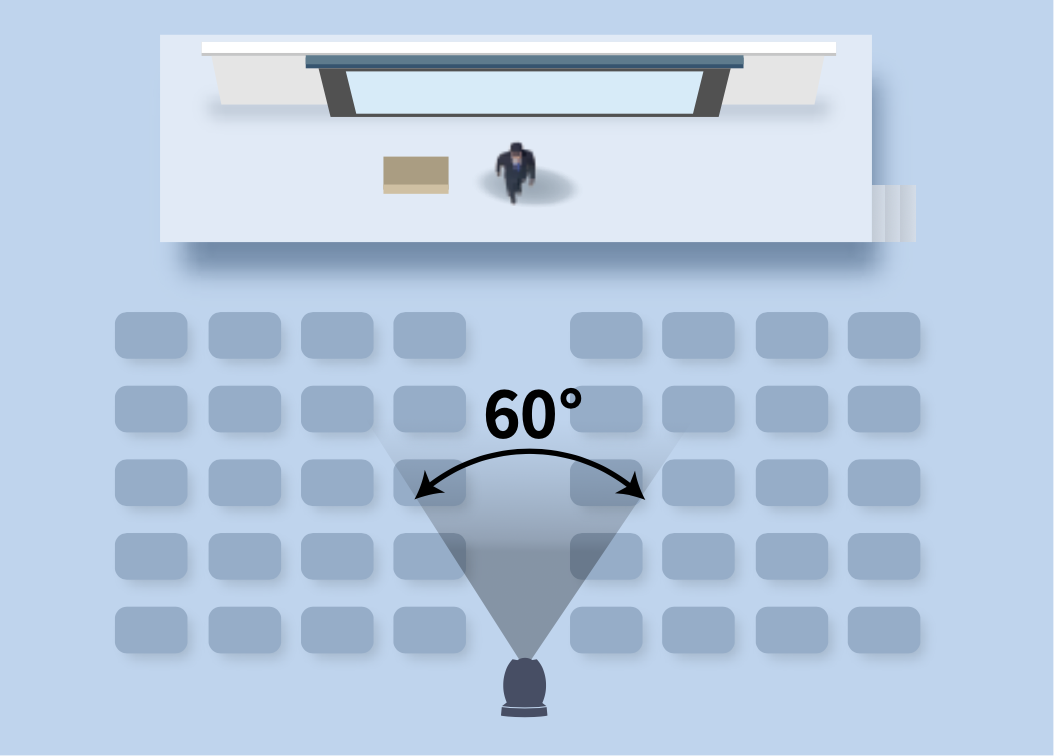

Field of View (Horizontal, Wide) | 60° |
Image Compensation | Backlight Compensation |

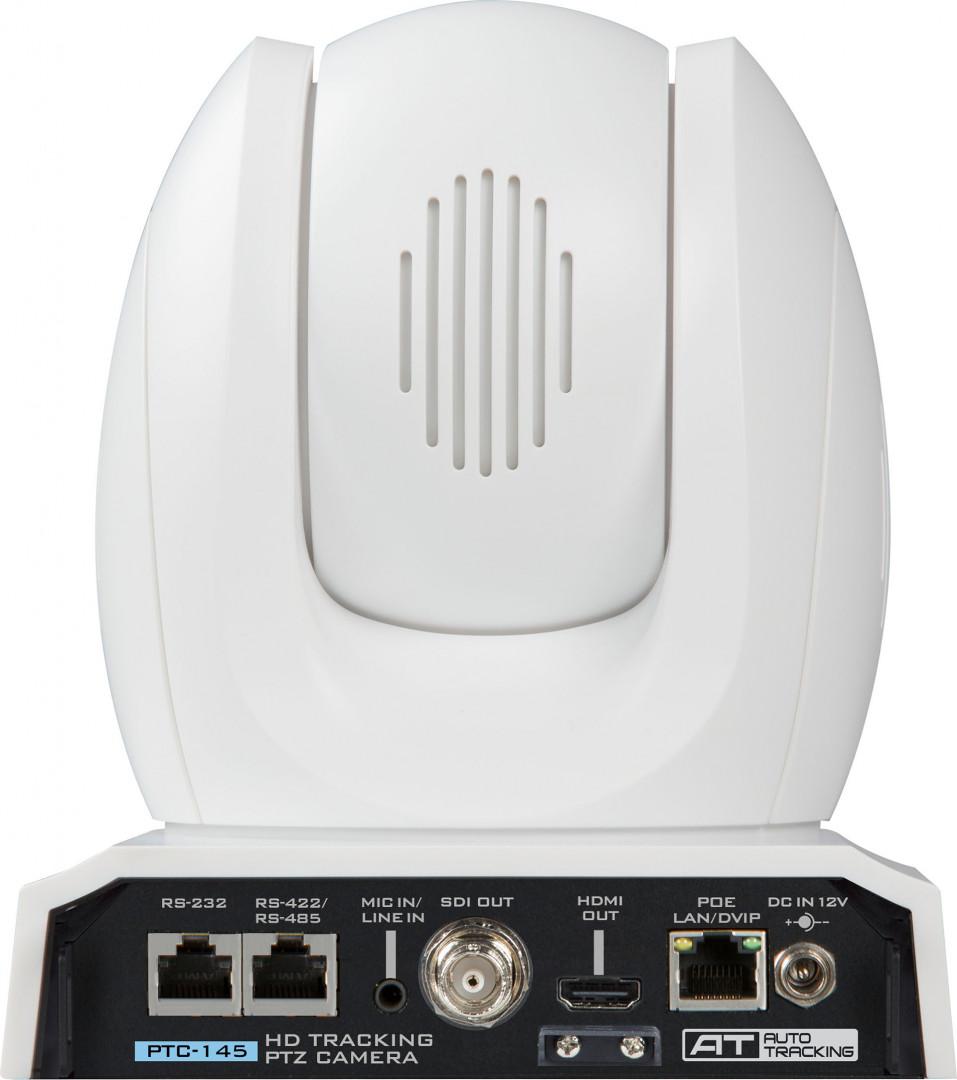

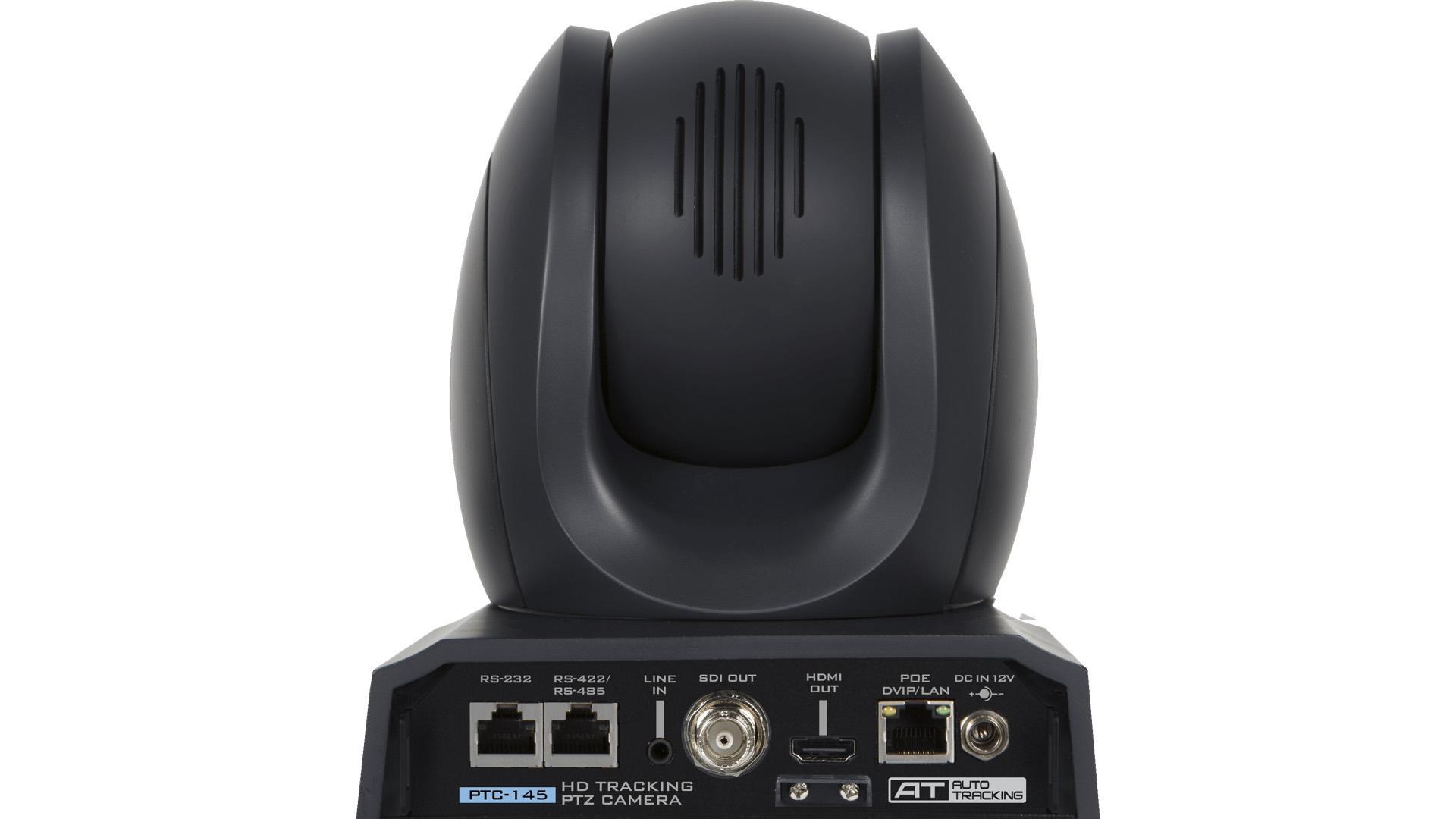

Video Output | HDMI x 1 3G-SDI x 1 RJ-45 PoE x1 |
Audio Input | 3.5mm Line in |
Tally LED | Dual color (Red, Green) |
Lens Filter | M52.0 x 0.75 Thread with UV Protection |
Control Protocol | Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI |
Remote Control Interface | IR Web GUI RS-422/RS-232/RS-485 (RJ45) DVIP NDI |
Video Compression Format | H.264/H.265/MJPEG |
Audio Compression Format | AAC, G711 |
Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
HD IP Interface | 10/100/1000M (RJ45) |
Streaming Protocols | RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p) |
First Stream Supported Resolution | 1920x1080 1280x720 1024x576 960x540 640x480 640x360 |
Second Stream Supported Resolution | 720x480 640x480 640x360 320x240 |
Video Bitrate | 64Kbps ~ 50Mbps |
Video Bitrate Mode | VBR, CBR |
Encoding Frame rate | 50Hz: 1-50fps 60Hz: 1-60fps |
POE | IEEE 802.3af PoE+ |
F/W Update | Via Web UI |
IR Control | Yes |
Camera Control Unit | RMC-2P RMC-180 series/ RMC-300 series/ PTZ View Assist APP |
Tripod Mount | 1/4-20 UNC |
Optional Accessories | WM-1/ WM-10/ WM-11 |
Color | Black/White |
Operating Temp. Range | 0~40 °C |
Power | DC 12V 14W |
