Discover the PTC-145T, a PTZ camera blending stunning Full HD resolution with advanced HDBaseT technology for long-distance, high-quality video transmission. Equipped with a 1/2.8” CMOS sensor, it offers superb image quality, 20x optical zoom, and 8x digital zoom.
This camera supports HDMI, 3G-SDI, and streaming outputs, alongside HDBaseT for versatile connectivity. It features line-in and 3.5mm microphone inputs for superior audio, and one-click AI Tracking for smooth operation without a dedicated operator.
Available in dark blue or white, the PTC-145T is a stylish addition to any setting, perfect for those seeking both visual and technological excellence.
1 x PTC-145T Unit
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket-B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Power Cord
1 x Safety cable
Categories: PTZ Cameras & Solutions
Adopts High-Quality and Reliable Sony CMOS Sensor
Datavideo PTZ cameras utilize high-quality Sony CMOS sensors to deliver exceptional image quality and reliability. Renowned for their performance in various lighting conditions, Sony CMOS sensors are widely used in broadcast, cinematic, and professional video cameras. Additionally, these sensors offer lower power consumption, which leads to reduced heat generation and a longer camera lifespan.
20x Optical Zoom, 8x Digital Zoom
The PTC-145T's 20x optical zoom and 8x digital zoom allows you to mount it near or far and still get great, sharp shots.
Advanced 3D Noise Reduction Function
The PTC-145T supports advanced digital noise reduction technology, which enables it to capture clear and smooth images even in less-than-perfect lighting conditions. This remarkable feature ensures that your footage remains crisp and vibrant, regardless of the lighting challenges you may encounter.
Quick Access to Camera’s Auto Tracking
You will be granted direct access to Auto Tracking via various external controllers such as the supplied RMC-1AT PTZ remote controller and RMC-300A DVIP controller, PTC View Assist App, and the TPC-700, etc. You can choose a suitable controller according to your needs.
In addition to camera controllers, you can also easily enable Auto Tracking on smart switchers, including iCAST mini, SHOWCAST 100, etc
Custom Auto Object Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.
Video format/Resolution | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
Image Sensor | Sony 1/2.8" CMOS |
Effective Pixels (approx.) | 2.07 Mega pixels |
S/N Ratio | ≥50dB |
Min. Illumination | 0.5 Lux @ (F1.8, AGC ON) |
Electronic Shutter | 1/30s ~ 1/10000s |
Zoom Ratio | 20x Optical Zoom, 8x Digital Zoom |
Effective Zoom Ratio | 18.12x |
Gamma Control | N/A |
Iris Control | Auto / Manual |
Digital Noise Reductions | 3D |
On-Screen Display (OSD) | English/Simplified Chinese/Traditional Chinese |
White Balance | Auto, Indoor, Outdoor, Manual, One Push |
AGC / Gain Control | Yes |
HDR/WDR | N/A |
Mirror / Flip Image | Yes |
Focus Mode | Auto / Manual |
Panning / Tilting Range | Pan: 340° , Tilt: +90° to -30° |
Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
Preset | 255 Positions |
Focal Length | f = 5.05mm (wide) to 91.49 mm (tele) F1.8(Wide) ～ F2.9(Tele) |

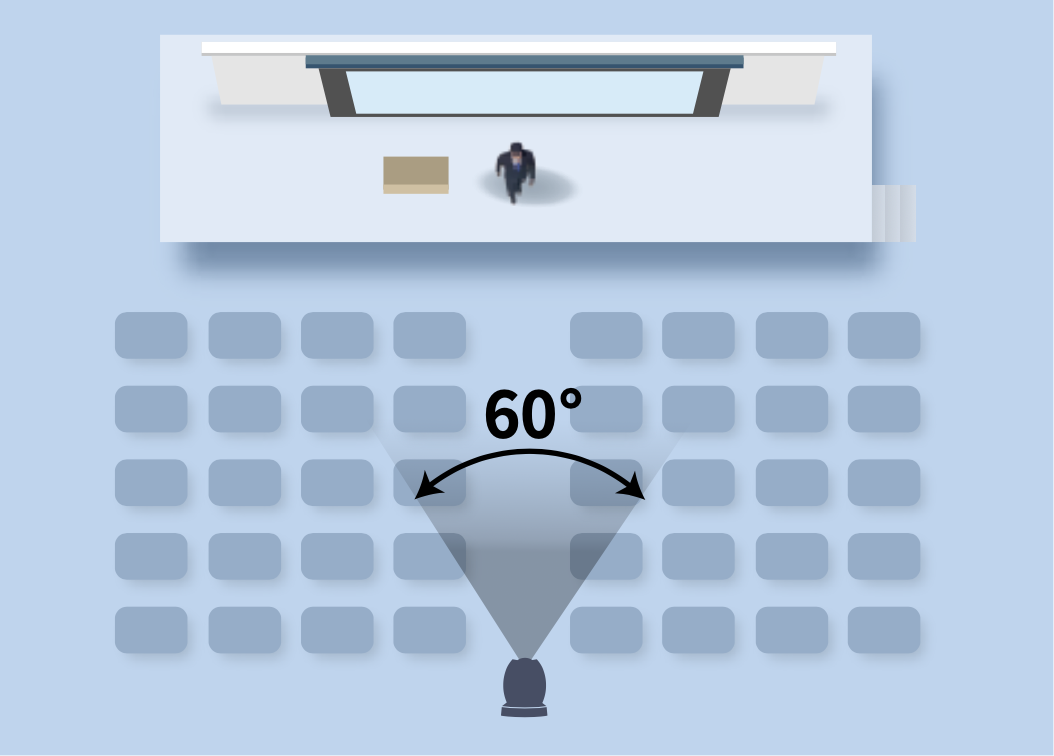

Field of View (Horizontal, Wide) | 60° |
Image Compensation | Backlight Compensation |
Video Output | HDBaseT (PoE) x1 RJ-45 x1 Cable Type: Cat6A Shielded |
Audio Input | 3.5mm Line in |
Tally LED | Dual color (Red, Green) |
Lens Filter | M52.0 x 0.75 Thread with UV Protection |
Control Protocol | Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF |
Remote Control Interface | IR Web GUI RS-422 /RS-232 (RJ45) HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m |
Video Compression Format | H.264/H.265/MJPEG |
Audio Compression Format | AAC, G711 |
Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
HD IP Interface | 10/100/1000M (RJ45) |
Streaming Protocols | RTSP, RTMP(S), ONVIF, SRT(caller & listener), Multicast |
First Stream Supported Resolution | 1920x1080 1280x720 1024x576 960x540 640x480 640x360 |
Second Stream Supported Resolution | 720x480 640x480 640x360 320x240 |
Video Bitrate | 64Kbps ~ 50Mbps |
Video Bitrate Mode | VBR, CBR |
Encoding Frame rate | 50Hz: 1-50fps 60Hz: 1-60fps |
POE | IEEE 802.3af |
F/W Update | Via Web UI |
IR Control | Yes |
Camera Control Unit | HS-1650T/HS-1600T Mark II/RMC-2P/RMC-180 series/RMC-300 series/PTZ View Assist APP |
Tripod Mount | 1/4-20 UNC |
Optional Accessories | WM-1/ WM-10/ WM-11 |
Color | Black/White |
Operating Temp. Range | 0~40 °C |
Power | DC 12V 14W |
