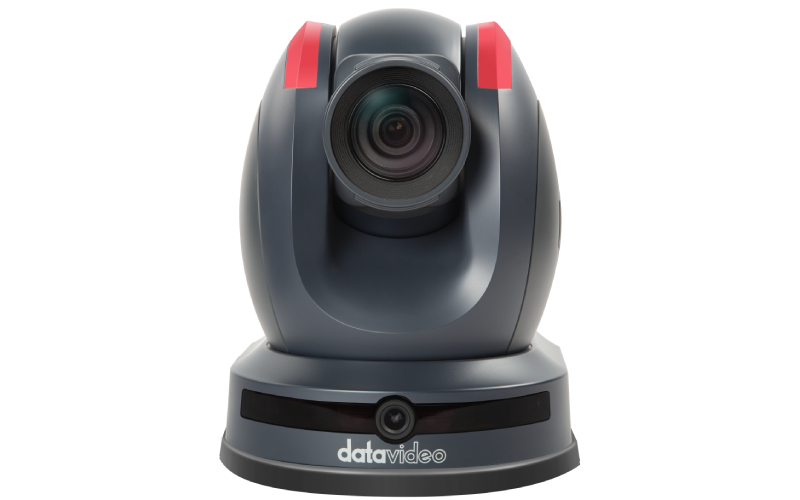

DATAVIDEO PTC-155 SDI/HDMI/UVC/NDI Autotracking PTZ Camera with 30x Optical Zoom
DATAVIDEO PTC-155 SDI/HDMI/UVC/NDI Autotracking PTZ Camera with 30x Optical Zoom
DATAVIDEO PTC-155 SDI/HDMI/UVC/NDI Autotracking PTZ Camera with 30x Optical Zoom
DATAVIDEO PTC-155 SDI/HDMI/UVC/NDI Autotracking PTZ Camera with 30x Optical Zoom

DATAVIDEO PTC-155 SDI/HDMI/UVC/NDI Autotracking PTZ Camera with 30x Optical Zoom

Brand: DATAVIDEO

MFR: PTC-155

SKU: SF-2443-AEM5

5,290.00 ﾹ

1080p60 PTZ Camera with AI Autotracking
Smoothly track presenters in your conference, class, or live performance using the black PTC-155 SDI/HDMI Autotracking PTZ Camera from Datavideo. This camera features remote pan, tilt, and zoom control via IR remote, IP, or serial protocols, an AI autotracking algorithm, SD card recording, and 30x optical and 16x digital zoom.
Simultaneous Outputs
Connect your PTC-155 to multiple devices in your workflow for flexibility. All the outputs are active at the same time, supporting simultaneous HDMI 1.3, NDI HX3, UVC, and 3G-SDI output up to 1080p60.
Quick-Access AI & Object Tracking
  • Setting up AI tracking is available via various external controllers such as the included RMC-1AT remote control and DVIP controllers (RMC-300A, RMC-180 MARK II, and PTC View Assist). In addition to camera controllers, you can also easily enable AI tracking on smart switchers, which include KMU-200, SHOWCAST 100, and others as well as complete solution systems like ZR-1 Smart Classroom.
  • If you are capturing multiple people, you can designate a single person for AI tracking. Once set up on the camera, only the designated person will be tracked, avoiding interferences such as the desks, people crossing back and forth, and large objects.
Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt, and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.
Low Noise in Low Light
Advanced 3D noise-reduction technology is also used to further reduce the noise while ensuring image sharpness.
Streaming and Network Support
The camera supports RTSP and RTMPS protocols, making it easy to stream directly to two different CDN platforms and Datavideo dvCloud. ONVIF Profile S compatibility lets you easily integrate the camera into a network video system.
Power over Ethernet
The PTC-155 supports PoE for easy installation without the need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply connect your PTC-155 to a PoE switch.
Tally Lights
Green and red lights tally to show the preview and program status for broadcast applications.
Wide 86° Field of View
The PTC-155 provides a wide field of view of 54°, easily capturing your entire scene.
IP, NDI HX3, and Serial Control
Control the camera from a variety of controllers that support multiple network protocols, including NDI HX3, Pelco-D, Pelco-P, VISCA, VISCA over IP, and DVIP.
Optical Zoom
This camera features 30x optical zoom and 16x digital zoom for covering your entire presentation space.
Audio Input
Input audio to insert into your output via the mic/line-level 3.5mm stereo audio input.
Power and Mounting Options
The camera is powered by the included power adapter or via PoE, and it includes a ceiling mount bracket kit. You can utilize the separately available WM-1, WM-10, or WM-11 wall mount kits if you prefer to mount the camera on a wall.
Multiple Remote-Control Options
  • The RMC-1AT PTZ remote control can set and control up to four cameras and save presets.
  • The PTZ View Assist camera control app is tailored for monitoring the live streaming video from the PTC-155 and other PTC series cameras. This app can control up to four cameras simultaneously via DVIP; you can intuitively set up and recall the presets, and adjust white balance, focus, and iris.

Items Included

  • Datavideo PTC-155 SDI/HDMI/UVC/NDI Autotracking PTZ Camera with 30x Optical Zoom (Black)
  • RMC-1AT IR Remote Controller
  • Ceiling Mount Bracket Kit
  • 12 VDC Power Adapter
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: PTZ Cameras & Solutions


Key Specs
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.14 Megapixel
Shutter Speed
1/10000 to 1/25 Second
Max Optical Zoom
30x
Max Digital Zoom
16x
Video Output
SDI/BNC / HDMI
1920 x 1080 at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output
NTSC/PAL
Supported Protocols
Camera Control Protocol
DVIP/VISCA/RS-232/RS-422/NDI/Pelco-D/ONVIF/Pelco-P
IP Streaming
H.264/H.265/MJPEG via NDI HX3/ONVIF/RTMP/RTMPS/RTSP/SRT
640 x 360 to 1920 x 1080 up to 60p (Main Stream: 0.03 to 20.00 Mb/s)
320 x 240 to 720 x 480 up to 60p (Sub Stream: 0.03 to 5.0 Mb/s)

Wireless
No
PoE Support
PoE 802.3af
Mounting
1x 1/4"-20 Female
Imaging
Image Sensor
1/2.8"-Type CMOS
Sensor Resolution
Effective: 2.14 Megapixel
Focus Control
Autofocus
Manual Focus
Exposure Control
Shutter Speed
1/10000 to 1/25 Second
Signal-to-Noise Ratio
50 dB
Minimum Illumination
0.5 Lux
Flip / Mirror Support
Image Flip, Mirror (Vertical)
White Balance
Presets: Auto, Manual, One Push
Lens
Focal Length
5.5 to 150.43mm
Max Optical Zoom
30x
Max Digital Zoom
16x
Field of View
Horizontal: 86 to 54°
Maximum Aperture
f/1.66 to 4.99
Video Capture
Video Output
SDI/BNC / HDMI
1920 x 1080 at 25/29.97/30.00/50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Audio Recording
AAC Audio
G.711 Audio
96 kHz
128 kHz
Broadcast Output
NTSC/PAL
Supported Protocols
Camera Control Protocol
DVIP/VISCA/RS-232/RS-422/NDI/Pelco-D/ONVIF/Pelco-P
IP Streaming
H.264/H.265/MJPEG via NDI HX3/ONVIF/RTMP/RTMPS/RTSP/SRT
640 x 360 to 1920 x 1080 up to 60p (Main Stream: 0.03 to 20.00 Mb/s)
320 x 240 to 720 x 480 up to 60p (Sub Stream: 0.03 to 5.0 Mb/s)
Control
Presets
255
Pan/Tilt
Pan: 300° at 0.1 to 60°/s
Tilt: 145° (-15 to 130°) at 0.1 to 30°/s
Tally Light
Yes
Networking
Wireless
No
Interface
Media/Memory Card Slot
Single Slot: microSD (Unspecified Type)

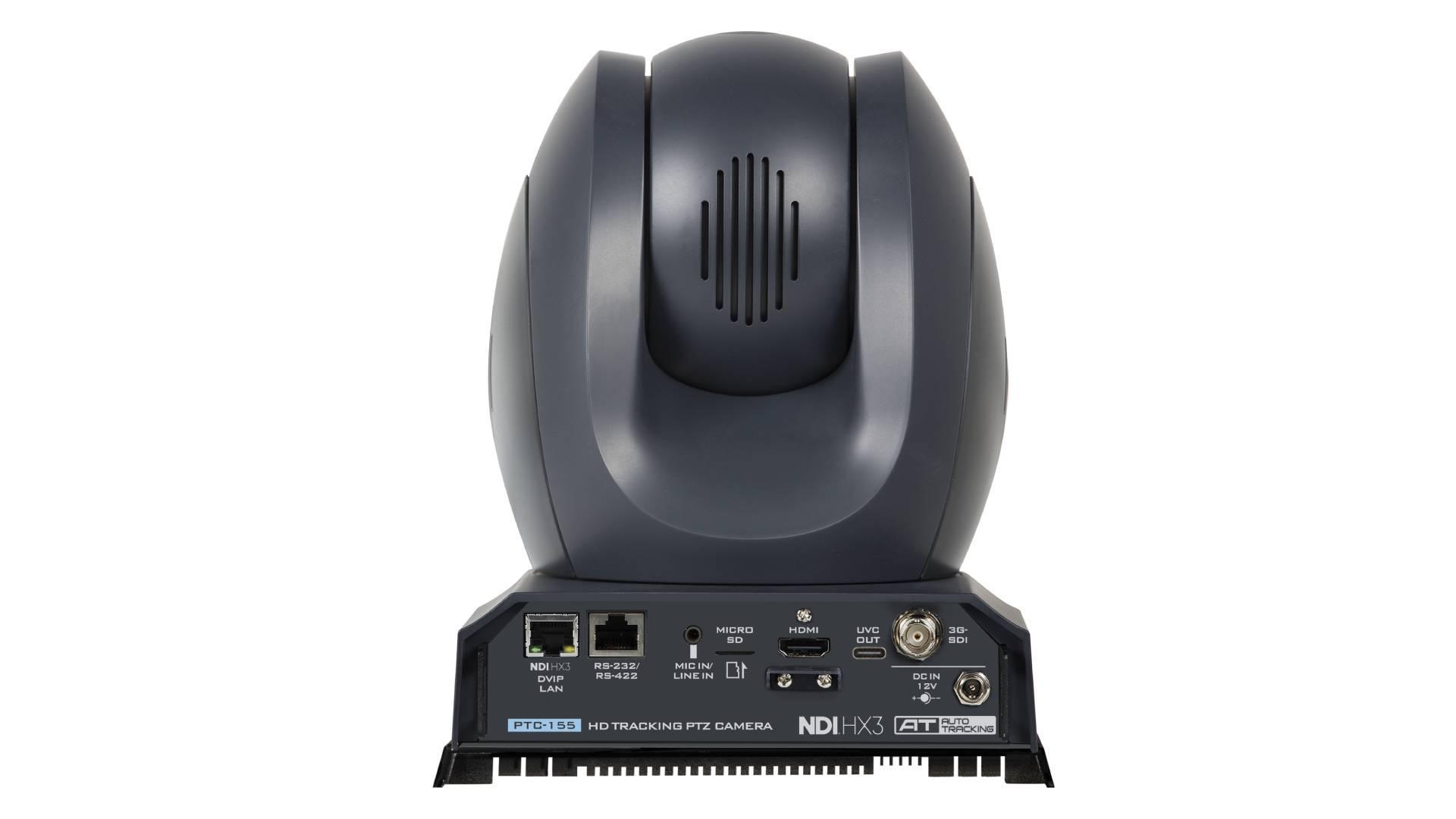

Video I/O
1x USB-C 3.0 / 3.1/3.2 Gen 1 Output
1x HDMI 1.3 Output
1x BNC (3G-SDI) Output
1x RJ45 (NDI) Output
Audio I/O
1x 1/8" / 3.5 mm TRRS Headphone/Mic Mic/Line Input
Other I/O
1x RJ45 (RS-232, RS-422)
1x RJ45 (DVIP, LAN) Control (Shared with Video Output)
Built-In Microphone
No
Built-In Speaker
No
Power
PoE Support
PoE 802.3af
Power I/O
1x Barrel (12VDC)
Power Consumption
19 W
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C
Impact Resistance
No
General
Mounting
1x 1/4"-20 Female
Dimensions (W x H x D)
7.2 x 9 x 7.6" / 184 x 228 x 194 mm
Weight
6.0 lb / 2.7 kg (Body Only)

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • Datavideo PTC-155 SDI/HDMI/UVC/NDI Autotracking PTZ Camera with 30x Optical Zoom (Black)
  • RMC-1AT IR Remote Controller
  • Ceiling Mount Bracket Kit
  • 12 VDC Power Adapter
