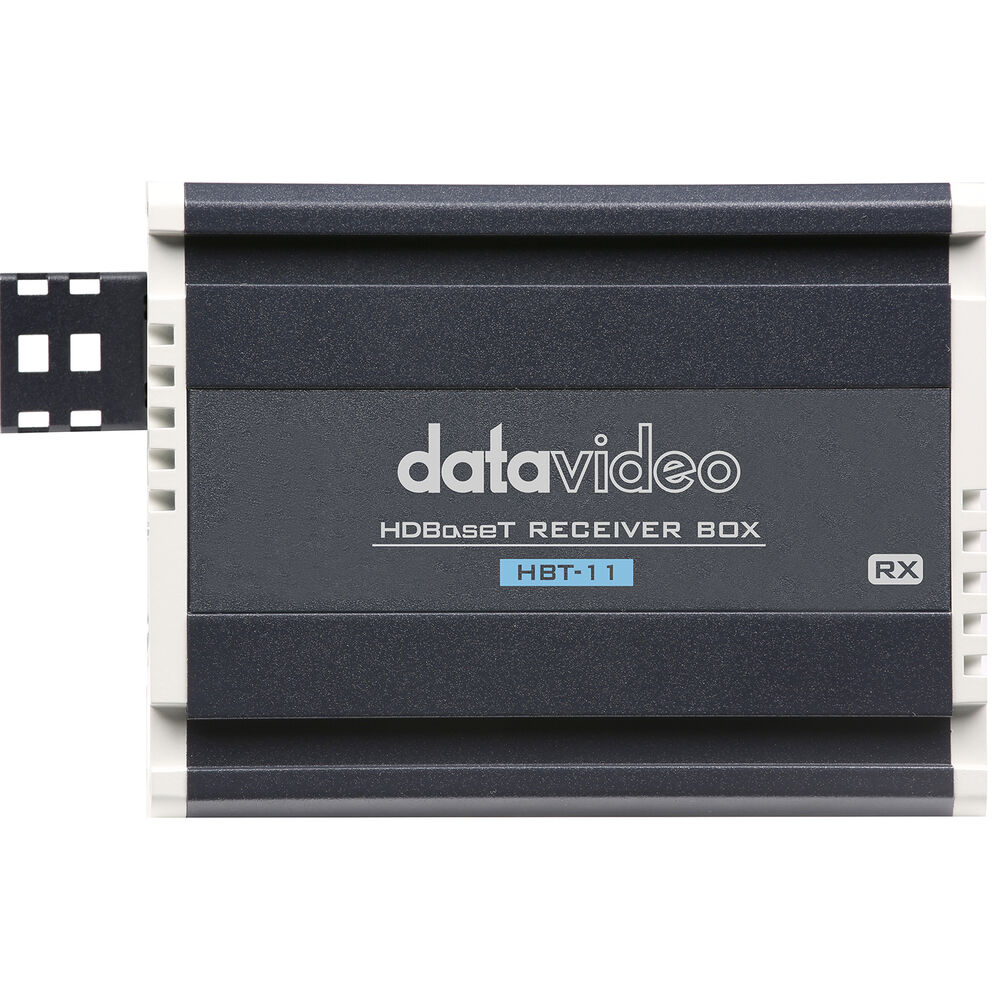

Use the HDBaseT to HDMI Receiver from Datavideo to convert an incoming HDBaseT signal from a PTZ camera and output to HDMI to connect it to a display or projector. The receiver supports up to 1080p video from up to 328' away over Cat 7 or 6 cable, and it also supports up to UHD 4K video from the optional HBT-10 transmitter from a shorter distance away.

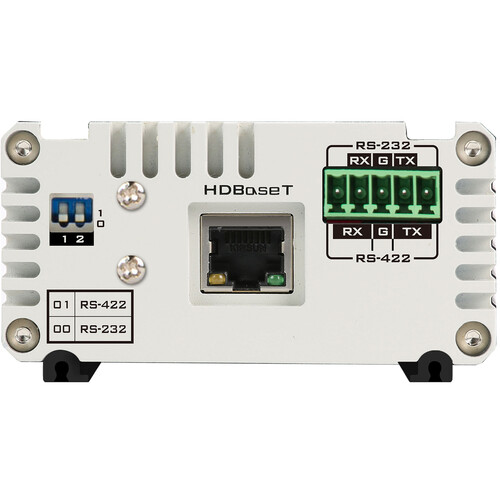

The receiver can pass through DVIP control as well as RS-232 and RS-422 serial control using its serial terminal block interface. A power adapter and power cable comes in the box as well as a terminal block to RJ45 adapter for serial control extension. The receiver also supports PoE/PoH (Power-over-Ethernet/HDBaseT) and is compatible with select Datavideo PTZ cameras to provide power over the Cat 7 or 6 cable.
PoE PTZ Camera Compatibility
To provide power over HDBaseT to PTC-140T and PTC-150T
Interfaces

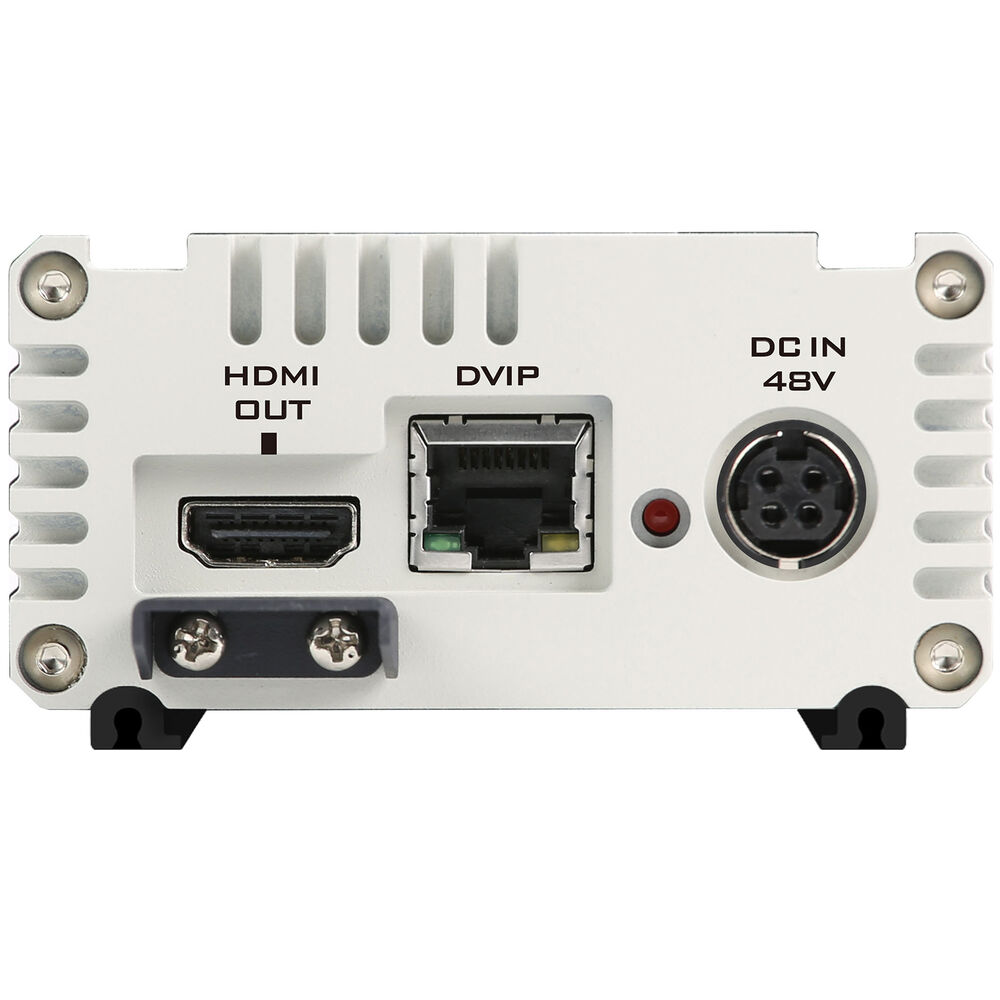

| Inputs | 1 x RJ45 (HDBaseT) Female |
| Outputs | 1 x HDMI Female |
| Embedded Audio Output | HDMI |
| Other I/O | 1 x RJ45 Input/Output |
Standards
| HDCP Support | None |
| EDID Support | None |
Transmission
| Max Transmission Distance | 1080p: 328.1' / 100 m (via Cat 5e/6/6a/7) |
| Video Format | HDMI Output UHD 4K 1080p RJ45 UHD 4K 1080p |
| Supported Cable Types | Cat 5e/6/6a/6e/7 |
Power
| Power Connector | 1 x Mini-DIN 4-Pin (48 VDC) Input |
| PoE Support | PoH 802.3at |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
General
| Certifications | CE, FCC *as per Manufacturer |
| Dimensions | 5.2 x 3.3 x 1.8" / 132 x 85 x 45 mm |
| Weight | 14.1 oz / 400 g |
Packaging Info
| Package Weight | 2.095 lb |
| Box Dimensions (LxWxH) | 8.3 x 5.9 x 3.2" |
