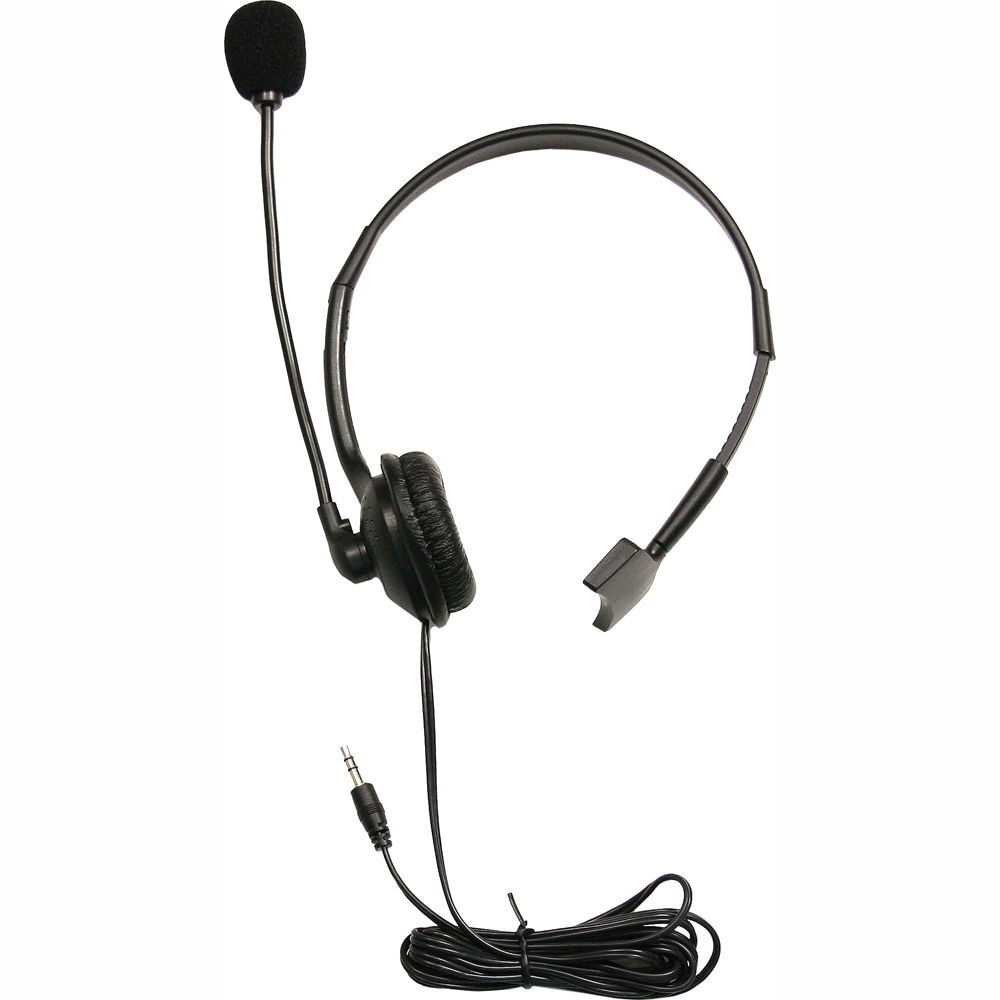

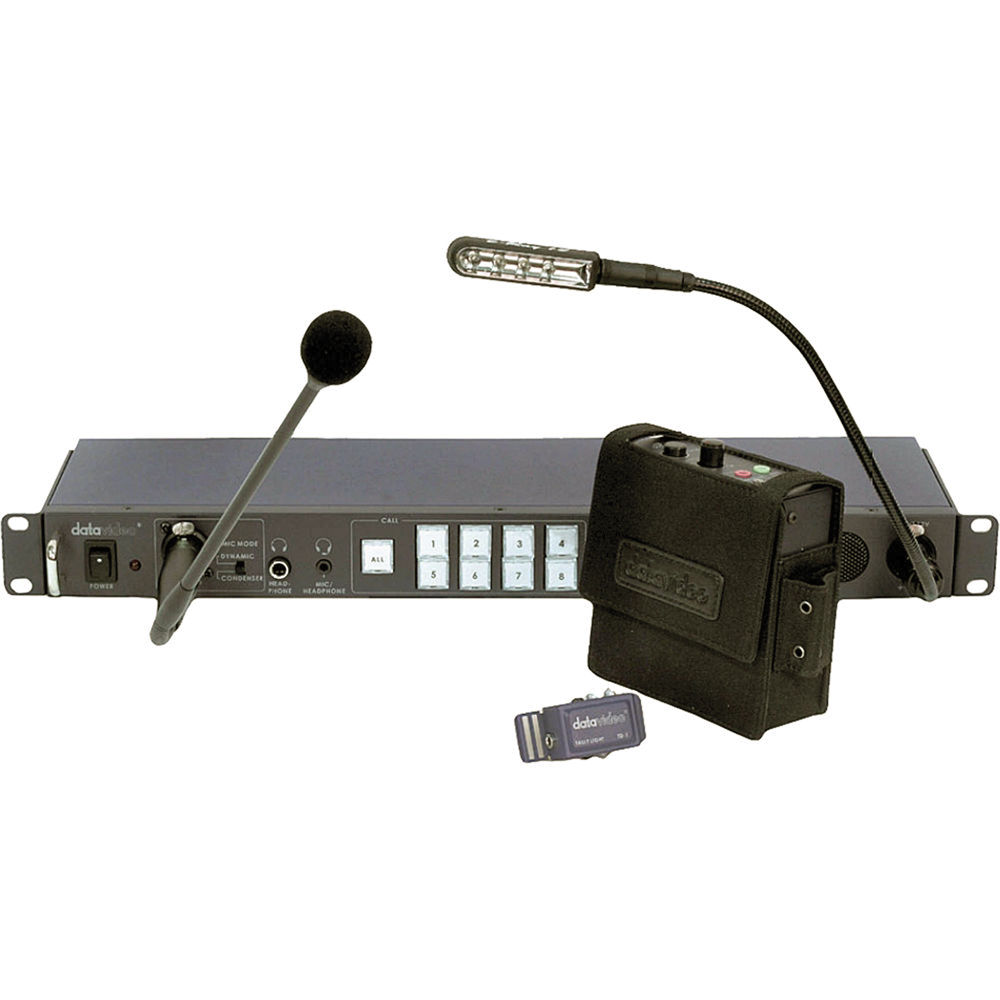

One of the innovative features of the rack-mountable ITC-100 8-User Wired Intercom System with 4 Beltbacks & 4 Headsets from Datavideo is that it can use headsets ranging from low-cost cell phone headsets to high-quality professional units.

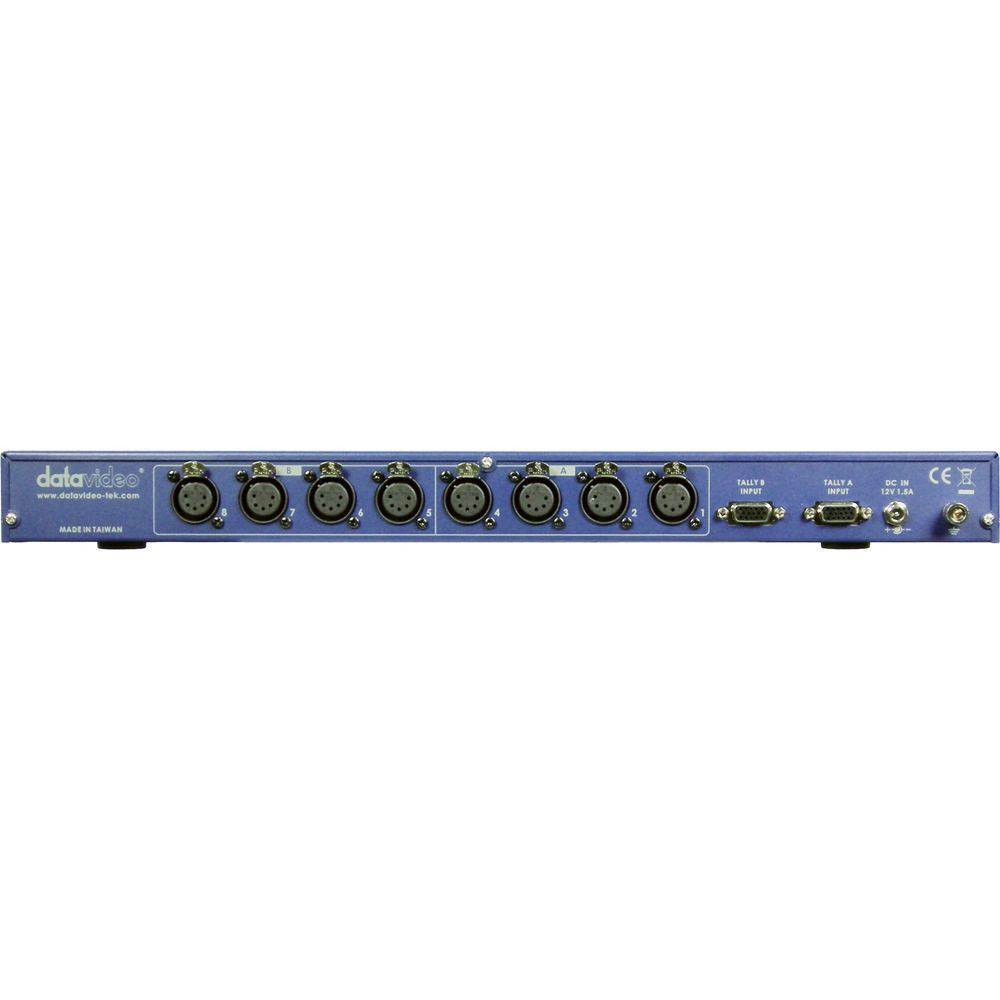

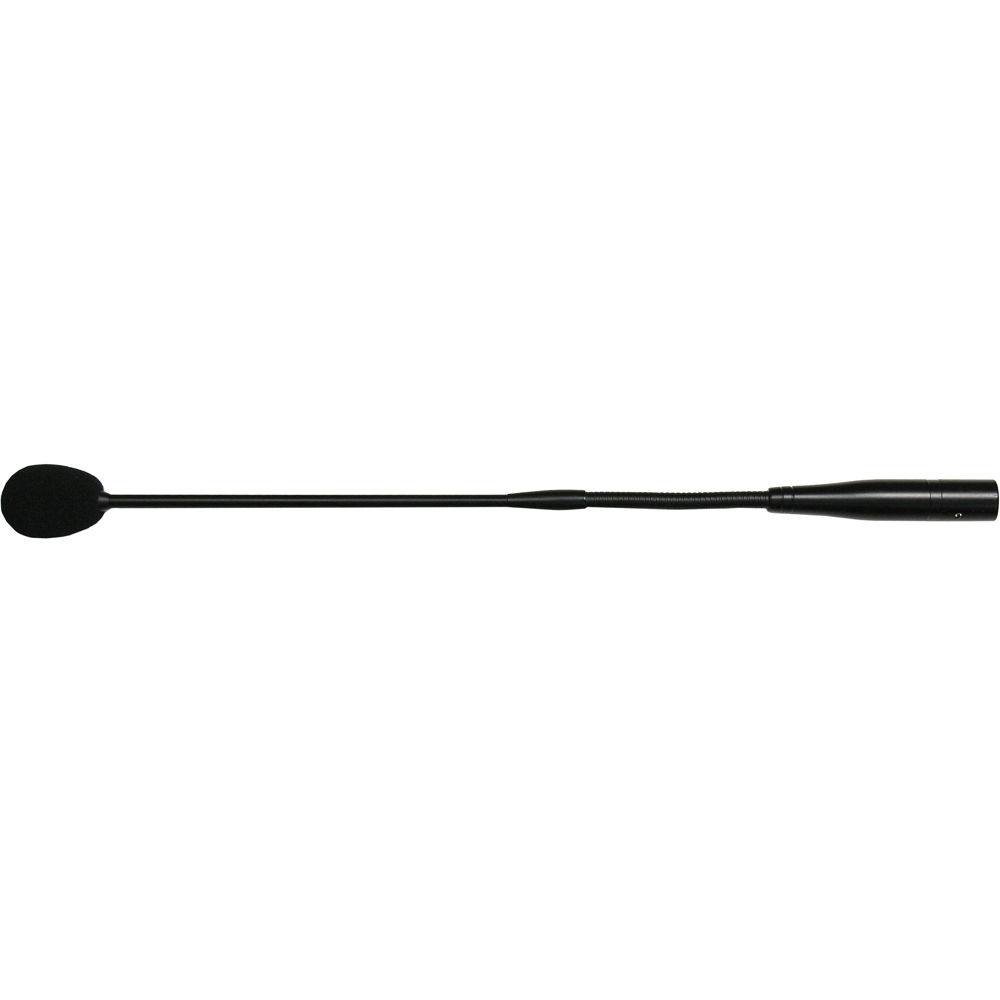

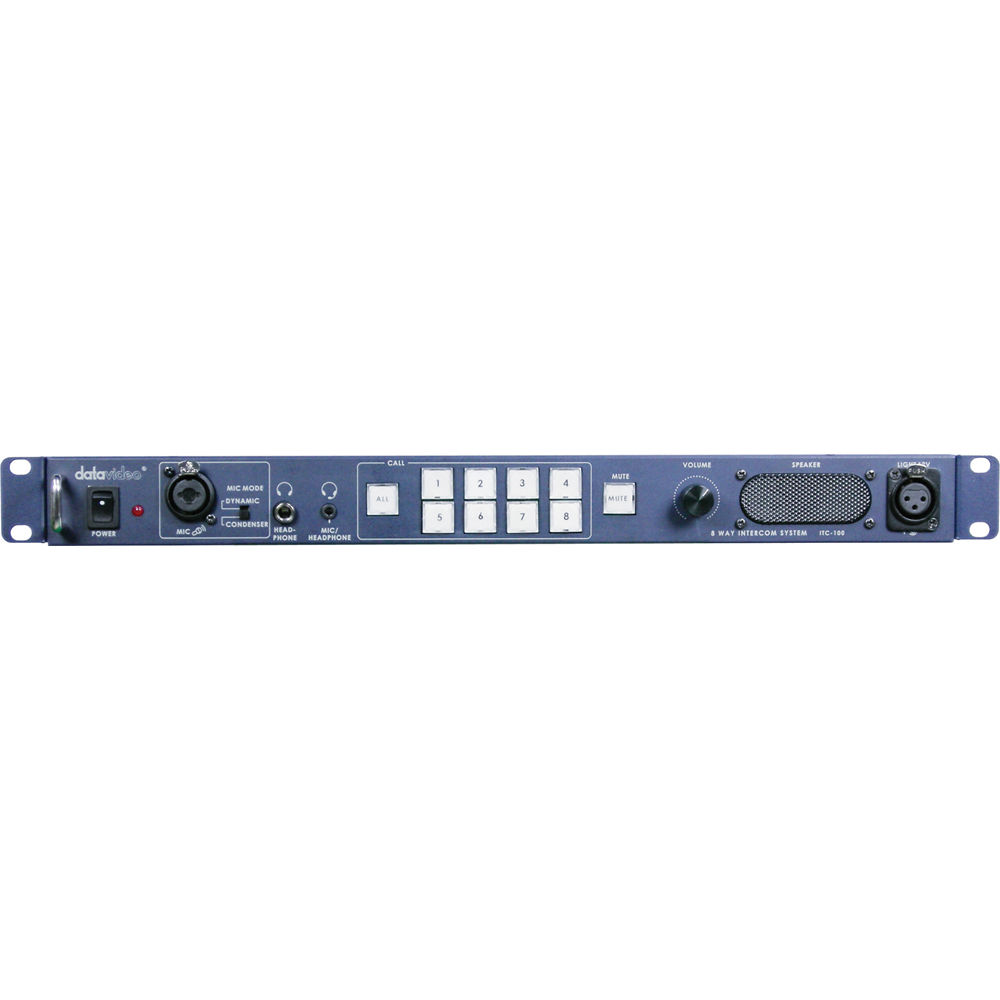

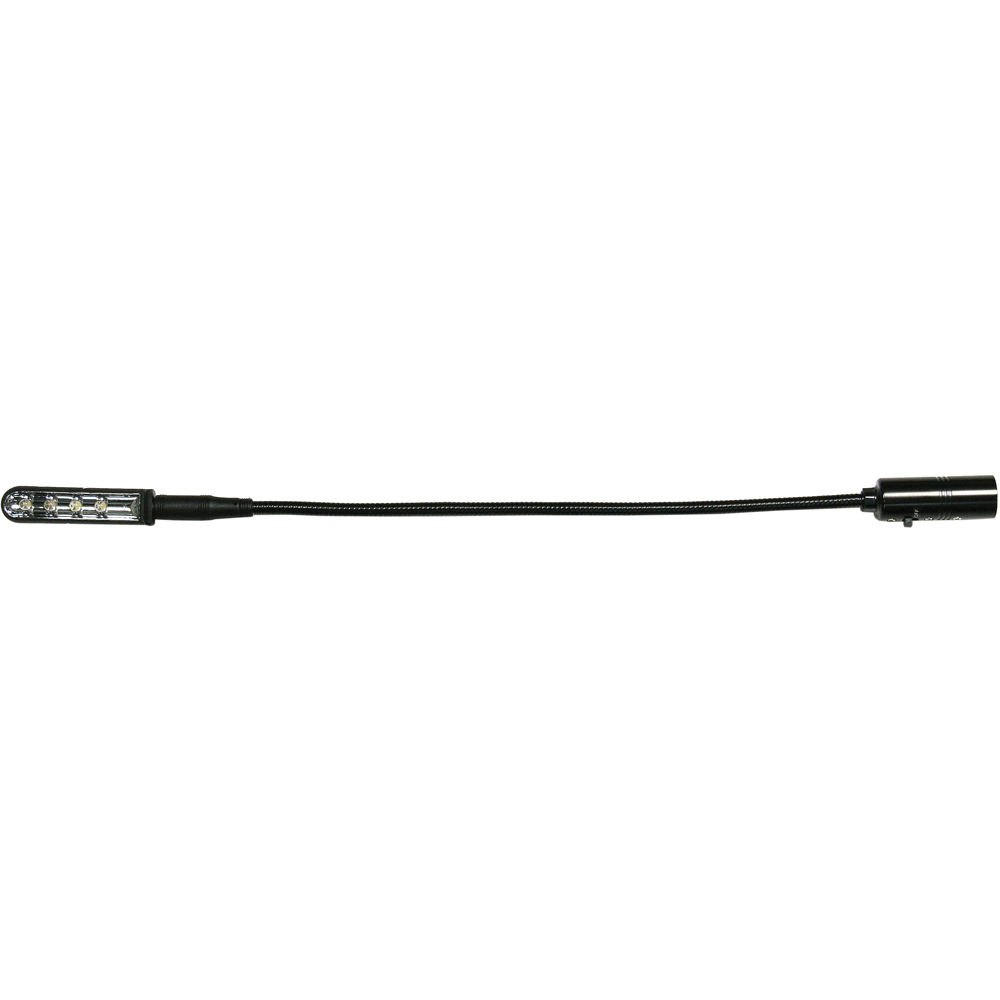

Up to 8 users can be connected to the ITC-100 via PTT wired beltpacks. Four beltpacks, four headsets, four cables and a tally light set are all included. Cables for connecting the beltpacks may be up to 984 ft long, and use 5-pin XLR connectors. The base station features all call and mute buttons, a mic input, built-in speaker, and standard headphone jacks.
| Frequency Response | 550 Hz - 3.6 kHz <±3 dB |
| Total Harmonic Distortion (THD) | <3% |
| Signal to Noise Ratio | >50 dB |
| Operating Range | Up to 660' (200 m) Between Base Station and Slave |

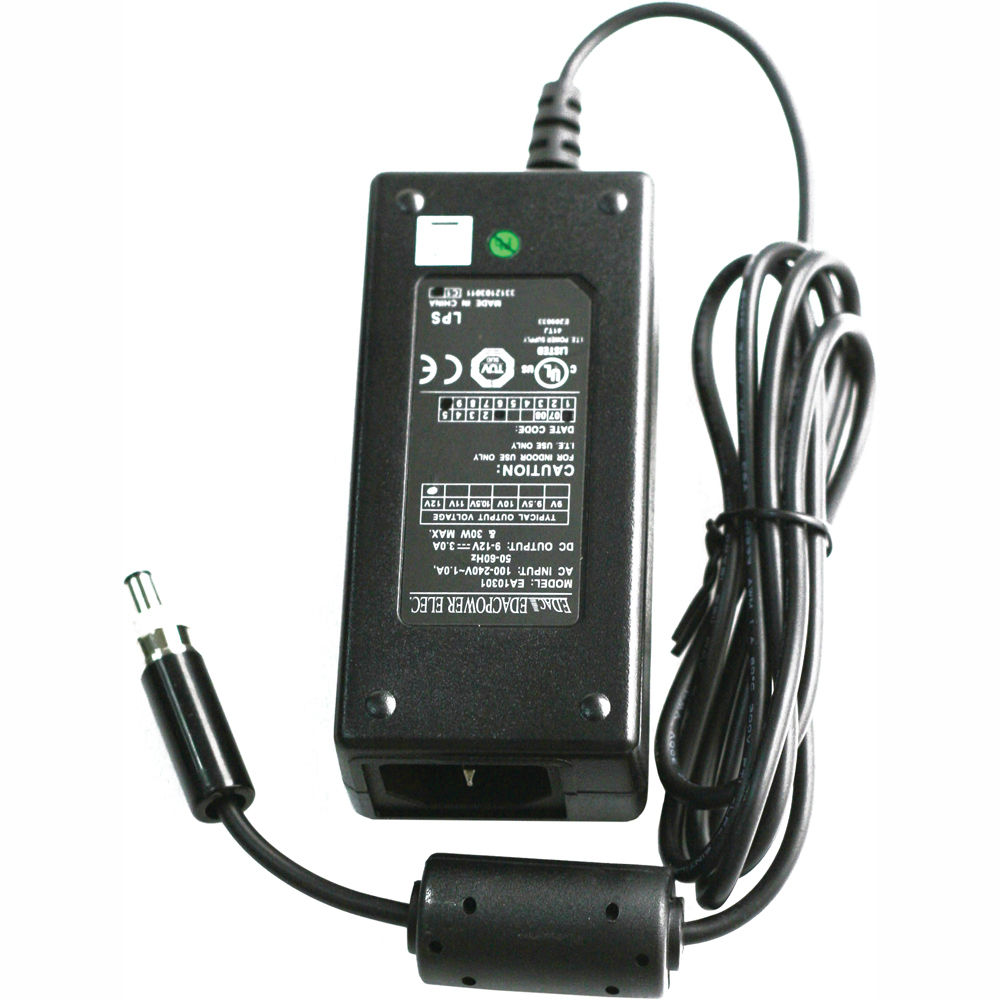

| Connectors | 1 x 12 V 1.5A Power Input 2 x 15-Pin Sub-D Tally Connectors 1 x 3.5mm Stereo Headphone/Mic Combo Jack 1 x 1/4" Stereo Headphone Jack 1 x 3-Pin XLR Light Socket 1 x XLR/TRS Combo Mic Input |
| Speaker | 2.75 x 1.2" (70 x 30 mm) (3 W, 32 Ohms) |
| Operating Temperature | 41 to 104° (5 to 40°C) |
| Dimensions | 1 RU |
| Weight | 4.2 lbs (1.9 kg) |
Packaging Info
| Package Weight | 23 lb |
| Box Dimensions (LxWxH) | 20.5 x 15 x 8.5" |
