DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)

DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)

Brand: DZOFILM

MFR: DZO-X1828ACS

SKU: SF-2443-WCHG

19,037.00 ﾹ   22,396.00 ﾹ

  • Full Frame | T8 Maximum Aperture
  • Detachable 0 and 360° Probe Zoom
  • 0.8 MOD FIZ Gears, 300° Focus Rotation
  • 2.1:1 Image Magnification
  • Versatile 73 to 100° Angle of View
  • Minimum Focus: 0.24", 16.3" Length
  • <1.2" Front Outside Diameter
  • ED and HRI Elements Reduce Aberrations
  • Waterproof, Dustproof, and Anti-Fog
  • Focus in Meters, Includes Hard Case

Items Included

  • DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)
  • 0° Tube
  • 360° Tube
  • 15mm Follow Focus Rod with Brackets
  • Front Cap
  • Rear Cap
  • Large O-Ring Quick Release Clamp (1.8")
  • 2 x Small O-Ring Quick Release Clamp (1.2")
  • 2 x Shim Set
  • UV Filter (#1)
  • UV Filter (#2)

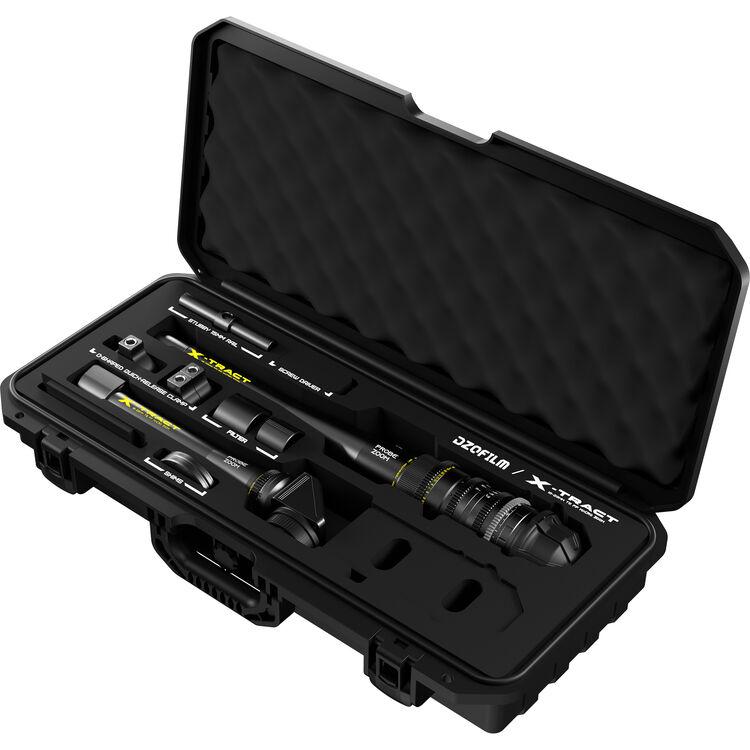

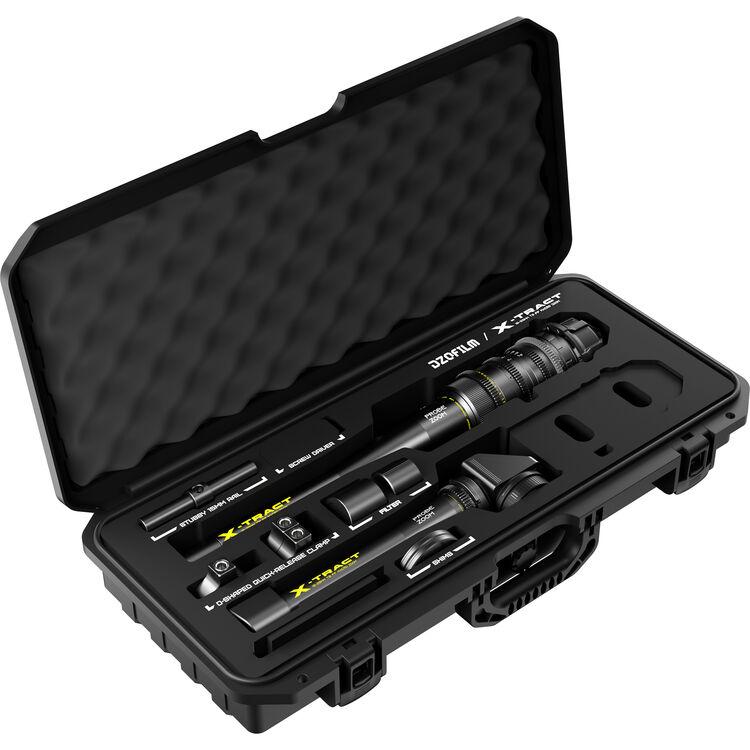

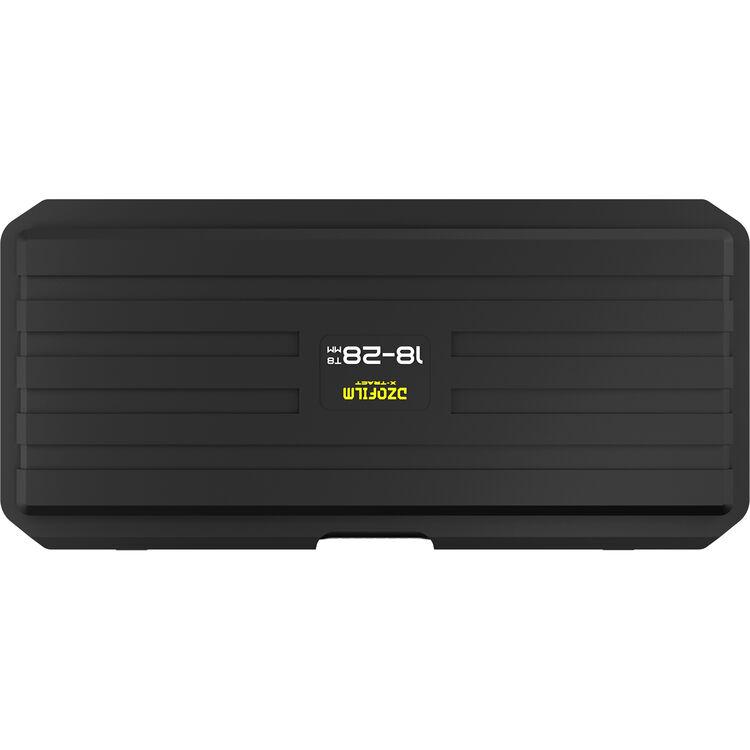

  • Hard Case with Foam Inlay
Not in stock - Order now and we'll deliver when available - Normally ships in 2-3 weeks or less
Quantity

Categories: Lenses & Lens Accessories

Detachable 0 and 360° Probe Zoom
Offering a 100 to 73° field of view, the ARRI PL-mount, X-Tract 18-28mm T8 FF Detachable Probe Zoom from DZOFilm brings innovative close-up capture to your productions. This compact probe lens includes detachable 0 and 360° tubes for increased flexibility. It measures just 16.3" in length and has a front outside diameter of less than 1.2", making it ideal for tight setups. It features a relatively fast T8 maximum aperture, a 2.1:1 maximum magnification, and a 0.24" minimum focusing distance.
Wide 18-28mm Zoom
  • This 18-28mm zoom offers an ultrawide to more midrange reach, covering most common focal lengths.
  • The wide 100 to 73° field of view supports flexible capture.
0 and 360° View Tubes
  • This probe includes detachable 0 and 360° options that provide the most creative positioning.
  • A rotating ring enables even greater flexibility.
Close Capture in Narrow Spaces
  • Craft creative shots using a maximum magnification ratio of 2.1:1.
  • The extremely close minimum focusing distance of around 0.24" lets you get super tight coverage of your subject.
  • The large depth of field and wide-angle focal length combine to enable close-ups in constricted areas while maintaining a safe distance from your subject.
Low-Distortion, High-Resolution Optics
  • The optical design has both ED (extra-low dispersion) and high-refractive index elements, suppressing chromatic and spherical aberrations.
  • Advanced coatings help minimize flaring and reflections.
  • Incorporates seven HRI (high-refractive-index) lens elements, producing a more natural color.
  • ±2% distortion control across the zoom range.
T8 Maximum Aperture
  • The relatively fast T8 maximum aperture is maintained throughout the zoom range.
  • Multilayer, antireflective coatings help ensure sharp, clear images even when shooting wide open.
Waterproof, Cine-Style Design
  • Focus, iris, and zoom functions all have 0.8 MOD cine-style gears for compatibility with follow focus and lens motor systems.
  • A lightweight yet rear-heavy design helps reduce vibrations while shooting.
  • The focus barrel offers a wide 300° rotation for precise focus pulls.
  • Waterproof and dustproof, this probe lens is also scratch and fog resistant.
  • Focus distances are marked in meters.

Add your review

Your email address will not be published. Required fields are marked *

Please login to write review!

Upload photos

Looks like there are no reviews yet.

Items Included

  • DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric)
  • 0° Tube
  • 360° Tube
  • 15mm Follow Focus Rod with Brackets
  • Front Cap
  • Rear Cap
  • Large O-Ring Quick Release Clamp (1.8")
  • 2 x Small O-Ring Quick Release Clamp (1.2")
  • 2 x Shim Set
  • UV Filter (#1)
  • UV Filter (#2)
  • Hard Case with Foam Inlay
