G-ka Camate 150 Motion Control Robotic Arm System

Brand: G-ka

MFR: GK-Cam150-Arm

SKU: SF-2443-QNEB

190,250.00 ᄍ

  • Six-axis robotic motion control system
  • 13kg maximum camera payload
  • 0.03mm positioning repeatability
  • Linear movement speed up to 8.5m/s
  • Multiple control options including teach pendant, Robot Studio software, and manual drag programming
  • Lightweight split construction for easy transportation by SUV
  • High-strength Dolly base compatible with standard 620mm gauge tracks
  • Supports upright, side-mounted, and inverted installation configurations
  • Optional lens focus and zoom control integration
  • Compatible with virtual production workflows
  • Supports FreeD data output and Genlock synchronization
  • Expandable with CNC tracks and turntables
  • Suitable for studio and on-location productions

Items Included


  1. Drag-type 6-axis robotic arm
  2. Dedicated interface box
  3. Hoisting pan-tilt
  4. Touchscreen teach pendant
  5. Teach pendant support stand
  6. Power adapter
  7. Foldable Dolly cart
  8. Supporting column
  9. Support rod
  10. Support foot
  11. Robot Studio software
(In Stock)
Quantity

G-ka Camate150 Motion Control Mini Robotic Camera Arm | 6-Axis | 12kg Payload

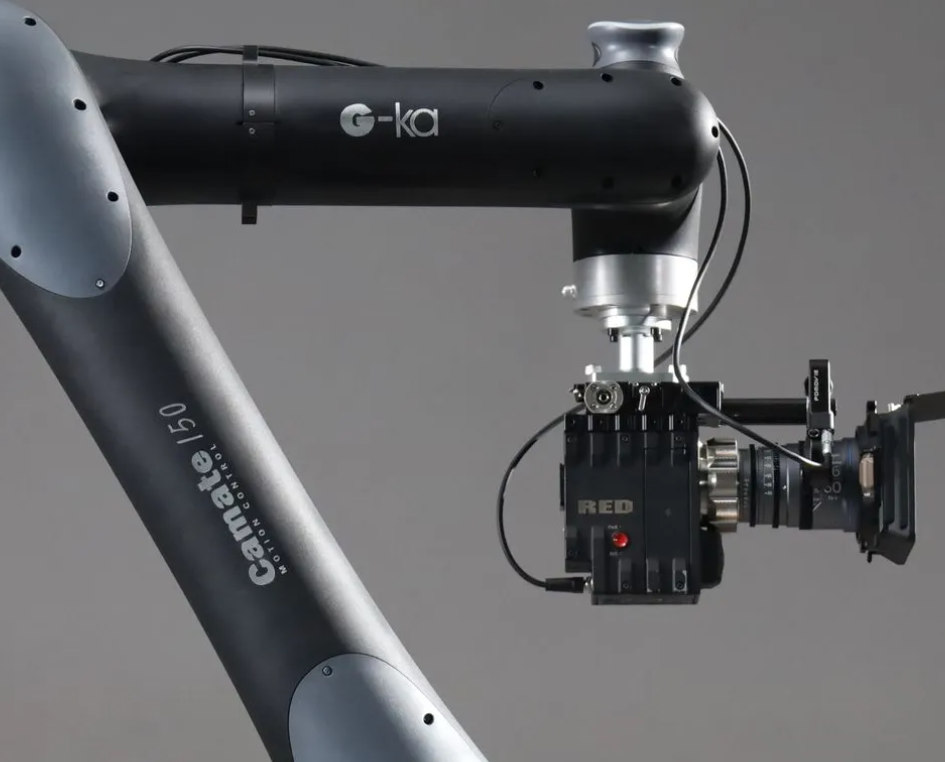

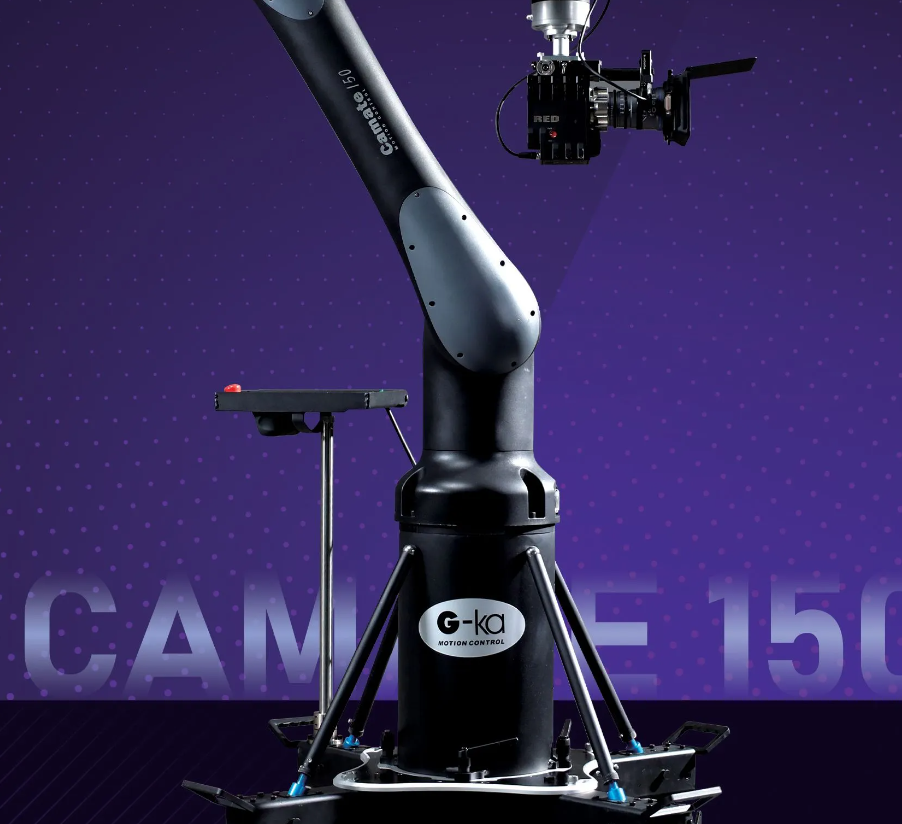

The G-ka Camate150 Motion Control Mini Robotic Camera Arm is a lightweight, portable six-axis cinematic robotics system engineered for filmmakers, content creators, studios, virtual production workflows, and commercial productions. Featuring a maximum payload of 12kg, a 1,440mm arm reach, and support for teach pendant, Robot Studio software, and manual drag programming, the Camate150 delivers accurate and repeatable camera movements while maintaining exceptional portability. Compatible with standard 620mm track systems and optional virtual production accessories, it provides a flexible platform for professional motion-control cinematography.

AttributeValue
BrandG1
ModelG1-12
SKUG1-12-MCR-6AXIS
Product TypeRobotic Camera Motion Control Rig

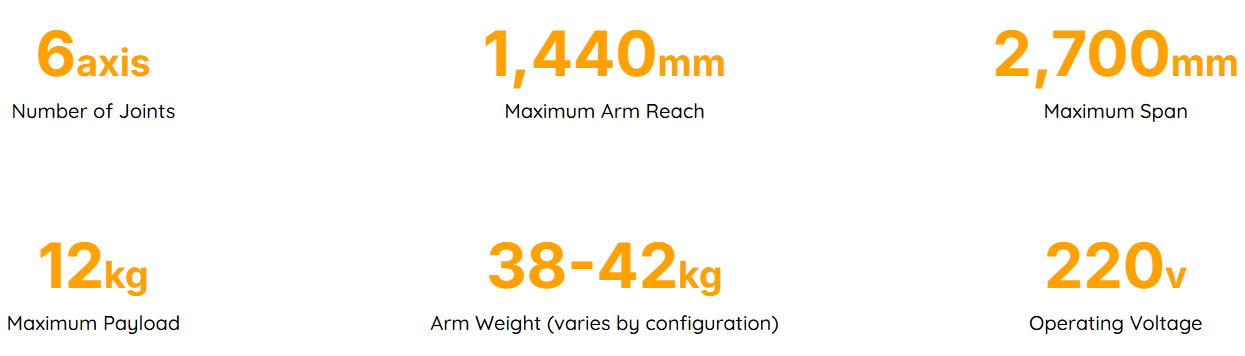

Number of Axes6
Maximum Payload12 kg
Maximum Arm Reach1,440 mm
Maximum Span2,700 mm
Operating Voltage220 V
Arm Weight38-42 kg (Configuration Dependent)
ApplicationFilm Production, TV Commercials, VFX, Virtual Production, Product Videos
ConditionNew
