Categories: Studio & Broadcast , Studio & EFP Equipment
The medium-sized arm span, high-speed capabilities, and versatile functions make the G-ka Motion Control ideal for film, television dramas, web dramas, TVCs, MVs, and educational settings. It is particularly well-suited for equipment companies, niche production companies (e.g., culinary), television stations, and film schools.

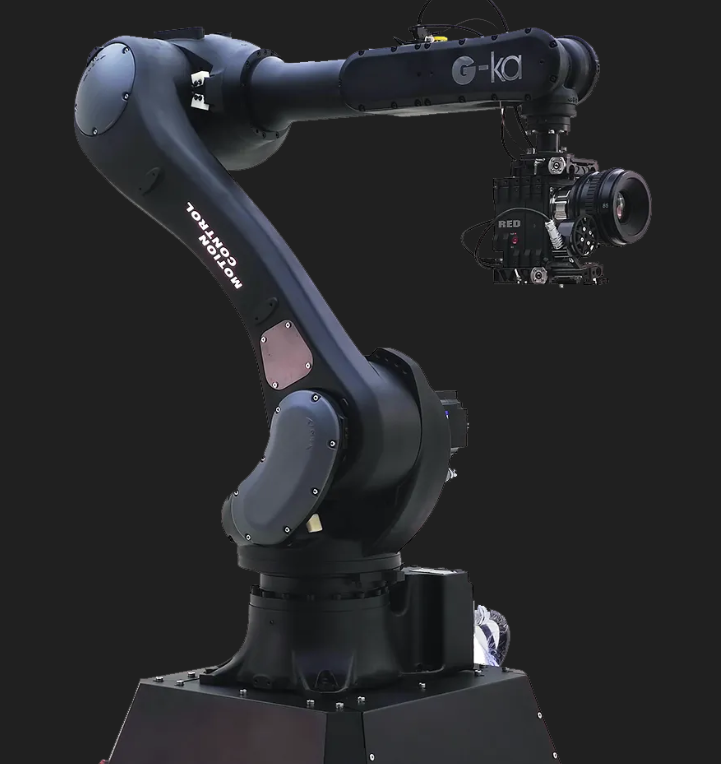

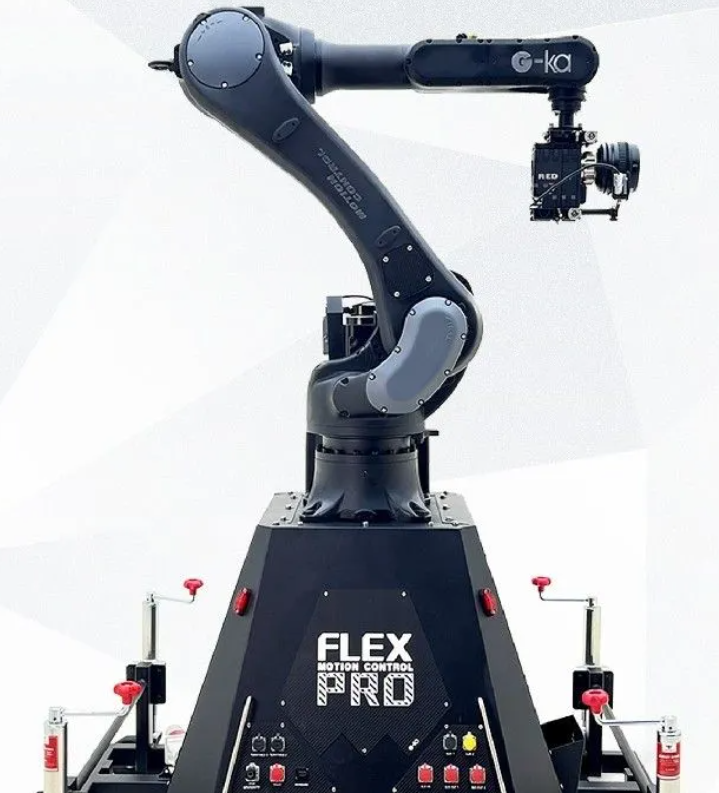

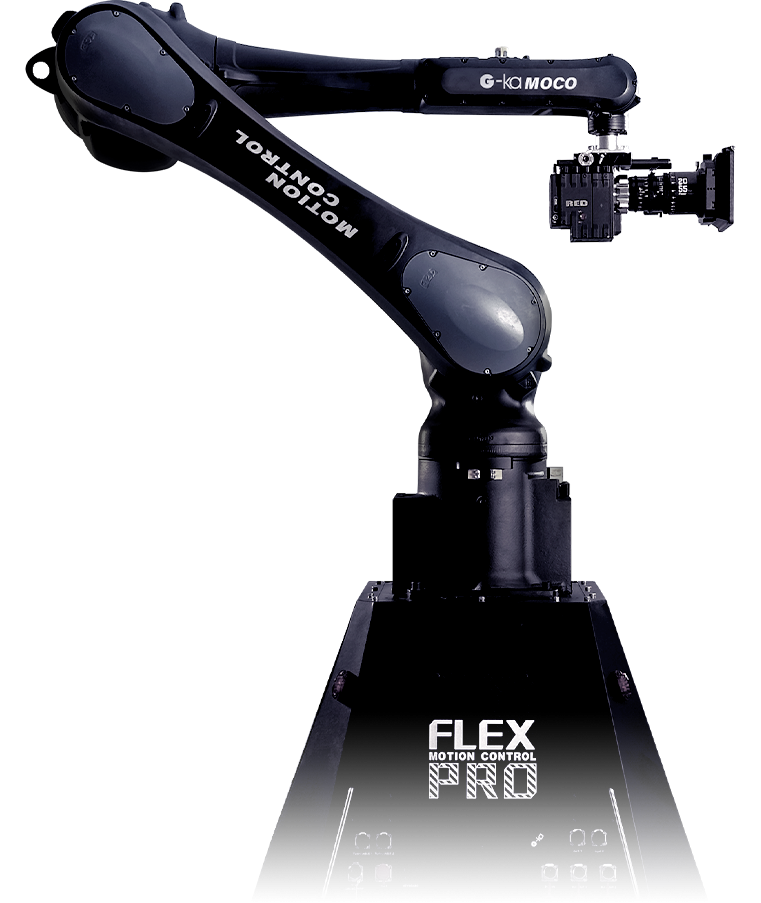

Design of suspended pan tilt
Standard Film Industry Interface
Rich collaboration interfaces

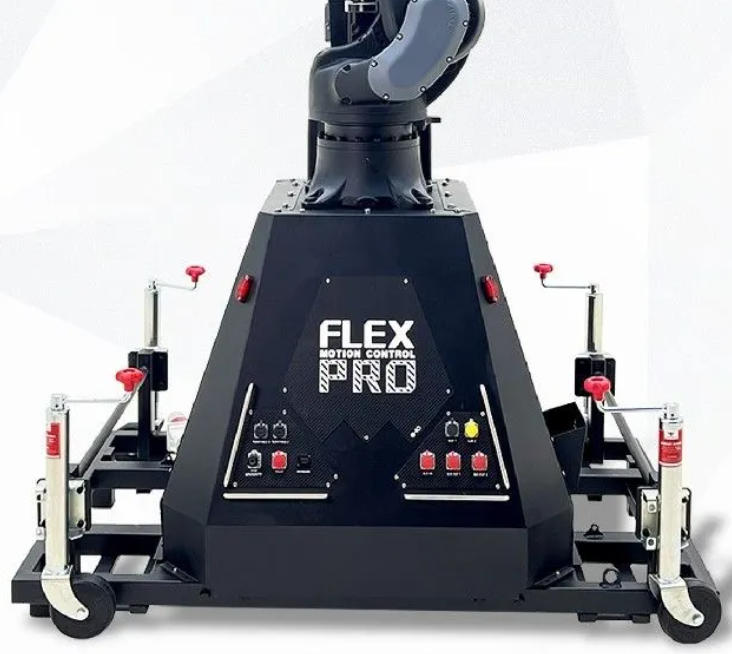

Diamond shaped multi-dimensional structure base
Embedded terminal block
External storage box

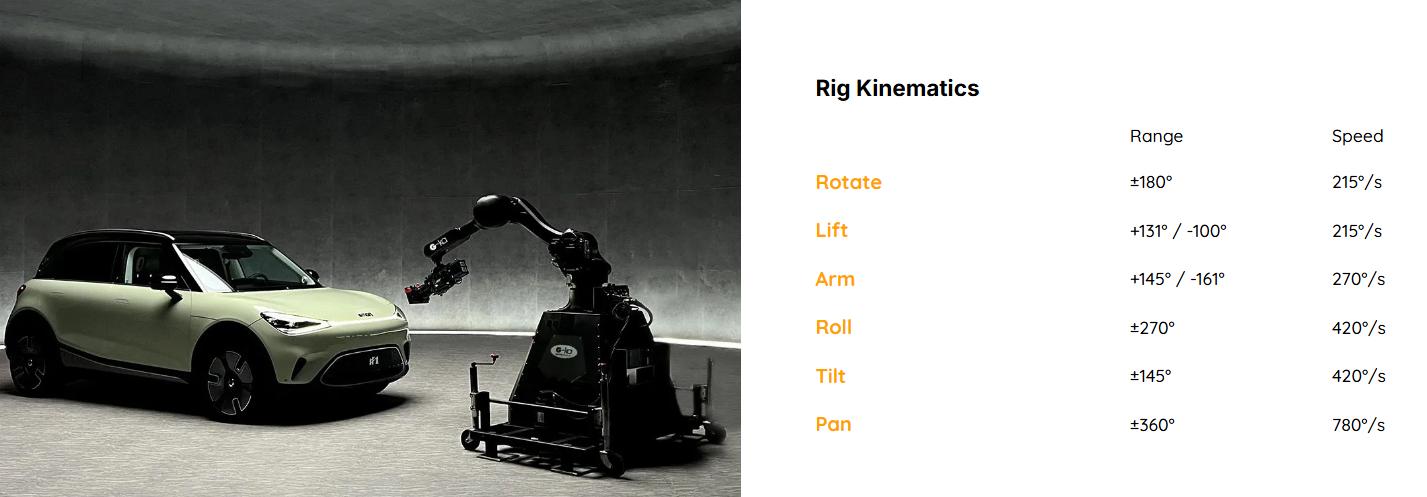

| Axis | Range | Speed |
|---|---|---|
| Rotate | ±180° | 215°/s |
| Lift | +131° / -100° | 215°/s |
| Arm | +145° / -161° | 270°/s |
| Roll | ±270° | 420°/s |
| Tilt | ±145° | 420°/s |
| Pan | ±360° | 780°/s |

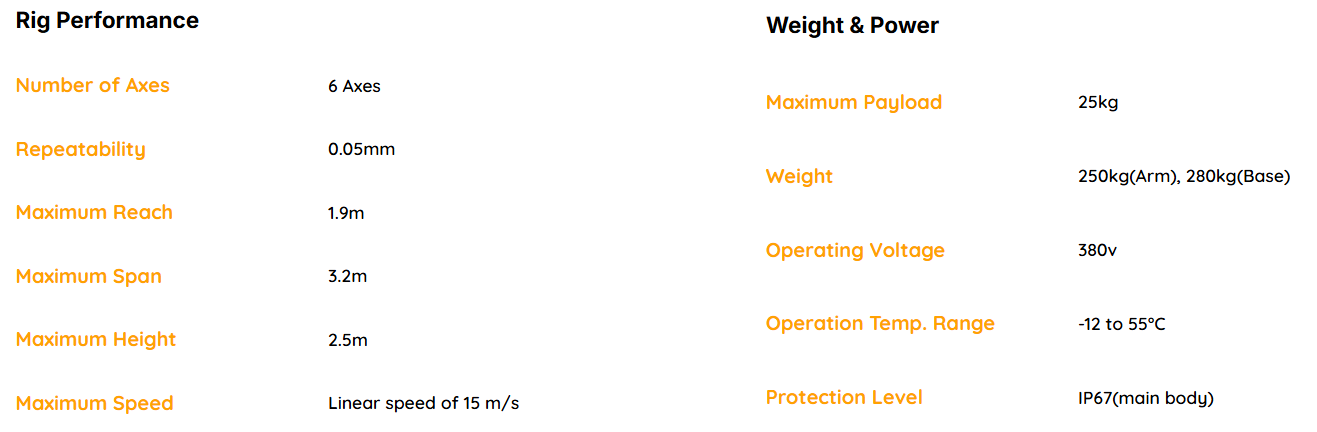

| Category | Specification |
|---|---|
| Number of Axes | 6 Axes |
| Repeatability | 0.05 mm |
| Maximum Reach | 1.9 m |
| Maximum Span | 3.2 m |
| Maximum Height | 2.5 m |
| Maximum Speed | Linear Speed of 15 m/s |
| Maximum Payload | 25 kg |
| Arm Weight | 250 kg |
| Base Weight | 280 kg |
| Operating Voltage | 380 V |
| Operating Temperature Range | -12°C to 55°C |
| Protection Rating | IP67 (Main Body) |
